Use of artificial intelligence for the detection of Helicobacter pylori infection from upper gastrointestinal endoscopy images: an updated systematic review and meta-analysis

Om Parkash^a, Abhishek Lal^a, Tushar Subash^b, Ujala Sultan^b, Hasan Nawaz Tahir^c, Zahra Hoodbhoy^d, Shiyam Sundar^c, Jai Kumar Das^d

The Aga Khan University, Karachi, Pakistan

^aSection of Gastroenterology, Department of Medicine (Om Parkash, Abhishek Lal, Tushar); ^bMedical College (Subash, Ujala Sultan); ^cDepartment of Community Health Sciences (Hasan Nawaz Tahir, Shiyam Sundar); ^dDepartment of Paediatrics and Child Health (Zahra Hoodbhoy, Jai Kumar Das), The Aga Khan University, Karachi, Pakistan

Correspondence to: Om Parkash, The Aga Khan University, Faculty Office Building, National Stadium Road, The Aga Khan University, Karachi, 75500 Pakistan, e-mail: om.parkash@aku.edu

Received 22 April 2024; accepted 11 July 2024; published online 20 October 2024

DOI: https://doi.org/10.20524/aog.2024.0913

Abstract

Background Helicobacter pylori (H. pylori) infection is associated with various gastrointestinal diseases and may lead to gastric cancer. Currently, endoscopy is the gold standard modality used for diagnosing H. pylori infection, but it lacks objective indicators and requires expert interpretation. In the past few years, the use of artificial intelligence (AI) for diagnosing gastrointestinal pathologies has increased tremendously and may improve the diagnostic accuracy of endoscopy for H. pylori infection. This study aimed to evaluate the diagnostic accuracy of AI algorithms for detecting H. pylori infection using endoscopic images.

Methods Three investigators searched the PubMed, CINHAL and Cochrane databases for studies that compared AI algorithms with endoscopic histopathology for diagnosing H. pylori infection using endoscopic images. We assessed the methodological quality of studies using the QUADAS-2 tool and performed a meta-analysis to estimate the pooled sensitivity, specificity, and accuracy of AI for detecting H. pylori infection.

Results A total of 11 studies were identified that met our inclusion criteria. All were conducted in different countries based in Asia. Our meta-analysis showed that AI had high sensitivity (0.93, 95% confidence interval [CI] 0.90-0.95), specificity (0.92, 95%CI 0.89-0.94), and accuracy (0.92, 95%CI 0.90-0.94) for detecting H. pylori infection using endoscopic images. However, there was also high heterogeneity among the studies (Tau²=0.87, I²=76.10% for generalized effect size; Tau²=1.53, I²=80.72% for sensitivity; Tau²=0.57, I²=70.86% for specificity).

Conclusion This systematic review and meta-analysis showed that AI had high diagnostic accuracy for detecting H. pylori infection using endoscopic images.

Keywords Artificial intelligence, deep learning, machine learning, Helicobacter pylori, endoscopy

Ann Gastroenterol 2024; 37 (6): 665-673

Introduction

Helicobacter pylori (H. pylori) infection is among the most common gastrointestinal pathologies and affects more than half of the global population [1]. H. pylori is associated with various gastrointestinal diseases, such as peptic ulcer disease, gastritis, mucosa-associated lymphoid tissue (MALT) lymphoma, and gastric adenocarcinoma [2]. If left untreated, H. pylori infection can lead to gastric metaplasia, chronic gastric atrophy, and gastric carcinomas. According to the International Agency for Cancer Research, H. pylori has been categorized as a class 1 carcinogen [3]. Hence, the eradication of H. pylori holds vital significance in terms of mitigating the risk of gastric cancer. However, the diagnosis of H. pylori infection is challenging, as it requires invasive or noninvasive methods that have limitations in terms of accuracy, cost, availability, and patient compliance.

Invasive methods include biopsy and a urease test, which involve taking tissue samples from the stomach and testing them for the presence of H. pylori or its urease enzyme. These methods are considered the gold standard for the diagnosis of H. pylori infection, but they are expensive, time-consuming, and may cause complications such as bleeding and perforation [4]. Endoscopy involves visual inspection of the gastric mucosal lesions in doubt, during which biopsy samples are taken and undergo histopathological analysis for definitive diagnosis. Endoscopic features associated with H. pylori infection include erythema, atrophy, mucosal folds, ulcerations, and nodularity [5]. Noninvasive methods include serology and urea breath test, which detect the antibodies or the urea metabolites of H. pylori in the patients’ blood or breath samples. These methods are simple, convenient and widely available, but they have drawbacks that include low specificity, cross-reactivity, and inability to distinguish between current and past infection.

Endoscopic features used to identify potential cases of H. pylori infection lack objective indicators, with possible variance in terms of interobserver and intraobserver reliability for visual inspection of endoscopic images. Expert gastroenterologists and hepatologists may accurately recognize endoscopic images for H. pylori infection; however, amateur specialists need a considerable amount of time to execute this task precisely. Moreover, there are no uniform features associated with the detection of H. pylori infection, and hence no established modalities for diagnosing H. pylori infection through endoscopic examination [6]. The final diagnosis of the lesions is based on a histopathological analysis of the biopsy sample. To overcome such challenges, there has been a recent surge in interest in utilizing artificial intelligence (AI).

Recently, AI has emerged as a promising tool to assist endoscopists in the detection and characterization of gastrointestinal lesions. AI can analyze endoscopic images using deep learning algorithms that can learn from large datasets and perform tasks such as classification, segmentation and localization. AI-based image analysis has shown promise in terms of its diagnostic capacities, including the evaluation of endoscopic images for the detection of H. pylori infection. As a result, its use in patients suspected of suffering from such infection has increased.

Several studies have reported the application of AI for the detection of H. pylori infection from upper gastrointestinal endoscopy images using various modalities, such as white-light endoscopy, narrow-band imaging, and magnifying endoscopy [7,8]. These studies have shown that AI can achieve high accuracy and sensitivity in identifying H. pylori infection from endoscopic images, and can also differentiate between active and inactive infection. Moreover, these studies have demonstrated that AI can reduce interobserver variability and improve endoscopists’ diagnostic confidence. Keeping this in mind, this systematic review and meta-analysis aimed to evaluate the accuracy of AI in the diagnosis of H. pylori infection using endoscopic images. The findings of this research could have a significant impact on the diagnosis and treatment of H. pylori infection.

Material and methods

This systematic review has been registered with PROSPERO (CRD42023437688). We followed the Preferred Reporting Items for Systematic Review and Meta-Analysis (PRISMA) guidelines for diagnostic test accuracy for reporting in this study [9].

Eligibility criteria and search strategy

In this systematic review, we included all observational studies that aimed to detect H. pylori infection based on upper gastrointestinal endoscopy utilizing AI algorithms, compared to a reference standard (specialist opinion, and laboratory investigations). For the literature search, no restrictions were applied to the type of algorithms used, or the age at which H. pylori infection was diagnosed. Studies that diagnosed gastrointestinal pathologies other than H. pylori infection, or were published in languages other than English, were excluded from this review. Review studies, letters to the editor, conference proceedings, scientific reports and opinions were also excluded, as were studies conducted on animal or non-human subjects.

We used PubMed, CINHAL, and Cochrane as databases for our literature search, to identify articles published up to August 2023. The search terms used were “Artificial Intelligence”, “Algorithms, “Machine Learning”, “Deep Learning”, Supervised Machine Learning, “Unsupervised Machine Learning”, “Helicobacter Pylori”, “H. Pylori”, “Endoscopy”, “Gastro*”, “Peptic Ulcer”, “Cancer”, “Carcinoma”, “Endoscopy”, “Diagnosis”, “Sensitivity”, “Specificity”, “Accuracy”, and “Area Under Curve”. The complete search strategy used is available in the supplementary section. The initial list of articles was imported to EndNote and duplicates were removed.

Screening and data extraction

Three authors (AL, TS, and US) independently screened the search results for their titles and abstracts to assess their potential eligibility in this review. Full texts of the articles were then reviewed by the 3 authors to ensure the selection of the articles relevant to this review. The bibliographies and citations of the included studies were also reviewed to include any further studies that might have been missed during the electronic search. The entire screening process was performed independently by the 3 authors and conflicts were resolved by the fourth and fifth authors (HNT and OP).

After the final screening process, data from the included studies were entered into a preformed data extraction form in MS Word. The data entered included title, name of journal, country of publication, study design, study setting, sample size, patient characteristics, type of AI algorithms, reference standard used, data analysis, and performance metrics (specificity, sensitivity, and accuracy), validation of the model, and subgroups if mentioned. We included studies in this review where the types of AI systems and training data were mentioned.

Risk of bias assessment

The risk of bias was assessed by 3 authors (AL, TS, and SS) independently using Quality Assessment of Diagnostic Accuracy Studies-2 (QUADAS-2), which evaluates 4 domains: patient selection, index test, reference standard, and flow and timing. Each domain is rated as low risk, high risk, or unclear risk of bias or applicability concern. Any discrepancy between the reviewers was resolved by discussion or consultation with a fourth reviewer (OP).

Statistical analysis

When possible, we constructed 2×2 contingency tables, with values such as true positive, false positive, true negative and false negative, and used them to calculate sensitivity, specificity and accuracy. Data from all the included studies were entered into STATA (version 17.0) software, where we constructed forest plots and receiver operating characteristic (ROC) curves, using the sensitivity, specificity and accuracy of the studies. The subgroup analyses were conducted based on the Quality of Study, Study Format, Number of Patients, Published Year, and Type of AI.

Results

Our search strategy yielded an initial count of 4118 research papers returned by title/abstract searches. Of these 4118 articles, 127 duplicates were removed and a further 3991 research papers were excluded. A total of 11 studies were included in this systematic review and meta-analysis, as presented in Fig. 1.

Figure 1 PRISMA flowchart

Of the 11 studies [7,8,10-18], 6 were retrospective cohort studies [8,11,13,15,17,18], 4 were prospective cohort studies [7,10,14,16], and 1 study was a clinical trial [12] (Table 1). Most of the studies were from high-income countries, mainly Japan (n=6), followed by China (n=2), Malaysia (n=1), Korea (n=1), and Taiwan (n=1). All of the included studies performed a diagnostic analysis of AI’s accuracy in detecting H. pylori infection using endoscopic images (n=11). The results of the AI-based diagnostic models were compared with histopathological analysis via biopsy.

Table 1 Summary of characteristics of studies included (n=11)

Methodological quality of studies

Of the 11 studies included in the final analysis, 10 studies showed a low risk of bias; however, 1 study was found to have a high risk of bias (Fig. 2).

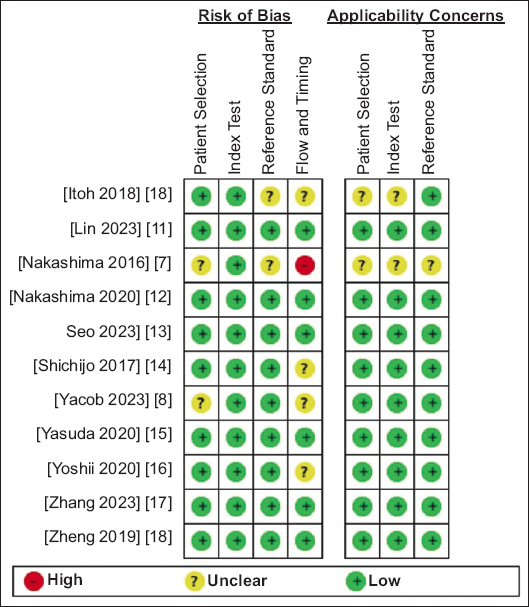

Figure 2 QUADAS 2 tool for risk of bias analysis of the included studies (n=11)

Meta-analysis

The meta-analysis entailed the computation of sensitivity, specificity and accuracy, based on the data extracted from the included studies. The pooled estimates for the sensitivity and specificity of AI for diagnosing H. pylori infection via endoscopic images were found to be 0.90 (95% confidence interval [CI] 0.80-0.95), and 0.92 (95%CI 0.88-0.95).

Heterogeneity

The assessment of heterogeneity among the included studies was conducted using between-study heterogeneity statistics, found to be as: generalized heterogeneity: Tau²=0.87, I²=76.10%, sensitivity heterogeneity: Tau²=1.53, I²=80.72%, specificity heterogeneity: Tau²=0.57, I²=70.86%. These statistics indicate moderate to high heterogeneity across the studies concerning diagnostic accuracy, as illustrated by the forest plot in Fig. 3. The summary ROC curve of the included studies is presented in Fig. 4.

Figure 3 Forest plot of sensitivity and specificity of different studies using artificial intelligence for the detection of Helicobacter pylori infection

CI, confidence interval

Figure 4 Summary receiver operating characteristic (SROC) curve with 95% confidential interval for predictions of artificial intelligence models for detecting Helicobacter pylori infection

Subgroup analysis

Quality of study

The investigation into between-study heterogeneity statistics revealed a moderate level of heterogeneity across the studies, as indicated by a generalized Tau² of 0.87 and an I² value of 76.10%. The sensitivity and specificity analyses demonstrate high values of 0.80 and 0.71, respectively. The LR test comparing the random-effects model with the fixed-effects model yielded a statistically significant chi-squared value of 162.87, with 3 degrees of freedom and a P<0.001, suggesting the superiority of the random-effects model for this meta-analysis.

The study-specific test accuracy was further stratified based on the level of disease severity. Gastritis includes early-stage infection, mild gastritis and cases without significant gastric lesions, while peptic ulcer, atrophic gastritis, MALT lymphoma or cancer were considered as more severe. For studies focused on gastritis [8,10-18], the summary estimates reported a sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95). In contrast, Nakashima et al 2018 [7], representing peptic ulcers, atrophic gastritis, MALT lymphoma, or cancer, exhibited a sensitivity of 0.97 (95%CI 0.83-1.00) and a specificity of 0.87 (95%CI 0.69-0.96). The overall summary estimates for both categories were consistent, with a sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95). This analysis suggests that the diagnostic accuracy of the test remains robust across different disease categories (Supplementary Fig. 1).

Study format

The examination of between-study heterogeneity statistics revealed a moderate level of heterogeneity among the studies, with a generalized Tau² of 0.87 and an I² value of 76.10%. Sensitivity and specificity were notably high at 0.81 and 0.70, respectively. The LR test comparing the random-effects model with the fixed-effects model yielded a significant chi-squared value of 162.87, 3 degrees of freedom, and a P<0.001, supporting the preference for the random-effects model in this meta-analysis.

The study-specific test accuracy was further dissected based on the study design, distinguishing between prospective and retrospective studies. In the prospective studies [7,10,12,16], the summary estimates report a sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95). For retrospective studies [8,11,13-15,17,18], similar summary estimates of sensitivity (0.90, 95%CI 0.80-0.95) and specificity (0.92, 95%CI 0.88-0.95) were observed (Supplementary Fig. 2). The overall summary estimates for both prospective and retrospective studies were consistent, further affirming the robustness of the diagnostic accuracy across different study designs.

Number of patients

The study-specific test accuracy analysis, focusing on absolute measures, provides insights into sensitivity and specificity across different subgroups based on the number of patients. For studies with more than 500 patients, Itoh et al 2018 [10] reported an estimated sensitivity of 0.86 (95%CI 0.75-0.93) and specificity of 0.86 (95%CI 0.77-0.93). Similarly, Seo et al 2023 [13], Zhang et al 2023 [17], and Zheng et al 2019 [18] found varying but favorable sensitivity and specificity estimates. The summary for this subgroup indicates an overall sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95) (Supplementary Fig. 3).

In the subgroup with fewer than 500 patients, Lin et al 2023 [11], Nakashima et al 2018 [7], Nakashima et al 2020 [12], Shichijo et al 2017 [14], Yacob et al 2023 [8], Yasuda et al 2020 [15], and Yoshii et al 2020 [16] present diverse sensitivity and specificity estimates. Notably, Lin et al 2023 [11] showed perfect sensitivity (1.00) and high specificity (0.91). The summary for this subgroup reports an overall sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95).

The overall summary across all studies, irrespective of the number of patients, yields an estimated sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95). These findings underscore the consistency of test accuracy measures across subgroups, reinforcing the robustness of the meta-analysis results in evaluating diagnostic performance within varying patient cohorts.

Published year

The examination of between-study heterogeneity statistics reveals a moderate level of heterogeneity across the included studies, as indicated by a generalized Tau² of 0.87 and an I² value of 76.10%. The sensitivity and specificity analyses show high values of 0.80 and 0.70, respectively. The LR test comparing the random-effects model with the fixed-effects model yielded a statistically significant chi-squared value of 162.87, with 3 degrees of freedom and a P<0.001, suggesting that the random-effects model is more appropriate for this meta-analysis.

Further exploration into study-specific test accuracy, categorized by the publication year, reveals varying estimates for sensitivity and specificity. Studies conducted before 2020 [7,10,14,18], exhibit favorable sensitivity and specificity values, contributing to an overall summary estimate of sensitivity at 0.90 (95%CI 0.80-0.95) and specificity at 0.92 (95%CI 0.88-0.95). Studies conducted after 2020 [8,11-13,15-17], present varying but generally high sensitivity and specificity estimates. The summary for this subgroup also reports an overall sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95) (Supplementary Fig. 4). The analysis by the publication year suggests consistent test accuracy measures across studies, emphasizing the robustness of the findings across different timeframes.

Type of AI

The examination of between-study heterogeneity statistics reveals a moderate level of heterogeneity across the included studies, as indicated by a generalized Tau² of 0.87 and an I² value of 76.10%. The sensitivity and specificity analyses show high values of 0.81 and 0.70, respectively. The LR test comparing the random-effects model with the fixed-effects model yields a statistically significant chi-squared value of 162.87, with 3 degrees of freedom and a P<0.001, suggesting that the random-effects model is more appropriate for this meta-analysis.

Further exploration into study-specific test accuracy, categorized by the machine learning algorithm used, reveals varying estimates for sensitivity and specificity. Studies utilizing convolutional neural networks (CNNs) [7,10-14,17,18], exhibit favorable sensitivity and specificity values. The summary estimate for this subgroup reports an overall sensitivity of 0.90 (95%CI 0.80-0.95) and specificity of 0.92 (95%CI 0.88-0.95). For studies employing a support vector machine (SVM), Yasuda et al 2020 [15] reported sensitivity and specificity values within the acceptable range, contributing to the overall summary estimate of sensitivity at 0.90 (95%CI 0.80-0.95) and specificity at 0.92 (95%CI 0.88-0.95). Additionally, Yoshii et al 2020 [16], using an unspecified machine learning algorithm, reports sensitivity at 0.60 (95%CI 0.48-0.72) and specificity at 0.95 (95%CI 0.92-0.97) (Supplementary Fig. 5). The analysis by machine learning algorithm suggests consistent test accuracy measures across different algorithms, emphasizing the robustness of the findings.

Discussion

This systematic review and meta-analysis aimed to provide evidence regarding the comparison of endoscopic and histopathological diagnosis versus AI-based diagnosis of the endoscopic images. The results of this systematic review and meta-analysis confirmed the high performance of AI-based methods for H. pylori detection from upper gastrointestinal endoscopy images. The pooled estimates for sensitivity and specificity were 0.90 (95%CI 0.80-0.95) and 0.92 (95%CI 0.88-0.95), respectively, with no significant heterogeneity among the studies. The area under the summary ROC curve was 0.97 (95%CI 0.96-0.99), indicating excellent diagnostic accuracy.

AI is an emerging technology that can analyze complex and large-scale data, such as endoscopy images, and provide automated and objective diagnosis [19]. AI-based methods for H. pylori detection mainly use deep learning techniques, such as CNNs, to extract features and classify endoscopy images into positive or negative for H. pylori infection. However, in our review, most of the studies employed deep learning algorithms. These methods can achieve high accuracy, sensitivity and specificity, comparable or superior to human experts [11]. Moreover, AI-based methods can reduce the workload and variability of endoscopists and provide real-time and noninvasive diagnosis of H. pylori infection. However, it is currently not clear how endoscopists and gastroenterologists would react and interact with diagnoses suggested by AI. Therefore, further studies aiming to assess AI’s implementation into clinical practice can be of significant importance and value.

Gastroenterologists are clinicians who use various diagnostic techniques, such as endoscopies and colonoscopies, to reach a definitive diagnosis. AI-based models have proven to possess great specificities and sensitivities towards diagnosing various gastric pathologies including gastric polyps, Barrett’s esophagus, celiac disease, and inflammatory bowel disease [20]. In our review, we found that most of the studies used deep learning AI algorithms with pooled sensitivities and specificities of 0.90 and 0.92. A similar systematic review and meta-analysis conducted by Bang et al found slightly lower pooled sensitivity and specificity (0.87 and 0.86) [21]. One reason for such differences could be that the AI models used are being continuously improved compared with previous versions; therefore, better outcomes are being generated.

Given that endoscopic biopsy is an invasive procedure, a significant percentage of patients may require fewer unnecessary biopsies if a highly accurate AI algorithm is applied during endoscopic inspection. However, at the same time, current AI models cannot completely eliminate the need for the expert opinion of endoscopists and gastroenterologists to make the final decision [22]. Presently, AI is rarely tasked to assist clinicians in making better clinical decisions and our results prove that this needs to be changed.

Although this systematic review and meta-analysis thoroughly assessed endoscopic histopathological diagnosis versus AI diagnosis for H. pylori infection, our analysis had some limitations. Firstly, the studies used different AI algorithms, endoscope systems and reference standards, which may have introduced heterogeneity and variability in the performance and quality of the AI methods. Secondly, the studies had different study designs, such as retrospective cohort, prospective cohort and clinical trial, which may have different levels of validity and reliability and could affect the risk of bias and confounding factors. Thirdly, some studies did not report some important information, such as the patient characteristics, the AI training and testing methods, the endoscopic image quality and resolution, and the potential sources of error and uncertainty. Fourthly, in this meta-analysis, we compared the sensitivity, specificity, and accuracy of several AI algorithms for identifying H. pylori infection. While this technique provides wide clinical insights, it has severe technological constraints. Different AI algorithms, such as CNNs and SVMs, have been created and evaluated in a variety of scenarios. The variability in datasets, preparation methodologies and implementation specifics used in research makes direct performance comparisons difficult. As a result, while our pooled estimates provide relevant clinical information, they should be treated with caution, particularly when considering technical evaluations. Lastly, a notable constraint of our analysis is the geographic concentration of the included studies, which were all carried out in Asian nations. Given the large frequency of H. pylori infection in Asia, it is reasonable to expect considerable study from this region. However, this limits the generalizability of our results to non-Asian groups. Genetic, environmental, and behavioral differences across populations may influence the performance and application of AI systems. To ensure their worldwide applicability and efficacy, these AI models must be validated in a variety of demographic and geographical scenarios.

In conclusion, this systematic review and meta-analysis showed that AI had a high diagnostic accuracy for detecting H. pylori infection using endoscopic images. However, there was also a high heterogeneity among the studies, due to various factors that may affect the performance of AI. Therefore, more rigorous and consistent studies are needed to confirm and improve the reliability and validity of AI for diagnosing H. pylori infection in clinical practice.

Summary Box

What is already known:

Helicobacter pylori (H. pylori) infection is responsible for various gastrointestinal (GI) pathologies with biopsy being the gold standard diagnostic modality

What the new findings are:

Use of artificial intelligence to detect H. pylori infection by analyzing upper GI endoscopic images may facilitate diagnosis, decreasing the number of biopsies performed and reducing patient cost
Such technologies can be used as an adjunct to decisions taken by doctors to treat patients suffering from H. pylori infection
