Meandering main pancreatic duct syndrome: a single-center cohort study and aggregated review

Introduction

The pancreas is formed during the 6-7^th week of embryological development by a complex fusion of the ventral and dorsal pancreatic bud. This process can give rise to multiple variations of pancreatic ductal anatomy which can be divided into configuration, course, duplication, migration and pancreaticobiliary ductal junction variants. The prevalence of these variations is estimated to be between 1% and 10% in most studies, and is averaged at 5.7% by a recent systematic review [1,2].

Meandering main pancreatic duct (MMPD) syndrome is a group of pancreatic duct anomalies, first classified together in 2012 by Gonoi et al. It includes 2 types of course variants in which the main pancreatic duct (MPD) either makes a hairpin (reverse Z-type) or a loop (loop-type) curve in the coronal plane of imaging modalities. Based on the observations by Gonoi et al, the prevalence of MMPD is estimated at 2.2%, which according to the authors makes MMPD the second most frequent pancreatic duct anomaly after pancreas divisum. MMPD is also described as a potential predisposing factor for (recurrent) pancreatitis, which therefore makes it a relevant entity [3]. To our knowledge, the number of published reports on MMPD is less than 10 [3-8]. Furthermore, apart from 1 case report, there are no studies concerning the endoscopic management of MMPD [4].

In this article we provide a narrative review regarding the prevalence and clinical significance of MMPD. Additionally, we describe the clinical presentation, endoscopic management, and outcome in a cohort of 9 symptomatic MMPD patients treated at our tertiary center.

Materials and methods

For our literature review we searched PubMed using the following MeSH terms: “Meandering main pancreatic duct,” “pancreatic duct anomaly” and “anomaly of the pancreatic duct”. All available literature was reviewed. The articles were screened by title and abstract for relevance regarding the prevalence, clinical significance and treatment of MMPD. The articles returned by the database were read completely, and only relevant articles were included in our review.

For our cohort study a convenience sample of 9 patients treated for MMPD was extracted from an existing database of endoscopic retrograde cholangiopancreatography (ERCP) procedures at our center between January 1^st, 2018, and December 31^st, 2023. We reviewed the medical records for relevant information regarding patient characteristics, type of pancreatitis, diagnosis, type of MMPD and treatment. The following patient characteristics were retrieved: date of birth, age at diagnosis of MMPD, sex, alcohol and tobacco use, and presence of diabetes mellitus or metabolic syndrome. Alcohol and tobacco use were described as present or absent. Metabolic syndrome was defined according to the definition of the international diabetes federation [9].

The presence and type of pancreatitis were described at the time of diagnosis of MMPD. The date of the first documented pancreatitis episode was also retrieved. The following criteria were used: (a) acute pancreatitis: presence of at least 2 of the following 3 criteria: typical pancreatic pain, amylase or lipase elevation 3 times upper limit of normal, or typical findings of pancreatitis on imaging [10]; (b) recurrent acute pancreatitis: 2 or more episodes of acute pancreatitis with complete interceding resolution, separated by at least 3 months [11]; and (c) chronic pancreatitis: clinical suspicion of chronic pancreatitis and typical imaging findings [11].

For the diagnosis of MMPD we used the diagnostic criteria defined by Gonoi et al: a main pancreatic duct with the presence of at least 2 extrema in a direction vertical to the body axis in the head of the pancreas, forming a curve or a loop and not accompanied by an anomalous arrangement of the pancreaticobiliary ductal system (AAPB) or pancreas divisum [3]. Magnetic resonance imaging (MRI), endoscopic ultrasound (EUS) and ERCP were considered as diagnostic tools. The date and method of diagnosis were retrieved. The time between the first pancreatitis episode and the definitive diagnosis was calculated. We also reviewed whether the diagnosis was missed on MRI, EUS or ERCP imaging predating the diagnosis. We classified the types of MMPD according to the classification systems proposed by Gonoi et al [3] (Fig. 1). The available imaging modalities were also screened for pancreatic duct dilation suggestive of ductal hypertension.

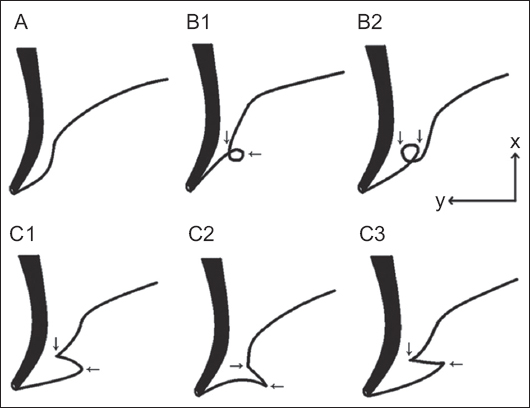

Figure 1 Types of meandering main pancreatic duct (MMPD) according to the classification of Gonoi et al. The thick line indicates the common bile duct, and the thin line indicates the main pancreatic duct. MMPD is classified into subtypes based on its morphology in the head of the pancreas: normal type (A), examples of loop type (B1–2), and examples of reverse-Z type (C1-3). Assuming the body axis as the x-axis and horizontal as the y-axis, the MPD curves in the loop- and reverse-Z types have 2 extrema in a horizontal direction (arrows), while the normal type has none

(Figure and text reproduced from Gonoi W, Akai H, Hagiwara K, et al. Meandering main pancreatic duct as a relevant factor to the onset of idiopathic recurrent acute pancreatitis. PLoS One 2012;7:e37652. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.)

MMPD was considered the cause for a pancreatitis episode if there were no other possible etiologies identified according to the minimal diagnostics proposed by the American College of Gastroenterology’s guideline for the management of acute pancreatitis. These include cholelithiasis, alcohol use and the presence of a neoplasia above the age of 40 years [10]. MMPD was also considered a relevant factor in cases of persistent recurrent acute pancreatitis and evolution to chronic pancreatitis, in which there was a possible other cause for the initial episode that was subsequently eliminated. If present, the analysis of genetic causes of pancreatitis was also retrieved.

All the ERCP procedures in the medical records were reviewed systematically. The first therapeutic procedure was classified into 2 categories according to the performed intervention: endoscopic sphincterotomy, or endoscopic sphincterotomy combined with transpapillary stenting of the pancreatic duct. If a procedure was followed by at least 1 other intervention in which the stent was replaced, it was considered a stenting program.

The response to therapy was classified as complete, partial or no response, based on the following interpretation of the medical records: (a) complete response, if there were no more pancreatitis episodes documented after treatment; (b) partial response was defined as a reduced frequency of pancreatitis episodes or diminished pain in chronic pancreatitis; and (c) if the frequency and intensity of pain remained or worsened, it was categorized as no response.

The follow-up period was calculated from the date of diagnosis until the last known contact with our service or the service of the referring specialist. We only performed descriptive statistics given the exploratory nature of our study. This study was authorized by the Ethics Committee of the University Hospitals Leuven.

Results

Literature review

Our search strategy yielded 2385 results in PubMed on October 29, 2023. After screening the abstracts 22 articles were selected. These articles were fully read and 9 of them were included in our review [3,4,7,8,12-16]. Two case reports that were found in the references of other articles, but not in our PubMed search, were also included [5,6].

Two single-center studies retrospectively described pancreatic duct anomalies based on ERCP images. The first, by Uomo et al in Italy, included 485 patients and found 48 anatomical variants (9.9%) of which 4 (0.8%) were a loop-type pancreatic duct, which is one of the forms of MMPD [12]. The second study, by Bang et al, found 51 pancreatic duct anomalies in 582 patients in South Korea. Of these, 27 (4.7%) fit the description of loop-type pancreatic duct. This study also analyzed the relationship between anatomical variations of the ductal system and pancreaticobiliary diseases, but the classification system that was used did not allow firm conclusions with regard to a loop-type pancreatic duct [14]. A third single-center retrospective study analyzed the MRI images of 1158 patients in Turkey and found a prevalence of 2% for loop-type pancreatic duct [15]. A smaller fourth study described fusion variants in 37 patients with an AAPB in Japan. Two of these patients (5%) had a loop-type pancreatic duct [13].

MMPD as a group of pancreatic duct anomalies was described for the first time in a single-center retrospective study in Tokyo by Gonoi et al. It compared a group of 30 patients with idiopathic pancreatitis to a community group of 504 subjects who underwent a checkup, including MRI. The prevalence of MMPD was 2.2% in the community group and 20% in the idiopathic pancreatitis group. [3]

There was a significant positive association of MMPD with the onset of pancreatitis. Subgroup analysis showed that this association was especially clear for recurrent acute pancreatitis, whereas it was not for acute or chronic pancreatitis. Despite this association, no subjects with MMDP in the community group had a history of pancreatitis. This led to the hypothesis of MMPD as a predisposing factor for pancreatitis, with only a small portion of patients becoming symptomatic [3]. In a second study, Gonoi et al also found an association between pancreatic duct anomalies, including MMPD, and chronic asymptomatic pancreatic hyperenzymia [16].

Since the initial article by Gonoi, 4 case reports have been published, presenting 3 pediatric and 2 adult cases of acute (recurrent) pancreatitis attributable to MMPD. One adult patient underwent an endoscopic pancreatic sphincterotomy; all other cases were managed conservatively. One of the pediatric patients also had a type IVa choledochal cyst, which was managed surgically after the acute episode of pancreatitis [4-7].

A second quite large single-center retrospective study was performed at the university hospital of Helsinki. Interestingly, this study focused on determining a possible association between intraductal papillary mucinous neoplasia (IPMN) and variations of the pancreatic ducts. It compared 108 IPMN patients with a control group of 106. MRI was used as diagnostic tool. Twenty-one cases of MMPD were detected, of which 18 patients (18.4%) had an associated IPMN and only 3 patients (3%) did not.

A secondary analysis, comparing MMPD patients to non-MMPD patients, showed a statistically significant odds ratio (6.4×) for the presence of IPMN in MMPD patients. Based on these data, an association was suggested between IPMN and MMPD. The clinical significance and relevance are unclear for now, as this involves only 1 report, but an IPMN follow up in MMPD is suggested as a possibility. This study also described a new type of MMPD in 8 patients, referred to as N-type. It was characterized by a main pancreatic duct that forms a notch at the head of the pancreas. IPMN patients with N-type MMPD were more likely to have a cystic mural nodule. However, as the study only included 6 patients this finding must be viewed with caution [8].

An overview of the published MMPD cohort studies and MMPD cases is summarized in Table 1.

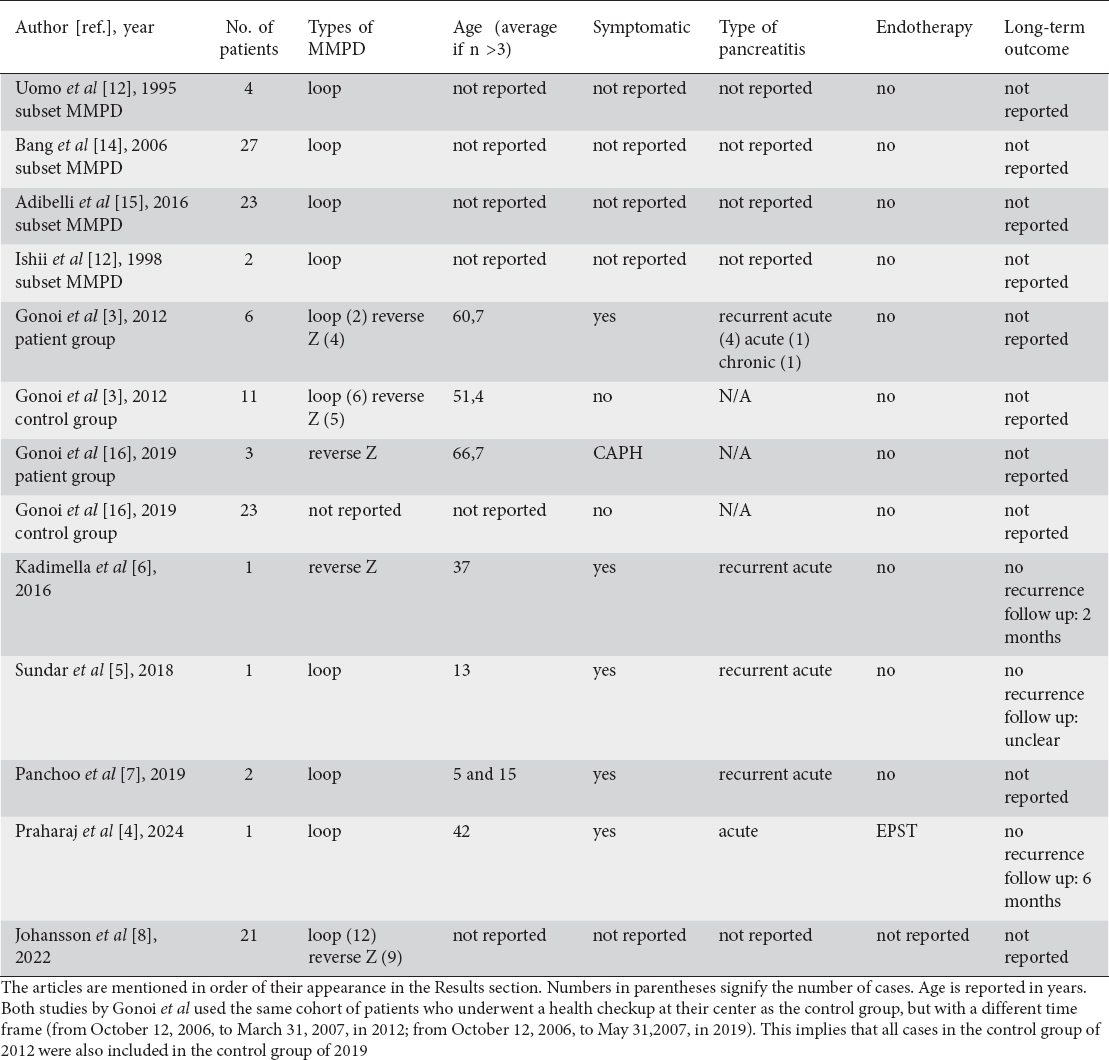

Table 1 Overview of MMPD cases in the articles included in the aggregated review

Leuven MMPD Cohort

Nine patients, 3 men and 6 women, were included in our cohort. The age at the time of diagnosis ranged between 39 and 67 years, with a mean of 51 years. Both alcohol and tobacco use were present 4 times, with an overlap of 2 subjects who used both. Three patients had metabolic syndrome and 1 had type 2 diabetes. The patients’ characteristics can be found in Table 2.

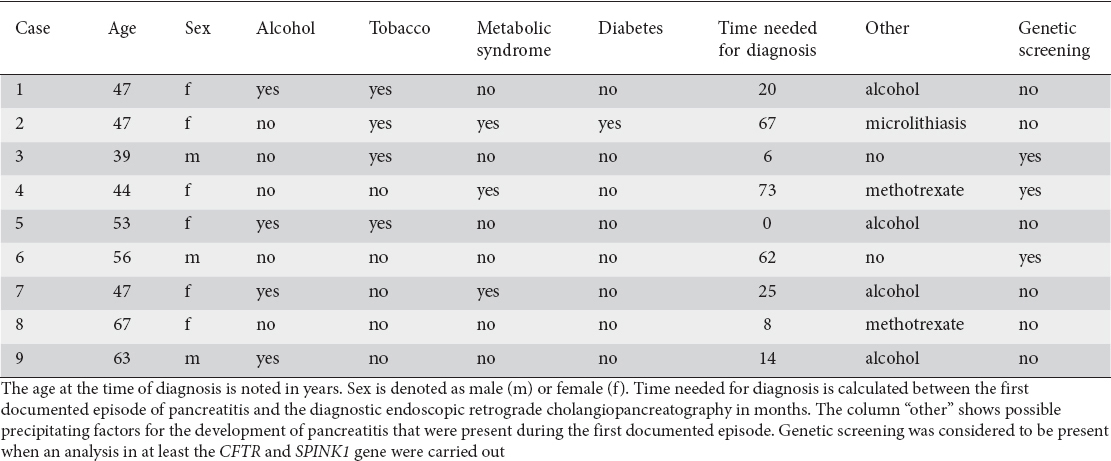

Table 2 UZ Leuven patient cohort characteristics

All diagnoses of MMPD were made during ERCP. An MRI preceding the diagnostic ERCP was found in 8 patients. The initial protocols of these MRIs described an anatomical variant in only 2 cases. Both times pancreas divisum was deemed most likely. After revision of the images, 2 more variants were suspected, of which 1 was thought to be a MMPD without a definitive diagnosis. The other was not further specified. EUS was also performed in 8 patients, preceding the diagnostic ERCP, but MMPD was strongly suspected only once. The diagnosis was also confirmed by ERCP immediately afterwards.

Seven patients presented with acute recurrent pancreatitis at the time of diagnosis. Acute and chronic pancreatitis were only found once each. The time between the first episode of pancreatitis and the diagnosis ranged between 0 and 73 months, and was 30 months on average. An overview of these data, along with the affected pancreatic segment and type of MMPD for each case, can be found in Table 3.

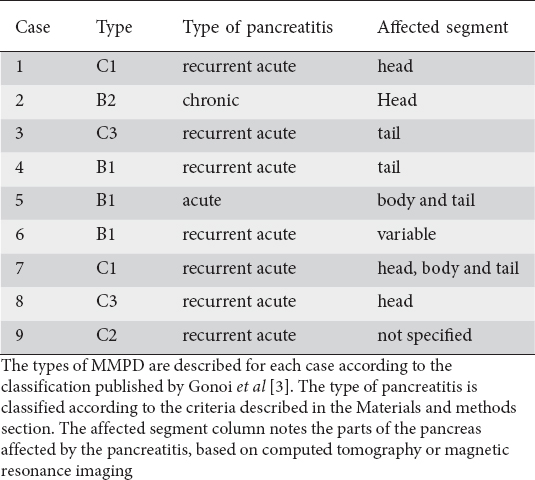

Table 3 The types of meandering main pancreatic duct (MMPD) and pancreatitis

Multiple possible triggering factors other than MMPD were found for the initial episodes of pancreatitis: 4 patients drank alcohol, 2 used methotrexate and 1 had microlithiasis. A negative genetic screening for mutations in the serine protease inhibitor Kazal-type 1 (SPINK1) and Cystic Fibrosis Transmembrane conductance Regulator (CFTR) gene was available in 3 cases. Further evaluation for mutations in PRSS1, CTRT, CASR, CLDN2, and CPA1 genes was performed once and was also negative. Signs of ductal hypertension were seen in 6 patients.

Only 1 patient was treated with isolated endoscopic sphincterotomy during the first ERCP. In all other patients the sphincterotomy was combined with stenting. A stenting program was initiated in 5 patients, of whom 4 had a stenosis associated with their MMPD. A positive evolution after endoscopic therapy was seen in 6 patients, of whom 4 had a complete response and 2 a partial response. Three patients showed no response. Post-ERCP pancreatitis was seen 3 times out of a total of 37 procedures (8.1%). One procedure was complicated by a guidewire perforation at the site of a stricture in the loop of the MMPD and secondary formation of an intra-abdominal collection. An overview of the interventions and outcomes can be found in Table 4. Per-procedural ERCP images can be found in Fig. 2 and Supplementary Fig. 1-5.

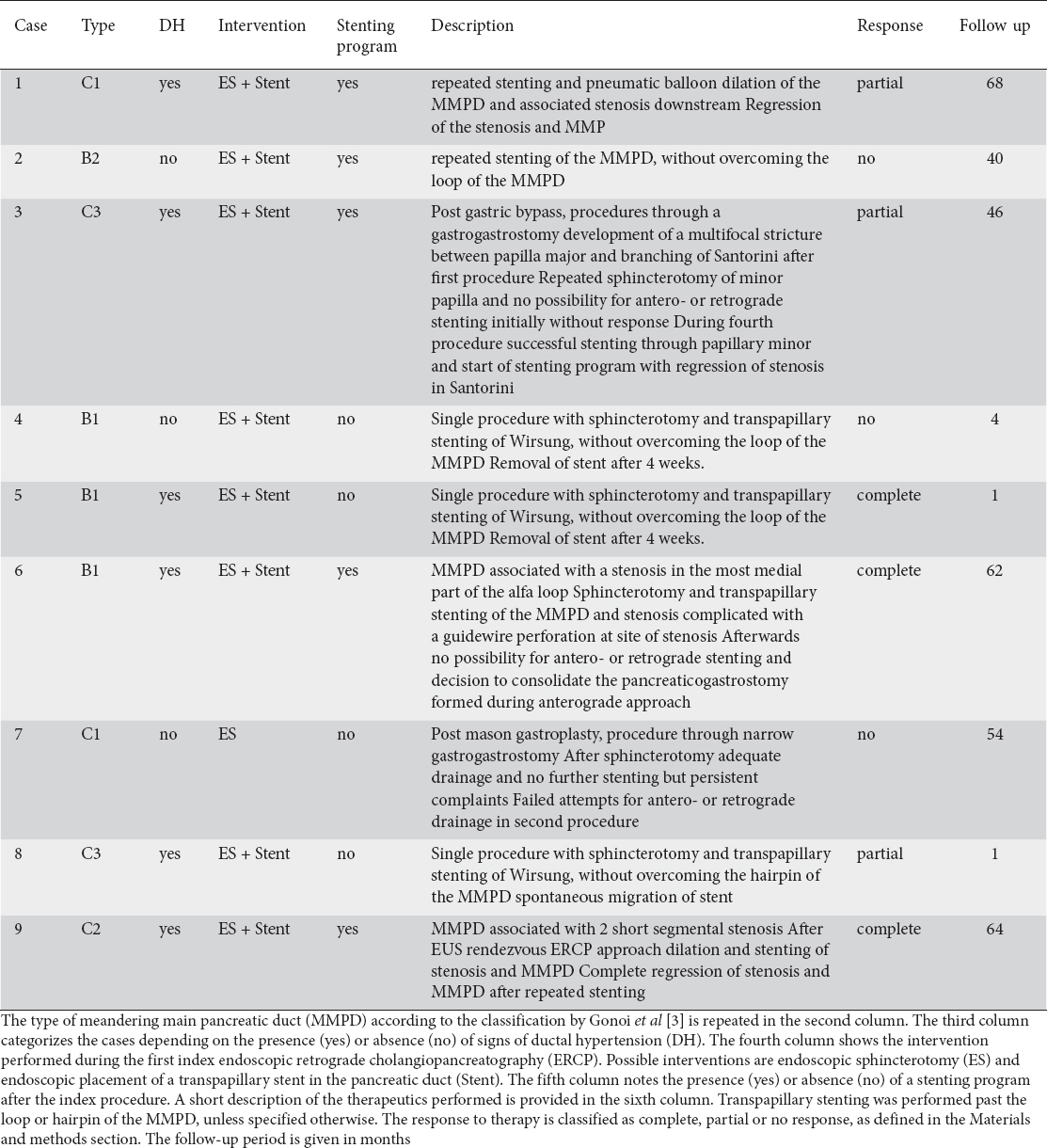

Table 4 Overview of treatment

Figure 2 Examples of different types of MMPD, endotherapy and results: (A) Type C1 MMPD with a pre-papillary stenosis during index ERCP (case 1); (B) regression of MMPD and stenosis after stenting program (case 1); (C) type B1 MMPD with a stenosis in the medial part of the alpha-loop during index ERCP (case 6); (D) pneumatic balloon dilation of the stenosis in the alpha-loop during the same procedure (case 6); (E) type C2 MMPD associated with 2 short segmental stenoses during the index ERCP (case 9); (F) regression of the MMPD and stenosis after stenting program (case 9)

MMPD, meandering main pancreatic duct; ERCP, endoscopic retrograde cholangiopancreatography

Discussion

Meandering main pancreatic duct (MMPD) refers to an uncommon ductal variant of the normal smooth curvilinear course of the pancreatic duct. More specifically, MMPD is characterized by a hairpin (reverse Z-type) or loop (loop-type) turn in the pancreatic head. It has been suggested as a predisposing factor for the development of pancreatitis [3]. Our literature review shows that data on MMPD are scarce and relate to only 7 retrospective cohort studies and 4 case reports [3-8,12-16]. Only 1 study focuses on MMPD and its clinical significance in idiopathic pancreatitis [3]. The other studies describe pancreatic duct anomalies in various populations, including anomalies that fit MMPD [4-8,12-16].

MMPD was defined for the first time in 2012 and was classified into 2 subtypes: a loop- and a reverse Z-type (Fig. 1). A third N-type, in which the MPD forms a notch in the pancreatic head, was suggested in 2022 [8]. The N-type does not strictly fit the initial definition, as the extrema are oriented horizontally, and not vertically, with respect to the body axis; it is thus still a subject of debate. In our cohort study we described 4 loop-type and 5 reverse Z-type pancreatic ducts, but found no N-type. If further research reveals more clinically relevant cases of the N-type, it should be considered to expand the definition.

The global prevalence of MMPD is currently estimated to be between 2% and 3%, based on a Japanese community group (2.2%) [3] and a Finnish population study (3%) [8]. The prevalences in all other studies should be interpreted with even more caution, as the populations were preselected: either they underwent ERCP [12,14] or MRCP [15] for various indications, or they were symptomatic [13].

It is difficult to compare the prevalence of MMPD to other pancreatic duct anomalies, as studies used different populations and various classification systems. A 2018 systematic review estimated the prevalence of pancreatic duct anomalies at 5.7%, of which 4.5% referred to pancreas divisum [1]. Considering an estimated prevalence of 2-3%, MMPD is probably one of the most frequent, if not the most frequent, anomaly after pancreas divisum.

Currently, most studies use (and recommend) MRI for diagnosing MMPD. As stated by Gonoi et al, MRI is considered a noninvasive technique with a high sensitivity and specificity for the depiction of the pancreatic ducts [3]. MRI is also described by the American Gastroenterological Association’s clinical practice update on acute recurrent and chronic pancreatitis as helpful in identifying anatomical variants of the pancreatic duct [11]. Therefore, it is remarkable that all the diagnoses in our cohort were made during ERCP, despite the availability of a prior MRI for most patients. Only 4 patients with pancreatic duct anomalies were detected primarily by MRI in our cohort, without a definitive diagnosis of MMPD. The fact that 2 of these were detected after revision of the images points up the importance of the radiologist’s awareness of pancreatic duct anomalies, and the proper medical information when requesting imaging. From this perspective, and in our own view, a diagnostic ERCP, as one of the last standing indications, can be advocated in the clinical stalemate of recurrent acute pancreatitis without any clue during a full diagnostic workup (including magnetic resonance cholangiopancreatography), provided this has been extensively discussed with the patient prior to the exam.

The exact clinical significance of MMPD is still reported as unclear, but its role in the onset of pancreatitis, especially recurrent acute pancreatitis is endorsed by the (obvious) reported symptomatic clinical cases. Gonoi et al, as one of the few, has reported that only 5-10% of patients with MMPD become symptomatic, analogous to pancreas divisum [3]. A possible association between MMPD and IPMN has also been suggested [8], but no cases of IPMN were found in our series.

In our cohort, almost all patients presented with recurrent acute pancreatitis. The average age at diagnosis was 51 years. If MMPD was the sole contributor to the development of pancreatitis, earlier symptoms could be expected, as MMPD is considered a congenital anomaly [3]. Additionally, in 7 of our patients the initial pancreatitis episode could have been triggered by other factors than MMPD, such as lithiasis, alcohol or medication. Most of these patients did however develop recurrent acute pancreatitis, which could no longer be attributed to these triggers as they were no longer present after the initial episode. These findings support the hypothesis of MMPD as a predisposing factor for pancreatitis recurrence, and seem to suggest the presence of a coexisting triggering factor to initiate the first episode, according to the “sentinel acute pancreatitis event” hypothesis [17].

We propose mechanical (sub)obstruction or delayed secretion as the most probable mechanism by which MMPD contributes to the development of pancreatitis, as 6 of our patients had signs of ductal hypertension. This aligns with the findings of published case reports [4-6]. In contrast, Gonoi et al found no pancreatic duct dilation nor parenchymal atrophy, for which reason they considered mechanical (sub)obstruction less likely. Genetic etiologies, such as mutations in the CFTR or SPINK1 gene, were suggested as an alternative [3]. We cannot support this hypothesis, as no mutations in these genes were found in the 3 patients that were screened in our cohort.

If ductal hypertension is present, we believe endoscopic therapy focused on relieving the possible outflow obstruction can be advocated, similarly to pancreas divisum [11]. Until our cohort, there was only 1 case report describing endoscopic pancreatic sphincterotomy in a symptomatic MMPD patient, with a positive subsequent evolution [4]. We describe 9 patients undergoing endotherapy for MMPD, the largest reported interventional series to our knowledge. Overall, there was a mixed response, as 6 of 9 patients showed substantial regression of their symptoms. All these patients had signs of ductal hypertension, and 4 had a stenosis associated with their MMPD, probably secondary to the recurrent bouts of pancreatitis. Remarkably, no signs of ductal hypertension were found in the 3 patients who did not respond to treatment. These findings might suggest that selection for endotherapy should be based on the presence of a stenosis or signs of ductal hypertension.

Adverse events of endotherapy were not observed in a higher rate than classically expected and reported after ERCP. Three episodes of post-ERCP pancreatitis (8.1%) were documented in a total of 37 procedures, which is within the range of the estimated prevalence of 10% [18]. One guidewire perforation of the pancreatic duct was seen, which is a rare complication, happening in less than 1% of the procedures, and in the context of MMPD was favored by the anatomical anomaly.

Despite our findings, our study is hampered by some unavoidable shortcomings. First of all, it involved a small cohort of only 9 patients, without a control group, and was therefore not able to answer the question of relevance in a general (unselected) population. Yet, in light of the scarce data and mostly even smaller series, we consider our analysis to be of added value to the overall literature currently available. Second, there most certainly was selection bias, since all our patients were symptomatic and thus might have represented a more severe subgroup of MMPD patients. On the other hand, our series is the first to explore and describe endotherapy in 9 patients.

In conclusion, MMPD is a pancreatic duct anomaly with an estimated prevalence of 2.2%, in which the MPD forms a loop or a reverse-Z in the head of the pancreas. It is considered as a predisposing factor for the development of pancreatitis, especially for acute recurrent pancreatitis. With our cohort, we not only hope to raise awareness of this often neglected or unknown entity of recurrent acute pancreatitis, but also support the case for endotherapy (for the first time in 9 symptomatic MMPD patients), especially in cases of ductal hypertension.
