Use of N-acetylcysteine plus simethicone to improve mucosal visibility in upper digestive endoscopy via systematic alphanumeric-coded endoscopy: a randomized, double-blind controlled trial

Introduction

Gastroscopy is a safe and well-tolerated gold standard method for the detection of upper gastrointestinal (GI) pathology. In daily endoscopic practice, the identification of early GI cancer represents a great challenge, even in the hands of expert endoscopists [1-4]. High quality in upper GI endoscopy is a critical step in optimizing the diagnostic yield in the detection of pre-malignant and early malignant lesions. Traditional fasting periods of 6-8 h prior to the procedure are not always sufficient to guarantee clean and adequately visible mucosa. Clustered mucus, foam and bubbles in the upper GI tract interfere with adequate visibility for complete endoscopic evaluation [5-13]. The adequate mucosal visibility (AMV) scale is a good tool to evaluate the pharmacological effect of defoamers and mucolytics on cleaning the upper GI mucosa. This has the potential to improve the early gastric cancer detection rate, although this has not been formally evaluated [14-24]. Improving mucosal visualization and subsequent cancer detection is vital, as up to 11.3% of gastric cancers were not detected during endoscopy 3 years before diagnosis [25-27]. Upper GI cancers detected at an early stage have a 5-year survival greater than 90% after endoscopic resection [28,29].

Systematic alphanumeric-coded endoscopy (SACE) has been successfully applied in Colombia since 2006 to help facilitate complete upper GI examination with high gastric cancer detection rates. It was subsequently adopted by other Latin American countries and China, after detecting approximately 1 positive case in 325 endoscopies in healthy volunteers with an average cancer risk. Consequently, the application of a thorough endoscopic evaluation system, such as SACE, and adequate cleaning prior to upper GI endoscopy comprise the optimal strategy to improve the detection of early lesions; however, data are lacking to support its routine use [17,18]. The aim of our study was to evaluate the effect of the ingestion of an antifoaming substance (simethicone) and/or mucolytic agent (N-acetylcysteine), prior to upper GI endoscopy, on the adequate visibility of the mucosa over 28 predetermined areas using SACE.

Patients and methods

Interventions

A random number list, generated by computer, was used to assign patients to one of the 4 intervention groups: G1) Water 100 mL; G2) simethicone 200 mg + 100 mL of water; G3) Simethicone 200 mg + N-acetylcysteine 600 mg + 100 mL of water; and G4) N-acetylcysteine 600 mg + 100 mL of water. Fig. 1 shows a flow chart of the distribution of all enrolled patients.

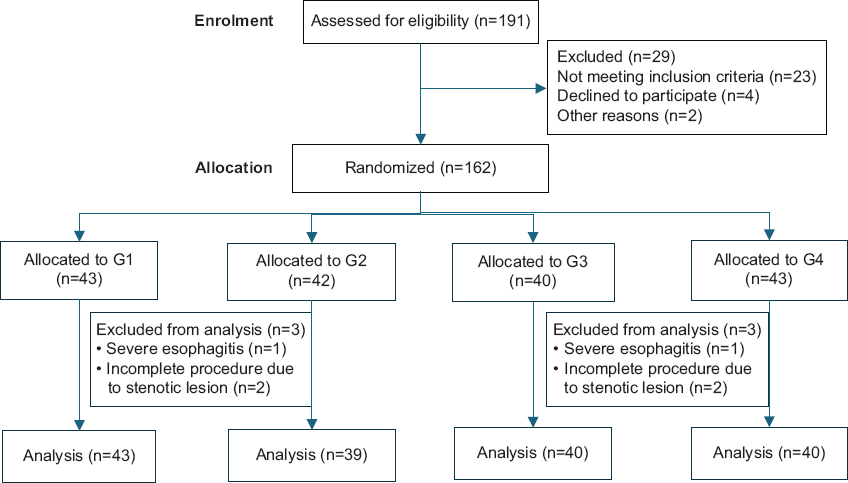

Figure 1 Flow chart showing the distribution of the enrolled patients

All patients received standard recommendation instructions, which included an 8-h fast, and ingestion of the study solution under supervision 20 min before the procedure. Both patients and endoscopists were blinded to the prepared solution.

Upper GI tract visibility assessment

All procedures were completed using gastroscopes (Magniview EG-2990Zi HD, Pentax Hoya, Tokyo, Japan) with an iPK7010 processor (OE-Iscan-Mode system). For the systematic evaluation of the upper GI tract, the SACE system was used, consisting of 28 areas [1]. Expert endoscopists (SS, OTM, EG and GR) trained on the SACE system, performed all the procedures. Prior to participating in the study an interobserver agreement evaluation was carried out with 80 archive photographs, to verify that there was sufficient interobserver agreement (Kappa>0.4) before rating the photographs in the study.

The 28 SACE areas were divided into 7 regions of the upper GI tract (Table 1). Each region was given a score from 1-4 points using the AMV score. The total sum of the AMV score of the 7 regions ranged from 7 (best) to 28 points (worst). This modification has previously been validated [5,7,12]. The AMV scale was evaluated by 4 endoscopists, for each of the 28 different regions of the SACE system. A 4-point Likert scale was used (AMV scale): 1) no adherent mucus in the mucosa; 2) small amount of mucus that does not hinder endoscopic vision; 3) large amount of mucus that can be removed by irrigating with 50 mL of water; and 4) large amount of mucus on the mucosa that cannot be removed by irrigation with 50 mL of water.

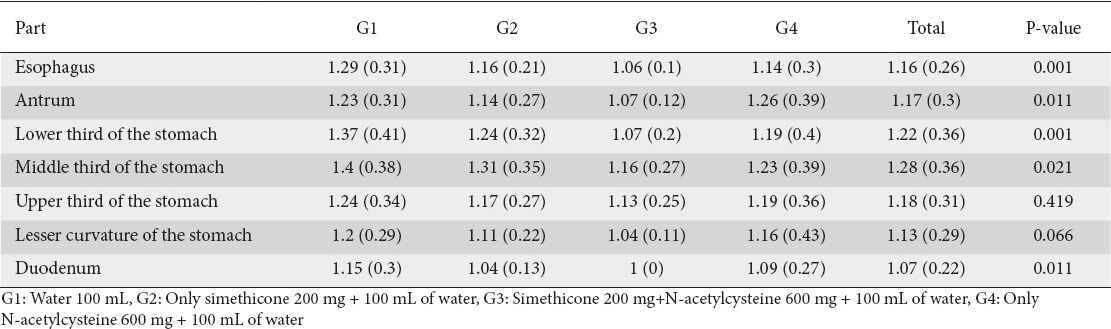

Table 1 Comparison among groups

The endoscopists were blinded to the preparation used, and 28 endoscopic photographs were taken, 1 of each SACE area, which were subsequently evaluated according to the AMV scale. Kappa (k) statistics were used to determine interobserver agreement.

Results

A total of 191 patients were enrolled. Twenty-nine patients were excluded (23 did not meet the inclusion criteria, 4 declined to participate, and 2 for other reasons). Thus, 162 patients were included in the final analysis, of whom 74 were female (45.6%) and 88 were male (54.3%). The mean age was 50.4±17.1 years. The mean BMI was 25.3±4.4 kg/m². Sex differences were observed for groups G2 and G3, but the regression analysis did not demonstrate significant effects. A total of 4564 images from the examined areas in the upper GI tract were obtained for evaluation. No statistically significant differences were found in relation to age (P=0.48), BMI (P=0.82), diabetes mellitus, or hypertension. Two patients were taking medication that delayed gastric emptying. Table 1 shows the average value of the degree of cleanliness in the 7 different regions studied.

The factor analysis considered the 28 areas; this analysis was suitable (KMO=0.79, sphericity test P<0.001) (Table 1). The anti-image matrices were greater than 0.5, except that of the E3 region (0.457). These 3 techniques (KMO, Bartlett’s sphericity test, and anti-imaging matrix) determined the appropriateness of the factor analysis. The maximum variance explained by 8 factors was 66%, the highest value was 7.7 and the lowest 1.17. The reproduced correlations were greater than 0.5, except for the A9 region (0.46), which was considered acceptable. Fig. 2 shows the graphic variation of the degree of cleaning in the different 28 SACE areas in each study group.

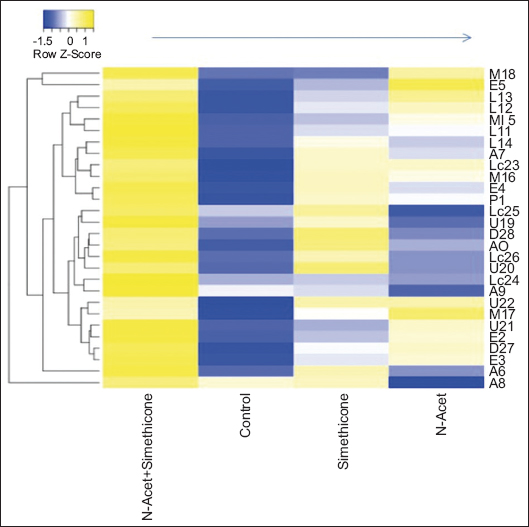

Figure 2 Heatmap showing a comparison of the degree of cleaning in the 28 regions by treatment group

Yellow: regions with a higher degree of cleanliness; Blue: regions with a lower degree of cleanliness; Columns: study groups, Rows: systematic alphanumeric-coded endoscopy areas

The total sum of the score was significantly greater in the control group, as can be derived from the higher distances at the ends of the distributions. The mean of the N-acetylcysteine + simethicone group was lower in comparison to the rest of the interventions, which reflects less dispersion in the scores. An ANOVA test was applied to determine the statistical significance between the treatment groups in the sum of the scores, finding a value of 0.0001 between the control group and the combination group. Fig. 3 shows the comparison of the degree of cleaning among groups.

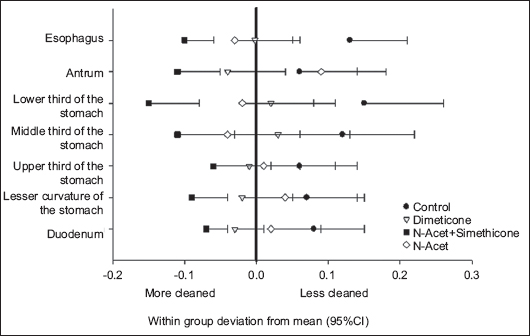

Figure 3 Differences with respect to grand mean by group of treatment

The symbols represent mean differences and 95% confidence intervals. The thick line on zero represents the null value. The standard errors were calculated with robust analysis

The contrast between groups using the distance grand mean and robust standard error calculation showed G3 (N-Acet + Simet) presented greater efficiency compared to G1 (control) (P=0.001). The other groups did not show significant differences. It was also evident that certain areas showed improved mucosal visibility from the use of a mucolytic, while others were improved by use of an antifoam. The average AMV in the 4 groups was 93.98% and the standard deviation was 7.36. No severe adverse events or side-effects occurred in either group in this study. Fig. 4 and 5 show representative images of adequate and inadequate cleansing of the upper GI tract, respectively.

Figure 4 Adequate mucosal visibility of stomach. (A) Esophagogastric junction, (B) pyloric channel, (C) greater curvature of antrum, (D) posterior wall of lower third of the gastric body, (E) greater curvature of middle third of the gastric body, (F) lesser curvature of lower third of the gastric body

Figure 5 Inadequate mucosal visibility of stomach. (A) Fornix, (B) greater curvature (lower third of the gastric body), (C) anterior wall (lower third of the gastric body), (D) malignant lesion in lesser curvature (middle third of the gastric body), (E) antero-posterior wall (upper third of the gastric body), (F) anterior wall (middle third of the gastric body)

Discussion

This study adds further scientific evidence for the optimal efficacy and safety profile of the use of defoamers and mucolytics in the improvement of upper GI mucosal visibility in a Latin American population. The main strength of this study is the reporting of the largest cohort in Latin America, demonstrating the benefits of adequate cleansing in the upper GI tract. The clinical outcomes were similar to those reported in Japanese centers with vast experience.

Multiple studies based in Asia have shown that premedication with defoamers and mucolytics prior to upper GI endoscopy can be effective [5,6]. However, the standard mucolytic used by most Asian centers, pronase (Beijing Tide-Pharmaceutical Co., Ltd., Beijing, China), is available exclusively in eastern countries. This has led several western studies to develop alternatives in order to obtain similar results. One of the most widely used at present is N-acetylcysteine, given its optimal efficacy and safety profile demonstrated in the most representative studies [7-12]. Several randomized controlled trials have shown the superiority of the combination of N-acetylcysteine plus simethicone for improving AMV. They also found areas in the GI tract with differences in cleaning qualities [8-12].

Manfredi et al [13] prospectively enrolled 197 patients divided into 2 groups: treated (97 patients) and control (100 patients). The treated group were administered premedication with N-acetylcysteine (600 mg) + simethicone (2 mL) for 20 min before their gastroscopy, while the control group received no premedication. There was a significantly higher mean stomach cleaning cream score in the treated group (7.6±1.5) compared to the control group (6±0.7) (P<0.001). The investigators also observed a score ≤5 in 11% and 33% of the treated and control groups, respectively (P<0.001). This study provides further evidence of the benefits of these agents, but with a more systematic evaluation.

The greatest potential clinical impact of premedication with mucolytics and antifoams is the reduction in missed lesions due to better visibility of the GI mucosa. International clinical guidelines also advocate the use of these agents to optimize the detection of preneoplastic and early neoplastic lesions [14,15]. Monrroy et al [16] conducted a double-blinded, placebo-controlled randomized controlled trial in 230 patients undergoing diagnostic gastroscopies. There were 5 groups studied: 2 control groups, no intervention and water 100 mL (W); and 3 intervention groups: simethicone 200 mg (S), S + N-acetylcysteine (NAC) 500 mg (S + NAC500) and S + NAC 1000 mg (S + NAC1000). There was a higher lesion detection rate in the intervention groups compared to the non-intervention groups: 32% (37/115) versus 14% (6/42) (P=0.027). Adoption of the SACE system in previous studies showed an improvement in lesion detection and characterization [17,18]. Pérez-Mendoza et al [19] demonstrated diagnostic accuracies of 96% and 52% for coded alphanumeric systematic endoscopy and conventional endoscopy, respectively. The specificity was 95% for systematic alphanumeric coded endoscopy and 45% for conventional endoscopy. The combined use of mucolytics, anti-foaming agents and the SACE system optimizes lesion detection. Further studies in different populations are required to fully assess these parameters in lesion detection to improve clinical outcomes.

The administration 20 min before the procedure does not represent any significant risk of aspiration to patients [20-22]. The alternative to a pre-endoscopy drink is the application of water with simethicone during the procedure; however, the volume that needs to be instilled is usually significantly greater than 100 mL, and this is likely to lead to a greater risk of aspiration. This pre-endoscopy premedication has also been given in other Asian countries for decades, and there have been no safety concerns or reports of complications. The variability of an AMV can be explained by several factors affecting mucolytic activity: gastric acidity, duodenogastric reflux, and delayed gastric emptying (gastroparesis and functional dyspepsia) [23,24]. In our study we did not encounter any adverse events or side-effects.

The use of standardized endoscopic systems, high-definition white light endoscopy, and meticulous inspection techniques of the mucosa are of paramount importance to improve the detection of lesions [25-29]. The superimposed photographic record of the mucosa is a robust indicator of the integrity of the evaluation [17]. Overlapping images are critical for a registration of consecutive images that provide examiners with a complete sequence of the procedure. The systematic stomach screening protocol proposes a minimum of 22 endoscopic images. However, it does not take into account other digestive areas (hypopharynx, esophagus, esophagus-gastric junction, and duodenum) [18]. In contrast, SACE allows complete standardized evaluation of 28 specific areas of mucosa, from the hypopharynx to the second portion of duodenum, through the superposition of images (photodocumentation), which reduces blind spots [17,19]. This technique provides to the examiner a sequence of images and can reduce medico-legal concerns over missed lesions [2,4,18]. This is the first study in the world to evaluate all areas (28 areas) of upper GI endoscopy using an imaging sequence protocol (SACE).

One limitation of this study is the lack of a standardized scale to classify mucosal visualization, as previous studies have used different measures. Another limitation of our study was the lack of registration of the lesions found during endoscopy, procedure duration and the volume of water required to clean the mucosa. In the study, we did not perform tests to evaluate the degree of delayed gastric emptying. Randomized studies are still needed to evaluate the full effectiveness of SACE in detecting malignant and non-malignant lesions. Studies with a larger cohort of patients are required to evaluate the full pharmacological effect.

In conclusion, the combination of a mucolytic (N-acetylcysteine 600 mg) with an antifoam (simethicone 200 mg) was more effective than water or other substances alone in improving the AMV scale. Such premedication might improve the diagnostic yield of this procedure, and should be considered in routine clinical practice.
