Cap-assisted endoscopic treatment of esophageal food bolus impaction and/or foreign body ingestion: a systematic review and meta-analysis

Babu P. Mohana*, Jay Bapayeb*, Syed Hamaad Rahmanc, Priyadarshini Loganathand, Arunkumar Muthusamye, Daryl Ramaia, Suresh Ponnadaf, Saurabh Chandang, John Fanga

University of Toledo College of Medicine and Life Sciences; The Ohio State University, Ohio, USA

University of Utah Health School of Medicine, Salt Lake City, UT; Rochester General Hospital, NY; Kansas City University, MO; UT Health, San Antonio, TX; Cedar Valley Medical Specialists, Waterloo, IA; Carilion Roanoke Medical Center, VA; CHI Creighton School of Medicine, Omaha, NE, USA

aGastroenterology and Hepatology, University of Utah Health School of Medicine, Salt Lake City, UT (Babu P. Mohan, Daryl Ramai, John Fang); bInternal Medicine, Rochester General Hospital, NY (Jay Bapaye); cInternal Medicine, Kansas City University, MO (Syed Hamaad Rahman); dInternal Medicine, UT Health, San Antonio, TX (Priyadarshini Loganathan); eGastroenterology and Hepatology, Cedar Valley Medical Specialists, Waterloo, IA (Arunkumar Muthusamy); fInternal Medicine, Carilion Roanoke Medical Center, VA (Suresh Ponnada); gGastroenterology, CHI Creighton School of Medicine, Omaha, NE (Saurabh Chandan), USA

Correspondence to: Babu P Mohan MD, 30 N 1900 E SOM 4R118, Salt Lake City, UT 84132, USA, e-mail:
* Authors contributed equally to the writing of the manuscript
Received 25 June 2022; accepted 6 September 2022; published online 17 October 2022
© 2022 Hellenic Society of Gastroenterology


Background Esophageal food bolus and/or foreign body (FB) impaction is a common gastrointestinal emergency. This meta-analysis reports on the pooled outcomes of cap-assisted endoscopic removal of esophageal FB.

Methods We conducted a comprehensive search of several databases (inception to February 2022) to identify studies reporting on the use of a cap in the endoscopic treatment of esophageal FB ingestion. A random effects model was used to calculate the pooled odds ratio (OR) and mean difference (MD), and I2 values were used to assess the heterogeneity.

Results Six studies were analyzed that included 677 patients treated with cap-assisted and 694 with conventional endoscopy. The cap-assisted method demonstrated statistically significant superiority regarding technical success (pooled OR 7.1, 95% confidence interval [CI] 1.9-26.9; P=0.004), en bloc removal (pooled OR 26.6, 95%CI 17.6-40.2; P<0.001), as well as a significantly shorter procedure time (4.6 min, 95%CI -6.5 to -2.8; P<0.001), compared to conventional methods. Better technical success was achieved with the cap-assisted method performed under anesthesia (OR 8.7, 95%CI 1.6-47.7; P=0.01); however, a shorter procedure time was noted for the cap-assisted method without anesthesia (MD -1.5, 95%CI -2.7 to -0.4; P=0.01). Pooled adverse events were comparable. Pooled OR for mucosal tear was significantly lower with cap in food bolus impaction (OR 0.07, 95%CI 0.01-0.38; P=0.02).

Conclusion Cap-assisted endoscopic removal of esophageal FB is associated with better technical success and en bloc removal, and a shorter procedure time compared to conventional methods, with comparable adverse events.

Keywords Cap-assisted endoscopy, food bolus, meta-analysis

Ann Gastroenterol 2022; 35 (6): 584-591


Esophageal food bolus and/or foreign body (FB) impaction is one of the most common reasons for urgent gastroenterology consultation and endoscopy in the emergency room [1-3]. Esophageal FBs include sharp pointed objects (e.g., fish/chicken bones), short blunt objects and food boluses (e.g., boneless meat). Timely and safe endoscopic intervention to remove the impaction is paramount to improve patient outcomes and prevent complications, including aspiration, esophageal injury, and perforation. Studies have demonstrated that early and rapid removal of the FB and/or food bolus is associated with a better prognosis as compared to late intervention and/or prolonged procedure time [1,4].

Different centers and endoscopists use different sedation protocols for the removal of esophageal FBs. Some perform these endoscopic procedures under moderate conscious sedation, reserving the use of general anesthesia for prolonged cases or when there is concern about very proximal impaction. However, other centers routinely perform such procedures under general anesthesia (GA) to maximize airway protection and aspiration prevention.

Different centers and endoscopists also use different endoscopic techniques for removal of esophageal impactions. The most commonly described method is the push technique, where an attempt is made to push the food impaction gently into the stomach. If this fails, the food bolus is then removed either en bloc or piecemeal, using a variety of endoscopic accessories to “pull out” the FB retrogradely, with or without the use of an overtube. In recent years, multiple studies have reported on the efficacy of the use of a transparent cap attached to the distal end of an upper endoscope to aid in the removal of esophageal food impaction en bloc, to provide improved visualization and to protect the esophageal wall for removal of FBs [5-10]. In this study, we performed a systematic review and meta-analysis of the use of cap assistance compared to other techniques for endoscopic treatment of esophageal food impaction bolus and/or FB retrieval, and the use of moderate sedation compared to GA for sedation during these procedures.

Materials and methods

Search strategy

We conducted a comprehensive search of several databases and conference proceedings, including Ovid MEDLINE, EMBASE, EBM Reviews, Scopus and Web of Science databases (earliest inception to February 2022). The key words used in the literature search and the results of the search are summarized in Appendix 1. We followed the Meta-analysis of Observational Studies in Epidemiology (MOOSE) guidelines [11] (Appendix 2), and the Preferred Reporting Methods in Systematic Review and Meta-analyses (PRISMA) [12] checklist (Appendix 3) to identify studies reporting on the use of cap assistance in esophageal food bolus and/or FB removal by upper endoscopy.

The search was restricted to studies in human subjects, with no restrictions on study language. Two authors (JB, HR) independently reviewed the titles and abstracts of studies identified in the primary search and excluded studies that did not address the research question, based on pre-specified exclusion and inclusion criteria. The full text of the remaining articles was reviewed to determine whether they contained relevant information. Any discrepancy in article selection was resolved by consensus, and in discussion with a coauthor (BPM). The bibliographic section of the selected articles, as well as the systematic and narrative articles on the topic, were manually searched for additional relevant articles.

Study selection

In this meta-analysis, we included studies that evaluated the use of a transparent distal upper endoscopy cap in the treatment of esophageal food bolus and/or FB. Studies were included irrespectively of inpatient/outpatient setting and geography, as long as they provided the data needed for the analysis. Exclusion criteria included studies on FB removal from the stomach or duodenum, and studies involving a pediatric population. In cases of multiple publications from the same cohort and/or overlapping cohorts, data from the most recent and/or most appropriate comprehensive report were included.

Data abstraction and quality assessment

Data on study-related outcomes in the individual studies were abstracted onto a standardized form by at least 2 authors (JB, HR), and 2 authors (JB, HR) did the quality scoring independently. When necessary, primary study authors were contacted via email for additional data points not mentioned in their studies. The Jadad scale was used to assess the quality of randomized controlled studies and the Newcastle-Ottawa scale was used for the others [13,14]. The details of the quality scoring questions are provided in Supplementary Tables 1 and 2.

Outcomes assessed

The outcomes assessed in this study were as follows: pooled rates of technical success, pooled procedure times, and pooled adverse events. The assessment of adverse event severity was reported according to the American Society of Gastrointestinal Endoscopy (ASGE) Lexicon [15] when feasible. Otherwise, adverse events were reported as in the primary studies.

Statistical analysis

We used meta-analysis techniques to calculate the pooled estimates in each case, following the methods suggested by DerSimonian and Laird, and using a random-effects model [16]. When the incidence of an outcome was zero in a study, a continuity correction of 0.5 was added to the number of incident cases before statistical analysis. Pooled proportions with corresponding 95% confidence intervals (CI) were calculated for categorical outcomes and pooled mean differences (MD) were calculated for continuous outcomes. We assessed heterogeneity between study-specific estimates using the Cochran Q statistical test for heterogeneity and the I2 statistic [17,18]. In this, values of <30%, 30-60%, 61-75%, and >75% were suggestive of low, moderate, substantial, and considerable heterogeneity, respectively. Publication bias was ascertained qualitatively, by visual inspection of funnel plots, and quantitatively, by the Egger test [19,20]. All analyses were performed using Comprehensive Meta-Analysis (CMA) software, version 3 (BioStat, Englewood, NJ).


Search results and population characteristics

From an initial total of 973 articles, 715 studies were retained after deduplication. After screening, 29 manuscripts were reviewed in full length. The final analysis included a total of 6 studies that compared the use of the cap-assisted endoscopic technique to conventional methods [5-10]. A total of 1371 patients were treated for esophageal food bolus and/or FB impaction: 677 with the cap-assisted endoscopic technique and 694 patients with conventional methods. Fig. 1 shows a schematic diagram of the study selection.

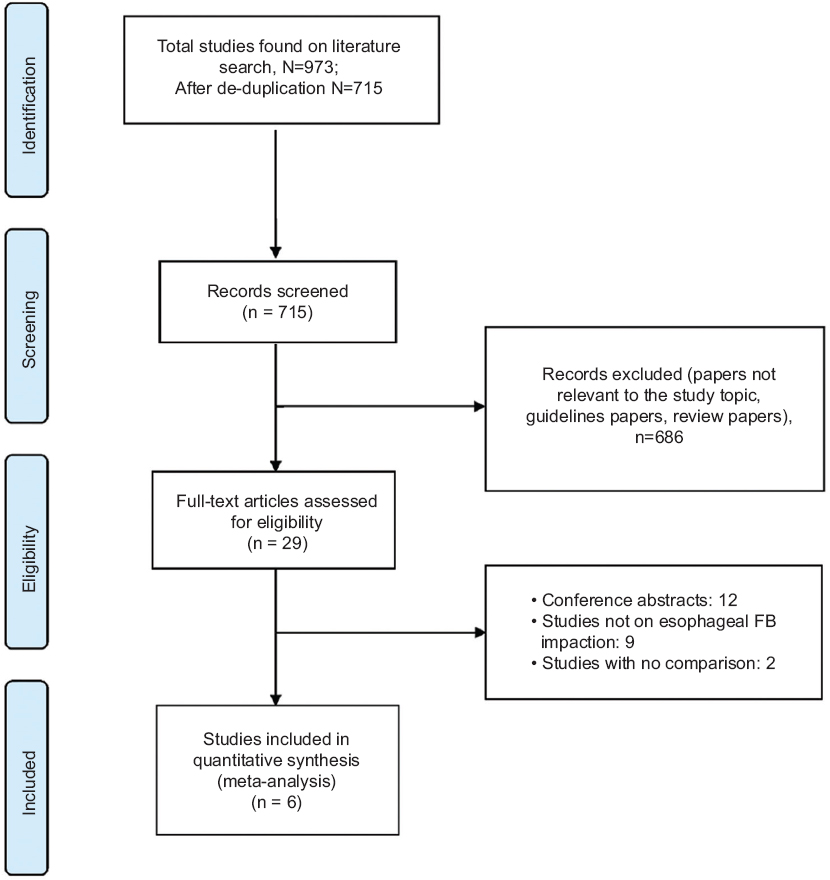

Figure 1 Study selection flowchart

FB, food bolus and/or foreign body

Males accounted for 59% of the total patients and the mean age of the study populations ranged from 47.6-62.8 years. Dysphagia and odynophagia were the most common presenting symptoms. Commonly encountered underlying esophageal abnormalities were peptic strictures (32%) and eosinophilic esophagitis (20%). Other less commonly reported abnormalities were Schatzki’s ring (5%), anastomotic stricture (3%), tumor (2.4%), and post-corrosive esophagitis. Steak was the most common type of impacted food bolus in 47.8%. Fish bone (8.6%), chicken bone (6.9%), and seeds/pits (12%) were the other impacted FBs. The study and population demographics are summarized in Table 1, and additional data points of interest are summarized in Supplementary Table 1.

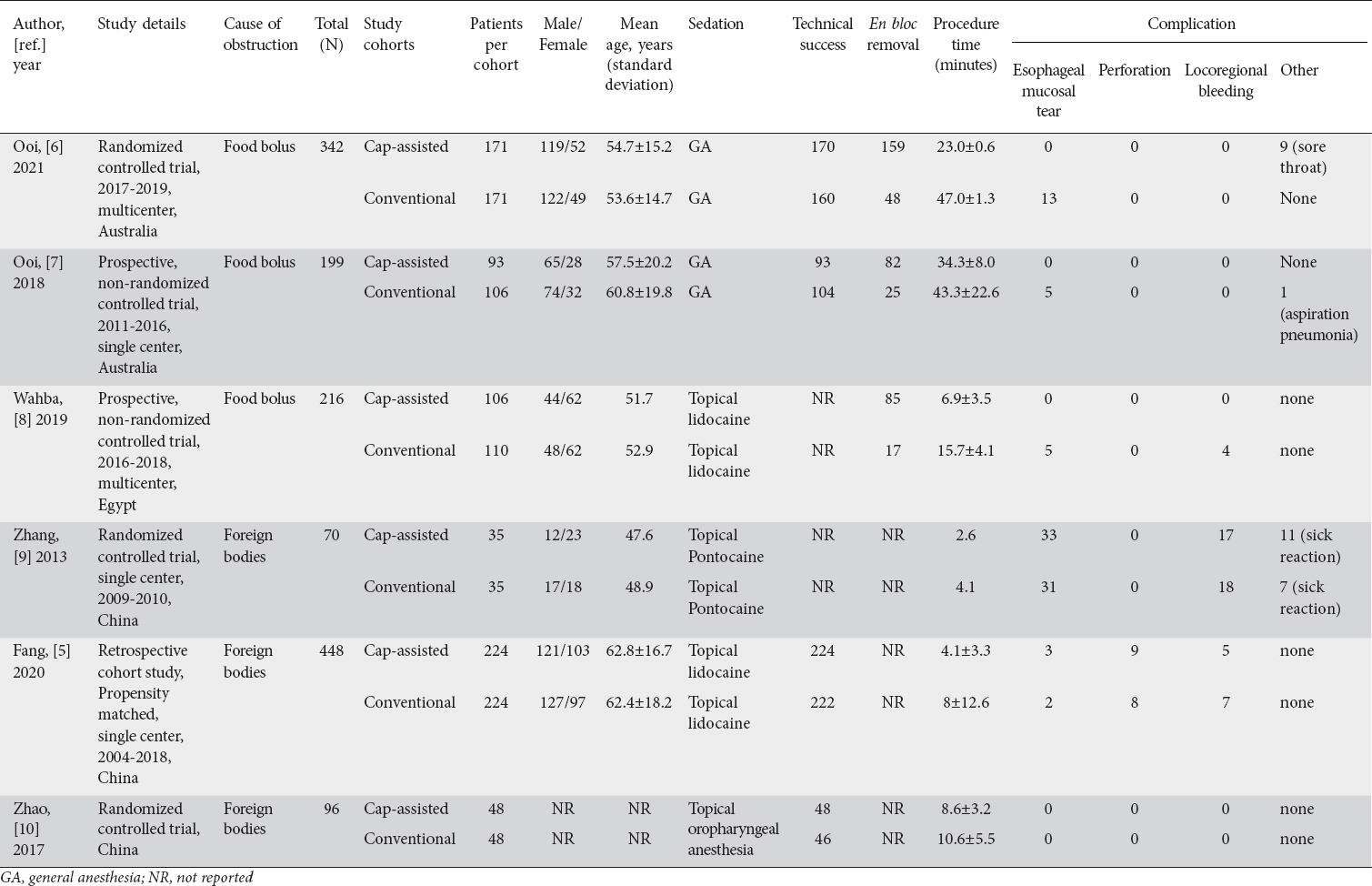

Table 1 Study and population characteristics


Characteristics and quality of included studies

Three studies [6,10,21] were randomized controlled trials (RCTs), 2 studies were non-randomized controlled trials [7,8], and 1 [5] was a retrospective propensity-matched study. Based on the Jadad scale of assessment for RCTs, the 3 studies were considered to be of moderate risk for bias, primarily due to the inability to blind. Based on the Newcastle-Ottawa scale for comparative cohort studies, the remaining 3 non-randomized studies were considered of high quality. Details of study quality assessments are summarized in Supplementary Table 2A,B.

Meta-analysis outcomes

Pooled rates, odds ratio (OR) for technical success

With the assistance of the cap, the pooled rate of technical success was 99.5% (95%CI 98.2-99.8) compared to 97.1% (95%CI 92.6-98.9) in the conventional methods group. The pooled OR of technical success with cap assistance compared to conventional methods was 7.1 (95%CI 1.9-26.9); P=0.004; I2=0% (Fig. 2).

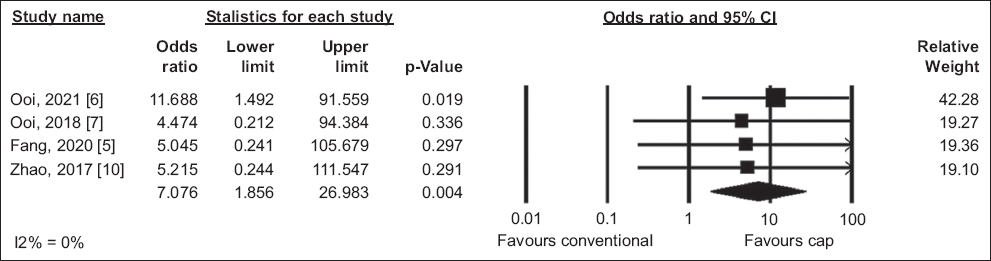

Figure 2 Forest plot, odds ratio ‐ technical success

CI, confidence interval

Pooled rates, OR for en bloc removal

The pooled rate of en bloc removal with cap assistance was 87.9% (95%CI 78.1-93.6) and with conventional methods it was 22.5% (95%CI 16-30.7). The pooled OR of en bloc removal with cap assistance compared to conventional methods was 26.6 (95%CI 17.6-40.2); P<0.001; I2=0% (Fig. 3).

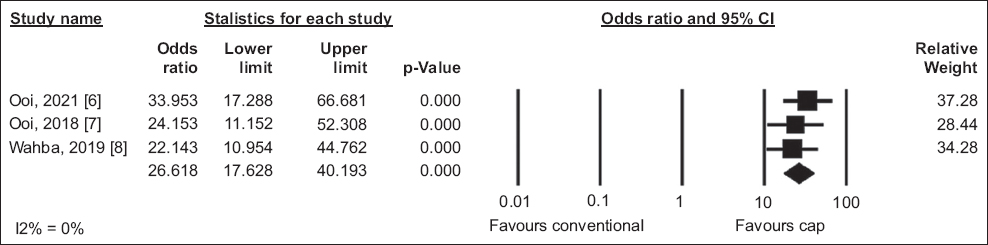

Figure 3 Forest plot, odds ratio ‐ en bloc removal

CI, confidence interval

Pooled MD in procedure time

The pooled MD of procedure time with cap assistance compared to conventional methods was -4.6 min (95%CI -6.5 to -2.8); P<0.001; I2=99% (Fig. 4). The actual pooled mean procedure time was 13.2 min (95%CI 2.7-23.8), standard error 5.4, with the cap and 21.4 min (95%CI 1-43.8), standard error 11.4, with the conventional method.

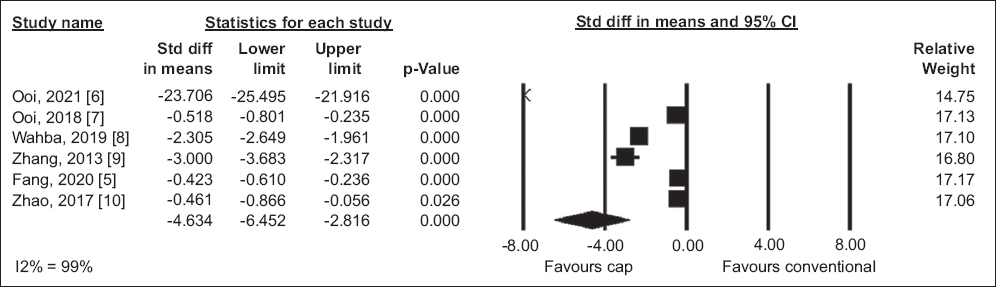

Figure 4 Forest plot, mean difference ‐ procedure time

CI, confidence interval

Subgroup analysis based on the use of GA

When GA was used, the pooled rate of technical success was 99.4% (95%CI 97.2-99.9) with cap assistance and 95.9% (95%CI 87.5-98.7) without cap. The pooled OR of technical success showed it was significantly better with cap assistance under GA, OR 8.7 (95%CI 1.6-47.7; P=0.01).

On the other hand, when GA was not used, the pooled rate of technical success in cap-assisted FB removal was 99.5% (95%CI 96.7-99.9) and in conventional FB removal it was 98.1% (95%CI 91.6-99.6). The pooled rate of technical success with cap assistance was comparable to conventional methods, pooled OR 5.1 (95%CI 0.6-44.4; P=0.1) (Supplementary Fig. 1).

The pooled MD in procedure time with cap assistance was comparable to conventional methods in studies that used GA, MD -12.1 (95%CI -34.8 to 10.6; P=0.3), whereas the pooled MD in procedure time with cap assistance was significantly faster as compared to conventional methods in studies that did not use GA, MD -1.5 (95%CI -2.7 to -0.4; P=0.01) (Supplementary Fig. 2).

Pooled OR for adverse events

The pooled OR for adverse events with cap assistance compared to conventional methods was as follows: esophageal mucosal tear was 0.4 (95%CI 0.1-1.7; P=0.2), locoregional bleeding was 0.8 (95%CI 0.1-1.7; P=0.2), and perforation was 1.1 (95%CI 0.5-2.6; P=0.8). In studies that evaluated a food bolus, the pooled OR of mucosal tear was significantly lower with cap-assisted endoscopy compared to conventional methods, OR 0.07 (95%CI 0.01-0.38; P=0.02) (Supplementary Figs. 3-5). All pooled results are summarized in Table 2.

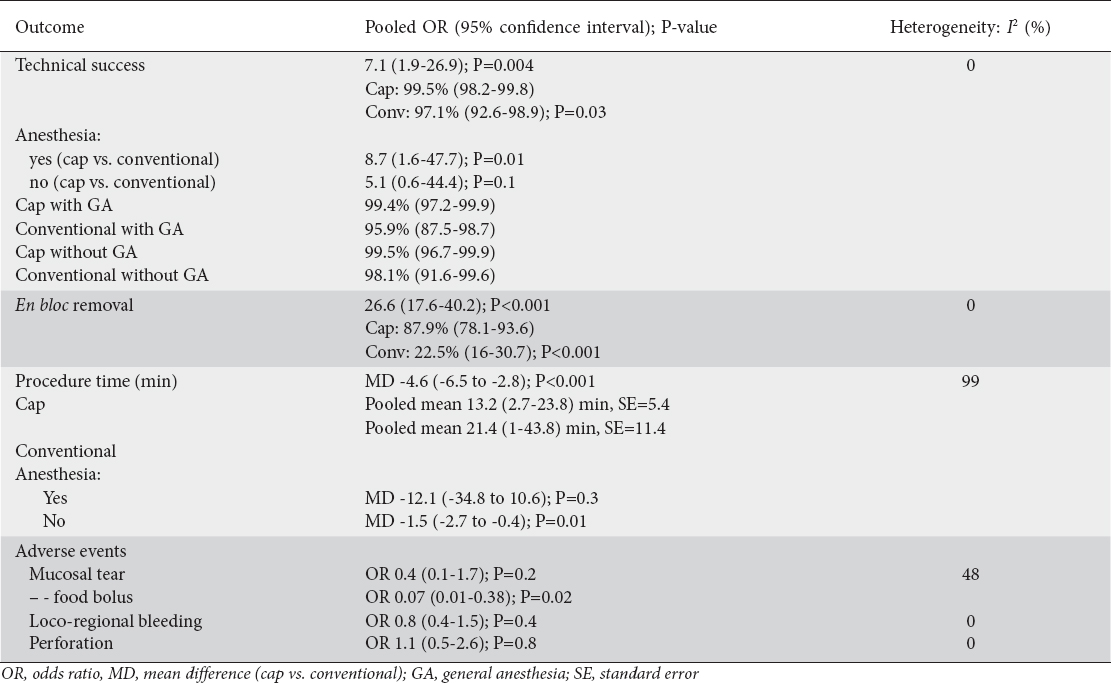

Table 2 Summary of pooled rates


Validation of meta-analysis results

Sensitivity analysis

To assess whether any one study had a dominant effect on the meta-analysis, we excluded one study at a time and analyzed its effect on the main summary estimate. After excluding the study by Ooi et al [6], there was a loss of statistical significance in the cap-assisted group for technical success (pooled OR 4.72, 95%CI 0.80-27.90; P=0.09).


We assessed dispersion of the calculated rates using the I2 percentage values. Overall low heterogeneity was noted among pooled OR for en bloc resection, esophageal mucosal tears, and technical success. However high heterogeneity was noted while calculating the MD in procedure times. This was probably due to differences in the definitions of procedure time used in the included studies.

Publication bias

A publication bias assessment was deferred as the total number of studies included in the final analysis was less than 10.


In this meta-analysis of 6 studies, we demonstrated that the cap-assisted technique for endoscopic treatment of esophageal food bolus and/or FB impaction was associated with a significantly better technical success rate (P=0.004) and en bloc removal rate (P<0.001), with a shorter procedure time (P<0.001), compared to other conventional endoscopic methods. This is the first meta-analysis to address this topic and the results support the use of cap assistance in endoscopic removal of esophageal FB and/or food bolus impaction compared to standard techniques.

Esophageal impaction of an ingested FB is a common endoscopic emergency encountered in clinical practice and can result in serious adverse events, including aspiration pneumonia, bleeding, perforation and even death [1-4]. The global burden of FB impaction is increasing because of the increasing prevalence of strictures related to acid reflux disease and eosinophilic esophagitis [1-4,22]. Both the push and pull techniques have been described for retrieval of impacted FBs, as described earlier. The ASGE recommends caution with the push technique in certain clinical situations, given the associated risk of perforation [1]. If the push technique is unsuccessful or not used, the pull technique is implemented; this often leads to piecemeal extraction, which can be time consuming and can cause injury to the surrounding esophageal mucosa [2,4].

The cap-assisted technique involves the use of a transparent cap fitted onto the tip of the endoscope, similar to the caps used in esophageal variceal ligation. Current ASGE guidelines do not mention the cap-assisted technique for FB extraction [1]. European Society of Gastrointestinal Endoscopy (ESGE) guidelines recommend cap-assisted techniques if an overtube is not available, to reduce the risk of mucosal injury during removal of a sharp pointed object [4]. Both guidelines were published before most of the studies included in this meta-analysis were published. The cap-assisted technique has been studied more recently to explore its advantages over conventional methods for extraction of FBs. The cap enables the endoscopist to apply strong suction to the FB surface and dislodge it from the surrounding esophageal wall, which results in rapid en bloc removal of the food bolus. In addition, it provides improved visualization for access to the FB, especially for proximal impactions. This probably translates to significantly shorter procedure times, as we found in our analysis. The en bloc removal was calculated for food bolus impactions and not FB.

Another interesting finding of this study was on the use of GA. Sedation protocols differ based on different hospital policies. In some centers, the routine use of GA is part of the protocol for endoscopic esophageal FB removal. However, in many centers, including our own, GA is used at the endoscopist’s discretion. The deciding factors are usually based on the risk of aspiration, proximal location, anticipation of a prolonged procedure time, and/or concern for intolerance of standard conscious sedation. Both the ASGE and ESGE guidelines consider its use in high-risk patients and the ASGE states that most cases may be managed with conscious sedation.

In this study the pooled rate of technical success in cap-assisted FB removal with the use of GA was 99.4%, compared to 95.9% for conventional FB removal, whereas the pooled technical successes were comparable between the cap-assisted technique and conventional methods when GA was not used (99.5% vs. 98.1%; P=0.1). Although the use of GA was associated with better technical success in the cap-assisted group compared to conventional methods (P=0.01), the pooled MD in procedure time was shorter with cap assistance in studies that did not employ GA (P=0.01). This finding might reflect differences in the calculation of procedure time, and more studies are needed to ascertain the clinical impact of this finding.

The pooled adverse events were comparable between cap-assisted endoscopy and conventional methods. The major reported events were esophageal mucosal tear, locoregional bleeding and perforation. However, in a subgroup analysis of food bolus impactions alone, the pooled OR of mucosal tear was significantly lower with the use of a cap as compared to the conventional methods (P=0.02). This may be due to protection of the esophageal wall afforded by the cap during faster and more atraumatic removal of the FB. The perforation rates were related to the endoscopy procedure itself; however, granular details about the underlying disease, such as malignancy, were not provided in the included studies.

Our analysis demonstrates several strengths, including the most up-to-date systematic literature search with well-defined inclusion criteria, careful exclusion of redundant studies, inclusion of high-quality studies with rigorous evaluation of study quality to establish or refute the validity of the results. Secondly, we only included studies that compared outcomes with cap-assisted versus conventional endoscopic techniques for FB removal and the majority of the included studies were prospective in nature. Thirdly, the included studies in our analysis span various geographical locations, thus making our results more generalizable to routine clinical practice. Finally, we encountered low amounts of heterogeneity for most of our reported outcomes.

There are limitations to this study, most of which are inherent to any meta-analysis. We could include only 6 studies, as only that many were available, which could have underpowered our outcomes. These studies included patients with food bolus impaction only, FB impaction only or both. However, all these studies compared the efficacy of cap vs. no cap use in esophageal impaction; therefore, we felt it was reasonable to combine the studies for our analysis. Data pertaining to food bolus alone or FB alone were not sufficient (only 2 studies in each group) to calculate pooled rates of technical success. The procedure times were calculated from beginning of sedation to extubation in 2 studies and from beginning of esophageal examination to removal of FB in 3 studies, which could have led to heterogeneity for pooled MD in procedure time. Nevertheless, this meta-analysis is based on the best available global data on the endoscopic treatment of esophageal food bolus and/or FB.

In conclusion, this meta-analysis demonstrated significantly better pooled technical success and en bloc removal, and shorter procedure times with cap-assisted endoscopic removal of esophageal food bolus and/or FB impaction. The incidence of esophageal mucosal tear was significantly lower with the use of the cap for retrieval of esophageal food bolus impactions. Excellent clinical outcomes seem to be achievable, even without the use of GA. Additional research is warranted to further study the type and size of transparent cap that would provide the best clinical outcome.

Summary Box

What is already known:

  • Endoscopic treatment of food bolus and/or foreign body (FB) impaction is a life-threatening emergency

  • Gentle pushing of the food bolus into the stomach can be successful; however, it is up to the endoscopist's discretion to use endoscopic tools to retrieve the FB or remove the food bolus based on the clinical situation

  • Use of general anesthesia in such cases is dependent on the institutional policy and endoscopist's comfort level, keeping in mind the safety of the patient's airway

What the new findings are:

  • The use of a transparent cap was associated with asignificantly better technical success rate and en blocremoval rate of food bolus and/or FB impaction in the esophagus

  • It was associated with faster procedure times as compared to conventional techniques

  • It was associated with fewer adverse events, especially esophageal mucosal tears in food bolus impactions

  • It can be safely performed without general anesthesia and seems to demonstrate comparable clinical outcomes when general anesthesia is used


1. Ikenberry SO, Jue TL, Anderson MA, et al;ASGE Standards of Practice Committee. Management of ingested foreign bodies and food impactions. Gastrointest Endosc 2011;73:1085-1091.

2. Lacy PD, Donnelly MJ, McGrath JP, Byrne PJ, Hennessy TP, Timon CV. Acute food bolus impaction:aetiology and management. J Laryngol Otol 1997;111:1158-1161.

3. Monnier P. Acute food bolus impaction in the esophagus. Eur Arch Otorinolaryngol 2005;262:523.

4. Birk M, Bauerfeind P, Deprez PH, et al. Removal of foreign bodies in the upper gastrointestinal tract in adults:European Society of Gastrointestinal Endoscopy (ESGE) Clinical Guideline. Endoscopy 2016;48:489-496.

5. Fang R, Cao B, Zhang Q, Li P, Zhang ST. The role of a transparent cap in the endoscopic removal of foreign bodies in the esophagus:A propensity score-matched analysis. J Dig Dis 2020;21:20-28.

6. Ooi M, Duong T, Holman R, et al. Comparison of cap-assisted vs conventional endoscopic technique for management of food bolus impaction in the esophagus:results of a multicenter randomized controlled trial. Am J Gastroenterol 2021;116:2235-2240.

7. Ooi M, Young EJ, Nguyen NQ. Effectiveness of a cap-assisted device in the endoscopic removal of food bolus obstruction from the esophagus. Gastrointest Endosc 2018;87:1198-1203.

8. Wahba M, Habib G, El Mazny A, et al. Cap-assisted technique versus conventional methods for esophageal food bolus extraction:a comparative study. Clin Endosc 2019;52:458-463.

9. Zhang S, Wang J, Wang J, Zhong B, Chen M, Cui Y. Transparent cap-assisted endoscopic management of foreign bodies in the upper esophagus:a randomized, controlled trial. J Gastroenterol Hepatol 2013;28:1339-1342.

10. Zhao G, Yang L, Dong L, et al. Effect of transparent cap-assisted endoscopic esophageal foreign body removal. China J Endosc 2017;12:26-29.

11. Stroup DF, Berlin JA, Morton SC, et al. Meta-analysis of observational studies in epidemiology:a proposal for reporting. Meta-analysis Of Observational Studies in Epidemiology (MOOSE) group. JAMA 2000;283:2008-2012.

12. Page MJ, McKenzie JE, Bossuyt PM, et al. The PRISMA 2020 statement:an updated guideline for reporting systematic reviews. Int J Surg 2021;88:105906.

13. Jadad A, Moore R, Carroll D, et al. Assessing the quality of reports of randomized clinical trials:is blinding necessary?Control Clin Trials 1996;17:1-12.

14. Stang A. Critical evaluation of the Newcastle-Ottawa scale for the assessment of the quality of nonrandomized studies in meta-analyses. Eur J Epidemiol 2010;25:603-605.

15. Cotton PB, Eisen GM, Aabakken L, et al. A lexicon for endoscopic adverse events:report of an ASGE workshop. Gastrointest Endosc 2010;71:446-454.

16. DerSimonian R, Laird N. Meta-analysis in clinical trials. Control Clin Trials 1986;7:177-188.

17. Higgins J, Thompson S, Spiegelhalter D. A re-evaluation of random-effects meta-analysis. J R Stat Soc Ser A Stat Soc 2009;172:137-159.

18. Mohan BP, Adler DG. Heterogeneity in systematic review and meta-analysis:how to read between the numbers. Gastrointest Endosc 2019;89:902-903.

19. Easterbrook P, Gopalan R, Berlin J, et al. Publication bias in clinical research. Lancet 1991;337:867-872.

20. Rothstein H, Sutton A, Borenstein M. Publication bias in meta-analysis:Prevention, assessment and adjustments:John Wiley &Sons Ltd., New York, 2005.

21. Zhang S, Cui Y, Gong X, Gu F, Chen M, Zhong B. Endoscopic management of foreign bodies in the upper gastrointestinal tract in South China:a retrospective study of 561 cases. Dig Dis Sci 2010;55:1305-1312.

22. Byrne KR, Panagiotakis PH, Hilden K, Thomas KL, Peterson KA, Fang JC. Retrospective analysis of esophageal food impaction:differences in etiology by age and gender. Dig Dis Sci 2007;52:717-721.


Conflict of Interest: None
