Endoscopic management of esophageal and gastric lesions with underlying varices

EMR

Endoscopic resection of a superficial lesion (early-stage esophageal carcinoma) with underlying varices was first described in 1991, when the authors performed EMR using a transparent tube after variceal eradication using endoscopic injection sclerotherapy (EIS). This was performed as a 2-stage procedure: in the first stage, a sclerosant (ethanolamine oleate) was injected into the lumen of the varices and, after 1 month, following confirmation that the varices had thrombosed and completely disappeared, EMR of the cancerous lesion was successfully performed without major adverse events (only minor bleeding during the procedure, easily controlled) and allowing histopathological examination and staging [7]. In 2000, resection of early-stage squamous esophageal cancer in a patient with alcoholic cirrhosis and esophageal varices was also performed after EIS with sodium tetradecyl sulfate in 2 sessions: after variceal eradication, EMR was performed with no adverse events or recurrence after 1 year [8].

More recently, EMR after endoscopic variceal ligation (EVL) was performed in a total of 6 patients with early-stage esophageal carcinoma [9-11]. All lesions were successfully resected piecemeal, using the cap-assisted technique during a single EMR session [10,11], except for 1 patient who needed a second EMR after 3 months due to recurrence [9]. In most patients, a 2-stage approach was performed, with EVL preceding EMR, apart from 1 case where EVL was done at the same time as EMR [10]. There were no significant complications and no cases of recurrence were detected after long-term follow up [10,11]. Interestingly, a case series of 4 patients suggests that EMR after previous EVL is also safe and feasible in patients with BE and high-grade dysplasia (HGD) or adenocarcinoma in the setting of portal hypertension [12].

EMR of a polypoid adenocarcinoma (Paris 0-Ip) on a long Barrett’s segment without previous variceal eradication was also described. The lesion was snared with a band ligator cap mounted on the endoscope as a precautionary measure that would enable direct variceal ligation in case of bleeding. The resection was uneventful and EVL was not necessary. However, a residual lesion was detected after 2 months, perhaps because of a very superficial resection related to fear of inducing massive hemorrhage [11]. Considering this significant risk of bleeding, EMR without previous variceal eradication cannot be recommended.

In conclusion, EMR preceded by variceal eradication with EIS or EVL appears to be feasible for early-stage esophageal cancer with underlying varices. EIS has the potential advantages of inducing less fibrosis and leaving the lesion intact, which may facilitate subsequent resection, although further studies are needed to assess whether it is associated with better outcomes than EVL.

Endoscopic band ligation

An alternative strategy for small lesions on esophageal varices is to “ligate and let go”: after ligation of the varix with the overlying early neoplasm, the lesion will become necrotic and fall off spontaneously. This method has been described as successful for diminutive cancers in the distal esophagus overlying varices, without adverse events or recurrence after long-term follow up [11,13]. Although associated with less risk of bleeding, this technique has limitations, as it does not allow complete excision of large lesions and does not provide a full specimen for histological examination and evaluation of the lesion’s extent and infiltration depth.

In contrast to resection of focal lesions, banding alone did not demonstrate significant efficacy for BE-HGD in a retrospective study that compared 8 BE-HGD patients and concomitant esophageal varices, managed initially with endoscopic banding ligation, to a group of 52 BE-HGD patients without esophageal varices managed with other techniques. This study revealed that banding alone rarely resulted in resolution of Barrett’s epithelium [14].

ESD

The safety and effectiveness of esophageal ESD in patients with liver cirrhosis has been demonstrated in a retrospective study where en bloc and R0 resection rates were similar between cirrhotic and non-cirrhotic patients. However, the rate of intraprocedural bleeding was significantly higher in cirrhotic (18.2%) than non-cirrhotic (0%) patients and mostly related to the presence of large varices [15].

Therefore, the presence of underlying varices is a relevant factor that must be kept in mind when planning esophageal ESD. As with EMR, the risk of bleeding is significant, perhaps even higher considering the increased depth of invasiveness of ESD into the submucosal level where the varicose veins are located. Nevertheless, several case reports demonstrated the feasibility of ESD for superficial esophageal cancer in patients with cirrhosis and esophageal varices, whence we can infer strategies that may help decrease the bleeding risk.

One possible strategy is to perform previous EVL until complete variceal eradication is obtained. Although several cases support its effectiveness in preventing major bleeding [16,17], the number of EVL sessions and the optimal timing to perform variceal banding before ESD have not been clearly established. Previous reports of bleeding associated with a single ligation, and incomplete eradication before proceeding to ESD [15], suggest that it might be prudent to achieve complete variceal eradication before ESD, even if multiple sessions are required. The risk of bleeding from ESD performed too soon after EVL needs to be balanced against the technical difficulties associated with fibrosis development from banding if there is an excessive delay.

However, depending on the location of the lesion, such as the gastroesophageal junction, it may be difficult to perform preventive variceal eradication before ESD. An alternative is to perform direct variceal coagulation during the procedure by grasping bared varices with hemostatic forceps and cauterizing them with soft coagulation. Several cases support the safety and effectiveness of this approach for early esophageal cancer with underlying varices [18-21]. Remarkably, it allowed extensive, even circumferential, esophageal ESD without significant bleeding [21]. At the same time, it also causes disappearance of the varices, probably related to shutting off their feeding vessels [20]. However, it is only feasible for small varices (F1); if large esophageal varices (F2-F3) are present, direct variceal coagulation may have a higher risk of bleeding, and preventive treatments such as EVL should be addressed.

Water-pocket ESD, where dissection is carried out in the submucosa beneath the target lesion within a locally created water pool to create a submucosal tunnel, also appears to be an interesting technique refinement for resection of early esophageal cancer with underlying varices. Its advantages include elimination of electrosurgical smoke, magnification of the field of view, and stretching and thinning of submucosal vessels, which improves their identification and coagulation with the dissection knife [22].

Red dichromatic imaging (RDI)-assisted ESD may also be useful for resection of lesions adjacent to varices. RDI is a technology that enables visualization of blood vessels in deep submucosa using 3 different relatively long-wavelength lights (green, amber, and red). In 1 case, ESD was performed using RDI during injection for high-risk superficial esophageal cancer located on post-EVL scars and adjacent to residual esophageal varices. RDI allowed the incision to avoid submucosal vessels and during the procedure there was only minor bleeding [23].

Another important point is proper medical preoperative optimization. These patients often present coagulopathy and hypersplenism, so correction of platelet count and coagulation studies may be important. Nevertheless, although most reported cases were performed with a platelet count >50,000/mL, in one case ESD was performed in a decompensated stage with severe thrombocytopenia (45,000/mL); there were no adverse events, suggesting that platelet count is not an absolute contraindication [19]. Another possible precautionary measure is to perform ESD under vasoactive therapy, which acts on the splanchnic circulation to decrease portal hypertension and alleviate collateral circulation, minimizing risk of bleeding [18].

Transjugular intrahepatic portosystemic shunt (TIPS)

TIPS implantation followed by endoscopic resection also appears to be a promising strategy in the treatment of early esophageal neoplasia in patients with esophageal varices. This approach was described in 2 patients who had BE-associated lesions with HGD [24] or early adenocarcinoma [25] and underlying large varices, where TIPS resulted in rapid regression of the esophageal varices, allowing safe ESD of the overlying lesions. In both cases, minimal bleeding was successfully controlled during the procedure and the patients evolved favorably.

One study compared EVL and TIPS preceding resection of early esophageal cancer, demonstrating that TIPS is associated with less intraprocedural bleeding and a shorter procedure time compared with EVL [26]. An additional advantage is that it does not induce local scarring and the accuracy of staging is maintained. Although the technique seems promising, further studies are needed to evaluate the efficacy and safety of this strategy.

RFA

Endoscopic RFA is a rapidly evolving therapeutic modality for early esophageal squamous cell neoplasia. Its feasibility in the setting of esophageal varices has been evaluated in a retrospective study where 8 consecutive patients with well-compensated cirrhosis and early flat-type early esophageal squamous neoplasia, on or adjacent to esophageal varices, underwent circumferential RFA. Three adverse events were recorded (2 intramucosal hematomas and 1 mucosal laceration), all of which spontaneously resolved without further management. No major adverse events were reported. A complete response was achieved in 6/8 patients after a single treatment and, after the addition of focal-type RFA treatment for residual neoplasia, all the remainder achieved a complete response at 12 months. These results suggest that RFA is an effective therapeutic modality with an acceptable adverse event profile for early esophageal squamous neoplasia in patients with esophageal varices [27].

A modified EMR technique with previous band ligation and subsequent RFA has also been assessed for eradication of neoplastic BE with esophageal varices and has shown promising results. After identifying and marking the target lesion, the distal-to-proximal variceal flow was blocked by endoscopic band ligation distal to the lesion. Conventional band ligation-assisted EMR of the target lesion was then performed in the same session, followed by another EMR session if needed. After complete removal of the lesions, RFA was performed in further sessions to achieve complete eradication of BE. A case series of 3 patients supported the safety and efficacy of this method [28].

RFA has also been used for the treatment of an unusual combination of esophageal angiectasias and BE with underlying varices. In this case, RFA had a double therapeutic effect for both angiectasias and BE, and its maximal ablation depth only reaches the muscularis mucosae, sparing the varices in the submucosa, and therefore would be theoretically safer than argon-plasma coagulation. RFA was performed with no adverse events and clinical improvement was noted, supporting its effectiveness and safety for the treatment of superficial esophageal lesions without previous variceal eradication [29].

Endoscopic spray cryotherapy

The use of endoscopic spray cryotherapy to manage pathological conditions of the esophagus has become increasingly common. Liquid nitrogen cryosprays, delivered through a specialized cryocatheter in brief repeated cycles, can ablate dysplastic or cancerous tissue by causing rapid freezing, gradual thawing, and subsequent necrosis of cells. It is believed to carry a lower risk of bleeding than other modalities, because of the mechanism by which it induces necrosis, which involves significant vascular thrombosis and circulatory stasis [30].

Its efficacy in the setting of portal hypertension and varices is supported by a recent case series including 2 patients with invasive esophageal adenocarcinoma with underlying varices and severe thrombocytopenia: both underwent mucosal ablation using liquid nitrogen cryosprays with no adverse events, complete oncologic resolution and no recurrence during a 2-year follow up [30].

Endoscopic management of early gastric cancer (EGC) with underlying varices

ESD of EGC has been increasingly performed as an alternative to surgery because of its excellent clinical outcomes, especially in high-risk patients such as those with underlying liver cirrhosis. In fact, ESD has been demonstrated to be less expensive, less invasive, less time-consuming and associated with a better patient-reported quality of life compared to surgery [31], while also being associated with higher rate of complete resection and lower rate of local recurrence than EMR [32].

However, the presence of underlying gastric varices may pose significant challenges to the endoscopic treatment of EGC, as there is an associated risk of severe bleeding if the submucosal varices are injured during the procedure. Current evidence in the literature is scarce and there are no specific recommendations for the management of gastric lesions with underlying varices. There are 4 case reports suggesting that ESD can be safely performed for neoplastic lesions on varicose veins if the underlying varices are treated in advance, and illustrating several methods to accomplish their prior eradication (Table 2).

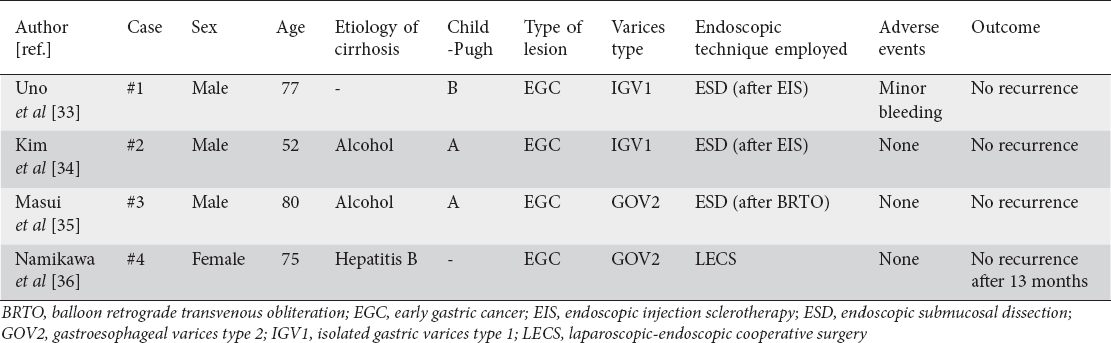

One possible approach involves EIS of the varices with ethanolamine oleate or cyanoacrylate. This method was described in 2 patients with EGC and underlying fundic varices where previous EIS was performed and complete variceal regression was documented with endoscopic ultrasound after 1-2 weeks. ESD was then safely performed with only minor intraprocedural bleeding easily controlled with hot biopsy forceps [33,34]. Although effective, EIS may result in fibrosis and scarring in the submucosal layer, leading to poor or no lifting of tissues and making en bloc resection difficult. EIS should therefore be performed in fewer injection sites and at distant varices from the site of ESD.

Balloon retrograde transvenous obliteration (BRTO) has also been reported as a useful method for eradicating gastric varices prior to ESD, allowing safe resection of the overlying lesion with the advantage of inducing less fibrosis than EIS. However, it may aggravate esophageal varices if present, and the time interval between BRTO and ESD may be longer than for EIS (in the reported case regression of gastric varices was documented 1 month after BRTO), which may be a limiting factor for resection of EGC. Another limitation is that its effectiveness implies the existence of a spleno–gastro–renal shunt and therefore the selection of the method for inducing previous variceal regression must be selected case by case, considering each individual’s hemodynamics and local relationships [35].

Alternatively, laparoscopic-surgery cooperative surgery (LECS) has also been described as an effective modality to achieve safe and complete resection of EGC with underlying varices. LECS is a suitable option for precise dissection of gastrointestinal tumors that involves endoscopic dissection from the mucosal layer to the submucosal layer and then laparoscopic seromuscular resection; it may be appropriate for select patients in whom ESD would be difficult, such as those with underlying varices [36].
