The diagnostic performance of probe-based confocal laser endomicroscopy in the detection of gastric cancer: a systematic review and meta-analysis

Andrew Canakisa, Smit S. Deliwalab, Jagannath Kadiyalaa, Shivanand Bommanc, Justin Canakisd, Mohammad Bilale

University of Maryland School of Medicine, Baltimore, MD; Michigan State University at Hurley Medical Center, Flint, MI; Virginia Mason Franciscan Health, Seattle, WA; George Washington University, Washington, DC; University of Minnesota & Minneapolis VA Health Care System, Minneapolis, Minnesota, USA

aDivision of Gastroenterology & Hepatology, University of Maryland School of Medicine, Baltimore, MD (Andrew Canakis, Jagannath Kadiyala); bDepartment of Medicine, Michigan State University at Hurley Medical Center, Flint, MI (Smit S. Deliwala); cCenter for Digestive Health, Virginia Mason Franciscan Health, Seattle, WA (Shivanand Bomman); dDepartment of Medicine, George Washington University, Washington, DC (Justin Canakis); eDivision of Gastroenterology, University of Minnesota & Minneapolis VA Health Care System, Minneapolis, Minnesota (Mohammad Bilal), USA

Correspondence to: Andrew Canakis, DO, University of Maryland Medical Center, 22 South Greene Street, Baltimore, MD 21201, USA, e-mail: acanakis@som.umaryland.edu
Received 26 February 2022; accepted 26 May 2022; published online 30 July 2022
DOI: https://doi.org/10.20524/aog.2022.0741
© 2022 Hellenic Society of Gastroenterology

Abstract

Background Gastric cancer (GC) represents a significant global health burden with high morbidity and mortality, especially when diagnosed at advanced stages. Therefore, early detection of GC is critical. Probe-based confocal laser endomicroscopy (pCLE) is a new evolving technology that uses real-time, high-resolution imaging to inspect the mucosa at the cellular and microvascular level, using a confocal probe. Widespread studies using pCLE are limited at the current time. We aimed to investigate the diagnostic efficacy of this modality for the detection of GC.

Methods Multiple databases were searched from inception until November 2021. The diagnostic performance of pCLE was assessed by calculating its sensitivity, specificity and accuracy for the detection of GC, using pooled proportions and 95% confidence intervals (CI) with a random-effects model. Heterogeneity was assessed using I2.

Results Seven studies were included, with a total of 567 patients (mean age 61.7 years, 364 males). Pooled performance metrics of pCLE included a sensitivity of 87.9% (95%CI 81.4-92.4; P<0.001; I2=0%), specificity 96.5% (95%CI 91.5-98.6; P<0.001; I2=51.84%), and an accuracy of 94.7% (95%CI 89.5-97.4; P<0.001; I2=65.44%).

Conclusions pCLE is a highly effective diagnostic modality for detecting GC. Larger, randomized controlled studies are needed to determine its role in daily practice compared to conventional endoscopic practices.

Keywords Probe-based confocal laser endomicroscopy, gastric adenocarcinoma, gastric cancer, screening

Ann Gastroenterol 2022; 35 (5): 496-502


Introduction

Gastric cancer (GC) represents a significant clinical burden on the global healthcare system. The worldwide incidence of GC in 2020 was 1,089,103 and there were 768,793 deaths [1]. The prognosis is largely dependent on the stage of GC, but is typically poor, with a 5-year survival rate of 32% [2]. Therefore, detecting GC early is paramount to improve survival outcomes. Endoscopic screening in high-risk populations can detect lesions amenable to endoscopic or surgical resection and improve survival rates [3]. However, early detection continues to remain a challenge, especially given the varying geographical incidences and resources around the world [4]. In 2018, South Korea had the highest rate of GC, with 39.6 per 100,000 people [4]. In the setting of a significantly high disease burden, South Korea has effectively instituted a National Cancer Screening Program to reduced cancer-related morbidity and mortality [5,6]. However, cost-effective endoscopic screening programs in countries with intermediate-to-low incidence have yet to be established [7].

The need for reliable detection can reduce major costs by diagnosing lesions that are curable at early stages and prevent advanced-stage mortality [8,9]. What further complicates this matter is that upper gastrointestinal endoscopy can miss GC at a rate of 9.4% [10]. This has led to recent advances in endoscopic technology in an effort to improve detection rates. Probe-based confocal laser endomicroscopy (pCLE) is one such technology: it provides high-resolution images at the cellular and microvascular levels through the use of a confocal probe that reflects laser light at varying tissue depths [11]. With real-time tissue illumination at 1000× magnification, making an endoscopic optical biopsy holds tremendous potential to reduce biopsy costs and biopsy-related adverse events, while improving real-time treatment decisions [12]. However, there are limited data regarding the effectiveness of pCLE in detecting GC. Hence, our aim was to determine the diagnostic performance of pCLE in detecting GC.

Materials and methods

Protocol

This review followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses Statement (PRISMA) and Meta-analyses of Observational Studies in Epidemiology (MOOSE) reporting standards [13,14].

Search strategy

Multiple databases were searched (Medline, Embase, Scopus, Web of Science and the Cochrane Library) to identify studies that used pCLE for GC detection in vivo from inception to October 2021. An experienced librarian assisted with the literature search, using medical subject headings and inputs provided by the study authors. The search strategy included the following terms: “probe-based confocal laser endomicroscopy”, “gastric” or “stomach”, and “cancer”, “neoplasm”, “lesion”, and “adenocarcinoma”.

Study selection and data abstraction

This meta-analysis was aimed at evaluating the diagnostic performance of pCLE in patients with GC. All study titles and abstracts were independently reviewed by 2 reviewers (AC, JK). Exclusion criteria included non-human, non-English, pediatric studies, systematic reviews, abstracts with less than 10 subjects and case reports. Data abstraction included: study authors, publication year, country of origin, study design, age, sex, equipment used, level of experience, number of gastric lesions, lesion size, lesion location, true positive, true negative, false positive, and false negative.

Quality assessment

Quality assessment of diagnostic accuracy and risk of bias was conducted using the Quality Assessment of Diagnostic Studies-2 (QUADAS-2) tool, and reviewed by 2 authors (AC, JK) [15].

Outcomes assessed

The primary performance outcomes assessed were the sensitivity, specificity, and accuracy of pCLE.

Statistical analysis

Statistical analysis was performed using Comprehensive Meta-Analysis (CMA 3.0) software (Biostat, Englewood, NJ). Pooled estimates and corresponding 95% confidence intervals (CI) for dichotomous variables were calculated using the random-effects inverse variance/DerSimonian-Laird method [16]. Heterogeneity was measured by Cochrane Q and I2 statistics, with values of <30%, 31-60%, 61-75%, and >75% suggesting low, moderate, substantial and considerable heterogeneity, respectively [17,18]. Prediction intervals were also calculated. Three levels of impact were reported, based on the concordance between the reported results and the actual estimate if there was no bias. The impact was reported as minimal if both versions were estimated to be the same, modest if the effect size changed substantially, but the final finding would remain the same and severe if the bias threatened the conclusion. A funnel plot combined with Egger’s tests was performed to assess publication bias. A P-value of 0.05 or less, combined with asymmetry in the funnel plots, was used to measure significant publication bias and, if <0.05, the trim-and-fill computation was used to evaluate the effect of publication bias on the interpretation of the results [19].

Results

The systematic search yielded 3389 studies, after removal of duplicates (n=1803) and irrelevant studies based on title/abstract (n=1575), there were 11 studies remaining for full-text review (Fig. 1). Seven studies met the inclusion criteria for the final analysis [20-26]. These included 567 patients (mean age 61.7 years, 364 male) with 611 gastric lesions. The majority of studies were from Asia (South Korea [20], China [21,24], Japan [22,25,26]) and one study was conducted in Brazil [23]. All studies used the Gastroflex ultrahigh definition (UHD) miniprobe (Cellvizio Mauna Kea, Paris). In terms of expertise, all studies employed experienced operators to analyze the gastric lesions.

thumblarge

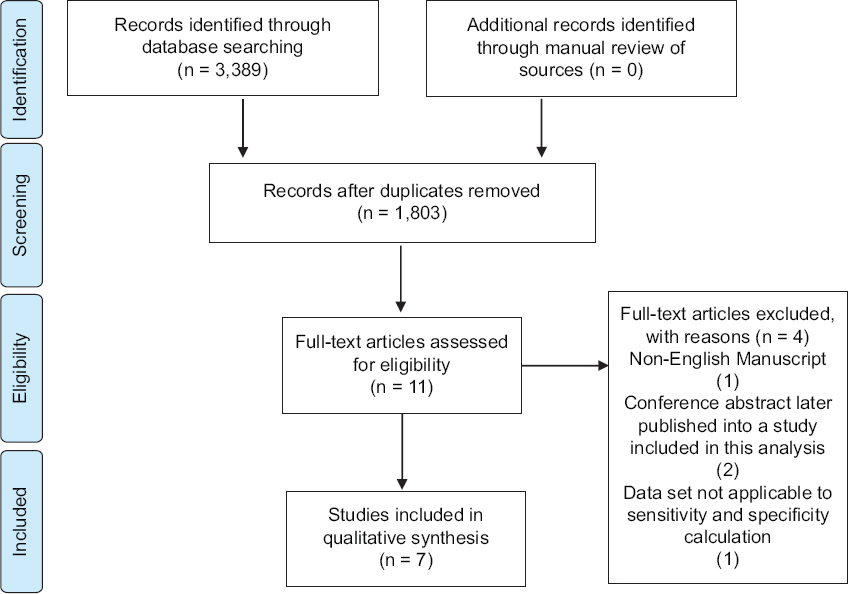

Figure 1 Flow chart of selected studies

From: Moher D, Liberati A, Tetzlaff J, Altman DG, The PRISMA Group (2009). Preferred Reporting items for Systematic Reviews and Meta-Analyses: The PRISMA Statement. PLoS Med 6(7): e1000097. doi:10.1371/journal.pmed1000097

Quality assessment

Using the QUADAS-2 tool, there was a low-to-moderate risk of bias (Fig. 2). All of these studies used an index test (i.e., Miami Classification by Wallace et al [12]) with a reference standard related to histopathology. The primary source of bias detected was related to patient selection, whereby the patient population and/or exclusion criteria were not specified in some cases (primarily publications that were abstracts).

thumblarge

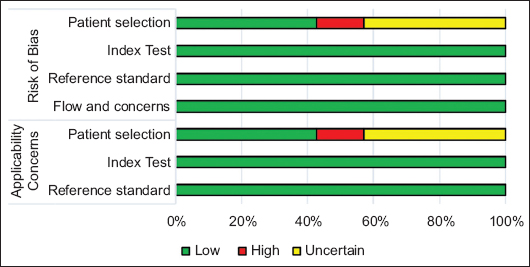

Figure 2 QUADAS-2 tool for the quality assessment of diagnostic accuracy studies

Patient Selection: 42.9% low, 14.3% high, 42.9% unclear for both risk of bias and applicability

Meta-analysis outcomes

Sensitivity

The pooled sensitivity of all 7 studies was 87.9% (95% confidence interval [CI] 81.4-92.4; P<0.001; I2=0%) (Fig. 3). The true effect size in 95% of all comparable populations falls in the interval 0.72-0.95.

thumblarge

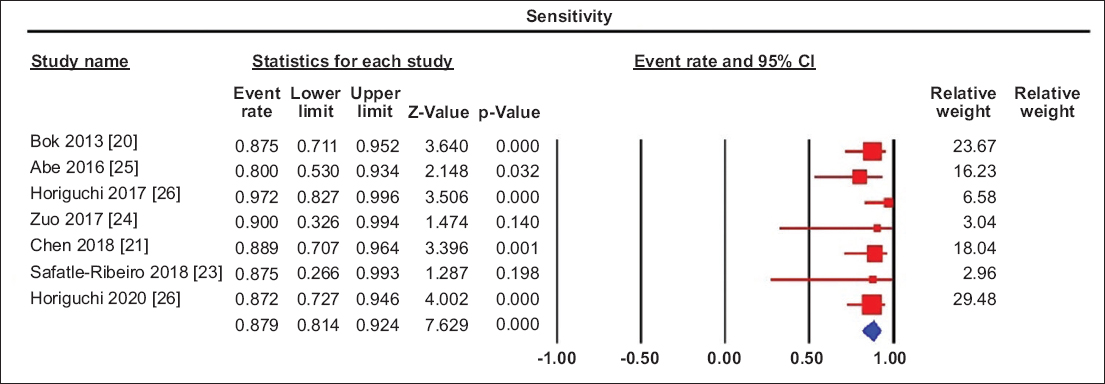

Figure 3 Pooled sensitivity of probe-based confocal laser endomicroscopy CI, confidence interval

Specificity

Six studies were used to calculate a pooled specificity of 96.5% (95%CI 91.5-98.6; P<0.001; I2=51.84%) (Fig. 4) [20-25]. The true effect size in 95% of all comparable populations falls in the interval 0.64-1.00.

thumblarge

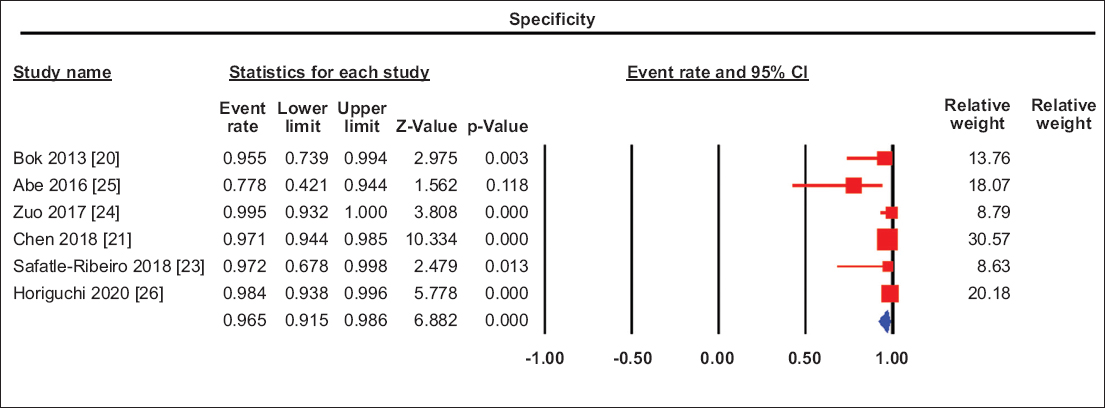

Figure 4 Pooled specificity of probe-based confocal laser endomicroscopy CI, confidence interval

Accuracy

The pooled accuracy of all 7 studies was 94.7% (95%CI 89.5-97.4; P<0.001; I2=65.44%) (Fig. 5). The true effect size in 95% of all comparable populations falls in the interval 0.76-0.99.

thumblarge

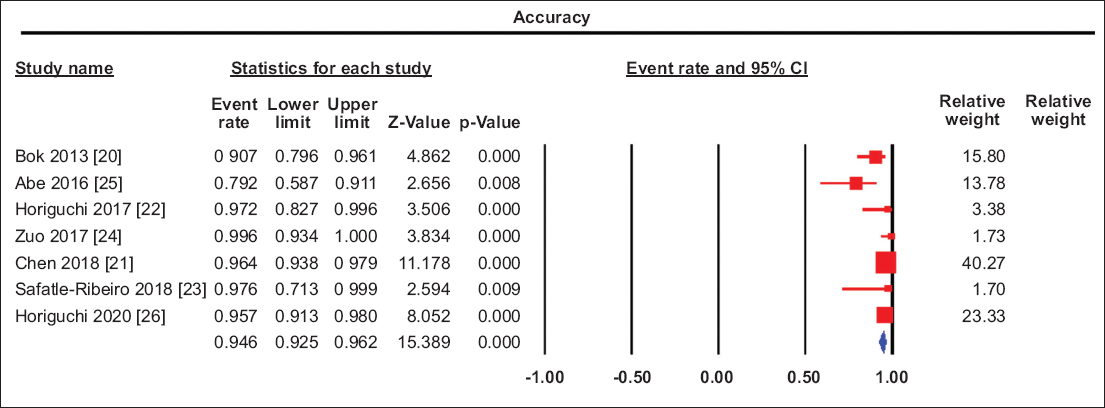

Figure 5 Pooled accuracy of probe-based confocal laser endomicroscopy CI, confidence interval

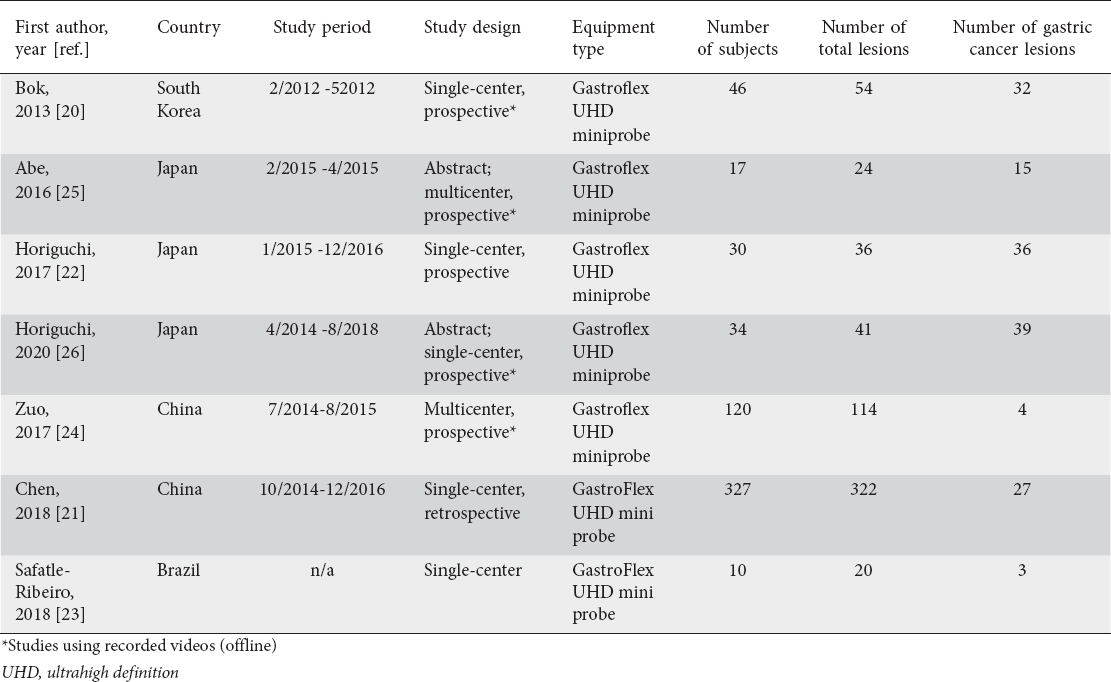

Table 1 Characteristics of included studies using probe-based confocal endomicroscopy

thumblarge

Validation of meta-analysis results

Sensitivity analysis

A one-study removal sensitivity analysis was performed to assess any dominant effect on the meta-analysis. The statistical significance and direction of findings for all outcomes remained unchanged.

Heterogeneity

The I2 was low-moderate across outcomes, suggesting moderate heterogeneity of our sample.

Publication bias

Publication bias could not be estimated because of the small number of studies included (n<10).

Discussion

The present study demonstrates that the diagnostic performance of pCLE is significantly high for in vivo detection of GC. The opportunity to make a real-time diagnosis after a lesion is detected during endoscopy (i.e., white light, narrow band imaging, or chromoendoscopy) through pCLE has the potential to reduce costs and enhance targeted biopsies, with a pooled sensitivity, specificity and accuracy of 87.9%, 96.5% and 94.7%, respectively. A prior meta-analysis in 2016 looked at both pCLE and endoscopic-based confocal laser endomicroscopy (eCLE), which together had a sensitivity of 91% and specificity of 99% [27]. That analysis was only limited to Asian countries, all studies were small, single-center designs, and they did not differentiate the diagnostic efficacy of pCLE vs. eCLE. In our meta-analysis, we examined only worldwide studies using pCLE, and found that it has high accuracy in detecting GC.

While esophagogastroduodenoscopy is typically the gold standard for screening, it is not uncommon for an endoscopist to miss GC because of inadequate detection, sampling errors, and locations such as the gastric cardia and proximal body of the stomach [10,28]. Consequently, creating an effective screening and surveillance program, especially in countries with intermediate-to-high incidences of GC, is important to detect early GC and hence reduce mortality and healthcare costs [7]. Widespread use of pCLE was enhanced by the Miami Classification, introduced in 2009 by Wallace et al, which created a standardized diagnostic classification system [12]. In an effort to further expand this classification, Bok et al and Lie et al expanded GC characterization based on differentiation of lesions, gastric pit patterns and vessel architecture according to location [20,29]. In addition to standardized diagnostic criteria, there also appears to be appropriate interobserver agreement for the differentiation between neoplastic vs. non-neoplastic lesions [29].

Despite a standardized system, the widespread use of pCLE for GC has been limited for several reasons. The first is probably its learning curve, since diagnostic accuracy is closely linked to experience and training [11,30]. Although other studies using pCLE for colon polyps, colorectal neoplasms and inflammatory bowel disease demonstrated an easy learning curve [31-33], it may stand to reason that GC lesions are inherently difficult for in vivo investigation, with significant gastric secretory products and appropriate positioning of the probe. Moreover, given the low incidence of early GC in the West, training endoscopists in the use of pCLE is likely to be more challenging.

That being said, the possibility of supplementing or even replacing physical biopsies is promising from a therapeutic standpoint. Taking biopsies prior to endoscopic resection can cause inflammatory changes or submucosal fibrosis that can make subsequent endoscopic resection challenging, and may even lead to incomplete endoscopic resection [20,34]. Diagnosing lesions with pCLE has the potential to prevent biopsy-induced fibrosis or desmoplasia when endoscopic submucosal dissection (ESD) is pursued [20]. In addition to ESD, the ability to determine if a lesion is even amenable to treatment can be enhanced by real-time magnification imaging, as pCLE can examine entire lesions, in contrast to the limitations of single biopsies. This also has the potential implication to reduce unnecessary ESD in situations where lesions are initially under-staged, and also reduce unnecessary surgery in cases where lesions are initially over-staged.

There are a few limitations to our analysis. First, these studies were conducted by experienced clinicians at high-volume centers with high-to-intermediate incidences of GC, primarily in Asia. Since pCLE cannot survey all the areas in the stomach, endoscopists need to diagnose the areas of concern. Thus, the evaluation of the diagnostic yield of pCLE alone might not be relevant in the clinical setting. Therefore, these results may not be generalizable in countries with a low incidence of GC. Second, the cost of applying pCLE in daily practice limits its widespread use. Consequently, directly comparing pCLE to other conventional endoscopic methods (such as narrow-band imaging) has not been extensively studied.

In conclusion, pCLE has the potential to influence real-time diagnoses when evaluating lesions suspicious for GC. The present study demonstrates its high diagnostic accuracy. However, larger, randomized controlled studies are needed to confirm these findings before widespread adoption can be considered.

Summary Box

What is already known:


  • Early detection of gastric cancer can improve survival outcomes and reduce healthcare costs

  • The ability to make a real-time optical diagnosis has led to advances in endoscopic technologies, such as probe-based confocal laser endomicroscopy

What the new findings are:


  • In this meta-analysis, the pooled sensitivity, specificity and accuracy of probe-based confocal laser endomicroscopy were 87.9%, 96.5% and 94.7%, respectively

  • As a highly accurate and reliable diagnostic modality, probe-based confocal laser endomicroscopy has the potential to supplement tissue diagnosis and improve gastric cancer screening

References

1. Cancer (IARC) TIA for R on. Global Cancer Observatory. Available from: https://gco.iarc.fr/[Accessed 5 July 2022].

2. National Cancer Institute. Surveillance, Epidemiology, and End Results (SEER) Program. Cancer of the Stomach - Cancer Stat Facts. Available from: https://seer.cancer.gov/statfacts/html/stomach.html [Accessed 5 July 2022].

3. Khanderia E, Markar SR, Acharya A, Kim Y, Kim YW, Hanna GB. The influence of gastric cancer screening on the stage at diagnosis and survival: a meta-analysis of comparative studies in the Far East. J Clin Gastroenterol 2016;50:190-197.

4. World Cancer Research Fund International. Stomach cancer statistics. Available from: https://www.wcrf.org/dietandcancer/stomach-cancer-statistics/[Accessed 5 July 2022].

5. Zhang X, Li M, Chen S, et al. Endoscopic screening in Asian countries is associated with reduced gastric cancer mortality: a meta-analysis and systematic review. Gastroenterology 2018;155:347-354.

6. Lee YY, Oh DK, Choi KS, et al. The current status of gastric cancer screening in Korea: report on the National Cancer Screening Programme, 2009. Asian Pac J Cancer Prev 2011;12:3495-3500.

7. Canakis A, Pani E, Saumoy M, et al. Decision model analyses of upper endoscopy for gastric cancer screening and preneoplasia surveillance: a systematic review. Therap Adv Gastroenterol 2020;13:1756284820941662.

8. Saumoy M, Schneider Y, Shen N, Kahaleh M, Sharaiha RZ, Shah SC. Cost effectiveness of gastric cancer screening according to race and ethnicity. Gastroenterology 2018;155:648-660.

9. Tanabe S, Ishido K, Higuchi K, et al. Long-term outcomes of endoscopic submucosal dissection for early gastric cancer: a retrospective comparison with conventional endoscopic resection in a single center. Gastric Cancer 2014;17:130-136.

10. Pimenta-Melo AR, Monteiro-Soares M, Libânio D, Dinis-Ribeiro M. Missing rate for gastric cancer during upper gastrointestinal endoscopy: a systematic review and meta-analysis. Eur J Gastroenterol Hepatol 2016;28:1041-1049.

11. Canakis A, Kim R. Endoscopic advances for gastric neoplasia detection. Gastrointest Endosc Clin N Am 2021;31:543-561.

12. Wallace M, Lauwers GY, Chen Y, et al. Miami classification for probe-based confocal laser endomicroscopy. Endoscopy 2011;43:882-891.

13. Moher D, Liberati A, Tetzlaff J, Altman DG; PRISMA Group. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. BMJ 2009;339:b2535.

14. Stroup DF, Berlin JA, Morton SC, et al. Meta-analysis of observational studies in epidemiology: a proposal for reporting. Meta-analysis Of Observational Studies in Epidemiology (MOOSE) group. JAMA 2000;283:2008-2012.

15. Whiting PF, Rutjes AW, Westwood ME, et al; QUADAS-2 Group. QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies. Ann Intern Med 2011;155:529-536.

16. Higgins JP, Thompson SG, Spiegelhalter DJ. A re-evaluation of random-effects meta-analysis. J R Stat Soc Ser A Stat Soc 2009;172:137-159.

17. Higgins JP, Thompson SG, Deeks JJ, Altman DG. Measuring inconsistency in meta-analyses. BMJ 2003;327:557-560.

18. Duval S, Tweedie R. Trim and fill: a simple funnel-plot-based method of testing and adjusting for publication bias in meta-analysis. Biometrics 2000;56:455-463.

19. Shi L, Lin L. The trim-and-fill method for publication bias: practical guidelines and recommendations based on a large database of meta-analyses. Medicine (Baltimore) 2019;98:e15987.

20. Bok GH, Jeon SR, Cho JY, et al. The accuracy of probe-based confocal endomicroscopy versus conventional endoscopic biopsies for the diagnosis of superficial gastric neoplasia (with videos). Gastrointest Endosc 2013;77:899-908.

21. Chen Q, Cheng HH, Deng S, et al. Diagnosis of superficial gastric lesions together with six gastric lymphoma cases via probe-based confocal laser endomicroscopy: a retrospective observational study. Gastroenterol Res Pract 2018;2018:5073182.

22. Horiguchi N, Tahara T, Yamada H, et al. In vivo diagnosis of early-stage gastric cancer found after Helicobacter pylori eradication using probe-based confocal laser endomicroscopy. Dig Endosc 2018;30:219-227.

23. Safatle-Ribeiro AV, Ryoka Baba E, Corsato Scomparin R, et al. Probe-based confocal endomicroscopy is accurate for differentiating gastric lesions in patients in a Western center. Chin J Cancer Res 2018;30:546-552.

24. Zuo XL, Li Z, Li CQ, et al. Probe-based endomicroscopy for in vivo detection of gastric intestinal metaplasia and neoplasia: a multicenter randomized controlled trial. Endoscopy 2017;49:1033-1042.

25. Abe S, Oono Y, Nonaka S, et al. 581 a pilot study of probe-based confocal laser endomicroscopy for gastric neoplasms: an initial experience in Japan. Gastrointest Endosc 2016;83:AB157.

26. Horiguchi N, Terada T, Funasaka K, et al. Sa2058 Usefullness of probe-based confocal laser endomicroscopy for the diagnosis of gastric epithelial tumors. Gastrointest Endosc 2020;91:AB263.

27. Zhang HP, Yang S, Chen WH, Hu TT, Lin J. The diagnostic value of confocal laser endomicroscopy for gastric cancer and precancerous lesions among Asian population: a system review and meta-analysis. Scand J Gastroenterol 2017;52:382-388.

28. Delgado Guillena PG, Morales Alvarado VJ, Jimeno Ramiro M, et al. Gastric cancer missed at esophagogastroduodenoscopy in a well-defined Spanish population. Dig Liver Dis 2019;51:1123-1129.

29. Li Z, Zuo XL, Li CQ, et al. New classification of gastric pit patterns and vessel architecture using probe-based confocal laser endomicroscopy. J Clin Gastroenterol 2016;50:23-32.

30. Lim LG, Yeoh KG, Salto-Tellez M, et al. Experienced versus inexperienced confocal endoscopists in the diagnosis of gastric adenocarcinoma and intestinal metaplasia on confocal images. Gastrointest Endosc 2011;73:1141-1147.

31. Buchner AM, Shahid MW, Heckman MG, et al. Comparison of probe-based confocal laser endomicroscopy with virtual chromoendoscopy for classification of colon polyps. Gastroenterology 2010;138:834-842.

32. Neumann H, Vieth M, Atreya R, Neurath MF, Mudter J. Prospective evaluation of the learning curve of confocal laser endomicroscopy in patients with IBD. Histol Histopathol 2011;26:867-872.

33. Abe S, Saito Y, Oono Y, et al. Pilot study on probe-based confocal laser endomicroscopy for colorectal neoplasms: an initial experience in Japan. Int J Colorectal Dis 2018;33:1071-1078.

34. Jeon SR, Cho WY, Jin SY, Cheon YK, Choi SR, Cho JY. Optical biopsies by confocal endomicroscopy prevent additive endoscopic biopsies before endoscopic submucosal dissection in gastric epithelial neoplasias: a prospective, comparative study. Gastrointest Endosc 2011;74:772-780.

Notes

Conflict of Interest: None
