Performance and applicability of a first generation single-use duodenoscope: a single-center cohort study

Introduction

Multidrug resistant organisms (MDRO) represent an emerging global public health threat. In the context of endoscopy, duodenoscopes used for endoscopic retrograde cholangiopancreatography (ERCP) are most prevalent and notorious for scope contamination and thus for exogenous patient-to-patient duodenoscope-related infections (DRIs). These latter include potentially devastating infections with antibiotic-resistant bacteria such as carbapenem-resistant Enterobacteriaceae (CRE) and Pseudomonas aeruginosa and vancomycin-resistant enterococci [1].

The first article reporting a DRI with CRE was published only recently, in 2014 [2]. In response to this troubling report and other single-center reported outbreaks, the Food and Drug Administration (FDA) conducted a post-market surveillance study, which showed a higher-than-expected contamination rate of 9%: 3.6% low-to-moderate-concern organisms and 5.4% high-concern organisms (i.e., more often associated with clinical disease) [3]. A recent meta-analysis further set the stage by reporting a duodenoscope contamination rate of 15% [4]. As a logic consequence, all disinfection protocols were subsequently subjected to critical review. Optimizing to double high-level disinfection (HLD) (i.e., complete manual cleaning followed by automated reprocessing, with the entire process repeated) led to a reduction to 9.4% of scopes still showing positive cultures. By changing the pre-cleaning solution to a non-enzymatic solution (detergent), the contamination rate was further reduced to 4.8%, with known pathogens still being isolated in 0.2-0.8% of cases [5]. In contrast, other authors have reported that double HLD did not reduce culture positivity rates compared with single HLD in facilities with an already low positive culture rate [6]. So, at best, optimizing disinfection protocols for duodenoscopes can reduce, but not eliminate, the rate of positive cultures for known pathogens and for organisms of low pathogenic potential. The implications of this are massive, given the constant and persistent need for overall unadulterated vigilance and awareness, safeguarding sufficiently trained staff and personnel in terms of handling and reprocessing scopes, implementation of standardized microbiological surveillance strategies, logistics to meticulously manage outbreaks (track & trace, increasing scope fleet, quarantine facilities for contaminated scopes) while balancing and securing the daily operationality of an ERCP program.

Apart from the above, other risk mitigation (ideally elimination) strategies are urgently needed. One of the major essentials in DRIs is the intrinsic complex design (elevator function) of the reusable duodenoscope, the main hurdle to thorough and efficient cleaning [7]

Going “disposable” or single-use could therefore represent a potential alternative avenue to circumvent the problem of reprocessing and thus the risk of exogenous patient-to-patient transmission. The DRI issue could not be more contemporary, if one considers the highly contagious COVID-19 pandemic and its inherent risk of aerosolization during disinfection [8]. Recently, Boston-Scientific introduced the first approved single-use, sterile duodenoscope, Exalt™ Model D. Until now, 4 reports have been published on this device in 381 patients overall [1,9-11] (Fig. 1). We aimed to report our single center cohort experience and evaluation of feasibility, safety and performance characteristics with this novel device in 52 consecutive patients.

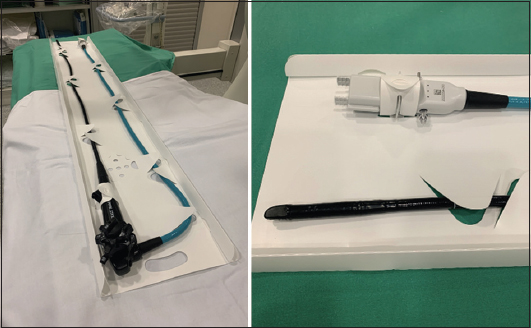

Figure 1 Exalt single-use duodenoscope before use (left), with a detailed view of the plug-in socket and tip of the endoscope (right)

Patients and methods

Results

Patient characteristics (Table 1)

During a one-month period (6 October until 5 November 2020, amid the second COVID-19 peak in Belgium), we recruited 52 patients for the study. The patients’ demographics are shown in table 1. Mean age was 65 years. Sex distribution was balanced (male/female 27/25).

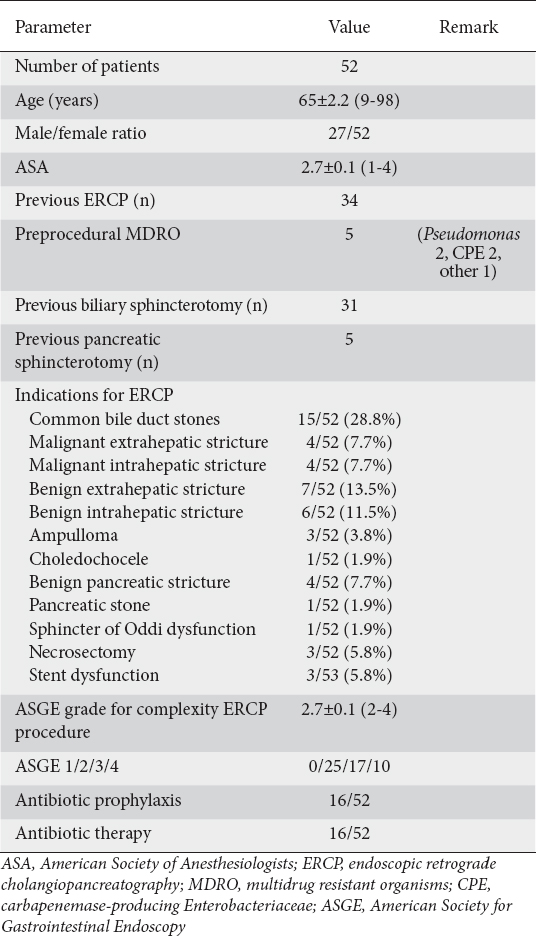

Table 1 Patient demographics and relevant clinical history

Thirty-four patients (65.4%) had undergone one or more previous ERCPs. The most frequent indications were clearance of common bile duct stones (15/52, 28.8%) and benign extrahepatic strictures (7/52, 13.5%). Five patients (9.6%) had a preexisting infection with MDRO, 16 patients (30.8%) received antibiotic prophylaxis and 16 patients (30.8%) were already receiving treatment dosing of antibiotics at the time of the ERCP.

Feasibility

The mean ASGE grade for procedure complexity was 2.7. More than half of the procedures were more advanced, classed as ASGE grades 3 and 4 (27 procedures, 51.9%). The grade 4 procedures included 4 biliary interventions combined with single-operator cholangioscopy (spyglass-guided electrohydraulic lithotripsy and assisted biopsies), papillectomy, removal of pancreatic stones and endoscopic mucosectomy.

The mean duration of an ERCP was 55.5 min from induction until extubation. The ERCP completion rate with a single-use duodenoscope was 90.4% overall. After crossover to a reusable duodenoscope the completion rate reached 94.2% (Table 2). More specifically, in one patient with a malignant stricture, we obtained biliary drainage via endoscopic ultrasound-guided hepaticogastrostomy. In the remaining 4 patients (7.7%) we switched to a reusable duodenoscope. The first of these latter 4 patients was a 90-year-old male with obstructive jaundice caused by pancreatic cancer. The reason for the crossover was repeated inadvertent slipping of the endoscope out of the duodenum. After switching to a reusable duodenoscope (Olympus TJF-Q180V, Tokyo, Japan) the operator was able to successfully cannulate the bile duct and insert an uncovered self-expandable metallic stent. The second patient was a 69-year-old female with intrahepatic cholangiocarcinoma. The single-use duodenoscope could not traverse a stenosis at the bulbo-duodenal junction. After crossover to a reusable duodenoscope we managed to drain liver segments 6 and 7 transpapillary by placement of an uncovered metallic stent. The third patient was a 54-year-old male with symptomatic chronic pancreatitis and ductal stones. The single-use duodenoscope could not safely be negotiated over a large hiatal hernia with intrathoracic stomach. The fourth patient was a 71-year-old female with liver metastases related to breast cancer and signs of stent dysfunction. The rigidity of the single-use duodenoscope prevented it traversing a stenosis of the bulbo-duodenal junction.

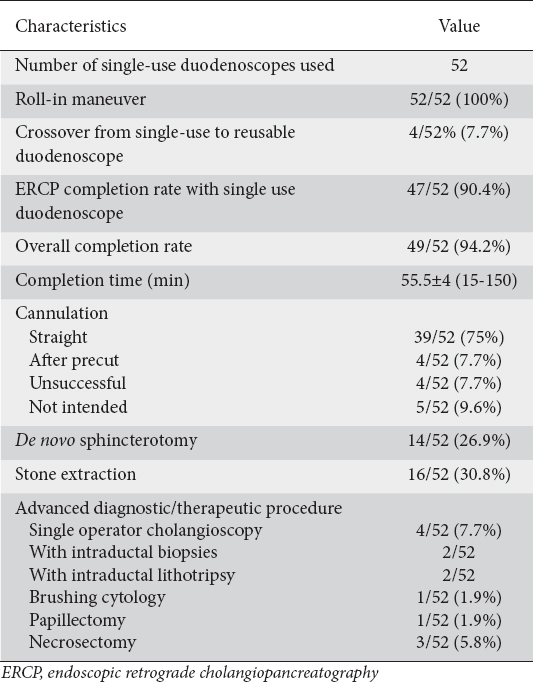

Table 2 Procedural characteristics

Performance

We scored 14 specific options of ERCP maneuvers (Table 3). Most of the ratings were neutral (141/148, 95.3%) when comparing the single-use duodenoscope with the reusable duodenoscope. Only 7 (4.7%) maneuvers were labeled as not preferred. The most common reasons for a “not preferred” rating were problems with cannulation (n=2) due to either inadvertent slipping or inability to maintain a straight position in front of the papilla, sphincterotomy (n=2) due to the elevator’s insufficient upward bending capacity, and removal of biliary stents (n=3) through the scope.

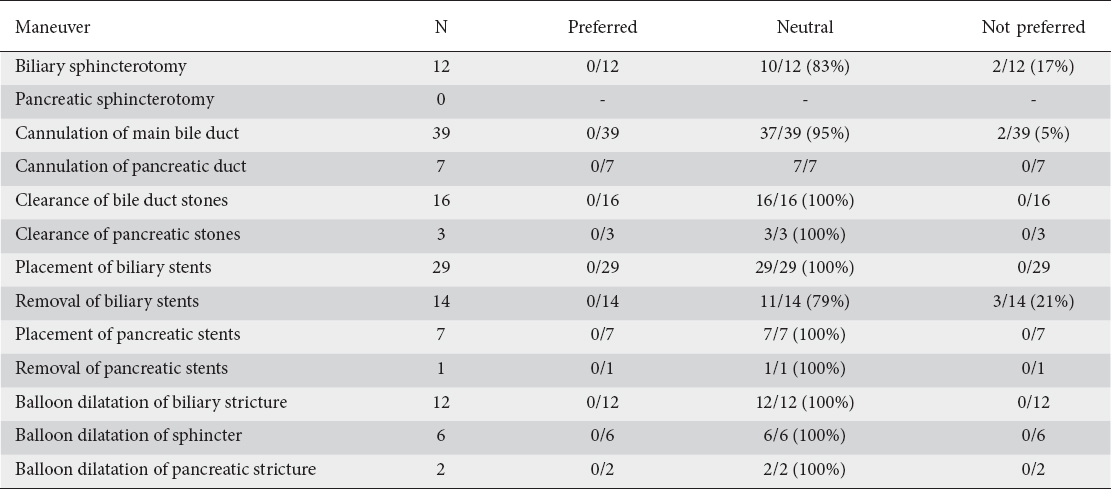

Table 3 Ratings of endoscopic retrograde cholangiopancreatography maneuvers (n=52)

We also documented performance characteristics for 23 ERCP maneuvers. Seventeen maneuvers (73.9%) had a median score of 5 (comparable to prior historical experience with the reusable duodenoscope) (Fig. 2). Navigation/pushability/torquability of the scope, range of motion, selective cannulation and tip deflection were appreciated slightly less than with a reusable duodenoscope. Elevator function was scored as the least favorable performance characteristic. Overall satisfaction regarding use of the single-use duodenoscope was rated as 8.

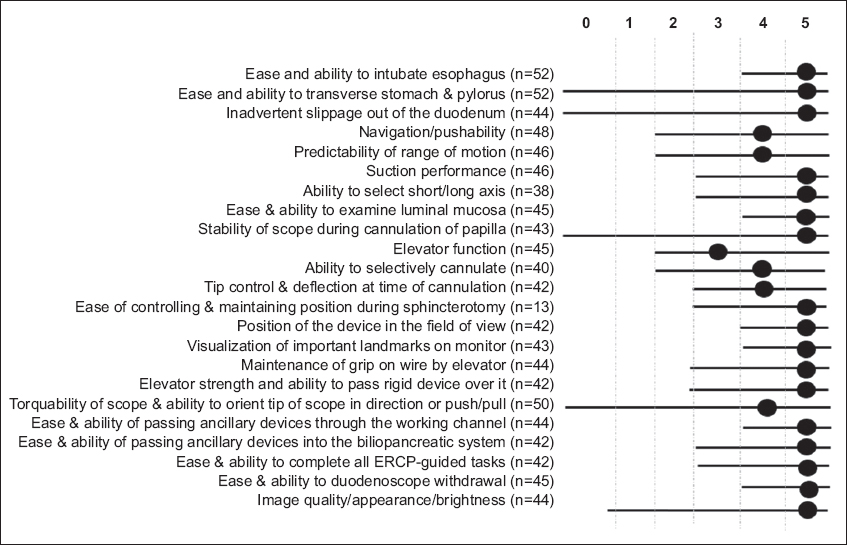

Figure 2 Averaged ratings on 23 endoscopic retrograde cholangiopancreatography (ERCP) performance characteristics

Discussion

Emerging MDROs, and DRI in particular, compel endoscopists to up their game, given the potentially devastating outcome of a DRI in a given patient on the one hand, and the inseparable risk of setting off local aggressive outbreaks on the other [3,4]. Rubin et al reported 32 DRI outbreaks from 2000-2017. These documented outbreaks comprise a population of 400 patients and over 20 patient deaths [12].

Despite substantial improvement in available materials, detergents, quality, and standardized handling of scope disinfection, even the most meticulously executed protocol cannot attain a zero risk of DRI [4-5,7-8]. The complex design of a duodenoscope makes it difficult to clean all the intricate surfaces (narrow lumens). Moreover, case-reports have even documented biofilm on internal areas (such as behind the lens and the O-ring) of a reusable duodenoscope that was involved in an outbreak of Pseudomonas aeruginosa [13]. In addition to disinfection, one also needs rigid microbiological surveillance to maintain oversight and permanent quality control of the disinfection protocol. A recent study performed in The Netherlands sampled 155 duodenoscopes (intended to be ready for use in patients) and demonstrated a contamination rate of 22% for any microorganism and 15% for microorganisms with a gastrointestinal or oral origin [14]. “Going disposable” by using a single-use duodenoscope might therefore represent an alternative approach that circumvents the whole chain of consecutive disinfection steps, with its indisputable inherent flaws.

In this study, we prospectively evaluated the first and currently only CE-marked and FDA-cleared single-use duodenoscope (EXALT Model D, Boston Scientific Corporation, Marlborough, MA) in terms of its applicability and performance in 52 consecutive patients undergoing ERCP from October until November 2020, amid a second COVID-19 wave in Belgium. The assessment was performed by 4 different operators (3 experts, 1 fellow) in procedures for diverse indications covering the whole range of complexity, and with at least half of the procedures being ASGE 3-4 (advanced procedures), in patients ranging from 9-98 years old. Apart from the reduced number of procedures as a result of COVID-19, our study cohort mirrors real-life daily endoscopic practice in our tertiary center, thus allowing the generalization of our findings to large-volume ERCP units. Typical ERCP maneuvers, performance characteristics of the scope and overall satisfaction were semi-qualitatively scored using previously accepted scores [1].

In our hands we observed a high ERCP completion rate with single-use duodenoscopes and an applicability, maneuverability and technical performance comparable with our vast historical experience with reusable duodenoscopes, leading to an overall acceptable level of satisfaction with the disposable duodenoscope. The crossover rate to reusable duodenoscopes in our cohort amounted to 7.7%. However, if one analyzes the supposed 5 failures (see Results, Feasibility section), one of them did not relate to the type of duodenoscope but rather reflected the impossibility of achieving a retrograde approach to the malignant hilar stricture, which was then drained via endoscopic ultrasound-assisted hepaticogastrostomy. In the other 4 cases, the rigid nature of the single-use duodenoscope, seemingly manifested as reduced pushability, predictability of range of motion, and torquability of the scope, gives the operator less confidence and feedback to traverse difficult obstacles, such as a bulbo-duodenal stenosis or a large hiatal hernia, as was the case in our patients. On the other hand, the extra stiffness of the single-use duodenoscope was felt to expedite single-operator cholangioscopy, as the angle of the duodenoscope was found to be steeper in all cholangioscopy procedures compared to that of a reusable duodenoscope, although this remains to be validated in a larger series (Fig. 3). An apparent working point is the elevator function, which did not always allow maximal bending up of materials upon cannulation (Fig. 4). No direct complications were observed related to duodenoscope-related maneuvering/handling, although its rigidity calls for a gentler introduction.

Figure 3 Stiffness of the single-use duodenoscope potentially expediting single-operator cholangioscopy by steepening the duodenoscope angulation directed towards the ampullary region (80° for single-use duodenoscope vs. 107° for reusable duodenoscope)

Figure 4 A comparison between single-use (A,C,E) and reusable duodenoscope (B,D,F) in terms of the degree of lifting of the elevator with an inserted device. (A,B) represents the procedural cholangiograms of a male patient with a cystic duct syndrome with the SpyScope introduced in the cystic duct in A, and a diagnostic catheter in B. (C-F) represent the procedural cholangiograms of a male patient with chronic pancreatitis and benign distal biliary duct stenosis. C-D reflect the introduction of diagnostic catheter in the main pancreatic duct, while E-F show the insertion of the catheter in the common bile duct

If we compare our observations to reported series using the same single-use duodenoscope [1,9-11] (Table 4), results are quite comparable in over 433 patients in terms of crossover rate (overall average 6.3%), procedural completion rate (overall average 94.8%), performance characteristics (overall average 4.5/5), overall satisfaction (overall average 8.5/10), and safety. From the perspective of clinical use, these data are encouraging and set the stage for further development and optimization of a single-use duodenoscope platform, as this is the only clinical pathway at present that carries a zero risk of patient-to-patient transferred DRIs, the ultimate safety prerequisite for any given patient.

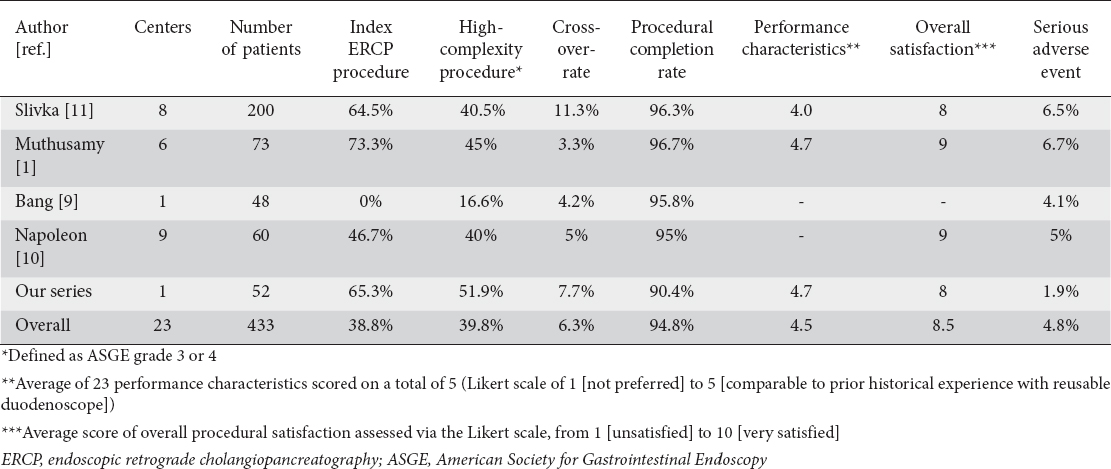

Table 4 Review of currently available literature on the single-use duodenoscope

The major remaining challenges at this point will be cost-effectiveness, affordability and ecological impact. Although this seems a “no-brainer” for the former 2 issues, the truth is not. Bang et al [15] analyzed the adaptability of “going disposable” by adopting a cost-analysis model in which the per-procedural cost of reusable duodenoscopes was weighed to the break-even costs for transitioning to single-use duodenoscopes. The authors considered the acquisition cost of a reusable duodenoscope at $35,000 with a (conservative) life-expectancy of 3 years and annual use in 200 patients. In the scenario where this disposable duodenoscope would be substituted for a single-use (at a cost of $3000 per device), it would lead to a cost of $367,200 ($612/procedure), which is 10 times more than the present cost, to treat the same number of patients. The authors meticulously highlighted the complex interaction between variable infection rate and ERCP volume and documented a lower cost ($800 vs. ≥$1300) for high-volume centers (≥150 ERCPs/year). This difference in cost is explained by the fact that investment costs (such as the fixed costs of purchasing a reusable duodenoscope, video tower, maintenance, annual and non-foreseen repairs, deliveries, personnel, microbiological surveillance) can be allotted to a higher volume. As the field will undoubtedly evolve rapidly in the near future (several manufacturers, design optimization, cost-reduction), more micro-costing approaches are urgently needed, taking the abovementioned and different scenarios into consideration. For the time being, it would seem medically appropriate and responsible to reserve single-use duodenoscopes for ERCP in high-risk/immunocompromised patients [16], or to smother an evolving DRI-outbreak. Solutions in terms of recycling used single-use duodenoscopes will need to be addressed appropriately.

In conclusion, despite HLD protocols, there is still a substantial contamination rate of processed duodenoscopes, resulting in a possible risk for patient-to-patient DRIs with antibiotic-resistant bacteria. Single-use duodenoscopes can provide an alternative to eliminate patient-to-patient exogenous contamination, with good performance characteristics, also in high complexity procedures. Ongoing innovation in single-use duodenoscope, as well as micro-costing approaches are to be pursued, so that the device may truly take its place in the daily safe and resilient care of patients undergoing ERCP for biliopancreatic disorders.
