Retrospective, observational, cross-sectional study of detection of recurrent Barrett’s esophagus and dysplasia in post-ablation patients with adjunctive use of wide-area transepithelial sample (WATS-3D)

Introduction

Esophageal adenocarcinoma (EAC) is associated with a 5-year survival rate of 15-34% [1], and Barrett’s esophagus (BE) is its only known precursor [2]. Current guidelines recommend endoscopic eradication therapy (EET) for selected patients with low-grade dysplasia (LGD), as well as those with high-grade dysplasia (HGD) and T1a EAC/intramucosal adenocarcinoma (ImCA) [3]. EET is also used to treat selected patients with non-dysplastic BE (NDBE): e.g., those with a family history of esophageal cancer or high anxiety associated with the diagnosis of BE, or reflecting the surgeon’s preference before fundoplication surgery [4]. However, recurrence of BE after these therapies is possible, and continued surveillance of patients is thus recommended. The recurrence rate of NDBE is 4.8%/100 patient-years (PY), and dysplasia is 2.0%/100 PY after EET [5]. Current surveillance for residual BE and dysplasia involves esophagogastroduodenoscopy (EGD) with Seattle protocol biopsy (SPB), which consists of taking 4-quadrant biopsies every 1 cm in areas of BE in patients with known dysplasia [6]. Almost 80% of all biopsy samples are adequate to evaluate for subsquamous intestinal metaplasia in post-ablation patients [7]. However, SPB is time-consuming, especially in patients with long-segment BE [8], and has low protocol adherence by endoscopists (from 85% in 2013 to 81% in 2017) [9]. In addition, sampling errors may occur, as this technique collects samples from only ~5% of the total area of BE, and may miss early cancer or dysplasia [10]. Given these limitations, there is a clear need for effective and easier surveillance techniques for BE.

Wide-area transepithelial sampling with computer-assisted 3-dimensional analysis (WATS-3D) is a novel technique (CDx diagnostics, Suffern, NY) that uses a stiff 1.8-mm brush, passed through the endoscope channel to sample a wide area of tissue [11]. The brush is abrasive and samples the full thickness of the epithelium. The specimen is then analyzed using an artificial intelligence neural network with 3D image processing to identify abnormal cells. This method allows quicker sampling and obtains transepithelial tissue, which may minimize the risk of missed lesions. Previous studies in treatment-naïve patients have shown 16% and 62% higher rates of BE and dysplasia detection [12], respectively, when WATS-3D is used in conjunction with 4-quadrant biopsies and targeted biopsies [13-16]. However, no study has reported its use in patients with previous EET, except for 1 in abstract form [17]. Therefore, to demonstrate the effectiveness of WATS-3D in this population, the first step is to establish its role as an adjunct to SPB.

This study’s primary endpoint was to compare intestinal metaplasia and dysplasia detection rates between WATS-3D and SPB in patients who underwent EET for BE. The secondary outcomes were to determine the added yield with WATS-3D in the post-ablation setting and to evaluate the agreement of findings between WATS-3D and SPB.

Patients and methods

Our study was a retrospective, observational, cross-sectional study. CDx Diagnostics (Suffern, NY) had no role in the study design, data collection, interpretation, or manuscript preparation. This study was approved by the institutional review board of Indiana University Purdue University at Indianapolis (IRB # 2001781987).

Statistical analysis

Demographic, endoscopic, and pathology data were collected and de-identified before analysis. Clinical and demographic characteristics were summarized as the mean ± standard deviation for continuous variables and frequencies, and as percentages for categorical variables. The metric used for evaluating the clinical utility of WATS-3D is “added yield,” defined as:

We recorded the crude difference in yield of detecting BE using WATS-3D as an adjunctive technique compared to SPB, and McNemar’s test to compare the agreement of the measurements between SBP and WATS-3D brushing for detecting any abnormality, namely BE, LGD, HGD, and ImCA. A P-value of <0.05 was considered significant. In addition, we used Kappa statistics to measure the agreement between the SPB and WATS-3D results. We used SAS v9.4 for all analyses.

Results

Patient characteristics

The study included a total of 78 patients, with a mean age of 68±10.4 years, of whom 77 (98.7%) were white, and 66 (84.6%) were men. Patient demographics are shown in Table 1. The majority were current or previous smokers (59%). The mean length of BE was 5±4.77 cm, and hiatal hernia was present in 91%; the mean hiatal hernia size was 3.6±2.13 cm. Previous therapies included EMR (61.5%), RFA (73%), cryotherapy (17.9%), and APC (46%). There were no adverse events (AE) reported with SPB or WATS-3D sampling.

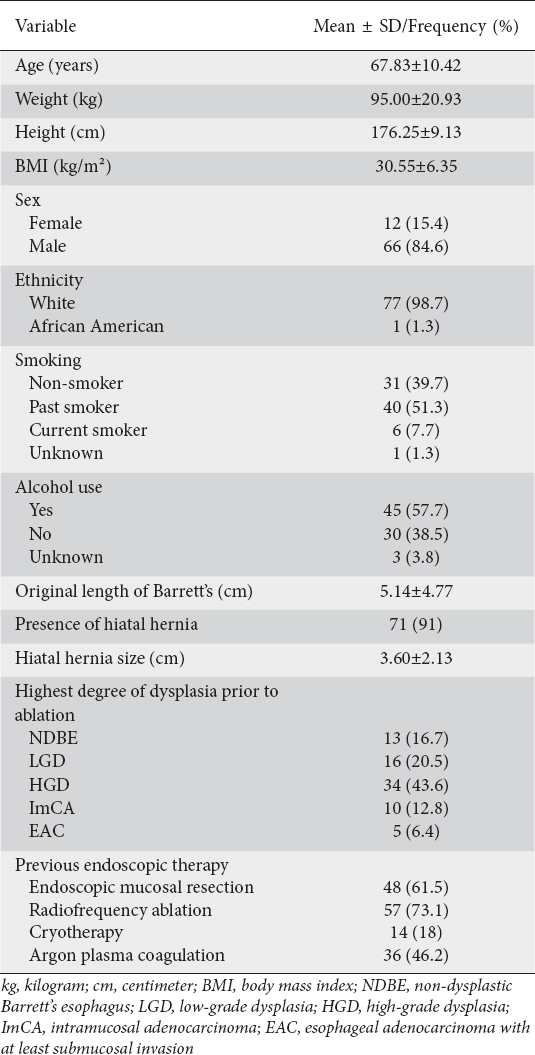

Table 1 Baseline clinical and demographic characteristics

Cases detected by WATS-3D vs. SPB

Prevalence of NDBE, any dysplastic/neoplastic finding, and any abnormality were 53.85% (n=42), 10.26% (n=8) and 55.13% (n=43), respectively. NDBE was detected in 9 patients with SPB but missed on WATS-3D and in 21 patients with WATS-3D whose SPB results were negative. Similarly, LGD was detected in 1 patient with SPB that was missed on WATS-3D, whereas WATS-3D detected LGD in 6 patients missed with SPB (Table 2).

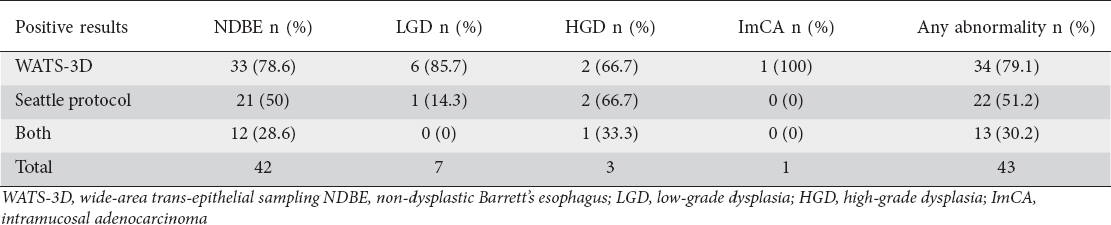

Table 2 Proportion of detection by WATS-3D vs. Seattle Protocol biopsies

To evaluate the clinical utility of WATS, we reported the “added yield” of WATS-3D to SPB for detection of NDBE BE, dysplasia, or ImCA with WATS-3D. The added yield of NDBE with WATS-3D over SPB was 26.9% (95% confidence interval [CI] 17.95-37.18%), with a number needed to treat (NNT) 3.71 (95%CI 2.69-5.57) and a relative increase in yield of 100% (95%CI 53.33-188.25%). For dysplasia/neoplasia, the absolute increase in yield was 6.4% (95%CI 1.28-12.82%), NNT 15.6 (95%CI 7.8-78.0), and the relative increase was 167% (95%CI 33.33%-infinity). For any abnormal finding, the absolute increase in yield was 26.9% (95%CI 16.67-37.18%), NNT 3.71 (95%CI 2.69-6.00), and the relative increase was 95% (95%CI 50-176.92%) (Table 3).

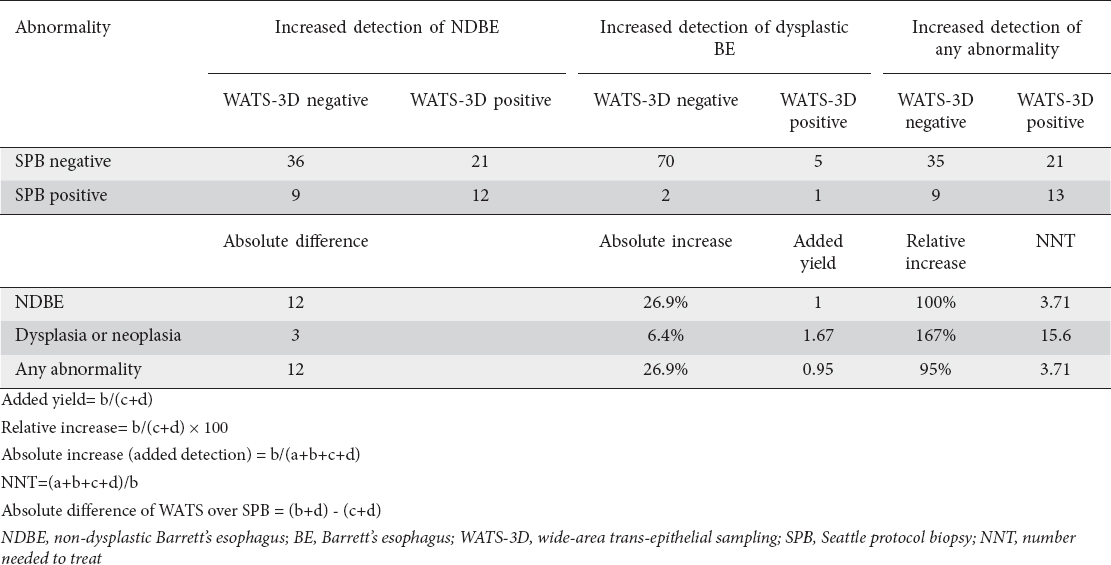

Table 3 Detection of NDBE, dysplasia and neoplasia (n=78)

Furthermore, among the additional instances of dysplasia/neoplasia found by WATS-3D, 4 cases were upgraded from SPB by WATS-3D: 1 from HGD to ImCA and 3 from NDBE to LGD. This was a total absolute increase of 10.3% (8/78) for a new diagnosis of dysplasia and 15.4% (12/78) when accounting for an upgrade of dysplasia grade (Table 4). In 2 patients, the diagnosis from WATS-3D was upgraded by SPB: one from NDBE to HGD and another from NDBE to LGD.

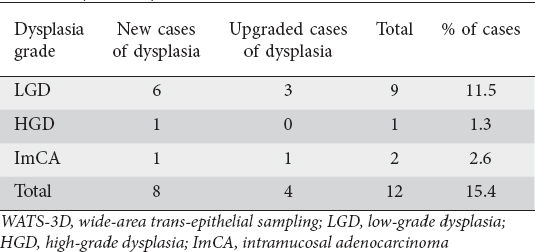

Table 4 Adjunctive yield of WATS-3D

Agreement between WATS and SPB

Agreement of findings between WATS-3D and SPB was also measured (Table 5). There was no agreement between SPB and WATS-3D results for NDBE (P=0.0285). In addition, there was insufficient evidence to show any agreement between the 2 tests for LGD and HGD.

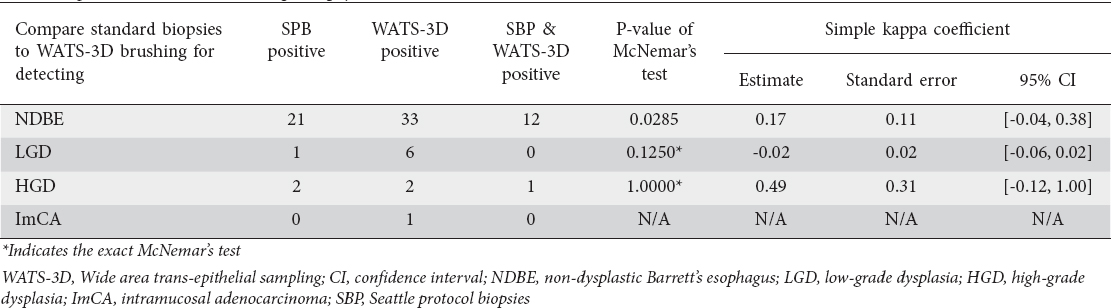

Table 5 Agreement between SP forceps biopsy results and WATS-3D results

Discussion

Our single-center cohort of post-ablation patients demonstrates that the use of WATS-3D in addition to SP increases detection of NDBE, LGD, HGD, and ImCA on surveillance with a combined added yield of 95%. This increased yield was 100% for NDBE and 167% for dysplasia/neoplasia.

The guidelines of the American College of Gastroenterologists indicate that the accuracy of SPB is in the range of 35-68% in patients presenting for BE screening [18]. The wide-area approach of WATS-3D can be used to minimize this sampling error and missed lesions. Several studies have reported the higher yield of WATS-3D in screening and surveillance cohorts of BE patients [19]. Smith et al and Johanson et al showed a 19.9% and 39.8% increase in detection of BE, respectively, with WATS in patients undergoing BE screening and surveillance [14,15]. The increase in dysplasia detection was 42% with the addition of WATS-3D over SBP per Anandasabapathy et al [13], and the yield of HGD/EAC was 4 times higher per Vennalaganti et al in patients undergoing BE surveillance [16]. A meta-analysis of 12 studies of BE surveillance showed a 16-62% increase in the detection rate of BE with a marginal 2% absolute increase in the detection of dysplasia [12]. A recent meta-analysis showed that WATS-3D increased the absolute yield of dysplastic BE (all grades including indeterminate dysplasia) and HGD/EAC over conventional biopsies by 7.2% and 2.1%, respectively [20]. While these studies show promising results for the use of WATS-3D in the diagnosis and surveillance of BE, no published study has yet reported on the use of WATS-3D in the post-ablation setting.

An important fact pointed out in the meta-analysis by Codipilly et al is that WATS-3D can be negative in 62.5% of cases where SPB detected dysplasia [20]. Therefore, based on current literature, WATS-3D can only be used as an adjunctive modality to SPB for BE surveillance. In addition, the results are discordant because of the differences in sampling technique and criteria for dysplasia assessment in the 2 approaches. The deeper sampling creates the possibility of overdiagnosis with WATS-3D, with studies indicating that only 30-35% of instances of WATS-3D detected dysplasia were confirmed on subsequent biopsies [13,16].

Our study showed 54% and 10% prevalence for NDBE and dysplasia/neoplasia, respectively, post-EET, higher than other studies. One reason could be that, in most cases, we biopsied and brushed the neosquamous epithelium based on the original extent of pre-treatment Barrett’s, thus increasing the detection rate.

While there have been no large-scale studies to evaluate the cost-effectiveness of the addition of WATS-3D to SPB, Singer et al have reported on an analytical model that found that screening with WATS-3D, when used with the SPB, was more cost-effective compared to SPB alone [21]. WATS-3D also seems to be a safe procedure, as a retrospective analysis performed by Docimo et al reported no AE with its use [22]. Our study showed no AEs associated with its use. Thus, with guideline support and favorable cost and safety profiles, it seems WATS-3D might be a promising tool for widespread use in BE sampling. Guidelines by the American Society of Gastrointestinal Endoscopy recommend that WATS-3D be used as an adjunct to SPB in patients with BE. However, this was graded as a conditional recommendation based on low-quality evidence [3]. No recommendations exist for the use of WATS-3D in the post-EET population.

In our study, the increased yield of WATS-3D over SPB was more pronounced for the detection of dysplasia/neoplasia as compared to NDBE. The reason for these differences is unclear but may have to do with our population being high risk, given their prior diagnosis of dysplasia/neoplasia. Almost 20% had a diagnosis of ImCA or EAC before ablation, and therefore had an higher risk of recurrence. Earlier detection of dysplasia in the post-EET population can allow for earlier endoscopic treatment; hence the importance of the higher yield of WATS-3D in this population. Given the greater yield of NDBE and dysplasia with WATS-3D in the post-EET population, its ease of use, the absence of associated AEs, and the opportunity for early detection and therapy, its routine use in surveillance could be recommended in the future as more data become available.

Mapping biopsies for BE surveillance in post-EET patients are limited by scar tissue from the previous ablation, in addition to the sampling error associated with 4-quadrant point biopsies. They are also relatively inefficient and time-consuming, leading to endoscopist fatigue and poor compliance [23]. Brushing for WATS-3D, on the other hand, is quick, with sampling for segments up to 5 cm with a single kit. In addition, it is easy to perform, as endoscopists are already familiar with brushings, with no training requirement.

The major strength of our study is a post-EET population that has not yet been studied for the efficacy of WATS-3D. Barrett’s experts, who are well versed in routinely carrying out SPB and WATS-3D sampling, did the surveillance. In addition, WATS-3D and SPB were analyzed at different laboratories by different sets of pathologists who were blinded to the others’ findings. The WATS-3D images were read based on standard pathologic criteria. Although the methodology in the study was not uniform—one endoscopist (16 patients) only performed sampling at the cardia and at the SCJ, which has the potential to introduce bias in the results—this is closer to actual clinical practice.

There are some limitations to this study. First, it included a small number of patients from one center and so was not adequately powered to reach significance. Second, it was based in a single center in a tertiary academic institution, and hence the results cannot be generalizable to community-based practices. Furthermore, this was a retrospective analysis, with the inherent limitations of that study design, while neither the Indiana University pathologists nor the WATS-3D pathologists were blinded to the baseline pathology findings. In addition, SPB was performed before WATS-3D in all cases, and one of the endoscopists sampled only SCJ and cardia. Finally, our study only looked at WATS-3D as an adjunct tool, but could not answer the question of whether WATS-3D can be used on its own as a substitute for SPB in the detection of BE in post-ablation patients.

Despite the above limitations, our study was able to show an added benefit from the use of WATS-3D as an adjunct to SPB. While SPB is efficacious in sampling targeted visible mucosal abnormalities with high localization specificity, it can miss lesions with a random sampling of other parts of the esophagus. In addition, outcomes data in BE suggests that histopathologic grade is the highest predictor for disease severity and dictates treatment. With increased detection of disease, better-informed decisions can be made about patients’ management and treatment options.

In conclusion, the adjunctive use of WATS-3D with SPB can be a promising tool to increase detection of BE in post-ablation patients. However, more extensive, prospective, randomized studies are needed to further validate these findings in academic and community settings. In addition, whether WATS-3D has the potential to be used alone in the future will require further studies that compare the use of WATS in conjunction with SPB vs. SPB alone vs. WATS-3D alone, to address the question of whether WATS-3D can be a possible substitute for SPB in certain situations.
