Graded pneumatic dilation in subtype I and II achalasia: long-term experience in a single center

Introduction

Achalasia is a rare esophageal motor disorder characterized by the absence of peristalsis and a defective relaxation of the lower esophageal sphincter (LES), resulting in chronic dysphagia, regurgitation and chest pain [1]. Since the introduction of high-resolution manometry (HRM) in 2008, achalasia has been classified into clinically relevant subtypes [2,3]. The updated Chicago classification (version 4.0) categorizes achalasia into 3 subtypes [4] that have important implications for management outcomes [5]. Despite the important step forward in diagnostic accuracy, the pathophysiology of primary achalasia remains unclear and therapeutic options are still symptomatic. Indeed, current treatment in achalasia aims to relieve symptoms by reducing the LES resting pressure [1] via 3 durable techniques used as first-line options: pneumatic dilation (PD); laparoscopic Heller’s myotomy (LHM); and peroral endoscopic myotomy (POEM) [5]. PD is an endoscopic method that forces the hypertonic LES by intraluminal dilation of a pressurized noncompliant balloon [3]. The available evidence about the technique in the literature indicates a variable efficacy in relieving symptoms of achalasia, with success rates ranging from 50-93%. These percentages, however, depend on the varied treatment protocols used and are derived from studies that do not consider the achalasia subtypes according to the Chicago classification. A limitation commonly detectable in some studies is the inclusion of subtype III patients [6-8], who manifest a poor outcome with PD [9]. To our knowledge, data on the effectiveness of PD in patients with subtypes I and II achalasia are limited.

Major complications of PD include esophageal perforation (2.3-3.5%) and bleeding, both requiring surgery (1-4%) [10]. In the long-term follow up, one of the main side effects is symptomatic gastroesophageal reflux disease (GERD), which occurs frequently in PD-treated patients (10-31%) [11]. In our tertiary referral center, we used PD with a “graded approach” [12] to reduce complications and excluded subtype III achalasia patients from the analysis based on the pathophysiological concept that spastic contractions are unlikely to respond to PD. In this study we performed a retrospective analysis of the short- and long-term outcomes, safety profile and side effects of graded-protocol PD in patients with subtype I and II achalasia.

Patients and methods

This was a retrospective, observational study carried out in a tertiary referral Gastroenterology Unit at St. Orsola University Hospital, Bologna, Italy. The study protocol was approved by the Local Medical Ethical Committee (approval code: 109/2020/Oss/AOUBo).

From January 2010 to July 2020, 141 patients with achalasia were divided into 3 subtypes according to the Chicago classification (version 4.0). Although HRM was used, as it was readily available from 2015 on, previous diagnoses of achalasia were established via conventional manometry and then re-categorized into the 3 subtypes as described by Salvador et al [13]. Accordingly, one of the authors (FT) re-evaluated the full digital esophageal tracings obtained with conventional manometry using the electric pump software (Mui Scientific, Mississauga, Canada). We considered the contraction waves recorded 5 and 10 cm above the upper margin of the LES. Patients were classified into the achalasia subtypes as follows: subtype I, at least 8 of 10 swallows elicited contractions with an amplitude <30 mmHg; subtype II, 2 or more contractions with an amplitude >30 mmHg; subtype III, at least 2 spastic contractions with an amplitude >70 mmHg and duration >6.0 sec.

Inclusion criteria were as follows: patients aged >18 years with achalasia subtype I or II referred for esophageal manometry. Patients with subtype III achalasia (n=40) were evaluated exclusively for epidemiology. On the other hand, patients who had undergone previous treatments (i.e., previous PD, LHM or POEM) or were of advanced age (>75 years) and/or severe comorbidities (n=25), were managed with safer treatments, such as botulinum toxin injections [14], and were therefore excluded from this study. Secondary forms of achalasia, resulting from esophageal cancer or other infiltrative diseases, were ruled out via upper gastrointestinal endoscopy.

Results

A final cohort of 76 patients met the inclusion and exclusion criteria (Fig. 1). Of these, 4 patients were lost to follow up and were not analyzed for the long-term results. The baseline characteristics of the study population are summarized in Table 1. The mean pre-dilation Eckardt score was 7.2±1.86 in the subtype I group and 7.05±1.89 in subtype II.

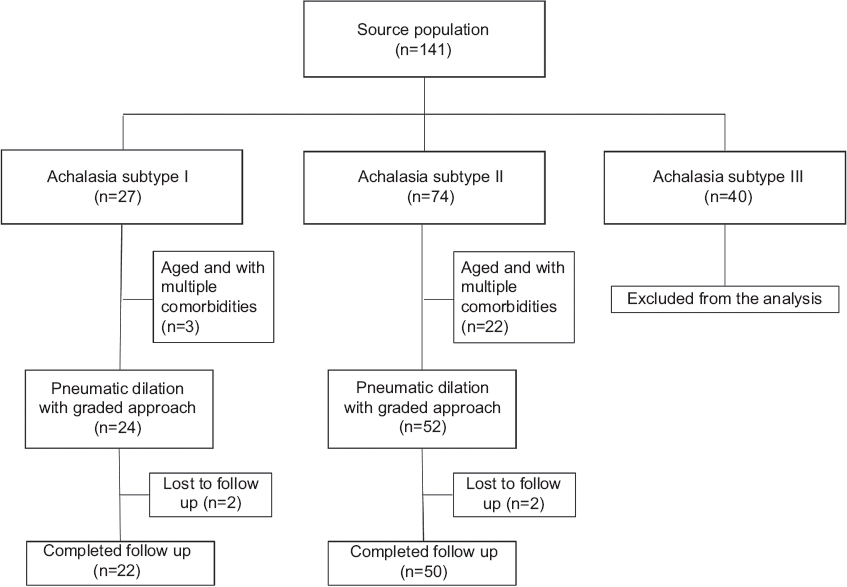

Figure 1 Study flowchart

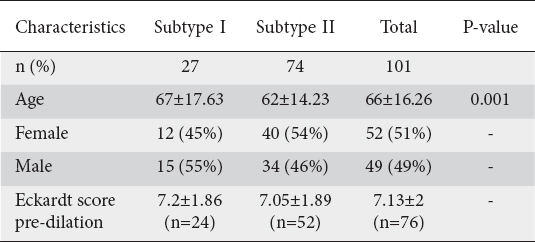

Table 1 Baseline characteristics of the retrospective cohort

Short-term outcome

Among the 24 subtype I patients, 23 (95.8%) reached clinical remission (defined as Eckardt score ≤3) after the first PD. One subject achieved remission after the second dilation, leading to a 100% success rate in the first series of PDs. The 40 mm diameter balloon was not necessary in subtype I achalasia. In the 52 patients with subtype II, the first dilation was effective in 40 (76.9%), the second in 8 (92.3%), and the third in 2 cases (96.2%). Only one patient from the subtype II group refused permission to continue the graded approach after a first unsuccessful PD. At the end of the graded protocol, 74 of the 76 patients from both groups had successful treatment (success rate 97.4%; Table 2). A total of 90 PDs were completed without major complications (i.e., perforation and bleeding requiring surgery): 25 for subtype I (average/patient=1.04) and 65 for subtype II (average/patient=1.25).

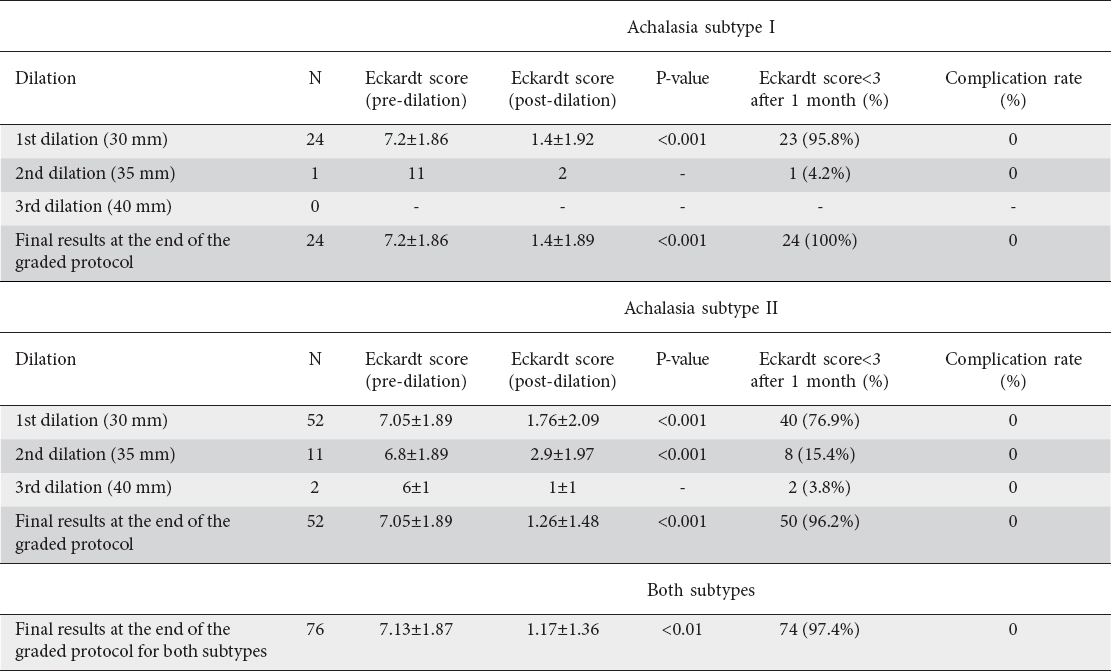

Table 2 Short-term results and complications of pneumatic dilation in achalasia subtype I and II

Long-term outcome

The long-term outcome after a median period of 56 months was as follows: 90.9% subtype I and 86% subtype II achalasia patients were in clinical remission (Table 3). In the subtype I group, among the 22 patients who responded to the first series of PDs and completed the follow up, 2 patients (9.1%) showed clinical recurrence and so underwent a redilation starting from the balloon diameter used in the last procedure. These 2 patients were treated with a 35 mm balloon: 1 achieved clinical remission, whereas the other did not. Indeed, the latter patient failed even after the 40 mm diameter balloon dilation (Eckardt score at 4 weeks=5) and was therefore referred for surgery. Considering redilations, the long-term success of PD in our series reached 95.5% in subtype I achalasia.

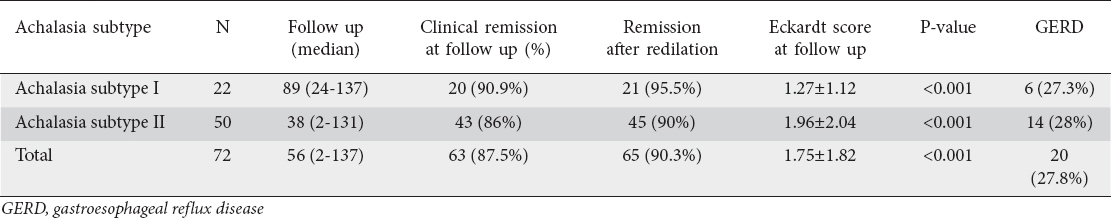

Table 3 Long-term results and side-effects of pneumatic dilation in achalasia subtype I and II

In the subtype II group, 7 of 50 patients (14%) presented with a relapse during the follow up. Four had undergone only the first dilation, one of them had one dilation with a 35-mm diameter balloon and 2 patients completed the graded protocol with the last 40 mm diameter balloon dilation. Two patients underwent a further procedure with a 35-mm balloon, leading to clinical remission. The remaining 5 did not benefit from redilations and were referred for different treatments, either LHM or POEM. A ”re-do” strategy, with additional dilations during the follow up, permitted a clinical remission rate of 90%. None of the patients who underwent redilations had major complications, while none of the variables analyzed (age, sex, achalasia subtype, Eckardt score before treatment, time interval between diagnosis and treatment) showed any correlation with therapeutic success. Finally, we evaluated the incidence of postoperative GERD: 27.8% of the patients treated with PD needed proton pump inhibitors after the treatment.

Discussion

PD was the first endoscopic technique used to treat achalasia symptoms, regardless of the underlying manometric pattern, until POEM was developed [15]. By increasing the pressure inside the inflatable balloon, the therapeutic action of PD aims to stretch the smooth muscle fibers of the LES, thereby achieving an effective dilation of the sphincter. Thus, unlike other techniques such as POEM, it cannot act on the symptoms that result from contraction and pressurization of the proximal muscle of the esophagus, such as patients with a specific subset of achalasia characterized by prominent contractions (formerly referred to as “vigorous achalasia”) [16,17]. This observation became more apparent with the advent of HRM and pressure topography plotting, which precisely delineated the manometric characteristics of these patients and defined them as subtype III achalasia [18]. Comparison studies have confirmed a poorer response of subtype III to PD compared with POEM, which allows smooth muscle dissection up to proximal esophageal segments [19-21]. For this reason, we opted to include in our cohort only subtype I and II patients treated with PD.

The results reported in this retrospective study, from a cohort of patients homogeneous as regards sex and age, showed excellent short-term success rates of 100% and 96.2% for subtypes I and II achalasia, respectively. Because of the chronic nature of this esophageal disorder, we also analyzed long-term outcomes with later redilations, reaching clinical remission in 95.5% and 90% of subtype I and II patients over a median follow up of 7 and 3 years, respectively. Our study did not show any correlation between male sex and worse outcome, as previously suggested by some authors [22,23]. In fact, a large meta-analysis that investigated patient-specific predictors has recently reported a lack of any association between sex and treatment outcome [24].

Most of the data on the efficacy of PD in the treatment of achalasia include subgroup III, and thus yield a lower response rate than those reported in this study, where we have selected only subtypes I and II [25-30]. Recently, a meta-analysis by Andolfi et al reported the success rates of PD for each achalasia subtype: 61% and 84% in subtypes I and II, respectively, after a mean follow up of 24 months. Comparing PD with other treatments, such as LHM and POEM, the efficacy was clearly in favor of these 2 approaches, yielding respective success rates of 81% and 95% in subtype I and 92% and 97% in subtype II [9]. Moreover, a prospective clinical trial showed a poor efficacy for PD compared with excellent results from POEM (53% vs. 92% after 2 years) [21]. These results, however, are based on studies that used different dilation protocols and definitions of clinical success [12]. These criticisms can be extended to the majority of meta-analyses comparing distinct treatment methods in achalasia, thereby leading experts to conclude that with the currently available data it is difficult to establish which treatment option is the best for any single patient [31]. Notably, our results were in line with the excellent success rates showed by Rohof et al, who used a protocol of graded dilation with redilations in patients with symptom recurrence [32].

The graded PD protocol that we have been using since 2010 is the safest and most effective one among those available [12], and was recently recommended by European Society of Gastrointestinal Endoscopy guidelines as a therapeutic option [33]. The absence of complications in the short term demonstrated in our study confirms and expands previous evidence for PD safety. A gradual dilation starting from a 30-mm balloon aims to adapt the diameter of the device to the esophageal caliber, to allow progressive and safe stretching of the smooth muscle fibers. On the other hand, in the long-term, the occurrence of reflux was considerable, i.e., 22.3% and 28% in subtypes I and II, respectively, although these results were consistent with published data [11]. All the procedures were performed in a tertiary referral center for esophageal dysmotility and thoracic surgery was available as a back-up in case of complications. Initially, we applied the procedure to inpatients, whereas more recently we opted for an outpatient setting, with the advantage of greater patient compliance and lower costs for the hospital. Although this is not recommended by guidelines [34], patients who underwent PD were checked with a contrast (gastrografin) esophagogram before being discharged.

This study clearly had several limitations that should be acknowledged. First, its retrospective design is known to hamper the power of the obtained results and is open to possible biases. Secondly, a considerable number of patients, mostly subtype II achalasia, had to be excluded from PD treatment because of advanced age and/or severe comorbidities.

In conclusion, according to our study, PD is still a safe and effective approach for treating patients with achalasia subtype I and II. Notably, PD can be performed in an outpatient setting with reasonable costs, provided that the procedure is performed in a tertiary referral center with experienced operators and thoracic surgery available to manage possible complications promptly. The other 2 important messages that we would like to convey are: 1) the efficacy of PD in achalasia should always consider the achalasia subtype (with subtypes I and II being most suitable for PD treatment); and 2) the PD procedure should be performed using a graded approach, as applied in this study and recommended by most important pertinent papers on this topic.
