Cerebral oximetry monitoring in non-intubated patients undergoing endoscopic retrograde cholangiopancreatography under propofol-induced sedation: a prospective observational study

Introduction

Endoscopic retrograde cholangiopancreatography (ERCP) is a complex endoscopic procedure used for the treatment of biliopancreatic diseases. Over recent years, moderate sedation (depression of consciousness during which patients respond purposefully to verbal commands) has been associated with high ERCP failure rates due to patient discomfort and premature termination of the procedure [1]. Given the progressively increasing involvement of anesthesia in gastrointestinal endoscopy, deep sedation (depression of consciousness during which patients cannot be aroused easily and maintain their ventilatory function) or general anesthesia (loss of consciousness during which patients are not arousable and require assistance in maintaining a patent airway), constitute the most common sedation practices for ERCP procedures at present time.

Despite the fact that deep sedation seems to be a reasonable choice over general anesthesia, interventions required for the treatment of difficult cases and/or the development of procedure-related adverse events may unpredictably prolong the length of ERCP. Furthermore, advances in the field of ERCP, such as the combined use of endoscopic ultrasound in a single session, may also significantly extend the procedural duration. Although propofol presents superior sedative efficacy compared with traditional sedation regimens of benzodiazepines plus opioids [2,3], propofol-induced hypoventilation, hypotension and bradycardia can occur relatively frequently [4]. Moreover, propofol has been particularly associated with episodes of cerebral oxygen desaturation in comparison to other sedative agents [5]. Prolongation of time under deep sedation in ERCP procedures remains a challenge for anesthesiologists, who must provide adequate sedation in spontaneously breathing patients. Therefore, studies oriented towards the evaluation of monitoring techniques to improve the management of patients under deep sedation are worthwhile.

Beside standard monitoring, several methods, including the use of near-infrared spectroscopy (NIRS)-based cerebral oximetry, have been proposed over the last years as a means of monitoring cerebral function during anesthesia and surgery [6]. Cerebral oximetry provides instantaneous information about the status of brain perfusion by demonstrating the regional hemoglobin oxygen saturation (rSO₂) in the frontal cerebral cortex. A decrease in cerebral oxygenation has been associated with events of clinical deterioration, such as arrhythmia, hypotension and hypoxia [7]. Studies have demonstrated a strong agreement between rSO₂ and mixed venous oxygen saturation (SvO₂) in a wide range of clinical settings [8-10]. In many of these observations SvO₂ was primarily affected, with minimal or even no effect on arterial oxygen content (i.e. hypoxemia). Low SvO₂ values have been shown to be an important warning sign of inadequate systemic oxygen delivery [11]. This suggests that cerebral oximetry may enable prompt assessment of tissue oxygenation, serving as a potential early indicator of sedation-related adverse events.

In this study, our primary aim was to evaluate how cerebral oxygenation is affected by propofol-induced deep sedation during an ERCP procedure. The secondary objectives were to measure the cerebral desaturation event (CDE) rate and assess the predictive capacity of CDEs for sedation-related complications. To the best of our knowledge, there are no existing data on cerebral oximetry monitoring during propofol-induced sedation in spontaneously breathing patients.

Patients and methods

A total of 60 consecutive patients who underwent therapeutic ERCP procedures between September and December 2019 were prospectively enrolled in the study. No case of exclusion was observed. All procedures were performed under the supervision of an anesthesiologist, who was in charge of the administration and monitoring of sedation, while vital signs were recorded by an independent endoscopy nurse. Deep sedation was the target sedation endpoint and propofol was used as a single sedative agent. The participants’ physical status was graded according to the American Society of Anesthesiologists (ASA) Physical Status Classification System (ASA grade) [12]. Exclusion criteria were: (a) age less than 18 years; (b) pregnancy; (c) critical illness (ASA grade V); and (e) history of allergy to propofol or eggs. The study was approved by the scientific committee of our hospital and informed consent was obtained from each patient included in the study.

Depth of sedation was assessed by bispectral index (BIS) monitoring. All patients were continuously monitored using the BIS VIEW device (BIS Monitoring System) and a specific BIS Quatro Sensor (Aspect Medical Systems, Newton, Massachusetts, USA). Overall, BIS values range from 0-100, and in patients who are awake, a typical BIS score is 90-100 [13]. A BIS value below 60 is associated with a low probability of response to commands. Therefore, in this study, BIS values between 40 and 60 were defined as deep sedation. After basal data had been recorded during full consciousness, supplemental oxygen was administered intranasally (5 L/min) and the attending anesthesiologist delivered a 0.5 mg/kg loading dose of i.v. propofol, followed by continuous infusion with a medical pump, titrated to achieve the level of deep sedation based on BIS readings. All participants were positioned in the left lateral position and continuously monitored with a noninvasive blood pressure device (serial measurements every 3 min), electrocardiography, pulse oximetry, and an end-tidal carbon dioxide monitor. In addition, partial pressures of oxygen (PaO₂) and carbon dioxide (PaCO₂) in arterial blood gas were measured at 3 time points: (a) prior to propofol administration; (b) intra-procedurally, while patients were intubated with the duodenoscope and deeply sedated (BIS values between 40 and 60); and (c) at recovery of consciousness.

Overall, respiratory depression was defined as a drop of peripheral arterial oxygen saturation (SpO₂) below 90% for more than 10 sec and/or lack of respiratory effort for more than 15 sec, identified by capnograph [14,15]. Hypotension was defined as systolic blood pressure (SBP) ≤90 mmHg and bradycardia as a decrease in heart rate (HR) to below 50 beats/min. In case of respiratory depression, the anesthetic protocol included a set of maneuvers and interventions for restoring ventilation (reposition of the airway, jaw thrust or chin lift maneuver, removal of the endoscope, discontinuation of propofol infusion, increase of oxygen flow, bag valve mask ventilation) while maintenance of hemodynamic stability included fluid administration and the use of ephedrine or atropine in case of hypotension or bradycardia, respectively. Patients were moved to the recovery area immediately after the procedure if their vital signs were stable. In the recovery area they were monitored by electrocardiography, pulse oximetry and blood pressure recording in the presence of the anesthesiologist.

Results

Sixty patients were screened (32 females) and none were excluded. Mean (range) age, height, weight, and body mass index (BMI) were 67.9 ± 17 (27-96) years, 167 ± 10 (145-194) cm, 76.3 ± 17.4 (45-144) kg, and 27.3 ± 5.0 (16.9-41.6) kg/m², respectively (Table 1). Five patients (8%) had a medical history of obstructive sleep apnea syndrome. The mean total propofol dose administered was 437.4 ± 189 mg and the mean duration of sedation was 38.3 ± 15.8 (range 15-90) min (Table 1). Despite the fact that deep sedation was the target level of sedation (target range 40-60), BIS values ranged from 18-85 throughout the sedation period. We obtained a total of 480 rSO₂ measurements per probe. For further analysis, the right-sided and left-sided rSO₂ registers for each participant were averaged at every time point of the procedure (mean rSO₂ of both hemispheres).

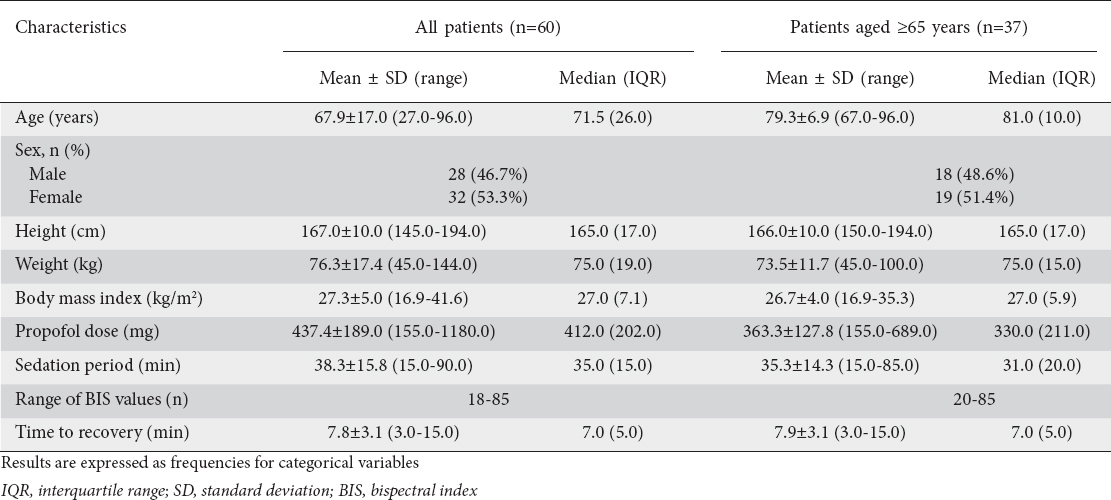

Table 1 Demographic data of patients, sedation parameters and recovery time

All procedures were therapeutic and were performed by one gastroenterologist. ERCP indications included: choledocholithiasis (n = 34), repeat ERCP for stent removal (n = 10), pancreatic cancer (n = 7), chronic pancreatitis (n = 2), cholangiocarcinoma (n = 2), biloma (n = 2), unclassified extrahepatic biliary stricture (n = 2), and intraductal papillary mucinous neoplasm (n = 1). Cholangioscopy was performed in 6 cases and 1 patient underwent electrohydraulic lithotripsy for a tightly impacted stone in the common bile duct. All ERCP procedures were technically successful. The mean (range) duration of the procedure was 41.5 ± 15.6 (19-93) min. Difficult cannulation, as defined by the European Society of Gastrointestinal Endoscopy’s Clinical Guidelines [17], was recorded in 8 patients. Post-ERCP pancreatitis, defined according to the revised Atlanta classification [18], occurred in 2 of 60 patients (both cases mild). There were no other immediate complications of the endoscopic procedure (e.g. perforation or bleeding).

Mean (range) rSO₂ value at baseline for the 60 patients was 65.1 ± 11.8% (37.0-90.5). Fig. 1 illustrates the means of BIS and rSO₂ values for the abovementioned fixed time points. We observed that the time course of mean rSO₂ values exhibited little variability throughout the sedation period and no significant correlation was demonstrated between the means of BIS and rSO₂ recordings at any time point of the procedure (P = 0.193).

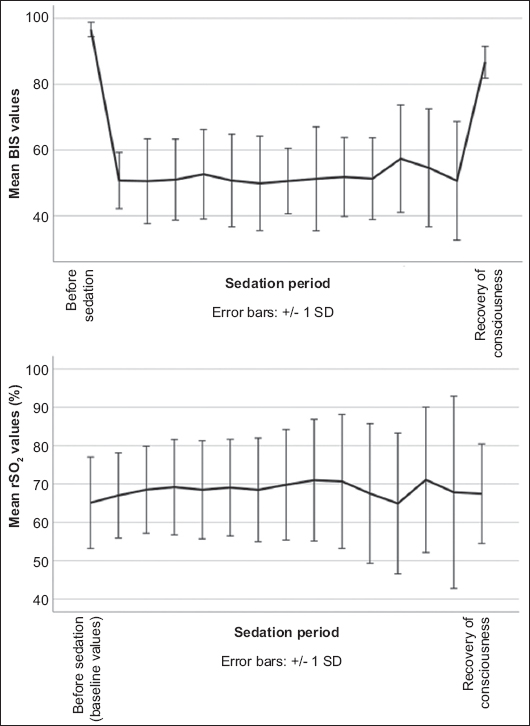

Figure 1 The means of bispectral index (BIS) and regional hemoglobin oxygen saturation (rSO₂) values. Each tracing represents the grouped measurement for all patients (n = 60) at the predefined time points of the procedure

SD, standard deviation

The maximum percentage change in rSO₂ was calculated as the biggest drop from baseline rSO₂ during the sedation period, divided by the baseline value. The correlation between the maximum percentage change in rSO₂ and the percentage change in BIS values at the corresponding time point was evaluated and no association was observed (r=-0.086, P = 0.44) (Fig. 2).

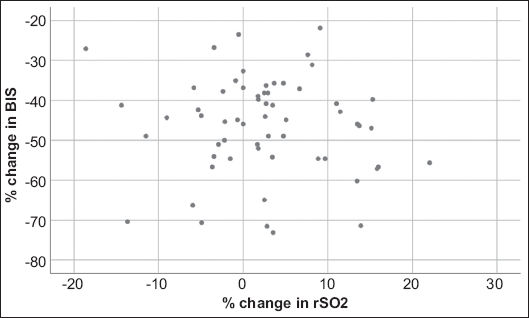

Figure 2 Correlation between the maximum percentage change in regional hemoglobin oxygen saturation (rSO₂) and the percentage change in bispectral index (BIS) values at the corresponding time point

A further subgroup analysis of the older population (patients aged ≥65 years, n = 37) was performed separately, as this age group has a higher risk of concomitant chronic diseases. Their demographic characteristics are presented in Table 1. The range of BIS values during the sedation period was 20-85. Fig. 3 shows the means of BIS and rSO₂ recordings throughout the predefined time points. Similarly, no significant correlation between them was observed at any time point (P = 0.503).

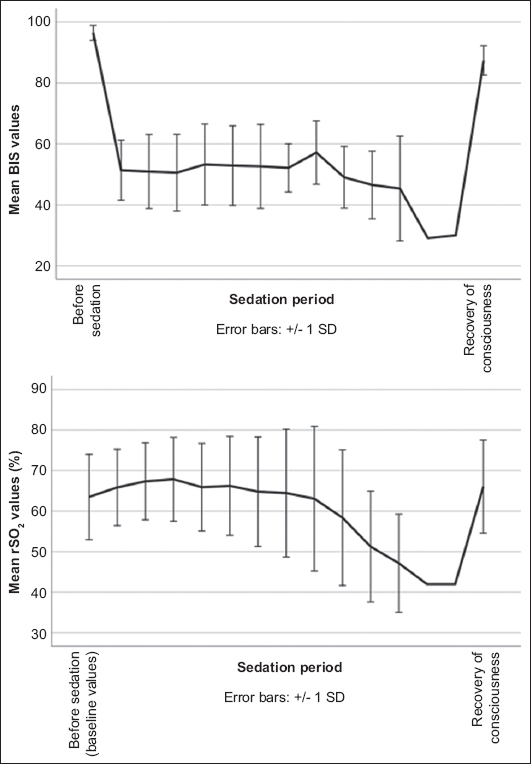

Figure 3 The means of bispectral index (BIS) and regional hemoglobin oxygen saturation (rSO₂) values. Each tracing represents the grouped measurement for patients aged ≥65 years (n = 37) at the predefined time points of the procedure

SD, standard deviation

All patients presented a statistically significant increase in PaCO₂ following the induction of sedation (P < 0.001) and this increase persisted until recovery of consciousness (P < 0.001) (Table 2). This significant increase was also noted for the subgroup of patients aged ≥65 years after the initiation of sedation until recovery (P < 0.001) (Table 2).

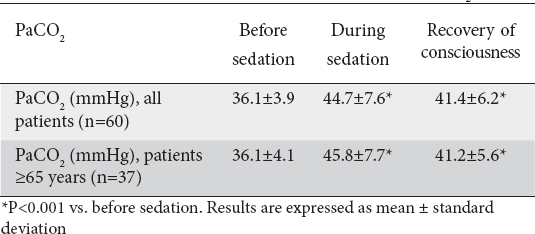

Table 2 Changes in partial pressure of carbon dioxide (PaCO₂)

We detected a total of 13 incidences of significant cerebral desaturation (>10% decrease in rSO₂) in 5 patients. The percentage of CDEs among all rSO₂ measurements was 2.7%. The lowest and highest BIS readings during these episodes were 63.5 and 85.5, respectively. Alternatively stated, CDEs occurred when patients were not under deep sedation anymore. No changes in these patients’ hemodynamic and oxygenation parameters were noticed at the time of each CDE or within 5 min after. Interestingly, during lower levels of sedation (BIS values <40, 53 of 480 BIS measurements) no CDE was recorded.

Regarding complications related to sedation, 2 cases of significant respiratory depression (decline in SpO₂ to <90% for more than 10 sec), 6 cases of hypotension (SBP ≤90 mmHg) and 4 cases of bradycardia (HR <50 beats/min) were noted in 12 patients during the procedure. Eight patients were aged ≥65 years and 8 had a BMI of 25 kg/m² or more (range 27.2-31.9). Among these 12 patients, the most common medical comorbidities were as follows: hypertension (33%), diabetes mellitus (16%), congestive heart failure (16%), and obstructive sleep apnea syndrome (8%).

No substantial desaturation was recorded, neither at the time of the adverse events nor during the preceding and subsequent rSO₂ measurements. All cases were treated successfully by the attending anesthesiologist. There were certain subjects with rSO₂ < 60% before propofol administration, but no sedation-related complication was observed when these patients were examined separately.

Discussion

The current study indicates that cerebral oxygenation in patients deeply sedated with propofol exhibited little variability throughout sedation and remained independent of changes in sedation depth, irrespective of ERCP duration. Our literature search revealed no data on NIRS-based cerebral oximetry monitoring during ERCP, since the majority of data in this research field come from cardiac surgery.

Only a few reports in the literature have examined the relationship between cerebral oxygenation and changes in depth of sedation. In our study, no significant correlation was shown between the means of BIS and rSO₂ measurements at any time point of the procedure. Similar results were obtained when elderly patients (≥65 years) were analyzed separately. In the same direction, Kanemaru et al [19], in an attempt to examine whether BIS changes are mirrored by changes in cerebral oxygenation, investigated the effect of midazolam, isoflurane and aminophylline administration during general anesthesia with propofol. It was found that rSO₂ recordings remained unchanged, although the 3 previously mentioned drugs significantly affected BIS values. Furthermore, a previous study by Fassoulaki et al. [20] reported that cerebral oxygenation remained constant when the depth of anesthesia was maintained at a steady state. Indeed, in our study, the depth of sedation exhibited little variation. Similarly, no CDE was recorded during unintended lower levels of sedation (BIS values <40).

Cerebral NIRS monitoring has been used to monitor cerebral perfusion and influence management in various perioperative settings: abdominal or orthopedic surgery [21,22], carotid endarterectomy [23], and aortic or cardiac surgery [24-28]. Several authors suggest that NIRS-based cerebral oximetry can reliably detect perioperative CDEs, particularly during cardiac surgery [21,27,29-33]. Other studies have also demonstrated the association between intraoperative CDEs and adverse neurological outcomes, postoperative cognitive dysfunction, major organ morbidity or mortality, and prolonged length of hospital stay [27,34,35].

Baseline rSO₂ values in our patients (65.1 ± 11.8%) were within the published normal range of 60-80% [16]. It is not clear what level of fall in rSO₂ is significant, but according to previously published data, a fall in cerebral rSO₂ of greater than 12% is a reliable ischemic “threshold” for brain ischemia, while a decrease in rSO₂ greater than 20% from individual baseline is commonly considered as an intervention trigger during cardiac surgery [36]. Recognizing the fact that deep sedation maintains ventilatory function intact, providing less-secured airway management in a non-operating room compared with general anesthesia, and given that there is no existing data on cerebral oximetry monitoring among deeply sedated patients, we decided to apply a lower “threshold” rSO₂ value to determine an episode of significant cerebral desaturation. Therefore, in our study, CDE was defined as any decrease in rSO₂ greater than 10% of the baseline value.

The incidence of intraoperative decrease in cerebral oxygen saturation ranges from 30-70%, depending on the definition of CDEs and the patient population [21,27,31,35]. In our study, the percentage of CDEs among all rSO₂ measurements was 2.7%, significantly lower when compared with the above-mentioned published range. This may be due to differences in the targeted sedation level of these studies (deeper than in our study), types of surgery (neurosurgery, great vessel surgery, carotid endarterectomy, other surgery) and patients’ individual conditions. While we anticipated that the rate would be lower compared with patients who underwent aortic or cardiac surgery, the very low CDE incidence was unexpected, given the lower “threshold” value adopted for our CDE definition.

Neither of our participants who experienced a CDE had a complication. Furthermore, none of the 12 patients who experienced a sedation-related complication recorded a decrease in rSO₂ values >10% of baseline value. Consequently, our observations suggest that rSO₂ is not a predictor of changes in other organ systems of the body during propofol-induced deep sedation. In theory, a possible explanation may be provided by the presence of cerebral autoregulatory mechanisms. Cerebral autoregulation is a homeostatic process by which cerebral blood flow (CBF) is maintained constant across a range of blood pressures [37]. An autoregulatory mechanism keeps CBF constant through vasodilation. Carbon dioxide in the arterial blood has a determinant effect on the cerebral arteriolar tone; in cases of hypercapnia, a dilation of the cerebral arterioles occurs, leading to increases in both CBF and cerebral blood volume [37]. Studies have shown that propofol preserves this autoregulatory response [38] better than other anesthetics [38,39]. Therefore, we assume that the significant increase observed among our patients in mean PaCO₂ after the induction of sedation, in combination with the use of propofol, contributed to the maintenance of cerebral oximetry at a relatively steady value.

Cerebral oximetry has emerged as an encouraging noninvasive technology for brain monitoring. Nonetheless, we need to mention that variations in rSO₂ values exist among different individuals, probably because of differences in skin color, sex, and arterial/venous ratios in the frontal lobe [36]. The interpretation of rSO₂ values must be based on all clinical data, since pre-existing tissue dysfunction, carotid stenosis or incomplete circle of Willis may affect the perfusion of each hemisphere in a different way [40]. Bilateral rSO₂ monitoring, as applied in our study, provides a greater chance of detecting unilateral disturbances of cerebral perfusion. The threshold value for clinically significant cerebral desaturation still remains unclear, and different studies have used different thresholds of rSO₂ for interventions. Therefore, decision-making should be based on the clinical circumstances rather than the absolute rSO₂ values. These restrictions have raised questions regarding the clinical utility of cerebral oximetry monitoring, indicating the need for new information regarding its incorporation in anesthetic practice.

The limitations of our study should be noted. First, it was an observational prospective study. Indeed, a randomized controlled trial would provide more reliable evidence; however, data are lacking and its design might not be feasible. Second, as this was an exploratory study, a sample size estimation was not deemed necessary. Considering the financial burden of a new technology which is not considered to be a standard of care, we preferred to carry out preliminary research in order to explore its clinical benefit among deeply sedated patients. Third, the depth of sedation was assessed with BIS monitoring, without the use of other validated clinical tools (e.g. the modified Observer’s Assessment of Alertness/Sedation Scale). Because of legal restrictions, propofol sedation during ERCP procedures in our unit is always administered by an anesthesiologist, and the anesthesiology team of our institution has adopted BIS monitoring as the standard of care during total i.v. anesthesia. Nevertheless, given that the primary aim of our study was to evaluate how cerebral oxygenation is affected during propofol-mediated deep sedation and since no previous research has been done, this study addresses an unanswered issue.

In conclusion, our results are highly suggestive that NIRS-based cerebral oxygenation monitoring is unlikely to influence the clinical management of patients deeply sedated during ERCP procedures, since CDEs had no clinical impact and did not provide an early indication of clinical deterioration. However, these results cannot be generalized and larger studies are needed to better define their clinical value. On the other hand, the fact that cerebral oxygenation remained stable and independent of changes in sedation depth, even at unintentional deeper levels of sedation, implies that propofol-mediated sedation remains a safe practice as far as oxygenation in cerebral tissue is concerned.
