Endoscopic ultrasound-guided transmural drainage of post-traumatic pancreatic fluid collections

Introduction

Pancreatic injury is an uncommon consequence of both blunt as well as penetrating abdominal trauma [1]. Despite being uncommon, pancreatic injury is associated with a significant morbidity and mortality [1-4]. The integrity of the main pancreatic duct (MPD) is one of the most important determinants of outcome after post-traumatic pancreatic injury. Patients with intact MPD usually respond well to conservative treatment whereas patients with duct disruption usually require minimally invasive or surgical intervention for a successful outcome [1-8]. Patients with MPD disruption usually present with local complications like acute pancreatitis, pancreatic fluid collections, and pancreatic fistulas [7-9].

The management of post-traumatic injury depends on the duct integrity as well as the clinical stability of the patient, with surgery being the conventional treatment. Patients with hemodynamic instability are usually operated immediately whereas stable patients are initially managed conservatively. The clinical factors that determine the timing and type of surgery include site and extent of MPD disruption, stability of the patient, and extent of another organ damage [1,4,10,11]. The surgical intervention involves either drainage or resection depending on the extent of pancreatic parenchymal damage [4,11,12]. The advent of minimally invasive endoscopic therapy has opened up an effective and minimally invasive therapeutic option for the management of patients with post-traumatic pancreatic injury. Studies evaluating endoscopic transpapillary drainage by a bridging endoprosthesis across the disrupted MPD have reported encouraging results in patients with pancreatic trauma [4,8-10]. However, the majority of patients with post-traumatic pancreatic injury have complete MPD disruption, and endoscopic transpapillary drainage in such settings is usually ineffective [13]. Moreover, endoscopic transpapillary drainage alone in patients with pancreatic fluid collections (PFC) >6 cm in size is associated with an increased risk of infection as well as inadequate drainage [1,13]. Patients with large post-traumatic PFC can be treated with image-guided percutaneous drainage (PCD), but, in presence of complete duct disruption, PCD is associated with an increased risk of external pancreatic fistula formation [13].

Endoscopic ultrasound (EUS)-guided transmural drainage is a safe and effective minimally invasive treatment option for pseudocysts and walled off necrosis [14,15]. Also, it is safe and effective in patients with PFC associated with complete MPD disruption with the strategy of maintaining the patency of iatrogenic fistula by leaving transmural stents in situ for an indefinite period, associated with an excellent long-term outcome [16]. However, experience with EUS-guided transmural drainage of post-traumatic PFC is limited to case reports [5,17,18]. Moreover, the timing of EUS-guided intervention is unclear and it is usually recommended to wait for at least 4 weeks for the PFC to get walled off before embarking upon EUS-guided transmural drainage [14]. In this retrospective study, we report our experience with EUS-guided transmural drainage of symptomatic post-traumatic PFC.

Patients and methods

A retrospective analysis of patients with post-traumatic PFC treated with EUS-guided transmural drainage in a pancreatology unit at a tertiary care center in North India over the last 10 years was performed. Informed consent was obtained from all the patients prior to the EUS-guided drainage procedure. Patients with severe coagulopathy, thrombocytopenia or cardio-respiratory illness precluding safe endoscopic drainage were excluded from the study. The collections were drained if patient had persistent sepsis, worsening or new onset organ failure, persistent abdominal pain, or persistent symptoms due to biliary or gastric outlet obstruction. Patient demographics, imaging findings, size of PFC, details of endoscopic transmural drainage procedure, outcome details, as well complications were retrieved from our database.

Results

During the study period 13 patients (mean age 20.2±4.4 years; 12 males) with post-traumatic PFC underwent EUS-guided transmural drainage (Table 1). All studied patients were symptomatic with abdominal pain and underwent EUS-guided drainage at 26.8±7.4 days after abdominal trauma. Two patients had acute lung injury and none of the patients had any other organ injury. All patients had pancreatic injury due to blunt trauma. The mean size of PFC was 11.8±3.2 cm with 2 patients having multiple fluid collections. Three (23%) patients had co-existent ascites and 2 (15%) patients had left-sided pleural effusion detected on CT. Twelve (92%) patients had less than 10% solid debris and 1 patient had 30% solid necrotic debris as evaluated on EUS. None of the patients had arterial pseudo-aneurysm or abnormal vessels in the transmural tract. Ten patients had PFC with a well-formed wall and 3 patients had an incompletely formed wall.

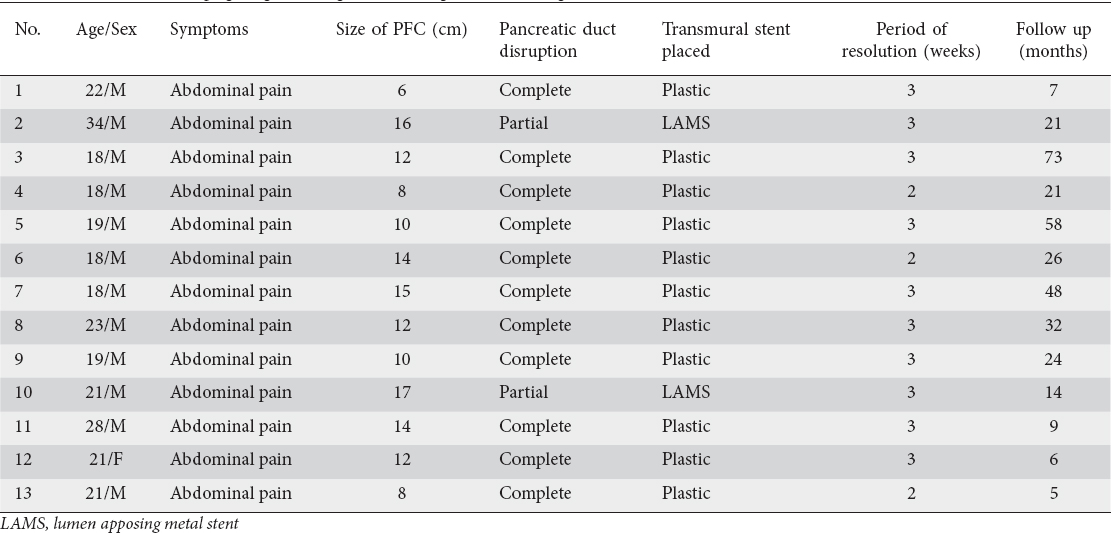

Table 1 Clinical and demographic profile of patients with post-traumatic pancreatic fluid collections (PFC)

Endoscopic drainage was technically successful in all 13 patients and 11 patients underwent transmural drainage with multiple plastic stents whereas 2 patients were treated with LAMS (Figs. 1,2). Of 11 patients treated with plastic stents, 2 patients underwent transmural drainage with a single 7-Fr stent, 3 patients with 2 7-Fr stents, and 6 patients with a combination of 7- and 10-Fr stent. None of the patients required either direct endoscopic necrosectomy or further sessions of endoscopic drainage. Two patients with multiple fluid collections underwent PCD along with the endoscopic drainage. The PFC resolved in all the patients over a mean time of 2.7±0.4 weeks.

Figure 1 (A) Computed tomography (CT) of the abdomen: Large post-traumatic collection with an incompletely formed wall. (B) Endoscopic ultrasound (EUS)-guided drainage of fluid collection. (C) EUS-guided lumen apposing metal stent (LAMS) placed to drain pancreatic fluid collection (PFC). (D) CT abdomen: resolved PFC with LAMS replaced with a permanent indwelling transmural stent

Figure 2 (A) Computed tomography (CT) of the abdomen: Large post-traumatic collection with a well-formed wall. (B) Endoscopic ultrasound-guided drainage of fluid collection. A plastic stent was placed. (C) CT abdomen: resolved pancreatic fluid collection with a permanent indwelling transmural stent

Following endoscopic drainage, 1 patient (treated with plastic stents) developed gastrointestinal bleeding 6 days after the procedure and presented with hematemesis and melena associated with postural symptoms and tachycardia. CT angiography revealed a leaking pseudoaneurysm from the gastroduodenal artery and the patient underwent successful angioembolization. No other significant complication of the EUS-guided drainage procedure was encountered.

Following resolution of PFC, ERCP was done in all 13 patients and revealed complete MPD disruption in 11 patients (neck in 8 patients and body in 3 patients) in whom one or more transmural stents were left indefinitely. Two patients had partial duct disruption, in whom a transpapillary bridging stent (5 Fr) was placed, 4-6 weeks later a repeat ERCP was done to document healing of MPD disruption, and, following that, both the transpapillary and transmural stents were removed. These successfully treated patients have been asymptomatic over a follow-up period of 26.4±20.4 months. Two patients with permanent indwelling transmural stent had an asymptomatic spontaneous migration of transmural stents and both these patients have been asymptomatic until the last follow up.

Discussion

Traumatic injury to pancreas, although uncommon, is associated with significant morbidity because of consequences of disruption of the MPD. The disruption of MPD leads to continuous leakage of pancreatic juices with digestive enzymes causing acute pancreatitis and formation of PFC or pancreatic fistulas [1]. As it is minimally invasive, safe and effective, EUS-guided transmural drainage is the preferred treatment option for pancreatic pseudocysts and walled off necrosis [21]. Despite an abundance of data on the endoscopic drainage of pseudocysts, the experience with endoscopic drainage of post-traumatic PFC is limited [1,4]. Post-traumatic PFC and fistulas with partial pancreatic duct disruption have been successfully treated with bridging transpapillary stent [1-9,11,17,18]. However, endoscopic transpapillary drainage is usually ineffective in patients with complete MPD disruption and these patients usually require surgical intervention for a successful outcome. Few patients with complete MPD disruption and a bulging PFC into the stomach or duodenum have been treated with endoscopic transmural drainage [1,4]. The advent of EUS has revolutionized the management of PFC with even non-bulging, and distant PFC being successfully treated endoscopically [22,23]. However, experience with EUS-guided transmural drainage of post-traumatic PFC is limited [1,4,18]. Also, the appropriate timing of EUS-guided transmural drainage is unclear.

The management of pancreatic traumatic injury in the early phase involves supportive care with attempts to accurately diagnose the MPD injury as the definitive management depends on integrity of the MPD along with the extent of pancreatic parenchymal damage [1,4]. The American Association for the Surgery of Trauma Organ Injury Scaling Committee has described a grading system that can help in the decision of the appropriate management [24]. Patients with grade I and II lesions have no ductal injury and these patients can be successfully managed with conservative management. On the other hand, patients with grade V injury have massive disruption of the head of pancreas and usually need surgery. Patients with grade III and IV lesions have distal or proximal transection of the pancreas respectively and the traditional management of these patients involved either surgical resection or drainage depending on the extent of the ductal and parenchymal injury. A selected group of hemodynamically stable patients with isolated MPD injury with partial duct disruption have been successfully treated with endoscopic transpapillary drainage in the early phase of the illness [1,7,8]. However, transpapillary drainage alone is associated with infections especially in patients with large (>6 cm) PFC and is usually infective in complete MPD disruption [13]. The ductal anatomy and disruption can be demonstrated on magnetic resonance cholangiopancreatography and in the current era there is no role for diagnostic ERCP. In the current study, we have demonstrated that EUS-guided transmural drainage is a safe and effective minimally invasive therapeutic option in this group of patients.

EUS-guided transmural drainage of PFC is usually applied in collections that have a well-formed enclosing wall and this usually occurs after 4 weeks from the onset of illness [14]. Early (<4 weeks) endoscopic transmural drainage of PFC is not advocated due to the fear of an increased risk of complications in patients with incompletely formed enclosing wall. However, few recent studies in patients with pancreatic necrotic collections have reported that early (<4 weeks) endoscopic transmural drainage is safe and effective [25,26]. We also found that early EUS-guided transmural drainage of post-traumatic PFC is safe and effective. In our study, 3 patients had an incompletely formed wall and endoscopic drainage was done earlier than 4 weeks in 8 (61%) patients. Also, 84% patients had complete MPD disruption and leaving transmural stents in situ in these patients for an indefinite period probably keeps the iatrogenic transmural tract patent and thus reduces the risk of recurrence of PFC due to DPD syndrome [16]. None of our patients with complete duct disruption and indwelling transmural stent had either recurrence of PFC or abdominal pain.

The issue of antibiotic prophylaxis while draining sterile PFCs is a debatable issue. Since endoscopic manipulation of these sterile cysts drains them into the contaminated gastrointestinal tract, prophylactic administration of post-procedural antibiotics is advisable, although the data supporting this practice is scanty. The American Society of Gastrointestinal Endoscopy guidelines recommend prophylactic antibiotic use for EUS-guided sampling of pancreatic cystic lesions [27]. However, recent evidence suggests that antibiotic prophylaxis may not be needed after EUS fine needle aspiration of cysts, especially once the cysts have been completely aspirated [28]. However, large sized PFC take some time for significant resolution even after adequate large diameter drainage and therefore we follow the practice of giving antibiotics for 5-7 days.

Our study is associated with a few limitations. Firstly, it is a retrospective study from a tertiary teaching hospital and thus has an inherent drawback of referral bias. It is a single-center study with a small sample size and variable interventions have been performed in the included patients. Moreover, the endoscopic procedures were conducted in a unit with extensive experience in interventional EUS and pancreatic endotherapy and therefore the results may not be generalizable.

In conclusion, EUS-guided ransmural drainage of post-traumatic PFC is safe and effective. Moreover, it can be safely performed in patients with symptomatic PFC in the early phase (<4 weeks) after pancreatic trauma.
