Endoscopic dilation of benign post-esophagectomy anastomotic strictures: long-term outcomes and risk of recurrence

Abstract

Background Benign esophageal anastomotic strictures often require repeat dilation to relieve dysphagia. Little is known about the factors that affect their remediation. The purpose of this article was to retrospectively evaluate the long-term clinical results of endoscopic dilation in the treatment of benign anastomotic strictures after esophagectomy, and to identify factors associated with stricture recurrence.

Methods A single-center retrospective analysis (using electronic records) was performed on patients who underwent endoscopic dilation for esophageal anastomotic strictures. Long-term clinical effectiveness, including technical and clinical success, and complication rate were assessed. Factors independently related to recurrence were evaluated.

Results Between January 2014 and December 2017, a total of 35 patients who had benign anastomotic strictures after esophagectomy underwent 182 endoscopic dilation procedures. Technical success was 100%. Thirty-two patients (91%) had initial relief of dysphagia. The clinical success, defined as resolution of dysphagia and achieving luminal patency of 13 mm or more, was achieved in 24 patients (69%). Strictures recurred in 43% of patients, and refractory strictures were identified in 10/35 (29%). Proximal anastomosis and the presence of anastomotic foreign bodies were found to be risk factors for refractory strictures. The complication rate was low (4%) and adverse events were mild. No major complications (perforations, severe bleeding) or treatment-related deaths occurred in this series.

Conclusions Endoscopic dilation has a high technical and a good clinical success rate. However, anastomotic strictures are often refractory and frequently recur.

Keywords Esophagectomy, anastomotic stricture, endoscopic dilation

Results

Patient characteristics

Between January 2014 and December 2017, we performed 644 fluoroscopically guided endoscopic (upper and lower) dilation procedures in 95 patients. Thirty-five patients who had benign anastomotic strictures after esophagectomy underwent a total of 182 procedures.

The characteristics of the patient population, including relevant medical history, are summarized in Table 1. They consisted of 23 men and 12 women, and the age range was 51-90 years (median 63 years).

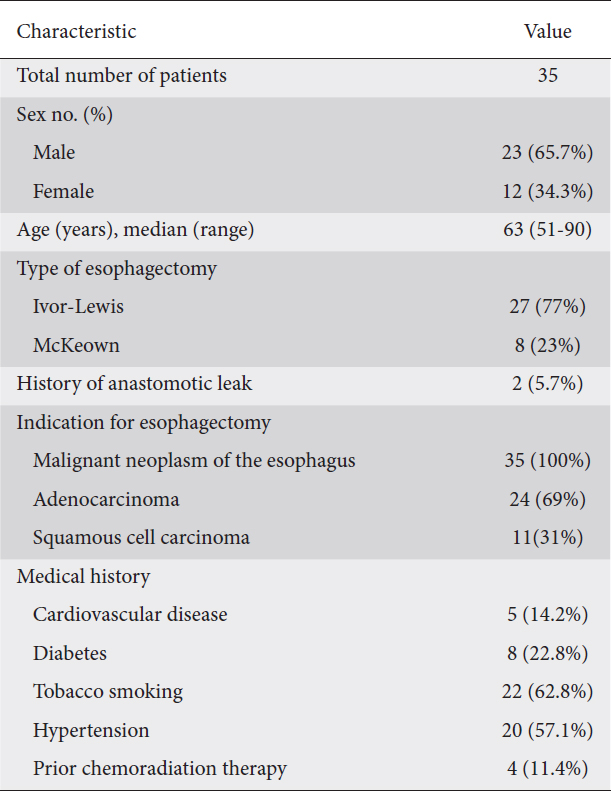

Table 1 Patients' characteristics

All patients underwent esophagectomy for malignant esophageal neoplasms: adenocarcinoma n=24 (69%), and squamous cell carcinoma n=11 (31%). These patients (35) underwent either Ivor-Lewis (n=27, 77%) or McKeown (n=8, 23%) esophagectomy.

All patients suffered from moderate-to-severe dysphagia before the dilations. The average interval between esophagectomy and the first session of dilation was 23 weeks (range 3-118 weeks). A total of 182 sessions of mechanical dilation were performed, with an average of 5.2 sessions per patient (range 1-16 sessions). Other parameters related to the anastomosis and dilation procedures are presented in Table 2.

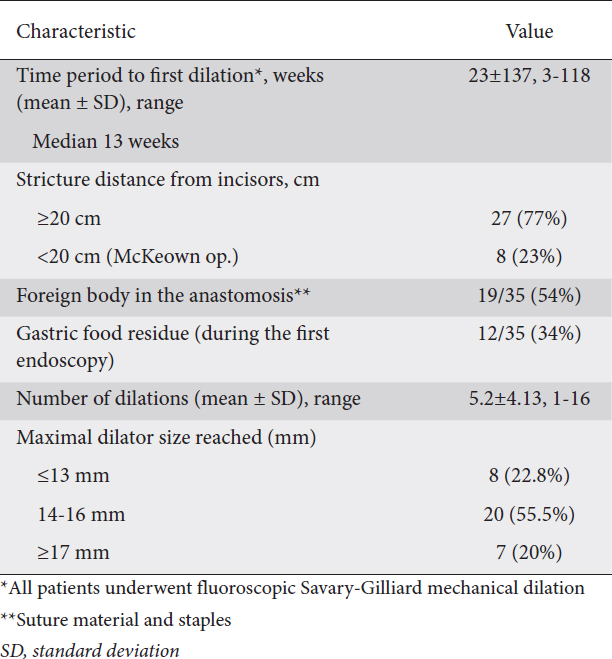

Table 2 Dilation procedures

The follow-up period after the first dilation was up to 52 months (median 10 months). At the time this article was prepared, 30 patients were being followed, 4 patients had died of metastatic disease, and 1 patient had been lost to follow up.

Clinical outcome, recurrence, and refractory strictures

Mechanical dilation procedures were technically successful in all patients (100%). Clinical improvement (decrease of at least 1 point in the dysphagia score) was reported by the majority of the patients after each procedure. Clinical improvement after the first session was 91% (32/35). Three patients with mild dysphagia (score=1) did not report clinical improvement after the first session.

Clinical success was achieved in 20 patients (57%) with an average of 2.8 dilation procedures per patient. The rest of the patients reported a recurrence of the dysphagia after a good clinical and endoscopic results. Stricture recurrence was seen in 15 patients (43%). In these patients, who had initially achieved luminal patency of 13 mm or more (Table 3), the stricture was found to be <13 mm on repeat endoscopic evaluation (within 1 month) for dysphagia. These patients underwent further sessions for symptomatic relief. Clinical success (luminal patency of 13 mm at least) was achieved in 4 more patients (with an average of 3.5 procedures per patient within a period longer than one month). Final clinical success was achieved in 24 patients (rate 69%).

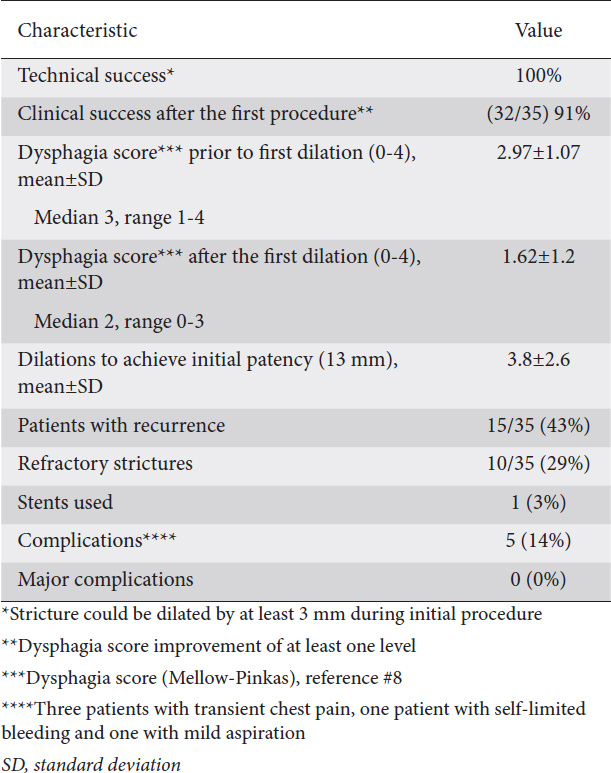

Table 3 Clinical outcome of fluoroscopically guided Savary-Gilliard dilation in 35 patients with benign anastomotic strictures after esophagectomy

Refractory strictures were identified in 10/35 (29%). All these patients underwent more than 10 sessions (average of 11.2 procedures per patient).

One patient who had an esophageal stent inserted in our series had a stricture that was not only refractory to endoscopic dilation, but demonstrated a high degree of ineffective expansion of the luminal diameter despite repeated dilation. This patient completed 16 sessions (up to the end of follow up) until a relatively sufficient clinical response was achieved. Notably, this patient also suffered from anastomotic leak.

Risk factors for refractory strictures

According to multivariate analysis, only 2 of the tested risk factors for refractory strictures remained significant (Table 4). Six of 8 proximal (cervical) anastomoses (distance from teeth less than 20 cm) were refractory (odds ratio [OR] 2.74, 95% confidence interval [CI] 0.89-3.39; P=0.041).

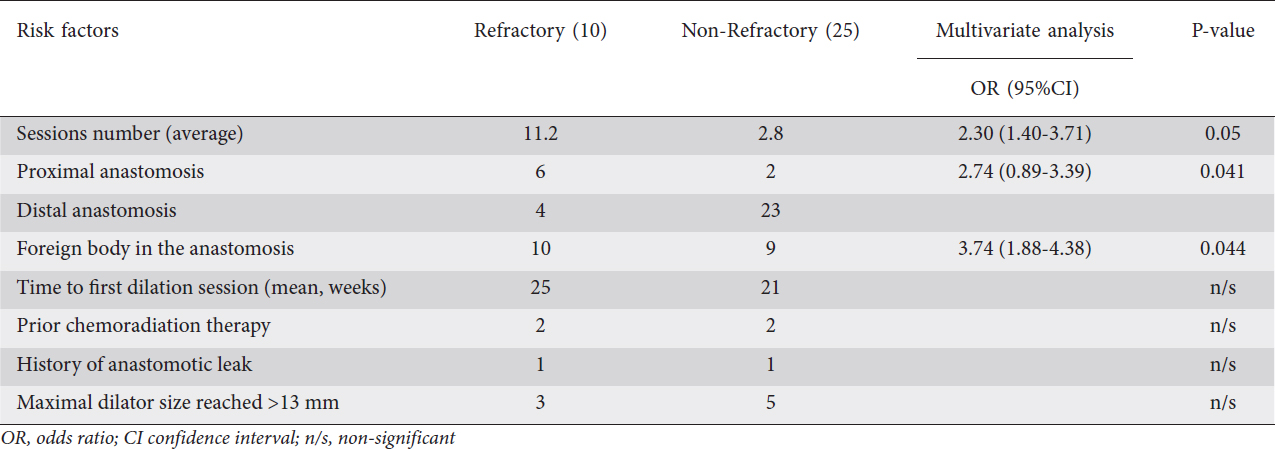

Table 4 Risk factors for refractory stricture

All the patients with refractory strictures were found to have a foreign body in the anastomosis (suture material and/or staples). Anastomotic foreign bodies increased the risk for refractory strictures by 3.74 (95%CI 1.88-4.38; P=0.044).

All other parameters (type and location of anastomosis, time to first dilation session and number of sessions,, history of anastomotic leak, and prior chemoradiation therapy) were not found to be significant predictors associated with refractory strictures (Table 4).

Discussion

Esophageal stenosis is a frequently encountered problem. Anastomotic strictures are one of the common benign causes among others such as peptic, caustic or radiation injury, Schatzki’s rings, and esophageal webs [4-6]. Through the years, dilation has been the customary treatment for esophageal strictures. However, dilation techniques have evolved, from the use of whalebones and rigid bougies in the 17th and 18th centuries, to the widely used wire-guided, fluoroscopically controlled, flexible, polyvinyl bougies (Savary- Gilliard), and through-the-scope balloon dilators in the current era [5].

The prevalence of anastomotic strictures after esophagectomy is relatively high. These benign strictures may develop as a result of collagen deposition and fibrin production from deep ulceration or chronic inflammation [5]. The effect of medical therapy (i.e., proton pump inhibitors) can be limited in the absence of an active peptic component. Endoscopic dilation can be regarded as the primary treatment method and is associated with low complication rates [4-6].

Strictures that do not respond to standard dilation techniques pose a particular challenge. Strictures that cannot be adequately dilated for relief of dysphagia in numerous sessions, or that need multiple and frequent dilation sessions after achieving an adequate luminal diameter, may be considered refractory. There is no universally accepted definition for a refractory esophageal stricture, and definitions vary in different series [7].

In this study we included 35 patients with symptomatic post-esophagectomy anastomotic stricture (Table 1). Most of the patients underwent an Ivor-Lewis procedure with distal anastomosis. Relatively very few patients had neoadjuvant chemoradiotherapy and only 2 patients had a post-surgical anastomotic leak (Table 1, 2).

According to our institutional practice guidelines, and in order to limit potential adverse events, all strictures in this series were dilated at least 3 weeks (range 3-118 weeks) after the formation of the anastomosis. The intervals between the sessions were highly variable (range 1-12 weeks) according to the center’s availability and patients’ needs and compliance.

All patients underwent fluoroscopically controlled Savary-Gilliard mechanical dilation. Prior studies have shown little difference in outcomes when comparing balloon dilators (exerting only radial force) to Savary-Gilliard dilators (exerting both radial and axial forces) [10].

Technically, all the procedures were successful. Based on the change in dysphagia score, clinical improvement (decrease of at least 1 point in the dysphagia score) was reported by the majority of the patients after each procedure. Clinical improvement after the first session was seen in 91% (32/35).

Clinical success was achieved within 1 month in 20 patients, with an average of 2.8 dilation procedures per patient (Table 3). Another 4 patients achieved clinical success within a period of more than 1 month, with an average of 3.5 procedures per patient. The overall clinical success rate was 69% (24 patients).

Dilation requires a commitment to compliance by both the patient and the endoscopist, as evidenced by the large number of dilation sessions in our cohort (5.2 per patient) over an extended period of time (3-118 weeks) to achieve initial patency. Furthermore, while the majority of patients achieved initial patency and symptomatic relief, many had stenosis recurrence (up to 43%). This high recurrence rate is similar to other studies [11]. Moreover, there was a high rate of refractory strictures (29%) in our cohort, based on previously mentioned criteria. Recurrent and refractory anastomotic strictures may be the consequence of scar-induced luminal compromise or fibrosis without evidence of inflammation on endoscopy [12]. The high prevalence of recurrence and refractory strictures supports the idea that the likely underlying mechanism for these strictures is not easily remediated with mechanical and transient radial forces.

As stated before, cardiovascular risk factors and prior chemoradiation are associated with anastomotic stricture development after esophagectomy. Shorter time of dysphagia onset after surgery, presence of anastomotic leak, type of transthoracic approach, intraoperative hemorrhage, poor vascularization of the gastric tube, and type of anastomosis (staples worse than hand-sewn) are factors associated with stricture recurrence [3].

In our study, among the potential risk factors for refractory strictures that could be examined, only 2 remained significant on multivariate analysis (Table 4). Six of 8 proximal (cervical) anastomoses (distance from teeth less than 20 cm, McKeown operation) were refractory (OR 2.74, 95%CI 0.89-3.39; P=0.041). In other words, a statistically significant correlation was found between the surgical technique used for esophagectomy (Ivor-Lewis or McKeown) and the development of refractory anastomotic stricture. The McKeown esophagectomy is similar to the Ivor-Lewis esophagectomy, except that the anastomosis is created in the neck through a separate cervicotomy, rather than via intrathoracic anastomosis [13]. Patients who underwent a McKeown esophagectomy were more prone to recurrences after dilation than were those who had an Ivor-Lewis esophagectomy.

This difference in recurrence rate might be partly explained by the findings of others [13], who reported that anastomotic leak and stricture have been shown to occur with greater frequency in patients who underwent McKeown esophagectomy, rather than the Ivor-Lewis approach.

Another possible explanation for the higher recurrence rate seen in patients with McKeown esophagectomy might be related to the difference in the location where the anastomosis is created during surgery. The gastric tube is pulled up higher in the cervical esophagus to form the anastomosis during the McKeown surgery compared with the Ivor-Lewis surgery [13]. This maneuver might have contributed to poorer vascularization of the gastric tube at the anastomotic site, known to be a risk factor for developing postoperative anastomotic strictures [3].

A common endoscopic anastomotic finding in these patients is the presence of suture and/or staples protruding into the lumen. The presence of a foreign body may interfere with the healing process [5]. In our series, all the patients with refractory anastomotic strictures were found to have foreign bodies. The presence of anastomotic foreign bodies increased the risk for refractory stricture by 3.74 (95%CI 1.88-4.38; P=0.044). While removal of staples and sutures might be thought beneficial to accelerate time to initial patency and result in a longer dysphagia-free interval, no attempts were made to remove the foreign bodies. Larger studies will be necessary to validate the impact of this observation and potential endoscopic intervention.

The other tested parameters were not found to be significant predictors associated with refractory strictures (Table 4), or could not be reliably examined because of the small numbers of cases. One patient was diagnosed with anastomotic leak and empyema. The empyema was drained and the fistula was closed by endoscopic over-the-scope clip (Ovesco Endoscopy GmbH, Tübingen, Germany). Later on, the patient developed a stiff fibrotic stricture that required more than 10 sessions (refractory). A partially-covered esophageal stent (Wilson-Cook Medical Inc., Winston-Salem, NC, USA) was inserted across the stricture. One month later, a massive tissue overgrowth was noticed on both proximal and distal flanges, so another fully-covered stent (Wallflex, Boston Scientific, Natick, MA, USA), was inserted coaxially into the first stent in order to ablate the tissue ingrowth and facilitate the extraction of the stents (Fig. 2). One week later, both stents were removed successfully. Unfortunately, the stenosis recurred and the patient needed to undergo further endoscopic dilation sessions.

Figure 2 (A) Fluoroscopy showing over-the scope-clip and fullycovered stent inside partially-covered stent. (B) The 2 stents after removal. Note the tissue overgrowth and ingrowth on the flanges of the partially-covered stent

Delayed gastric emptying is one of the major complications, occurring in 15-39% patients after esophagectomy [14]. It is widely believed that bilateral vagotomy and increased pyloric resistance are the major culprits. Patients suffering from delayed gastric emptying mainly complain of nausea, vomiting, anorexia, early satiety, bloating and abdominal pain, but without any evidence of mechanical obstruction. However, in some cases delayed gastric emptying symptoms might be interpreted as obstructive symptoms related to anastomotic stricture (especially in cases with distal anastomosis). The amount of food residue is closely related to delayed gastric emptying in esophagectomized patients [15]. In our study, and in spite of appropriate preparation, gastric food residue was found in 12/35 (34%) of patients during the first endoscopic dilation session. Gastric food residue can substantially interfere with the quality of the endoscopic procedures and also increases the risk of aspiration. It remains controversial whether the resection type affects the postoperative gastric emptying [16]. Although the food residue was observed more often in Ivor-Lewis anastomosis than after McKeown anastomosis, the difference was insignificant in the present study.

There were no major complications in this study (Table 3). Apart from resolving chest pain, mild aspiration and self-limited bleeding, our low complication rate was comparable to previous studies [9]. It is our institutional practice to delay endoscopic procedures until at least 2-3 weeks after the operation. All strictures in this series were dilated after at least 3 weeks (Table 2). This strategy might be one of the reasons for the low complication rate. All endoscopic sessions were performed with the patient in the left lateral decubitus position with reverse Trendelenburg tilting. While not yet proved, the tilted position can potentially reduce the risk of aspiration during the endoscopy.

The principal limitation of this study is its retrospective and nonrandomized design, which could have introduced some bias and decreased the study’s statistical power. Besides the relatively modest number of patients, our data are based on an expert provider at a single tertiary care center, which may preclude generalizability to community practice. However, anastomotic stricture patients often have multiple comorbidities and are typically managed at large referral centers.

To summarize, fluoroscopically controlled Savary-Gilliard mechanical dilation is a well-standardized and technically easy modality for the treatment of benign anastomotic stricture after esophagectomy. The procedure is associated with an acceptably good clinical success rate and a low complication rate. However, the recurrence rate is rather high, with McKeown esophagectomy and the presence of anastomotic foreign bodies being associated with refractory strictures (Fig. 3).

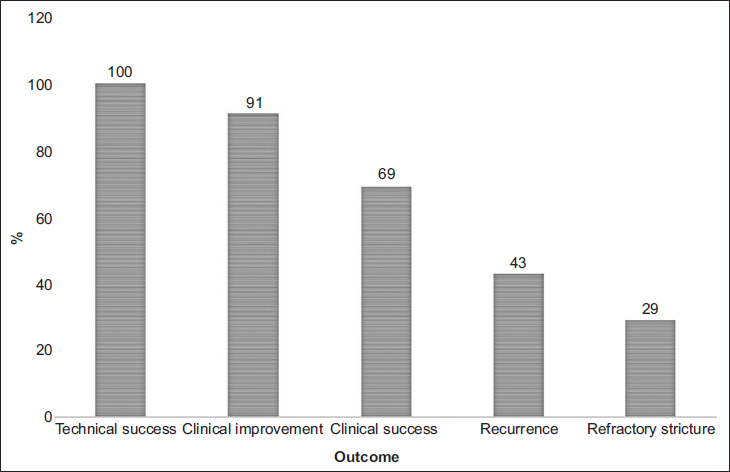

Figure 3 Chart showing the outcome of endoscopic treatment for benign esophageal anastomotic strictures

In conclusion, this study demonstrated the following: 1) endoscopic dilation of anastomotic strictures after esophagectomy has excellent technical success and a low complication rate; 2) though the clinical success rate is good, anastomotic strictures require frequent dilation sessions and carry a high recurrence rate; and 3) many anastomotic strictures are refractory to endoscopic dilation.
