Endoscopic ultrasound-guided gallbladder drainage: a technical review

Echoendoscope and accessories

As with all complex EUS-guided interventional procedures, EUS-GBD is usually done under monitored anesthesia, with or without endotracheal intubation. We have been performing EUS-GBD under conscious sedation with adequate analgesia. All patients should receive both pre- and postprocedural antibiotics. A conventional curved linear array oblique-viewing therapeutic echoendoscope is usually used for performing EUS-GBD. A forward viewing echoendoscope can also be used for EUS-GBD, with the added advantage of inserting force being applied directly with the scope towards the target, rather than the tangential dilating force applied using the linear echoendoscope [24]. However, the absence of an elevator is a significant limitation of this scope, and we recommend using a curved linear array oblique-viewing therapeutic echoendoscope for EUS-GBD. The procedure is performed under combined EUS and fluoroscopic guidance. The accessories required are a 19-G EUS fine-needle aspiration (FNA) needle, a 0.025/0.035-inch guidewire, a tract-dilating accessory (electrocautery dilating device: cystotome, needle knife or electrocautery-enhanced stent delivery system, or a non-cautery dilating device such as tapered cannulas, stepped axial dilators or dilating balloon) and appropriate stents [2,6,17,20,21,25-27].

Studies have reported using various endoprostheses for EUS-GBD, such as plastic pigtail stents, nasobiliary drain, fully covered metallic stents (FCSEMS) and LAMS. The pooled technical as well as clinical success rates for plastic stents, FCSEMS and LAMS have been reported to be comparable (pooled technical success rates for plastic stents, self-expanding metallic stent (SEMS), and LAMS: 100%, 98.6%, and 91.5 %, respectively; pooled clinical success rates for plastic stents, SEMS, and LAMS: 100%, 95.5%, and 90.1%, respectively) (Table 1) [28]. However, the 100% success rates with plastic stents are an overestimation, as these data come mainly from case reports with a short-term follow up. Furthermore, plastic stents are associated with a high risk of bile leaks. The potential advantages of SEMS over plastic stents are their larger diameter and the immediate sealing of the transmural fistulous tract after stent expansion, thus avoiding bile leak. However, FCSEMS are long, non-apposing and associated with a high risk of stent migration. Therefore, neither plastic stents nor FCSEMS are usually preferred for transluminal GBD. To overcome the limitation of stent migration associated with FCSEMS, partially covered SEMS (PCSEMS), with uncovered flared ends for preventing stent migration by tissue ingrowth, have also been used. However, the uncovered ends of PCSEMS can potentially cause mucosal injury, bleeding and stent embedding [28,29]. LAMS (AXIOS – Boston Scientific, Mattick, MA, USA; NAGI – Taewoong, Gimpo, Korea; and SPAXUS – Taewoong, Gimpo, Korea) permit the creation of a closely apposing anastomosis and are therefore the stents of choice for EUS-GBD. LAMS are available in diameters of 6, 8, 10, 12, 14, 15, 16 or 20 mm, with the usual length being 10 mm and smaller caliber LAMS (10 mm or 8 mm if available) being preferred for GBD. However, larger LAMS (15 mm) may be preferred if peroral cholecystoscopic interventions are planned, where the endoscope is to be inserted into the gallbladder through the LAMS [30]. The NAGI stent has a lower apposing force compared to other LAMS, and most of the studies on EUS-GBD have used the AXIOS stent. However, Manta et al have reported that the use of a NAGI stent for EUS-GBD is safe and effective, with technical and clinical success rates comparable to the pooled success rates for AXIOS [31]. The development of single-step EUS-guided LAMS delivery systems (Hot AXIOS, Hot SPAXUS and Hot NAGI stents) has made EUS-guided drainage procedures simpler, and using a free-hand insertion technique the procedure can be completed quickly without the use of any other accessory. However, EUS-GBD is a complex procedure, as the gallbladder is a mobile structure and there is therefore a risk of it moving away from the stomach or duodenum during free-hand insertion of LAMS, leading to perforation. Therefore, the one-step, free-hand technique should be used only by experts, while beginners should use the over-the-wire technique for stent insertion. A hybrid free-hand LAMS insertion technique has also been described that combines the speed of the free-hand technique with the safety of the over-the-wire technique. In this technique, the guidewire is preloaded into the cautery-enabled stent delivery catheter and is coiled into the gallbladder after free-hand entry [32]. The stent is deployed only after the guidewire has been securely coiled into the gallbladder. The proponents of the free-hand technique argue that placement of the guidewire can potentially push the mobile gallbladder wall away from the gastric or duodenal wall, and that this can increase the risk of maldeployment of the LAMS, as well as bile leakage.

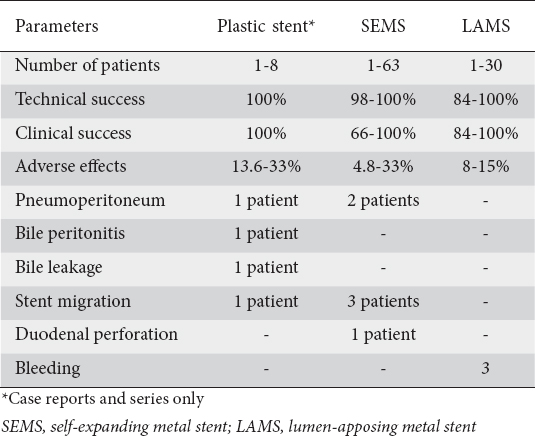

Table 1 Comparison of various types of stents for endoscopic ultrasound-guided gallbladder drainage as reported in a systematic review by Anderloni et al [20]

Pre-drainage evaluation

The cross-sectional imaging, including computed tomography or magnetic resonance imaging, should be carefully evaluated for detailed gallbladder anatomy, its relations with the stomach and duodenum, as well as anatomical variations of the gallbladder. A preprocedural interdisciplinary consultation involving the endoscopist, interventional radiologist and surgeon should discuss a detailed management plan, as well as a rescue plan in case of failure or adverse events. Moreover, before embarking upon drainage, the gallbladder should be carefully evaluated on EUS from both antrum and duodenum, identifying various parts of the gallbladder as well as the degree of distension. The gallbladder should be carefully evaluated for any abnormal wall thickening or mass. The gastric or duodenal mucosa should also be carefully evaluated for any ulceration or malignant infiltration. The infiltrated mucosa is hypervascular, which increases the risk of periprocedural bleeding [26]. The site of intended puncture should be evaluated with Doppler to define the surrounding vascular anatomy and detect any abnormal vessels.

Site of puncture: stomach or duodenum?

As mentioned above, the gallbladder neck is usually accessed from the duodenum and gallbladder body, or occasionally the fundus is accessed through the stomach. Theoretically, both transduodenal and transgastric GBD have potential advantages. The duodenum is a less mobile structure, as well as being closer to the gallbladder compared to the stomach; therefore, there is theoretically a lower risk of stent migration. Moreover, transduodenal GBD is associated with a smaller risk of food reflux. In contrast, transgastric puncture of the gallbladder is easy, because of the larger diameter of the gallbladder body. Moreover, the larger diameter of the gallbladder body allows easier deployment of the inner flange of the LAMS. Moreover, in case of a failed procedure, rescue surgery is much easier in patients with transgastric attempted drainage compared to transduodenal drainage [5,6,17-20,24-27,32-40]. Limited studies comparing transgastric with transduodenal EUS-GBD have reported no significant differences in technical or clinical success rates or in the frequency of complications [30,41]. Patients in whom EUS-GBD has been performed as a bridge to cholecystectomy have an important issue of technical difficulty in subsequent elective cholecystectomy. Some surgeons consider closing the transduodenal tract to be more difficult in comparison to the transgastric tract, whereas other surgeons consider the presence of a fibrous band between stomach and gallbladder following transgastric drainage a significant hindrance in subsequent elective cholecystectomy [32]. Hence, the available evidence suggests that both transgastric and transduodenal GBD are equally safe and effective; therefore, the route of drainage should be individualized depending upon anatomical and technical considerations. Transgastric drainage is preferred in patients where there is involvement of duodenum with malignancy, or with an indwelling duodenal SEMS. In the absence of these factors, the site of GBD should be individualized depending upon the site of closest apposition of the gallbladder to the gastrointestinal lumen, the absence of blood vessels around the puncture site, and stable positioning of the echoendoscope.

Procedural details

The first step in EUS-GBD is stabilizing the position of the echoendoscope. This is usually accomplished in a long scope position in most patients [18]. After the scope has been stabilized, the gallbladder is punctured using a 19-G EUS FNA needle (Fig. 1). The stylet is then removed and 2-3 mL of bile is aspirated to confirm the position of the needle tip. This is followed by injection of 2-3 mL of contrast medium to delineate the gallbladder. Next, a 0.025- or 0.035-inch guidewire is passed through the needle and coiled into the gallbladder, followed by dilatation of the transmural tract using either a bougie (6 Fr or 7 Fr) or tapered tip balloon dilator (4 mm). If there is resistance to dilation using non-cautery methods, a needle knife or a 6-Fr cystotome can be used. If a cautery-based dilating accessory is used, a coaxial dilating system like the cystotome should be preferred, because of the lower risk of perforation. Following needle puncture and dilatation, the stent is placed under EUS and fluoroscopic guidance. The step where the tract dilating device is inserted, followed by the stent delivery system, is a critical step in EUS-GBD. Sometimes, the dilating device may not penetrate the gallbladder wall but slide along its surface, despite the guidewire being coiled within its lumen. This usually happens when the direction of the dilating device is tangential to the gallbladder wall. This change in direction of the guidewire is usually due to its excessive coiling in the gallbladder [40].

Figure 1 Stepwise EUS-guided drainage of the gallbladder. (A) Detailed evaluation of pre-procedure CT: gallbladder carcinoma located at neck with extra-hepatic biliary obstruction. A 10-Fr plastic biliary stent was placed. The jaundice was relieved but the patient presented with acute cholecystitis. CT shows infiltrated neck area of gallbladder (open arrows); therefore, the gallbladder body was chosen as the site of puncture. Plastic stent in CBD is also noted (bold arrow). (B) EUS-guided puncture of the gallbladder body through the antrum of the stomach. No blood vessels seen on color Doppler in the needle tract. (C) EUS cholecystogram obtained after injection of contrast into the gallbladder using a 19-G needle. Note stable long scope position. (D) The guidewire coiled in the gallbladder, maintaining stable scope position. (E) The transmural tract dilated using a 4-mm biliary balloon. The scope tends to fall back because of the resistance encountered while pushing the balloon into the gallbladder. (F) LAMS (Nagi stent; 12-mm diameter) deployed (arrows) connecting the gallbladder body with the gastric antrum. Note the waist of the stent (arrows) at the site of anastomosis. The tract was not dilated. (G) Abdominal X-ray 72 h after procedure shows fully expanded transmural stent

EUS, endoscopic ultrasound; CBD, common bile duct; LAMS, lumen-apposing metal stent; CT, computed tomography

LAMS can also be deployed using a single-step EUS-guided LAMS delivery system. Using a free-hand technique, the gallbladder is punctured using a cautery-enhanced device, and the LAMS delivery catheter is subsequently passed inside the gallbladder lumen. The proximal flange of the stent is then deployed under EUS guidance, followed by slight retraction of the delivery system to create an apposition, and then deployment of the distal flange under endoscopic guidance, with or without fluoroscopic guidance. After the LAMS has been deployed, a double pigtail plastic stent may be placed within the LAMS for stent stabilization and prevention of tissue overgrowth [25]. We do not routinely place a plastic stent inside the LAMS; a plastic stent is placed only if the LAMS is intended to remain in situ for a prolonged period. The inner flange of the LAMS can theoretically cause mucosal bleeding by repeated abrasions of gallbladder mucosa, and a plastic stent deployed inside the LAMS can prevent this abrasion [26]. A 7-Fr, 3- or 4-cm double pigtail plastic stent can be placed if a 10-mm LAMS/FCSEMS is used, and a 10-Fr stent can be used for larger diameter LAMS/FCSEMS. The LAMS may also be dilated after deployment to facilitate rapid GBD, but there is a lack of studies evaluating the efficacy and safety of stent dilatation post-deployment.

In patients with surgically altered anatomy, EUS-GBD may be performed between stomach and gallbladder (cholecystogastrostomy) or jejunum and gallbladder (cholecystojejunostomy) [26]. The choice of lumen for internal GBD is based on operator preference, patient-specific anatomy, and the proximity of gallbladder to the lumen; therefore, careful evaluation of cross-sectional imaging is of paramount importance for deciding on and appropriate puncture site. EUS-GBD is also an option for drainage in patients who have a malignant distal biliary obstruction with a patent cystic duct and surgically altered anatomy, where ERCP is not possible and EUS-guided biliary drainage is either not feasible or has failed [42].

Complications of EUS-GBD

EUS-GBD is a relatively safe procedure, with minimal complications in expert hands. However, studies have reported a significant number of procedural complications, with pooled analyses reporting complication rates varying between 8-17% [5,17,18,20,30,33,41]. These include bile leakage, stent migration into gallbladder or peritoneum, bleeding, gastroduodenal perforation, pneumoperitoneum, and recurrent acute cholecystitis due to stent occlusion [18]. Pneumoperitoneum is one of the most common complications and it has been speculated that it may be due to sheer dilation of the gallbladder [19]. Therefore, minimal dilating force is to be applied during dilatation of the transmural tract. The risk of pneumoperitoneum can also be reduced by using carbon dioxide for endoscopic insufflation.

Stent displacement or maldeployment is the most dreaded complication of EUS-GBD. The stent may either get completely deployed in the stomach or duodenum, or may migrate outward into the peritoneum. The outward migration of the stent into the peritoneum usually occurs in situations where the stent is being deployed in the gallbladder neck and the echoendoscope is in an unstable position. Because of limited space in the gallbladder neck area, the distal flange of the stent is clamped and relatively fixed. Coupled with an unstable echoendoscope position, any attempt to release the stent by pulling the sheath of the delivery system leads to paradoxical forward movement of the echoendoscope. This optical illusion makes the endoscopist think that the delivery sheath has been pulled back sufficiently for intra-scope channel release of the stent. This leads to maldeployment of the stent into the peritoneal cavity [40]. The most important trick for preventing and managing stent maldeployment is to ensure that the guidewire remains in place until proper stent deployment has been confirmed. In cases of stent maldeployment, the presence of the guidewire in place allows endoscopic rescue maneuvers to be performed safely and effectively [26]. The rescue maneuver when one end of the LAMS has been properly deployed on either the luminal or gallbladder side and the other end is maldeployed outside, is placement of an additional LAMS or longer FCSEMS through the previously maldeployed stent. The loss of the guidewire along with a maldeployed stent is a tricky situation, and usually requires percutaneous GBD, with or without peritoneal drainage, along with closure of the luminal perforation with clips or surgical rescue. The gastric perforation is easier to manage with gastric decompression using Ryle’s tube and keeping the patient on nil orally for a few days. However, duodenal perforation usually requires surgical closure or endoscopic closure. Maldeployment of the stent into the peritoneum may require salvage surgery.

What is the optimal duration of transmural stenting?

In patients unfit for surgery and have limited life expectancy, LAMS can be left in situ and can provide adequate drainage for months, thereby preventing recurrence of acute cholecystitis [6,32]. Patients with no comorbidities should undergo elective cholecystectomy. Preliminary data suggest that the presence of a LAMS does not cause significant interference in cholecystectomy [43]. A comparative study that evaluated the results of elective cholecystectomy after EUS-GBD or percutaneous GBD reported no difference between the 2 groups in the rate of conversion from laparoscopic to open cholecystectomy or in complications [43]. In patients unfit for surgery but have normal life expectancy, LAMS can be left for an indefinite period or replaced with a double pigtail plastic stent 4-6 weeks later, when the fistula tract has matured. The presence of a LAMS in situ for an indefinite period may have multiple harmful consequences, including the risk of recurrent cholecystitis due to stent blockage with food residue, gallbladder mucosal abrasion by stent flanges with a consequent risk of bleed, and the consequences of gastric reflux into the gallbladder [32,44]. Replacing the metal stent with a plastic stent 4-6 weeks later has been shown to be a reasonable strategy for reducing the risk of recurrent cholecystitis, as well as obviating the potential complications mentioned above [45].

An alternative to permanent transmural stenting would be to treat the underlying gallbladder disease and thereby obviate the need for long-term GBD. Use of a large-diameter (15 mm) LAMS for EUS-GBD allows repeated endoscopic access to the gallbladder for per-oral cholecystoscopy, stone removal, lithotripsy and other advanced interventions [46]. Moreover, after complete clearance of the gallbladder, the LAMS can be removed, thereby obviating the need for long-term stenting. The long-term consequences of this approach need to be studied prospectively, as there is a risk of recurrence of gallbladder stones. A previous study with a 10-year follow up of 439 patients successfully treated with percutaneous cholecysto-lithotomy reported recurrence of gallbladder stones in 41.2% of patients [47]. However, only 2% of patients were symptomatic and 7.5% of patients required cholecystectomy. Therefore, the results of this study suggest that cholecystectomy can be avoided in the majority of patients, despite the recurrence of stones. The risk of malignancy in the gallbladder is another issue that needs to be prospectively studied in patients who have been successfully treated with EUS-GBD and/or per oral cholecystoscopy.

Concluding remarks

EUS-GBD has emerged as an accepted minimally invasive non-surgical therapeutic option in centers with expertise for the management of high-risk patients with acute cholecystitis. The procedure involves visualization of the gallbladder on EUS, followed by puncture with a 19-G needle, coiling of a guidewire within the gallbladder, transmural tract dilatation and deployment of a stent (Table 2). The development of single-step EUS-guided LAMS delivery systems has made the procedure simpler, and using a free-hand insertion technique the procedure can be completed quickly as well as safely without using any other accessory. However, EUS-GBD can be associated with potentially serious complications, and therefore should be performed by expert interventional endosonologists at centers with surgical and radiological backup. EUS-GBD is a relatively new procedure still in its infancy, and continued improvement in EUS accessories and dedicated stents will make this procedure safer, while expanding its indications. There are many unanswered questions on various aspects of EUS-GBD, including the best type of stent, the preferred site of gallbladder puncture, and the long-term consequences and management of both stent and gallbladder after resolution of symptoms. Larger, prospective, multicenter studies are required to answer these questions. Based upon current evidence, it appears that EUS-guided GBD is slowly inching towards prime time!

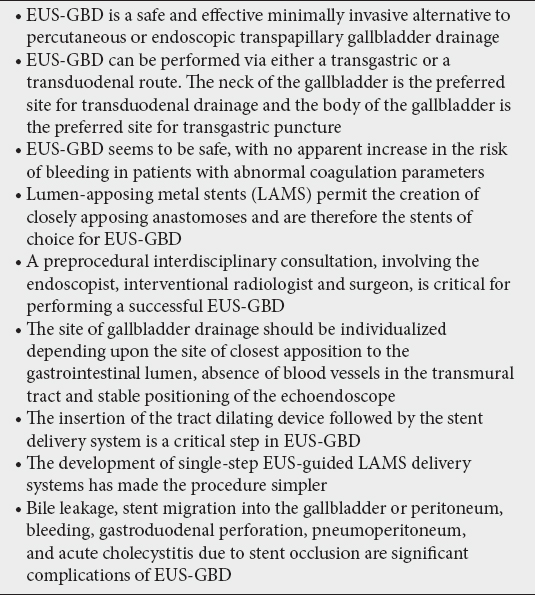

Table 2 Summary of key concepts of endoscopic ultrasound-guided gallbladder drainage (EUS-GBD)
