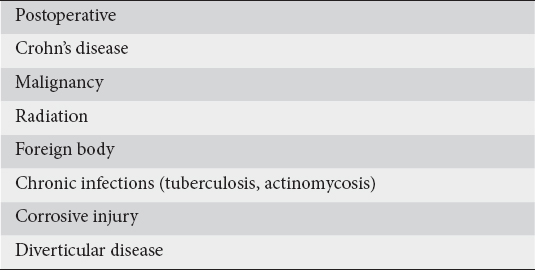

Gastrointestinal fistula endoscopic closure techniques

Requirement of endoscopy units

The endoscopist should have fluoroscopy equipment in the room. Nursing assistants adept at dealing with complex therapeutic procedures such as endoscopic retrograde cholangiopancreatography with metal stent placement should, ideally, be present at the time of the procedure.

Diagnostic endoscopic workup

Once informed consent has been obtained, a diagnostic endoscopy is first carried out. Once the fistulous opening is identified endoscopically, water-soluble radiopaque contrast is injected to confirm the defect and to evaluate the length and diameter of the fistula tract. This would also enable the endoscopist to delineate any other sites of leakage. The endoscopist should then clean the site under direct endoscopist visualization. It is imperative to examine the surrounding tissue for the presence or absence of inflammation or necrosis. This part is critical, as the surrounding tissue may determine the appropriate technique for the closure. Then, the fistula tract should be cautiously explored by passing the endoscope under direct visualization, provided that the luminal defect is wide enough. The leak cavity should be debrided under direct vision using aspiration, saline irrigation, and baskets or snares. The use of a fistula brush has been described in perianal fistulas to clean the fistula and remove the epithelium [13,14]. The brush consists of a semi-flexible wire with a brush section in the middle. However, minimal insufflation of CO₂ should be used to avoid rupture, especially in newly formed thin walled cavities.

The use of hydrogen peroxide has been described to localize anal fistula [15,16]. Methylene blue can also be used during endoscopy to aid in the localization of fistula, especially gastro-cutaneous fistulas [17]. If an external drain is place, it can be submerged under water. CO₂ insufflated through the endoscope will produce bubbles. Thereafter, methylene blue and water-soluble radiopaque contrast can be injected into the drain for localization of the leakage site. This enables the endoscopist to evaluate the leakage site accurately.

Available therapies and post-procedure follow up

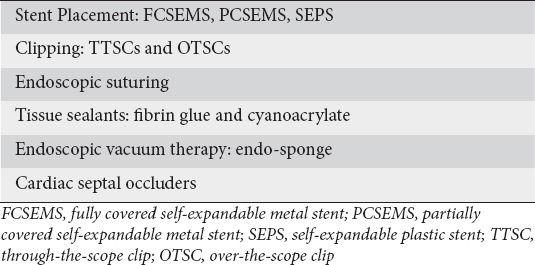

Subsequently, the endoscopist should decide which next step will provide the maximum benefit in each individual scenario. Tables 3 and 4 provide details of the endoscopic modalities along with their advantages and limitations. Once the fistula site is closed, the adequacy of the closure should be evaluated during the procedure, immediately after the closure and during follow up. This is achieved by water-soluble contrast radiography or computed tomography, or by clinically measuring the output from the fistula site (if feasible).

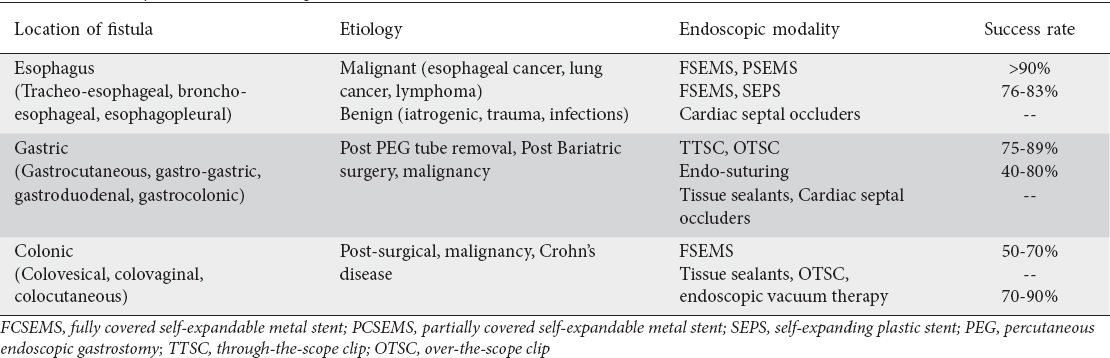

Table 3 A summary of success rates for gastrointestinal fistulas

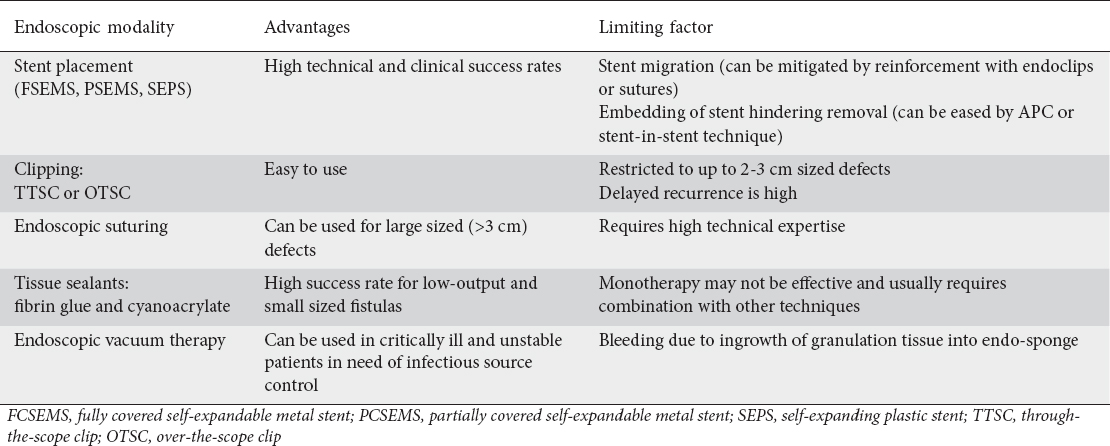

Table 4 Comparison of endoscopic modalities in terms of advantages and disadvantages

Stents

Stents are cylindrical devices used to maintain or restore luminal patency in the gastrointestinal tract [18]. The placement of a luminal stent provides a transient barrier to the region, conceals the area of leakage and redirects gastrointestinal secretions away from the fistula tract. Luminal stents have been reported to be beneficial in the management of leakages or perforations involving the esophagus [19-21], stomach [12,22,23], and colon [24,25]. Luminal stents have been shown to result in earlier enteral feeding, a shorter hospital stay and lower in-hospital mortality as compared to conservative treatment [26].

Once the leakage site is confirmed endoscopically and the decision is made to place a stent, the endoscopist should select the stent. Stent selection is based on a number of features: (1) the type of stent to be deployed, plastic or metal; (2) fully covered, partially covered or uncovered; and (3) location of the fistula in the gastrointestinal tract. Currently available stents are made of either metal or plastic. The most common used metal alloy is nitinol, a mixture of nickel and titanium. Plastic stents are made of a polyester skeleton covered by a silicone membrane. More importantly, it is imperative to consider the covering of the stent before deployment. Uncovered stents become embedded within the wall, which prevents migration and makes stent extraction difficult, if not impossible. Addition of a silicone or polyurethane coat to the stent mesh, as in fully covered SEMS (FCSEMS), prevents tissue ingrowth and these stents are easily extractable. Partially covered SEMS (PCSEMS) have a small segment at the end that is not covered. Self-expandable plastic stents are also fully covered stents but have a higher stent migration rate. The major factors that support stent placement are the high rates of excellent technical and clinical success [27]. Gubler et al reported successful closure of esophageal fistulas using SEMS with a success rate of 79% [28]. Overall, SEMS have a clinical success rate of 76-83% in patients with benign upper gastrointestinal causes [19-21,24,28-31]. Table 1 summarizes the different stents available for endoscopic fistula closure.

Once the fistula is identified, a guidewire is advanced well beyond the leakage site. There are then 2 methods of deploying the stent: (1) non-through-the-scope placement, or side-by-side technique placement; and (2) through-the-scope (TTS) placement. The fluoroscopically placed SEMS technique involves leaving the guidewire in place and withdrawing the endoscope. The stent is then loaded onto the guidewire and advanced to the lesion under fluoroscopy. The endoscope is then advanced along the stent delivery system to allow visualization. However, the stent delivery system often tends to loop (especially if deploying the stent in the colon) as it has poor mechanical support. Therefore, to assist the passage of the stent, the endoscopist can: (a) utilize a snare over the delivery system, which then enables advancing the endoscope and snare over the delivery system; (b) use a rat-tooth forceps to advance the stent delivery system forward; or (c) use extension of the delivery. In contrast, the TTS technique involves an endoscope with a working therapeutic channel. After the guidewire is in position, the stent in advanced over the guidewire under direct endoscopic guidance. The stent is then deployed from the distal end. Once the stent is deployed, its ends should be carefully inspected using fluoroscopy. If there is a suspicion of either end not expanding completely, then contrast should be injected to assess the position. The stent could be clipped or sutured to secure its placement [32]. Honneger et al described the use of over-the-scope clips in fixation of stents [33]. If needed, a plastic stent can be placed inside the metal stent. Once the stent has been successfully deployed, it is left in place for approximately 6 weeks to allow for healing of mucosa and fistula closure [27,34]. If the interval is shorter, then the fistula tract will not close completely. Stent removal is performed by an endoscopic grasper pulling at one edge of the stent. The stents are then removed between 4 and 8 weeks, as removal could be difficult beyond 8 weeks. If the stent is embedded, then argon plasma coagulation may be used to facilitate stent removal. Another technique that has been described for the removal of an imbedded stent is the stent-in-stent technique. This involves the placement of a fully covered metal stent inside the embedded, partially covered metal stent. The embedded mucosal tissue between the 2 stents undergoes necrosis. Approximately 14 days later, another endoscopy is performed to remove both stents [35-37].

The most common complications with gastrointestinal stent placement are intraluminal bleeding and/or perforation (reported in up to 3% of cases) [27]. Another common complication is stent migration, which occurs in 26-30% of FCSEMS and approximately 10% of PCSEMS [21,27]. However, endoscopic interventions such as clips have decreased the rate of migration in PCSEMS [32,33,38]. These patients would need endoscopic intervention and/or surgical therapy to retrieve the stent. Therefore, FCSEMS are often clipped or sutured to maintain their placement. In contrast to covered stents, uncovered stents are overgrown by epithelium in up to 12% of cases [27,34]. Sometimes, stents can get obstructed by food. Endoscopic reinterventions are often needed, in 26% of patients with FCSEMS and 13% with PCSEMS [34]. If leaks persist, re-stenting could be considered.

Endoscopic stenting has been the preferred treatment for several years. However, with the advent of newer therapies, it can be expected that specific indications for stent placement in gastrointestinal fistulas will be determined.

Endoscopic clips

Endoscopic clipping has been tried for several years for closure of gastrointestinal fistulas. Multiple TTS clips (TTSCs) are often used to close small mucosal defects [39,40]. The advantages include ease of use and the ability to reopen the clip and rotate the clip if needed. However, the small diameter and low compression force do not allow full thickness closure of gastrointestinal leaks [41]. TTSCs may not be able to approximate the surrounding tissue if there is inflammation or necrotic tissue. TTSCs may also spontaneously dislodge, which limits their duration of use.

The over-the-scope clip (OTSC) (Fig. 1) changed the basic principles of clip placement and overcomes the limitations of TTSCs. It is made of nitinol and has a bear-claw shape with a plastic cap. There are 3 different cap diameters (11, 12 and 14 mm) for Ovesco clips, with different cap heights (3 mm and 6 mm). The cap height determines the amount of tissue that can be pulled into the cap. A cap height of 6 mm is used for the majority of closures. The teeth of the clips may also have different shapes: atraumatic, blunt, sharp and special geometry teeth. The padlock-G clip is another available system, consisting of a preloaded hexagonal nitinol clip with a plastic cap [42].

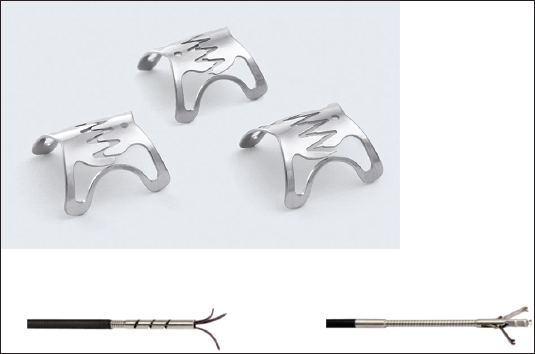

Figure 1 Over-the-scope clips: top – multiple types of clip; bottom left – anchor; bottom right – grasper

It is also good practice to check the accessibility of the site with a standard device cap mounted on the endoscope. This can avoid unnecessary time and costs for mounted OTSC where the clips cannot be placed. The assembly and deployment are similar to that of a variceal band ligation device. Once the OTSC is loaded onto the endoscope, tissue is pulled into the cap via suction or instruments introduced via the working channel. There are 2 instruments that can be used to grasp the tissue: the anchor and the twin grasper. The anchor has 3 hooks to pull the tissue into the cap. The twin grasper has 2 independently opening branches on each side to grasp the defects separately. It is imperative to have both edges within the cap properly deployed. The clip is then deployed by turning a hand-wheel attached to the endoscope. The OTSC may incise the mucosa if the surrounding tissue is weak or friable or necrotic. Therefore, a thorough endoscopic examination is recommended before the clip is deployed. The OTSC has been reported to close defects up to 2 cm in diameter in the stomach and 3 cm in the colon. Larger defects may require more than 1 OTSC or additional TTSCs to achieve closure [43]. It is also imperative to check if there is a cavity behind the fistula tract, as the OTSC would prohibit any debridement.

Multiple retrospective studies have shown promising results for OTSCs for closure of gastrointestinal fistulas, with an initial success rate of 75-89% [44-47]. Despite the high technical and clinical success, there are certain limitations. The long-term clinical efficacy of OTSCs for fistulas closure is still uncertain. Honneger et al reported a long-term fistula closure rate of approximately 29.8% [33]. Even though few complications have been reported, some have been severe. The introduction of an OTSC could injure the upper esophagus or the anal canal. A persistent leak would be the result of incorrect positioning of the OTSC. In these cases, a second OTSC can be used. However, the placement of a second OTSC can be challenging. The removal of an incorrectly placed OTSC is also demanding. This entails the use of a bipolar forceps introduced via the working channel. The clip is then grasped at the thinnest point. A short electric impulse then breaks the clips at the thinnest portion. The clip is then extracted using a protective plastic cap.

Suturing

Novel suturing techniques allow for full thickness closure of gastrointestinal luminal defects. Even though closure of fistulas has been demonstrated, it is a technically complex procedure. Therefore, only endoscopists trained in endoscopic suturing should perform these procedures, which limits their adoption. Suturing requires relatively healthy mucosa around the fistula defect to hold the sutures together [39]. Endoscopic suturing allows for closure of large defects compared to clips (more than 2 cm in size).

Currently, endoscopic suturing is performed using an OverStitch device (Apollo, Endosurgery, Austin, TX, USA) (Fig. 2), compatible with a double channel therapeutic endoscope. The device has a handle attached to the hub of the endoscope. The handle controls the metallic needle arm attached to the tip of the endoscope. The device places continuous or intermittent sutures without removal of the scope. The tissue is approximated by tissue-retracting device or forceps. Full thickness sutures are placed using a tissue helix catheter [48].

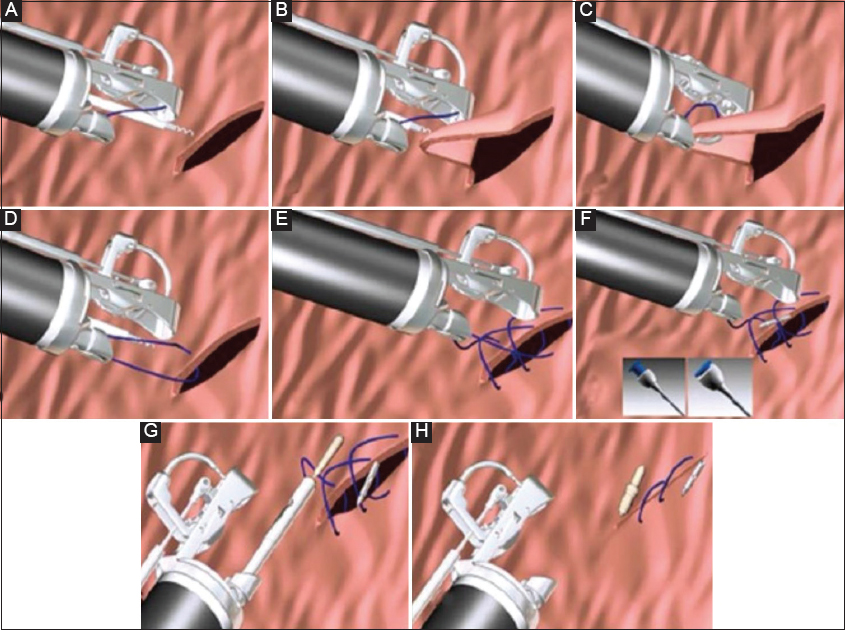

Figure 2 Steps involved in placing endoscopic sutures. (A) Grasp the tissue using the tissue helix; (B) retract the tissue into the needle path; (C) drive the needle through; (D) open the arm and release the tissue; (E) repeat the stitch as desired; (F) Press the button to release the needle; (G) tighten and cinch; (H) repeat as desired

Suturing is especially effective in the management of fistulas developing after bariatric surgery. 95% of the patients had complete closure in a large series that compared endoscopic suturing with endoscopic clipping for the management of gastro-gastric fistula after Roux-en-Y gastric bypass [49]. However, reopening was noticed in 65% [49]. There are case series describing successful closure using multiple techniques, including suturing [50]. However, the data should be viewed with caution given the limited information. In addition, suturing is a complicated process in different locations of the gastrointestinal tract. Therefore, suturing techniques need further modification to become a successful therapy for fistula closure.

Tissue sealants

Eleftheriadis et al first reported the use of sealant for gastrointestinal fistula closure [3]. Since then, multiple reports have been published describing the success of sealants. Fibrin glue and cyanoacrylate are the tissue adhesives used to seal gastrointestinal defects. Cyanoacrylate has stronger adhesion properties compared to fibrin glue, due to its ability to polymerize after contact with anions. Cyanoacrylate is not affected by gastric or pancreatic enzymes, allowing the successful closure of fistulas [51]. On the other hand, the use of fibrin is challenging, as it performs better in dry areas [52]. Fibrin-based sealant blocks the passage of gastrointestinal contents through the fistula and promotes tissue repair.

The most common sites of sealant application include endoscopically accessible areas, such as post-anastomotic leakages in the upper gastrointestinal tract and post-bariatric surgery leaks or fistulas. The application of the sealant involves de-epithelialization of tissue around the fistula, which leads to an inflammatory response when the fistula is sealed. This can be performed in 2 ways: (1) a standard biliary cytology brush can be used to abrade the edges; (2) Argon plasma coagulation at a low power setting can also be utilized. Subsequently, a double-lumen catheter is inserted into the endoscope to prevent components of the sealant reacting and bonding within the scope. The amount of adhesive needed depends on the size of the fistula. Often, multiple applications are required.

Multiple studies have evaluated the efficacy of sealants in the management of gastrointestinal fistulas. Lippert et al reported successful closure in 36.5% with fibrin alone, compared to 55.7% with additional endoscopic therapy [53]. Avalos-Gonzalez et al reported earlier fistula closure and decreased morbidity in the fibrin-treated group compared to controls [54]. A meta-analysis reviewing 14 studies that evaluated the efficacy of cyanoacrylate reported a success rate of 81% [55]. Despite the high success rate, high-output gastrointestinal fistulas are less likely to be successfully closed by sealant alone.

In addition to the above, vicryl mesh and soft tissue grafts (such as Surgisis) are also used for the closure of fistulas [56]. In a case series, complete closure of gastro-cutaneous fistulas was achieved in 80% of the cases using vicryl mesh [57]. For larger diameter fistulas, combination therapy could be utilized. Böhm et al have described promising results with a combination of vicryl and fibrin glue [58].

The anal fistula plug, or Surgisis (Fig. 3), is made of a fibrogenic matrix that prevents foreign body reactions. This was initially developed for the management of anorectal fistulas [59]. The fistula plug is deployed under fluoroscopic guidance. A guidewire is inserted into the external fistula opening and then advanced under fluoroscopic guidance until visualized endoscopically. The guidewire can then be attached to the fistula plug. The snare is then attached to the guidewire and passed through the fistula to the outside, carrying the narrower end of the plug into the tract. Multiple plugs might be needed to close the fistula. Toussaint et al reported healing of 4 of the enterocutaneous fistulas [56]. A larger study revealed a clinical success rate of 75% in gastro-cutaneous fistulas [57].

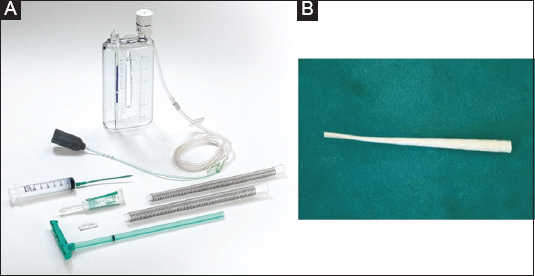

Figure 3 (A) Endo-sponge with the device; (B) Anal fistula plug

The role of tissue adhesives in the management of gastrointestinal tract fistulas is still evolving. Although these agents may not be great candidates as individual therapy, they could be used in combination with other therapies. Further prospective studies are needed to determine the efficacy and advantages of combining adhesive therapy with other endoscopic techniques.

Endoscopic vacuum therapy or endo-sponge

Endoscopic vacuum-assisted closure (EVAC) or endo-sponge (Fig. 4) is an emerging, minimally invasive technique. The EVAC delivers negative pressure to the site to collapse the cavity and create a seal [60]. The device consists of a sponge and tube attached to external vacuum suction. This leads to a gentle, continuous suction over the tissue that removes secretions and induces the formation of granulation tissue. The endo-sponge can be placed either within the cavity or within the lumen and completely covering the leak site.

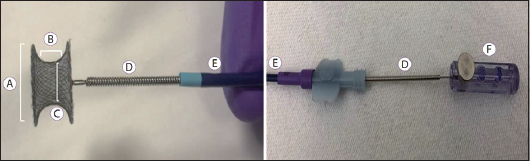

Figure 4 Cardiac septal occluder with assembly. (A) Disc diameter; (B) waist length; (C) Device size; (D) Delivery cable; (E) Sheath; (F) Plastic vise

Once the site is identified, the cavity is irrigated and debrided endoscopically. After the site has been identified, the endo-sponge is selected. Depending on the size of the perforation, the endoscope should evaluate the site of the leak (if the size is <1 cm) or evaluate the cavity (if the size is >1 cm). For upper gastrointestinal leaks, a nasogastric tube is placed through the nose and pulled out through the mouth to attach the endo-sponge. The endo-sponge is then secured to the tube using a strong permanent suture. An endoscopic grasper is then utilized to carry the endo-sponge via another suture at the other end and place the endo-sponge in the desired location. Thus, once the ideal location has been confirmed, negative pressure is applied. The endo-sponge needs to be changed frequently, usually between 3 and 5 days. Removal of the endo-sponge should be carried out under endoscopic vision once the leak site is completely sealed.

Weidenhagen et al described the use of EVAC in 2003 for the management of anastomotic leaks after rectal surgery [61]. A later systematic review of 17 colorectal studies showed an average healing rate of 85% after a median follow up of 47 days [62]. Over the last few years, EVAC therapy has been used in anastomotic leaks of the esophagus. Successful closure was also achieved in 7 of 8 patients with intrathoracic anastomotic leaks [63]. A review of 29 studies showed a healing rate of 67-100% with EVAC for esophageal leaks [64], the most common indication for EVAC therapy. EVAC therapy is also utilized to treat gastric leaks, especially after bariatric surgery [65].

There have been few reported adverse events for EVAC. The usual complaint is patient discomfort from nasogastric tube placement [65,66]. Other adverse events include sponge dislocation, minor bleeding due to sponge exchange, and anastomotic strictures [65,66]. If significant bleeding occurs during the treatment, EVAC should be discontinued and abdominal imaging should be pursued.

Cardiac septal occluders (CSO)

Cardiac septal occluders (Fig. 5) are self-expanding double-disc closure devices that promote tissue occlusion. There are 2 types of CSO available for the management of gastrointestinal fistulas: atrial septal defect closure device and ventricle septal defect closure device. CSOs are made of nitinol, with a similar structure to the enteral stent. They are deployed via a delivery system using a guidewire under direct endoscopic visualization. Another technique involves back-loading the CSO into a 7-10 Fr endoscopic biliary catheter. A biopsy forceps is then used to deploy the stent.

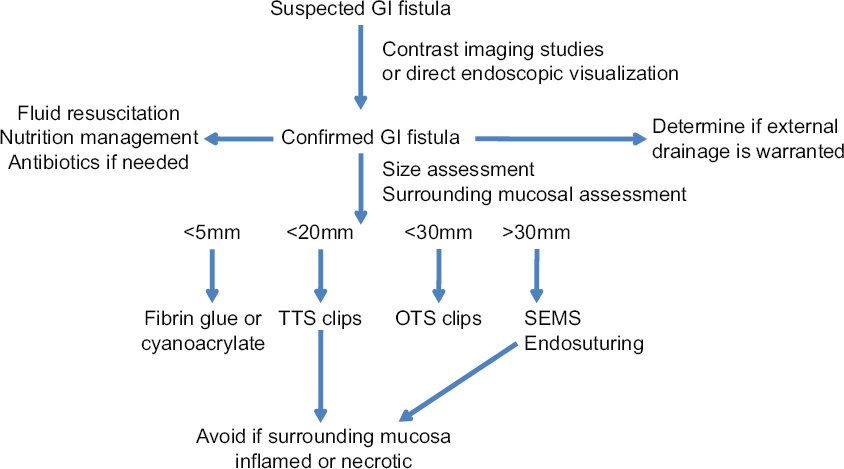

Figure 5 Flow chart for management of gastrointestinal fistulas

GI, gastrointestinal; TTS, through-the-scope; OTS, over-the-scope; SEMS, self-expandable metal stent

In a recent systematic review, technical success was achieved in all cases (n=22); 77.27% had successful closure with a mean follow up of 8 months [67]. However, the majority of cases have been case reports and it is therefore not possible to ascertain publication bias, complications or long-term efficacy. Prospective studies are imperative to clarify their role in the management of gastrointestinal fistulas.
