Zenker’s diverticulum (ZD) is a rare outpouching of the esophageal mucosa herniating posteriorly through Killian’s triangle. Treatments of ZD aim to dissect the cricopharyngeal muscle to remove the underlying dysfunctional condition. In the last decade, a septotomy performed utilizing a flexible endoscope has been reported as a safe and effective alternative to both open surgery and rigid endoscopic diverticulotomy. More recently, Li et al described a novel endoscopic technique to treat ZD, named “submucosal tunneling endoscopic septum division”, inspired by the peroral endoscopic myotomy (POEM) procedure developed for achalasia. Subsequently, the term Z-POEM was introduced and has become the most frequently used acronym to define the tunneling technique for ZD. This article describes the flexible therapeutic endoscopic strategies for treating ZD, including the novel third space approach, which seems to show promising potential in terms of clinical efficacy and safety.
Keywords Endoscopy, esophagus, Zenker’s diverticulum, third space, peroral endoscopic myotomy
Zenker’s diverticulum (ZD) is a pulsion diverticulum deriving from the herniation of both the mucosa and the submucosa of the posterior pharyngeal wall through Killian’s triangle, a
ZD is the most common hypopharyngeal diverticulum, with an estimated prevalence of 0.01-0.11%. Since the number of asymptomatic patients is unknown , the true prevalence is likely to be significantly higher. It is more frequently diagnosed in the “western world” (Northern Europe, the United States, Canada and Australia), with a prevalence in males in the 7th and 8th decades of life, while it is a very rarely reported finding in Eastern countries .
The major symptom is dysphagia, which occurs in 80-90% of patients. Other reported symptoms are regurgitation, foreign body sensation, halitosis, chronic cough and systemic complications such as weight loss, and aspiration pneumonia.
Treatment is indicated for symptomatic ZD . The treatment of ZD aims to transect the CM to eliminate the septum between the diverticulum and the upper esophagus, thus relieving the dysfunctional condition. Currently there are 3 main therapeutic approaches for dealing with symptomatic ZD: open trans-cervical diverticulectomy , and cricopharyngeal septotomy using either a rigid  or a flexible endoscope. The decision as to whether to use an open or a transoral approach is based on weak recommendations and low-quality evidence, given the lack of high-quality comparative studies . In daily practice, it depends on several factors, including the anatomy and size of the diverticulum, the patient’s current health status, comorbidities, patient preference, and local expertise.
Transcervical diverticulectomy is an effective option, with both a low risk of technical failure and a low recurrence rate ; however, septotomy performed through a rigid endoscope has been shown to achieve comparable efficacy outcomes , resulting in quicker diet resumption, lower adverse event rates and a shorter inpatient stay [8-11].
Nevertheless, approaches using rigid endoscopy have several limitations, such as the need for general anesthesia and significant rates of intraoperative failure (5-10%). Small diverticular size (<3 cm), inadequate jaw opening and restricted neck mobility are the main causes of technical failure [10,11]. During the last few decades, in an effort to overcome such limitations, flexible endoscopic approaches have been established as safe and effective alternatives to both open surgery and the rigid endoscopic treatments . This paper aims to provide a comprehensive point of view on flexible endoscopic therapies for ZD, from the “classic” flexible endoscopic septum division (FESD), to the most cutting-edge third space approaches.
FESD (Fig. 1A) was first described by Mulder and Ishioka [13,14] more than 20 years ago. It shares the same principles and rationale as rigid endoscopy: it involves a full thickness incision of the mucosa, submucosa and the muscular fibers that form the diverticular septum. By cutting the entire septum and creating a common cavity between the esophagus and diverticulum, a myotomy is automatically performed (Fig. 2).

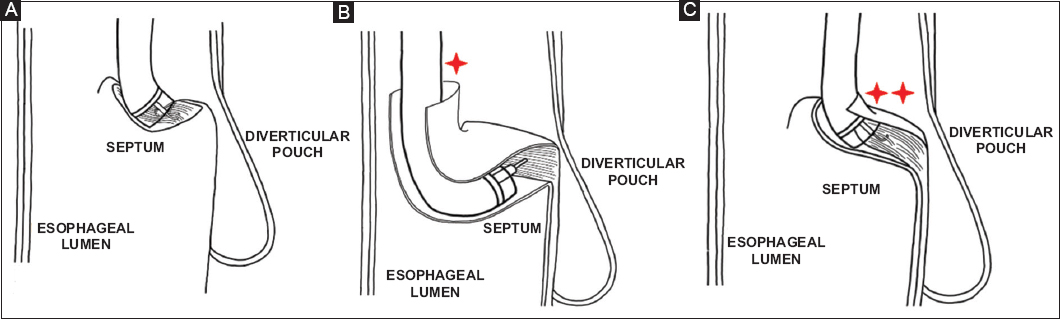

Figure 1 Flexible endoscopy options: (A) Flexible endoscopic septum division, (B) Zenker peroral endoscopic myotomy (Z-POEM), (C) Peroral endoscopic septotomy (POES)
*Submucosal access in Z-POEM is located proximally to the septum, in the hypopharynx. **Submucosal access in POES is located at the top of the septum

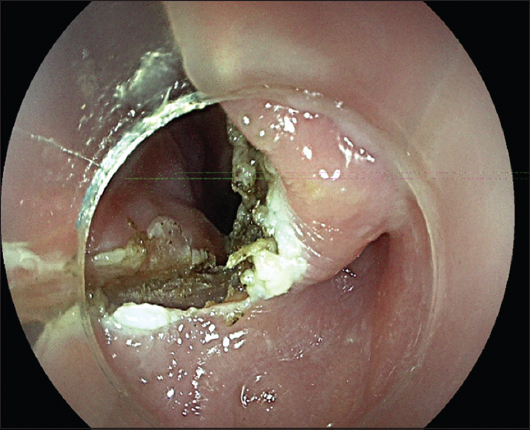

Figure 2 Endoscopic view after complete septotomy by flexible endoscopic septum division approach
Differences in the sedation approach to these patients have been recorded in the published papers. Several authors still prefer to perform FESD under general anesthesia , with many others preferring propofol-based deep sedation in the majority of patients .
The procedure is performed with the patient in the left lateral decubitus position. No prophylactic antibiotic therapy is required. It begins with initial endoscopic examination of the pouch and suction of any retained material from the diverticulum. Prior to performing the procedure, it is common practice to introduce a nasogastric/orogastric tube via a guidewire that has been advanced under endoscopic guidance into the gastric cavity. It is useful to constantly recognize the esophageal lumen by visualizing this tube during myotomy . Less commonly, instead of the orogastric tube, some endoscopists use a soft diverticuloscope (ZD overtube, ZDO-22-30; Cook Medical, Winston-Salem, North Carolina), placed as an overtube in the hypopharynx, to stabilize and visualize the septum. Even though the diverticuloscope might potentially improve safety and maneuverability, there are no significant differences in clinical outcomes between the different approaches [18-21].
A distal attachment, such as a standard short transparent cap, is also frequently used to enhance visualization, improve endoscope stability, and gently stretch the septum at the time of its incision. In addition to the different accessories that can be selected to improve septum exposure, varying cutting techniques and devices can be used (needle-knife, hook-knife, monopolar forceps, argon plasma coagulation) depending on the endoscopist’s training and personal experience, with the most commonly used devices being the hook knife and the needle knife (Olympus medical, Tokyo, Japan) (Electrocautery settings: Endocut 1.0, Forced coag 4.0) [19,21-25]. Submucosal injection is not required before septotomy. After septotomy, one or more endoclips (usually up to 3 clips) are routinely placed to close the incision to reduce the likelihood of delayed perforation or bleeding.
Additional endoscopic approaches have been described, involving harmonic scalpels, stapling devices, the stag beetle knife (SB Knife, Sumitomo Bakelite, Tokyo, Japan), and polypectomy snares [26-28]. However, they are still anecdotal.
Clinical follow up is indicated and postprocedural radiography via barium esophagography or computed tomography scan is not advised, unless there is persistence or recurrence of symptoms.
Available data from published series have reported safety and efficacy using various techniques and devices, with a high rate of durable symptom relief (>90%) and a low rate of diverticular recurrence. In 2016, Ishaq
In terms of safety, a pooled adverse event rate of 13%, mainly due to perforation (7%) and bleeding (5%), was reported by a more recent meta-analysis , in line with the previous findings by Ishaq
There are no studies comparing the open (surgical) approach and flexible endoscopic treatment. However, FESD efficacy and safety outcomes were shown to be comparable to those achieved by transoral septotomy with a rigid endoscope [16,32], yet with a less invasive approach. As a matter of fact, it can be performed without general anesthesia and does not require neck hyperextension (as is necessary for the rigid endoscopic procedure) [13,24]. Consequently, the procedure can be safely performed in the gastrointestinal endoscopy suite, even in an outpatient setting .
The need for general anesthesia and the high rate of intraoperative abandonment owing to restricted neck mobility, combined with comparable success and adverse events rates have led the European Society of Gastrointestinal Endoscopy (ESGE) to recommend the use of FESD as the first-line therapy for ZD .
Recent advances in natural orifice transluminal endoscopic surgery (NOTES) have given rise to novel myotomy techniques . Recently, Li
The theoretical advantage of this approach is that it can more readily perform a complete transection of the entire muscular septum by operating within a submucosal tunnel, thus maintaining the mucosal integrity (Fig. 3). This procedure has the potential to reduce the risk of perforation, mediastinitis and recurrence .

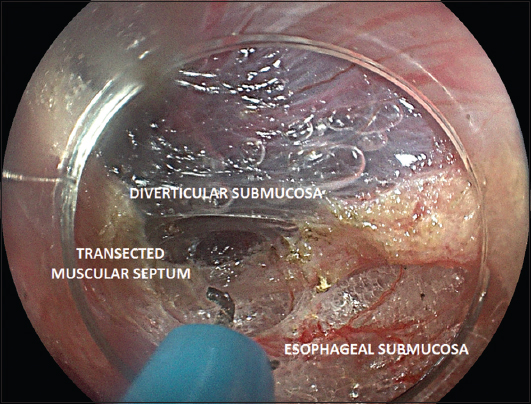

Figure 3 Endoscopic view after complete myotomy by Zenker peroral endoscopic myotomy (Z-POEM) approach (intra-tunnel view)
As with the FESD technique, the procedure is performed with the patient in the left lateral decubitus position. No prophylactic antibiotic therapy is required. Submucosal injection and subsequent longitudinal mucosotomy are performed 3 cm proximal to the septum as the tunnel entry. A submucosal tunnel is then created along both sides of the septum, ending 1-2 cm distal to the bottom of the diverticulum, in order to have an adequate endoscopic view of the entire muscular septum. The CM fibers of the septum are then transected down to the bottom of the diverticulum and further into the normal esophageal muscle. The mucosal incision site is finally sealed with up to 3 clips.
After preliminary reports [34-37], Yang
More recently, Repici

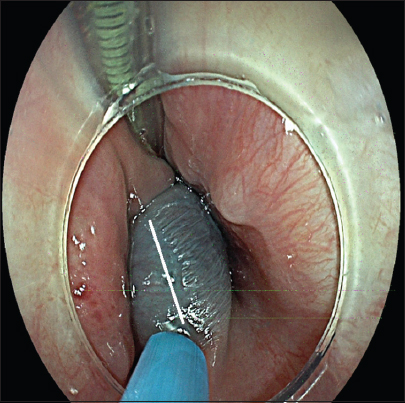

Figure 4 Mucosal incision at the top of the septum for third-space access during peroral endoscopic septotomy (POES) approach
Unlike the “classic” Z-POEM, a procedural time of 13.8±5.1 min seems to be comparable with standard FESD. Further, a clinical success rate of 95% with no intra- or postprocedural adverse events and only 4 instances of mild asymptomatic subcutaneous emphysema were reported. The procedure was performed on 16 of 20 patients in an outpatient setting with same-day discharge. Overall, the mean hospital stay was 1.2±0.4 days.
The flexible endoscopic approach is recommended over surgery (transcervical diverticulectomy and rigid endoscopic septotomy) by current guidelines . The next step will be the understanding of the clinical indication for each technique. Currently, there are no randomized trials or long-term studies to determine which is the most effective procedure and which one is durable. This is directly reflected in the lack of high-quality, strong recommendations for the management of ZD. For instance, in the choice of best therapeutic approach the most important factor is the experience of the operator (both surgeon and endoscopist). Unfortunately, the low incidence of the condition makes it more difficult to conduct a large-scale study and therefore to personalize the therapeutic approach in ZD.
Concerning the FESD technique, both the efficacy and the safety seems to be related to a simple question: how much to cut? Unfortunately, this topic is still difficult to standardize, mainly because of the lack of unequivocal anatomic landmarks. The only advice to be given is to reach the end of the pouch in order to have a unique cavity along with the esophageal lumen. Of course, third space approaches bypassed this problem by taking advantage of a tunneling technique. This permits the performance of longer myotomies without the fear of serious complications related to myotomy extension.
On the other hand, several issues are still open regarding tunneling techniques. First of all, the anatomical site is quite different from the distal esophagus where POEM was developed. The narrower location and the lack of an external muscular layer at the hypopharyngeal site may lead to a more challenging procedure with the risk of serious adverse events and a longer learning curve. However, in the first reports no cases of mediastinitis were reported. Secondly, third space approaches involve dissection of the CM, leaving the pouch sac unchanged. In large diverticula, the remnant mucosal excess might potentially result in a pseudo-diverticulum that could theoretically lead to persistence of symptoms. Of course, in the initial experience by Yang

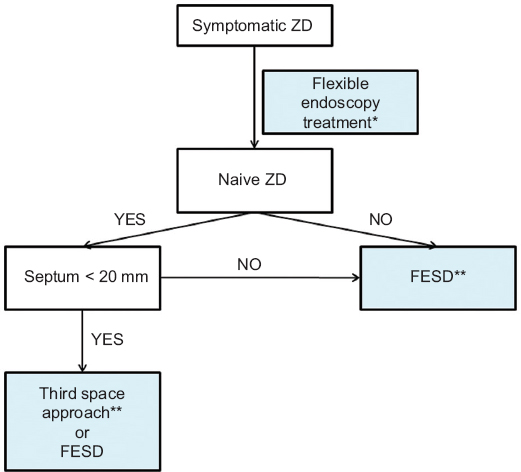

Figure 5 How to deal with different flexible endoscopy options
*According to ESGE guidelines, flexible endoscopy should be considered as the first option for symptomatic patients with Zenker’s diverticulum (ZD). Surgical and rigid endoscopy treatment may be viable alternatives. **Data on recurrent ZD are still scanty for third-space approaches. In the future this could change. ***For large ZD a third space approach might leave a significant mucosal flap. We still do not know the clinical consequence of such mucosal excess, however a reliable and well-known procedure such as flexible endoscopic septum division (FESD) may be preferre
In conclusion, flexible endoscopic approaches are effective and safe options for managing ZD. Data on third space techniques are promising as regards the further improvement in patient outcomes; however, further studies are required to define which patients could benefit the most from such an approach.
