Outcomes of over-the-scope clip application in various gastrointestinal indications: experience from a tertiary care in India

Introduction

Over the last several decades, the utilization of endoscopy for both diagnostic and therapeutic purposes has increased substantially. With more frequent utilization of endoscopy, especially for therapeutic indications, the incidence of complications such as bleeding and perforation has also increased [1]. Traditionally, these complications have been managed with surgery. Developments in endoscopic hemostatic techniques and closure devices have reduced the need for surgery in majority of the cases [2]. However, surgery may be required in large gastrointestinal (GI) defects and upper GI bleeding refractory to conventional hemostatic modalities. Novel innovations in endoscopic closure devices have allowed the endoscopist to close larger perforations and manage refractory GI bleedings. One such innovation is over-the-scope clips (OTSC), recently introduced for the management of GI defects and acute GI bleeding episodes [3-9]. Although multiple studies from western countries attest to their safety and efficacy, there are limited data from India describing their utility in this regard [6]. In this series, we aimed to evaluate the safety and efficacy of OTSC for various indications in the GI tract.

Patients and methods

The data of all the patients in whom OTSC was used for different indications from February 2017 to October 2019 were analyzed retrospectively. The exclusion criteria were age <5 years, limited jaw opening, hemodynamic instability, iatrogenic perforations with signs of peritonitis and sepsis, and luminal narrowing at the site of OTSC application. Informed consent was obtained from all patients, or legal guardians in the case of minors. The study was approved by the institutional review board.

Device and technique

The OTSC system set (Ovesco Endoscopy, Tübingen, Germany) includes an applicator cap with a mounted OTSC clip, thread, thread retriever and a hand wheel for clip release. The OTSC clip is made of nitinol and is available in 3 different sizes: 11 mm, 12 mm, and 14 mm. The clip has 3 different claw shapes designed for different indications (Fig. 1). The OTSC device is preloaded on a transparent cap compatible with scopes of various diameters (8.5-11.5 mm). For stent fixation, a specially modified cap was used for anchoring the stent (Stentfix OTSC, Ovesco Endoscopy, Tübingen, Germany).

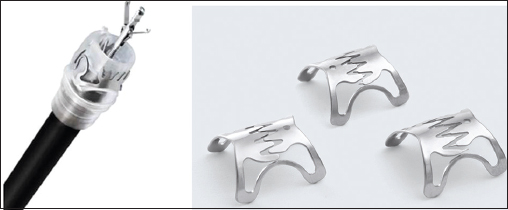

Figure 1 Over-the-scope clip device system with 3 different types of clips

The OTSC was mounted over the tip of the gastroscope and released by tightening the thread with the hand wheel. The use of a twin grasper or anchoring device to assist the closure of defects was left to the discretion of the endoscopist performing the procedure [10]. Three endoscopists with formal training in OTSC performed all the procedures.

Results

Thirty six patients (22 male, mean age 52.63±14.97 years, range 11-72 years) underwent OTSC application. The most common indications for OTSC application were: GI defects n=18; fixation of esophageal self-expandable metallic stent (SEMS) n=9; bleeding n=8; and endotherapy for neuroendocrine tumor n=1 (Table 1). The mean size of GI defects was 15.88±8.01 mm.

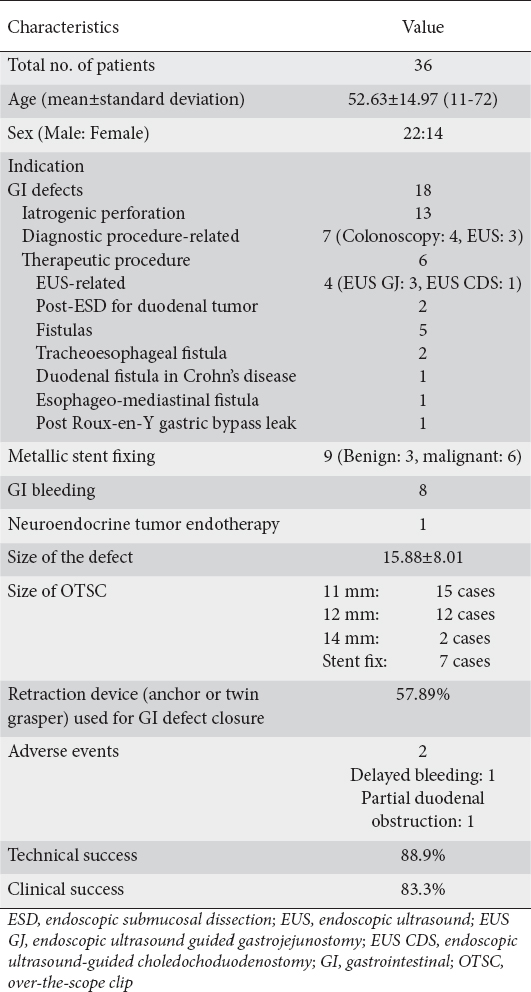

Table 1 Characteristics of patients who underwent over-the-scope clipping for various GI disorders

Outcomes according to indications

Closure of GI defects

OTSC was used for the closure of GI defects in 18 cases, including iatrogenic perforations (n=13) and fistula (n=5) (Fig. 2). The location and etiologies of GI defects are shown in Table 1. The mean sizes of iatrogenic perforations and fistulas were 17.38±8.65 and 12.00±4.69 (P=0.212), respectively. All sizes of clips (11 mm in 8, 12 mm in 8 and 14 mm in 2), with 2 different shapes (“a” type in 5 and “t” type in 13), were used to close GI defects. Overall, technical success and clinical success were achieved in 16 (88.89%) and 14 (77.78%) patients, respectively. There were 2 technical failures in the perforation group vs. none in the fistula group. Both the perforations where OTSC could not be applied successfully were located near the sigmoid bend and were larger than 2 cm in size. There were 2 recurrences in the fistula group on follow up. Clinical success was higher in cases with iatrogenic perforations as compared to fistula closure (84.6% vs. 60%, P=0.532). However, the difference was not statistically significant.

Figure 2 (A) Duodenal perforation during diagnostic endoscopic ultrasound. (B) Approximating edges of duodenal perforation using twin grasper. (C) Closure of duodenal perforation with over-the-scope clip

Stent anchoring

A specially designed OTSC system was used in 7 of the 9 cases where esophageal SEMS were placed for benign (n=3) or malignant (n=6) indications (Fig. 3). Fully covered SEMS (n=3) were placed for benign lesions, while uncovered (n=4) and partially covered (n=2) SEMS were placed in malignant pathology. In 3 cases, the OTSC was placed after encountering stent migration on the following days. In 6 cases OTSC was used immediately following the stent deployment. Technical success was achieved in 8 (88.89%) patients. In 1 patient OTSC could not be deployed because of a technical fault in the device system. There was no incidence of stent migration at first follow up (4 weeks). In 3 cases where esophageal SEMS were placed for a benign indication, the clip was successfully removed after 4-8 weeks using a Direct Current cutter device.

Figure 3 Fixing of esophageal self-expandable metallic stent with novel over-the-scope clip stent fixation system

GI bleeding

OTSC was used in 8 patients with non-variceal upper GI bleeding as primary therapy (n=5) and rescue therapy (n=3). The etiologies and characteristics of patients with upper GI bleeding are outlined in Table 2. Two size of clips (11 mm in 6 and 12 mm in 2 cases), with 2 different shapes (“a” type in 7 cases and “t” type in 1 with diverticular bleed), were used to control bleeding.

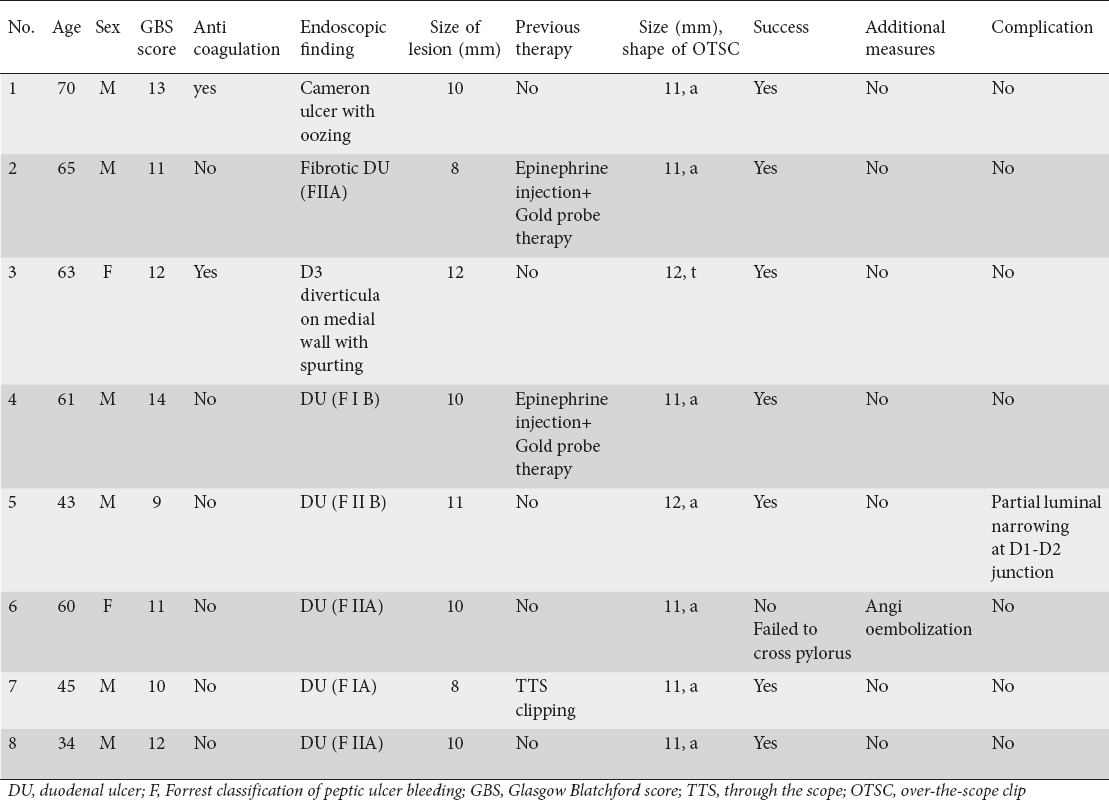

Table 2 Characteristics of patients with gastrointestinal bleeding who underwent OTSC placement

Technical and clinical success of OTSC were achieved in 87.5% and 100% cases, respectively. There were no incidences of in-hospital rebleeding in either primary or rescue groups. There was 1 technical failure in this group. In this case with duodenal ulcer bleeding, the scope with the OTSC mounted could not be maneuvered into duodenum because of pyloric channel narrowing. There were no major adverse events related to OTSC application. In 1 case, asymptomatic duodenal narrowing was noticed after OTSC application (Fig. 4).

Figure 4 (A) Duodenal ulcer with large adherent clot. (B) Over-the-scope clip (OTSC) applied after dislodging the adherent clot. (C) Repeat endoscopy revealed partial duodenal obstruction due to OTSC

Subepithelial resection

OTSC was used for the management of a neuroendocrine tumor in the duodenal bulb (15 mm). The case was presumed to be at high risk of bleeding due to underlying portal hypertension, coagulopathy (international normalized ratio 2.5) and thrombocytopenia (platelet count 40,000 /μL). Band ligation and endoloop of the tumor was attempted but was not successful. This could be because the relatively larger size of the tumor and the sessile nature of the lesion made it difficult to capture the whole lesion for band ligation and endoloop, respectively. OTSC was used as a rescue therapy and was applied to the tumor’s base. After application of OTSC, an endoloop was applied below the OTSC to ensure complete strangulation of the tumor (Fig. 5). The patient presented with GI bleeding within 5 days of the procedure. However, there was no active bleeding on endoscopy and the patient improved with conservative management. Follow-up endoscopy at 6 months of follow up showed no endoscopically visible recurrence.

Figure 5 (A) Duodenal neuroendocrine tumor (NET) with surface ulceration. (B) Over-the-scope clip (OTSC) applied to the base of duodenal NET. (C) Endoloop applied below the OTSC to duodenal NET

Discussion

In this series, we found that OTSC is safe and easy to use for GI defects and bleedings. In addition, the newly available OTSC was effective in securing esophageal metal stents for the intended duration. GI bleeding and perforations are the 2 most common feared complications encountered by a endoscopist. Small perforations and a majority of the luminal bleedings can be efficiently managed using through-the-scope clips. However, surgery may be required in cases with larger defects and refractory GI bleedings. In addition, through-the-scope clips are not effective in certain circumstances, such as fistula closure and fixation of metal stents (especially esophageal).

In this case series, we evaluated the use of OTSC for various indications, including acute non-variceal upper GI bleeding, GI defects, fixation of esophageal covered metal stents and management of a duodenal neuroendocrine tumor. The technical success of OTSC application was high in this study, which indicates the ease of application of these clips.

GI defects, including iatrogenic perforations and tracheo-esophageal fistulas, were the most common indications for OTSC in the present series. Clinical success rates were lower in this group compared to other indications (77.78% vs. 88.89%). Similarly, the success rate of fistula and leak closure was lower than that of acute iatrogenic perforations (60% vs. 84.61%). However, the difference was not significant, probably because of the small sample size. Our results are consistent with those of a large multicenter study, where the closure of perforations and leaks was significantly more successful than the closure of fistulas (90% vs. 42.9%) [3]. The lower success rates for fistula closure could be due to difficulty in grasping the fibrotic or retracted edges of chronic fistulas [11]. Another disadvantage of the OTSC clip is that the large size of the cap makes it difficult to negotiate sharp bends and a narrow GI lumen [12]. In the present series, OTSC could not be applied successfully in 2 cases with colonic perforations. In both cases, the perforations were large (>2 cm) with irregular margins and were located at or near the sigmoid bend.

The OTSC system comes with traction equipment, including a twin grasper and a tissue anchor. Alternatively, suction can be used effectively in cases with perforations or GI defects. In this series, we used suction and traction techniques in 7 and 11 patients, respectively. The use of the twin grasper has been shown to increase clinical success, especially when it is used for leaks and fistulas [13]. In our experience, suction provided adequate results in cases with small and acute perforations, whereas the use of traction was felt necessary in cases with fistulas and large perforations.

OTSC was used to secure esophageal SEMS in 9 cases, with a high technical success rate (89%). There was no case of stent migration at 4-week follow up. In concordance with our results, Watanabe et al reported excellent outcomes while using OTSC clips to prevent stent migration in 12 patients with malignant esophageal strictures [14]. However, the authors used conventional type OTSC clips in this study. The advantages of using the novel OTSC (StentFix) over conventional OTSC are the rounded clip design, which adapts to the GI lumen without causing any luminal obstruction, and the modified cap, which enables parallel alignment of the clip in relation to stent opening and helps capture adequate stent mesh and tissue. Although the use of through-the-scope clips and endoscopic suturing methods have been described for stent fixation, the downsides are the relative inefficacy of through-the-scope clips and a steep learning curve for endoscopic suturing. In addition, the tangential working angle may make it difficult to obtain adequate suture depth in the esophagus.

The reported rates of stent migration after OTSC (16.7%) are comparable with those after endoscopic suturing (17%) [8,15]. To our knowledge, this is the first series to describe the outcomes of a novel OTSC system designed especially for fixation of esophageal metal stents.

Another common indication for OTSC is GI bleeding. Successful outcomes were achieved in all but 1 case with duodenal ulcer bleeding, where the clip could not be applied because of pyloric narrowing. There were no cases of re-bleeding after successful application of OTSC. Notably, OTSC was used as a primary therapy in most cases (62.5%). In these cases, all the ulcers were high-risk types—(Forrest I and II) with high Glasgow Blatchford scores on admission—and the use of through-the-scope clips or thermal hemostatic modalities was judged to be difficult or risky given the large ulcers with a fibrotic base. OTSC has been shown to be more effective than through the scope clips in recurrent peptic ulcer bleeding cases [16]. In a meta-analysis of 21 studies (n=851), technical and clinical success were reported in 97.8% and 96.6% patients, respectively. Rebleeding was seen in 10.3% of patients. The failure rate of OTSCs was 9% when used as primary therapy and 26% when used as rescue/salvage therapy [17]. The data are limited regarding the use of OTSC as a primary therapy [4]. The results of our study suggest that OTSC may be used as a primary therapy in selected cases, such as those with a high risk of rebleeding, or patients with multiple comorbidities and poor surgical risk.

There were no major adverse events associated with OTSC application in the present series. In 1 patient, asymptomatic narrowing of the duodenum (junction of first and second part) was noticed, and in another bleeding after dislodgment of the OTSC used for duodenal neuroendocrine tumor resection. Our results stand in concordance with the published literature, which reports low complication rates with the use of OTSC for various indications [9]. Adverse events reported with the application of OTSC included luminal stenosis by misplaced OTSC, micro-perforation of ulcer, maceration of perforation and abnormal suctioning of neighboring organ (ureter, small bowel while clipping colon) [9,12].

Our study has several strengths. This is the first series from India to evaluate the multi-purpose utility of OTSC. The use of the novel OTSC clip for stent fixation has not been described before. The noteworthy limitations include small sample size, retrospective design and lack of a comparative arm. In addition, OTSC was used in a highly selected group of patients, which may have augmented the clinical and technical success rates.

In conclusion, OTSC is safe and effective for multiple indications in the GI tract, including GI defects, acute upper GI bleeding and fixation of esophageal stents to prevent migration. Large prospective trials are required to define the role of these clips as a primary or rescue therapy in specific indications such as GI bleeding.
