Endoscopic full-thickness resection of colorectal lesions with the full-thickness resection device: clinical experience from two referral centers in Greece

Introduction

Endoscopic mucosal resection (EMR) and endoscopic submucosal dissection (ESD) are well-established endoscopic techniques for the removal of colorectal lesions [1-4]. Both are based on separation of the mucosa/submucosa from the muscular layer by injection in the submucosal space. Nonetheless, in non-lifting colorectal lesions, EMR and ESD might not be technically feasible. Colorectal lesions located at difficult anatomic sites (e.g., appendiceal orifice, diverticulum) and subepithelial tumors are also difficult to treat using conventional endoscopic techniques, with an inherent risk of perforation or incomplete resection. Endoscopic full-thickness resection (EFTR) is an invasive treatment for lesions when EMR and ESD are not possible or available. The full-thickness resection device (FTRD®, Ovesco Endoscopy, Tübingen, Germany) allows single-step EFTR through an over-the-scope clip (OTSC), placed below the lesion prior to resection. The device was introduced into clinical practice for colorectal EFTR in September 2014 and has been described as feasible and efficacious in 3 large clinical studies (including 181, 114, and 48 patients respectively) [5-7] and 5 smaller retrospective studies [8-12]. To the best of our knowledge, this study presents the first Greek experience of the FTRD® procedure, including patients from 2 referral centers. We aimed to evaluate the efficacy and safety of EFTR for colorectal lesions not amenable to EMR and ESD.

Patients and methods

This observational, retrospective study was conducted in 2 referral centers in Greece (Venizeleion General Hospital, Heraklion, and Athens Naval Hospital, Athens) from October 2015 through December 2018. We included patients with colorectal lesions not amenable to EMR or ESD who would otherwise have had to be treated surgically. Indications for EFTR were non-lifting colorectal adenomas (residual, recurrent, without previous treatment), adenomas at difficult anatomic locations (appendiceal orifice, diverticulum), suspected T1 adenocarcinomas with indication for endoscopic resection, and subepithelial tumors. Suspected early adenocarcinomas were treated with EFTR based on “low-risk” histopathologic features after initial polypectomy: absence of lymphovascular invasion, good/moderate differentiation grade, and submucosal infiltration <1000 μm. These patients underwent a complete workup for colorectal cancer, including computed tomography (CT) scan of the abdomen for colonic lesions, and magnetic resonance imaging (MRI) for rectal lesions. Additionally, they were thoroughly informed about the possibility of undetected lymph node metastases (±5%). All cases with suspected T1 adenocarcinoma were discussed at multidisciplinary oncology meetings for further evaluation. Patient and lesion characteristics are displayed in Table 1. A complete diagnostic colonoscopy before FTRD® procedure was performed and all patients signed the informed consent form. Outcome parameters were:

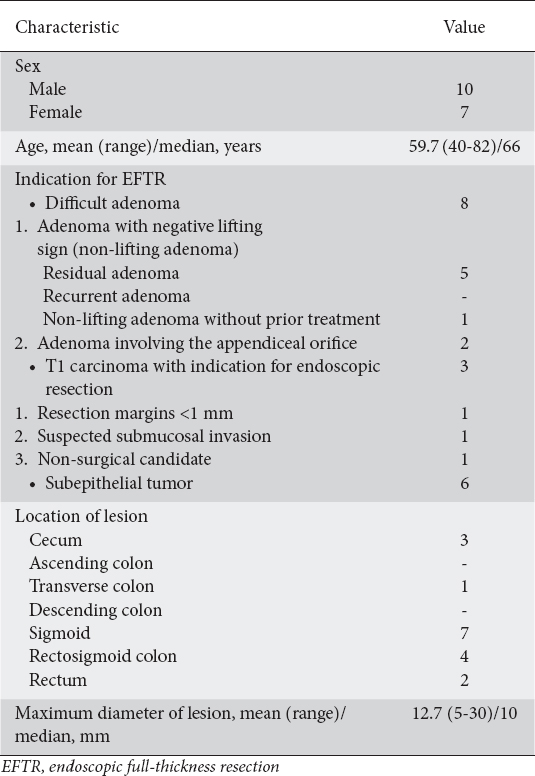

Table 1 Patient and lesion characteristics (n=17)

The severity of adverse events was graded according to the changes in the plan of care, as recommended by the American Society for Gastrointestinal Endoscopy [13]. Specifically, clinical complications that required unplanned hospital admission or prolongation of hospital stay for ≤3 nights were considered as mild and those which required prolongation of stay for 4-10 nights, admission to the Intensive Care Unit (ICU) for 1 night, transfusion and/or repeat endoscopy were regarded as moderate. Adverse events that resulted in a prolongation of stay for >10 nights, ICU admission for >1 night and/or surgery were considered as severe.

EFTR procedure

The selected patients were administered a “single shot” dose of prophylactic antibiotic treatment before EFTR and the procedure was performed under sedation with midazolam and pethidine. All procedures were performed with CO₂ insufflation. The lesions were initially identified endoscopically with a standard colonoscope and were measured using an opened forceps. The resection margins were marked circumferentially using the marking probe that is part of the FTRD® set. The FTRD® system was already mounted on another colonoscope. The EFTR device consists of a transparent cap, on which a 14 mm OTSC is preloaded, and an integrated 13 mm snare (Fig. 1). The identified lesion was grasped into the cap using the FTRD® grasper until the circumferential markings were visible. The clip was then released and the lesion was resected with the snare integrated in the system (Fig. 2). The resected specimen was extracted with the endoscope, which was then reintroduced to inspect the resection site. The total procedure time was measured from the first introduction of the colonoscope until its extraction after the inspection of the resection site. The time needed to reach the targeted lesion was measured from the introduction of the FTRD® and the time for resection was measured from reaching the lesion with the FTRD® until resection was accomplished. All specimens were evaluated by a local histopathologist in each center.

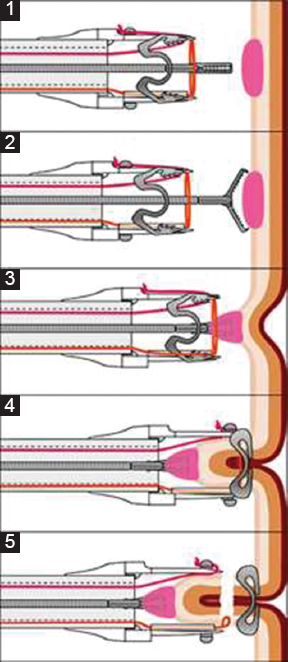

Figure 1 Schematic illustration of an EFTR* with FTRD® (www.ovesco.com). (1,2) Positioning on resection site with endoscope; (3) Grasping of marked tissue and drawing into cap with FTRD® grasper; (4) Application of the over-the-scope clip; (5) Snare closing and resection of tissue

*EFTR, endoscopic full-thickness resection; FTRD®, full-thickness resection device.

Figure 2 Key steps of EFTR. (A) The target lesion is marked circumferentially with the marking probe; (B) The lesion is drawn into the OTSC-loaded cap using FTRD® grasper; (C) The clip is released and the lesion is resected with the integrated snare; (D) Resection site after clip application

EFTR, endoscopic full-thickness resection; OTSC, over-the-scope clip; FTRD®, full-thickness resection device.

Results

Patient characteristics and indications for EFTR

From October 2015 through December 2018, 17 consecutive patients (10 male, 7 female, mean age 59.7 years) underwent EFTR at two referral centers in Greece. As shown in Table 1, the resection sites were the cecum (n=3), transverse colon (n=1), sigmoid (n=7), rectosigmoid colon (n=4), and rectum (n=2). Procedural data are shown in Table 2. The target lesion was reached with FTRD® in all patients. Technical success and R0 resection were achieved in 14 of 17 procedures (82.3%). One resection was macroscopically incomplete because of the size of the lesion (30 mm). The patient was finally diagnosed with a lipoma and no further management was needed. In 2 other patients the target lesions could not be resected as it was not possible to draw the tissue into the cap. These lesions, located in the rectum and rectosigmoid transition, could not be moved far enough into the FTRD® cap, probably because of their location and severe scarring (post-radiation) of the site. The patients were treated surgically. A subgroup analysis concerning technical success and R0 resection is shown in Table 3.

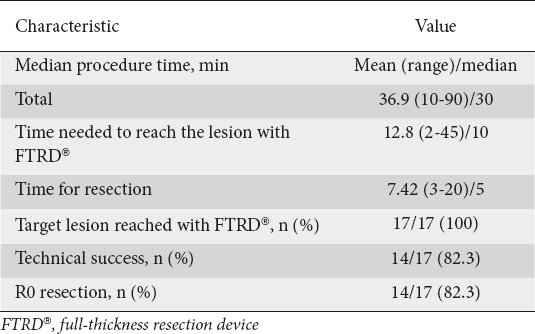

Table 2 Procedural data

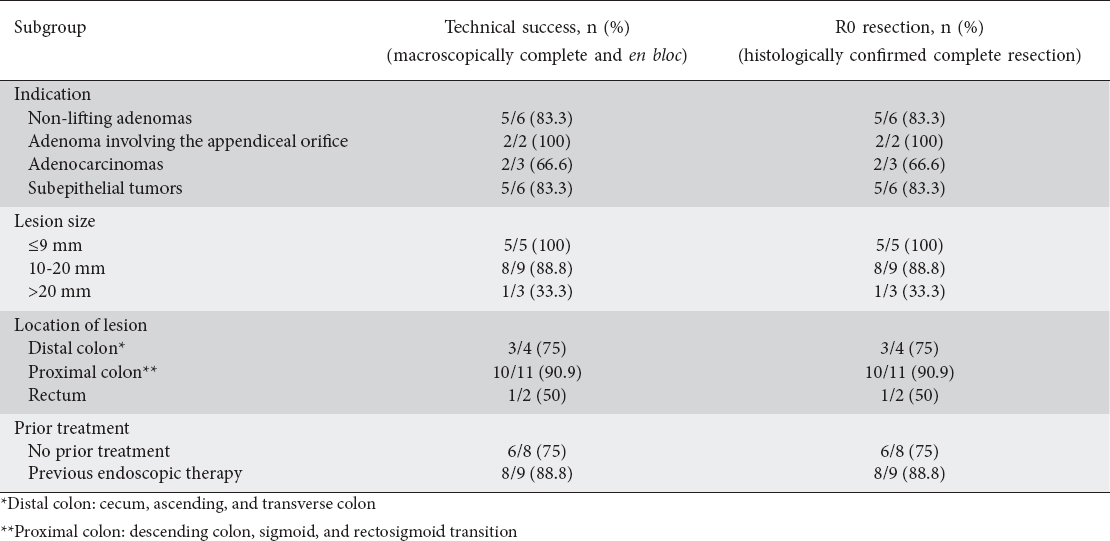

Table 3 Subgroup analysis concerning technical success and R0 resection

The mean diameter of lesions prior to resection was 12.7 (range 5-30) mm. Histopathology revealed R0 resection in 14 specimens (82.3%). The majority of patients (82.3%, 14/17) remained hospitalized for 1-3 post-intervention days and were monitored for clinical complications. In 3 patients (17.6%) hospitalization was prolonged owing to procedure-related adverse events.

Adverse events

The overall complication rate was 17.6% (3/17) (Table 4). There were no complications associated with sedation. Post-procedural bleeding was observed in one patient 48 h after the FTRD® procedure, but blood transfusion was not necessary. Re-endoscopy revealed an ulcer with hematin around the clip arms and no further medical intervention was required. Another patient developed abdominal pain after successful resection of a residual adenoma in the sigmoid. Abdominal CT scan revealed no signs of perforation or local inflammation. The patient was treated with analgesics and pain gradually subsided in 24 h. Both these patients were discharged after 4 days. The most serious complication was the development of acute appendicitis in a patient who had undergone EFTR for an adenoma involving the appendiceal orifice. The patient required laparoscopic appendectomy and stayed in hospital for 5 days.

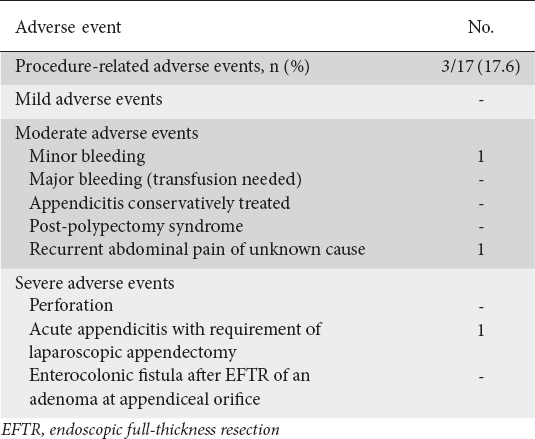

Table 4 Adverse events

Discussion

The current study indicates that EFTR in appropriately selected patients is an adequately safe and efficacious endoscopic technique for the removal of colorectal lesions. The most frequent indications among our participants were non-lifting adenomas and subepithelial tumors. In the total cohort, technical success and R0 resection rate was 82.3% (14 of 17 cases) which compares favorably to the results of previous studies (75-100%) [5-12]. In the majority of previous reports [5,6,9-12], the R0 resection rate in the total cohort was lower than the technical success rate. This may be explained by the fact that the mean diameter of the target lesions included in the above-mentioned studies was larger than the mean diameter of the lesions included in our study.

It is worth noting the features of the technically unsuccessful cases in our cohort. EFTR of a subepithelial tumor in the cecum, measuring 30 mm, was accomplished but the resection was macroscopically incomplete. According to the literature, the recommended size of lesions prior to resection is ≤30 mm and for cases of severe scarring or inflammation 20-25 mm [9]. The maximum size of target lesions is a major limitation of EFTR, since the size of the FTRD® cap (13×23 mm) does not accommodate lesions >30 mm in diameter. Subgroup analysis in our study revealed that technical success and R0 resection rate was greater for lesions ≤20 mm than for those >20 mm (P=0.0429). Therefore, our results are in line with those of Schmidt et al [5], who also demonstrated a statistically significant difference in R0 resection rate between lesions ≤20 mm and lesions >20 mm. As already reported in previous studies, ESD represents the most reasonable endoscopic approach for rectal lesions >30 mm, especially for early adenocarcinomas, since EMR leads to piecemeal excision with an increased risk of incomplete resection [15-21]. Nonetheless, ESD for colonic lesions >30 mm might be technically demanding or even not feasible. For these lesions, EMR combined with EFTR might be a promising approach, but evidence is lacking to date.

Furthermore, wall mobility is an important component for a complete EFTR, since the tissue volume that can be incorporated into the cap depends on the elasticity of the colonic wall at the resection site [6]. In our patients, two target lesions, located in the rectum and rectosigmoid transition, could not be sufficiently mobilized into the FTRD® cap and EFTR was not accomplished. We suppose that the location of these lesions contributed to the failure of EFTR.

The majority of our participants were diagnosed with non-lifting adenomas and subepithelial tumors. The R0 resection rate for non-lifting lesions was 83.3%, compared to the 77.7% and 94.4% reported in the two largest clinical studies of the FTRD® procedure [5,6]. Resection of non-lifting adenomas has been an important subject of study. Moss et al demonstrated that conventional endoscopic retreatment of residual and recurrent adenomas is highly effective, with success rates of 88.2% and 94.5%, respectively [2]. Nonetheless, the patients in their study underwent a close follow-up protocol, necessitating repeat colonoscopies, and the majority of lesions were diminutive. ESD has been shown to be suitable for such adenomas, but the perforation rate has been reported to reach 14.7% [22,23]. Moreover, ESD comprises an endoscopic technique with a long learning curve. Previous studies have suggested that the perforation risk and incomplete resection rate of EMR and ESD increase in the presence of fibrosis/scar or local recurrence, even in expert hands [24-26]. Based on the above-mentioned results and on the high rates of R0 resection reported in our study and in the literature, we believe that EFTR can be regarded as an efficacious intervention for the treatment of non-lifting adenomas. Finally, the R0 resection rate in the subgroup of subepithelial tumors was 83.3%, consistent with the rates reported elsewhere [5,6]. Consequently, we suppose that EFTR can be considered as a valid alternative to surgical treatment for subepithelial lesions.

We included two patients with adenomas involving the appendiceal orifice. Technical success and R0 resection rate was 100%. However, one patient developed acute appendicitis, due to the closure of the orifice by the OTSC, and required laparoscopic appendectomy. Previous studies have also demonstrated that 10% of patients treated with EFTR for the removal of adenomas involving the appendix developed acute appendicitis, with a subsequent rate of surgery of 2.9% [5,27]. Considering the fact that acute appendicitis occurred in 1 of 2 cases, despite the small number of patients included (n=2), we agree with Schmidt et al [5], who recommend EFTR only for lesions that would otherwise require surgical intervention, after providing thorough patient information.

In the subgroup of adenocarcinomas, the technical success and R0 resection rate was only 66.6%, although the number of cases was limited (n=3). The reason for the limited number of lesions included is that endoscopic excision of early adenocarcinomas remains a challenge. According to previous reports, endoscopic R0 resection is considered to be an adequate treatment for low-risk T1 adenocarcinomas [28,29]. Two recent retrospective clinical studies have recommended EFTR as an adequate alternative to surgical techniques for suspected T1 carcinomas ≤20 mm [6,7]. Van der Spek et al performed EFTR with the FTRD® in 28 of 48 patients for suspected or confirmed low-risk T1 colorectal carcinomas based on endoscopic and histopathologic findings [7]. Surgical intervention was provided only when EFTR failed to achieve radical resection of the lesion. In contrast, Schmidt et al did not recommend EFTR as a therapeutic approach for suspected or known carcinomas, because of the low rates of curative resection [5]. The most recent study of EFTR for early colorectal cancer by Kuellmer et al [30] compared R0 resection rate between incompletely resected malignant polyps and non-lifting malignant lesions without prior treatment. Overall, 34% of patients underwent surgical resection owing to “high-risk” histological features, whereas 62% were followed endoscopically. The authors suggested that EFTR can be regarded as an effective alternative to surgical treatment for “low-risk” lesions and a valuable option for patients with “high-risk” lesions who are unfit for surgery. Nonetheless, the current policy in our departments is that surgical resection is the preferred treatment of adenocarcinomas, since it allows the radical removal of the neoplasm and of lymph nodes, providing exact disease staging. However, the fact that the FTRD® procedure does not necessitate tracheal intubation renders it feasible in special circumstances. Thus, we suggest EFTR as an alternative approach for elderly patients, for younger ones whose medical condition increases the risk of morbidity during surgical treatment, and for patients who refuse operation, weighing the risk of undetected lymphatic metastases. We also agree with Schmidt et al [5] that EFTR can be considered as a diagnostic tool, if indicated, for the exact determination of submucosal infiltration, lymphovascular invasion, and tumor differentiation.

Overall, adverse events occurred in 17.6%. This rate appears to be slightly greater than the complication rates reported in previous studies (9.9-15.3%) [5-8,12]. Clinical complications were observed in 3 patients. The majority of the adverse events were moderate and only one was severe. Post-procedural bleeding occurred in one case. Although no risk factor for intervention was identified, according to the risk factor-based algorithm suggested by Burgess et al for clinically significant delayed bleedings after wide-field EMR [31], the patient underwent a repeat colonoscopy. The bleeding was attributed to the eschar that had been sloughed off the resection site. The complication rate in our study remains comparable to rates reported elsewhere; we therefore also regard EFTR as an adequately safe endoscopic technique.

Malfunction of the FTRD® device occurred in one patient. After the turning of the OTSC hand wheel, the release ring was not released through the thread, although the OTSC had been successfully applied. The device was withdrawn and another endoscope was advanced to the adenoma ligated by the clip. The lesion was finally resected partially with a conventional snare. Clearly, the resection could not be fully completed because of the presence of the clip. However, the patient was re-endoscoped 2 months later, the clip remained in situ and the new biopsies obtained were negative for pathological tissue.

Overall, follow up was available in 9 of the 17 patients and no patient showed residual/recurrent lesions. The limitations of our study include the retrospective design and the limited number of the participants.

In conclusion, the results of this study compare favorably to data already reported in the literature. We recommend EFTR for the resection of lesions ≤20 mm, non-lifting adenomas, and subepithelial tumors, but we believe that EFTR as primary therapy for low-risk T1 adenocarcinomas remains a field for further study. Large randomized studies comparing available surgical techniques with EFTR are required to better define the efficacy of EFTR and long-term outcomes.
