Adenocarcinoma of the small intestine is remarkably rare (incidence 6.8 cases per million) compared with other gastrointestinal (GI) carcinomas . The duodenum is the most frequent site of adenocarcinomas in the small intestine . The incidence of duodenal carcinoma is increasing at almost the same rate as that of colon carcinoma  and it has the lowest 5-year survival rate (<30%) compared with all other small intestinal carcinomas [4,5]. Diagnosing the tumor at an early stage helps improve prognosis, and early-stage tumors are most likely to be treated using radical and minimally invasive endoscopic resection .
Advanced endoscopy—e.g., high-definition and magnification endoscopy with image-enhancing technology such as narrow-band imaging (NBI)—facilitates the detection of superficial duodenal epithelial tumors and improves the diagnostic accuracy [7-9]. In superficial non-ampullary duodenal epithelial tumors (SNADETs), studies suggest that magnification endoscopy with NBI can differentiate low- (LGD) from high-grade dysplasia (HGD) and superficial carcinoma, indicating treatment with endoscopic resection [7-10].
Even if advanced endoscopy could provide accurate diagnosis, subsequent biopsy is required for histological diagnosis, which remains the gold standard. However, mucosal defects caused by endoscopic biopsy can lead to severe fibrosis as a result of exposure to and stimulation by pancreatic juice or bile. The severe fibrosis sometimes makes endoscopic resection difficult in the duodenum, especially at non-ampullary sites. Therefore, it would be desirable to evaluate histological features directly during real-time endoscopy.
Endocytoscopy (ECS) has an ultra-high magnification power (>300-fold) and can visualize microscopic structures (nuclear, cytoplasmic and glandular) at the cellular level during real-time endoscopy . Studies have shown that ECS may help characterize superficial epithelial tumors in the esophagus, stomach and colon [12-19]. In the duodenum, although there are 2 studies that used ECS for the diagnosis of celiac disease [22,23], little is known about the diagnostic potential of ECS for epithelial tumors.
Topical vital staining is mandatory for cellular level observation by ECS. Previous ex vivo and in vivo studies investigated the use of appropriate dyes for ECS, such as methylene blue (MB), toluidine blue (TB), and crystal violet (CV) in the esophagus, stomach and colon [20,21]. However, there has been no exploration of the appropriate dye solution regimen to optimize staining conditions for ECS in the duodenum. Therefore, we conducted a preliminary study in vivo to identify the optimal dye solutions for staining in the duodenum for ECS of normal villi and SNADETs.
Patients and methods
The present study was conducted at the Jikei University Hospital from February 2011 to April 2013. We recruited 9 and 20 patients who had an endoscopically normal duodenum and SNADETs, respectively. This study was approved by the institutional review board of the Jikei University School of Medicine (No. 22-204 6381) and conducted in accordance with the Helsinki Declaration (as revised in 2000). Written informed consent was obtained from all patients.
Patients were eligible if they met the following inclusion criteria: (i) age ≥20 years; (ii) an endoscopically normal duodenum (study for normal villi); or (iii) a SNADET lesion destined for endoscopic resection (study for SNADETs). Exclusion criteria were: (i) serious underlying diseases; (ii) current pregnancy; and (iii) a recent history of chemotherapy for any malignancy. Patients with a recent history of chemotherapy were excluded because duodenal mucosal damage would preclude ECS evaluation.
Endoscopy equipment, setting, and performance
We used the prototype of ECS (GIF-Y0002; Olympus Corporation, Tokyo, Japan) connected to a video-endoscopy system (CV260, EVIS LUCERA SPECTRUM; Olympus). The GIF-Y0002 is an integrated type of endoscope with one lens that enables a progressive increase in magnification to ×380 (tissue field of view, 700 µm × 600 µm, 0.42 mm2) using a hand lever. Up to ×600 ultra-high magnification is available when the electronic zoom function (×1.6) is activated by pushing the button . The consecutive zoom function allows us to find the target area through non-magnifying observation, while maintaining the center of the endoscopic view. The ECS system can visualize not only the gland duct lumens and villi, but also the shape of epithelial cells and nuclei at a focus depth of about 50 µm.
All ECS exams were performed by a single endoscopist (NY) with ECS experience of more than 30 cases of superficial epithelial neoplasm in the upper GI tract. All patients underwent deep sedation through intravenous administration of pethidine hydrochloride (35-70 mg, Opystan®; Mitsubishi Tanabe Pharma, Osaka, Japan) and flunitrazepam (0.2-0.8 mg, Rohypnol®; Chugai Pharmaceutical, Tokyo, Japan). We administered butylscopolamine bromide (20-40 mg, Buscopan®; Boehringer Ingelheim GmbH, Ingelheim, Germany) or glucagon (Glucagon G Novo®; Eisai, Tokyo, Japan) as a peristalsis depressant just before ECS.
Prior to dye staining for ECS, any mucus on the region of interest was carefully flushed with water containing pronase (Pronase MS®; Kaken Pharmaceutical Products Inc., Tokyo, Japan) and dimethicone (Gascon®; Kissei Pharmaceutical Products Inc., Tokyo, Japan). The region of interest was sprayed with 2 mL dye solution and excess dye was removed by suction. The tip of an ECS scope was placed in contact with the surface and then focused.
First, the staining examination was completed in the 9 patients with normal villi. Then, based on these results, we used 2 dye solutions (1% MB and 0.5% TB) for the examination of the 20 patients with SNADETs.
Staining examination of normal villi
The study of normal duodenal villi used 3 clinically available staining dyes: MB, TB, and CV. The concentration for testing was determined using 2×, 4× or 5× dilution of these dyes (5%, 2.5%, and 1% MB; 1%, 0.5%, and 0.25% TB; and 1%, 0.5%, and 0.25% CV), based on an ex vivo animal study .
The 9 patients with normal villi were randomly and evenly allocated 1:1:1 to 3 staining groups (MB, TB, and CV) by the envelope method (Table 1). Before staining, we chose 3 duodenal areas per patient in each of the first, second and third portions, and allocated each duodenal portion to a concentration of a dye solution. We started each staining examination from the most distal portion (i.e., the third portion) to prevent regurgitation and staining of a mucosal area with 2 or 3 concentrations of a dye solution. For instance, in a patient allocated to MB staining, we started staining with 1% MB (2 mL) and took ECS images in the third portion, followed by staining with 2.5% MB (2 mL) and images in the second portion, and finally by staining with 5% MB (2 mL), taking photos in the first portion.

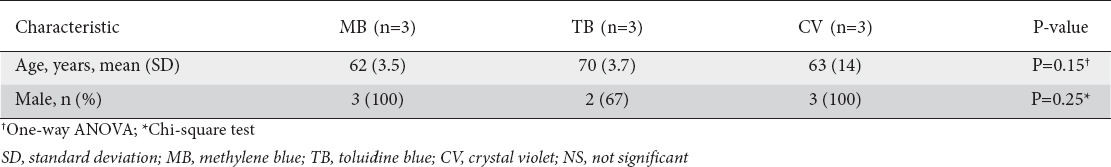

Table 1 Patient characteristics in the staining examination of normal duodenal villi
Staining examination of SNADETs
We decided to use just 2 dye solutions for this examination because SNADETs are rare and it would be difficult to examine many dye solutions and concentrations. According to the results of the examinations of normal villi, dye solutions of 0.5% TB and 1% MB yielded the best and second-best staining conditions. Furthermore, 1% MB has been most commonly used in previous studies [18,19,22,23]. Therefore, 0.5% TB and 1% MB were used for the staining examination of SNADETs.
The 20 patients were randomly and evenly allocated 1:1 to the 2 staining groups (MB and TB) by the envelope method. Ten SNADETs were stained by 1% MB and 10 by 0.5% TB. The staining solution was applied to the SNADET lesions with a spray catheter and excess dye was removed through suction. This staining procedure was repeated up to 3 times when the lesions could not be stained adequately.
Fig. 1 demonstrates typical normal villi on ECS images and microphotograph, respectively. Fig. 2 shows representative ECS images and microphotographs of SNADETs, tubulovillous and tubular adenocarcinoma in situ (Category 4.2), respectively.

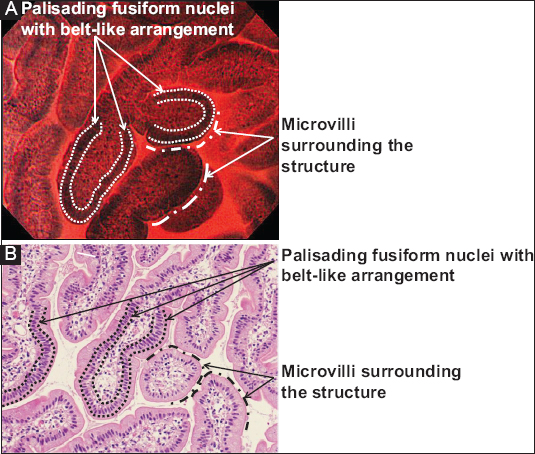

Figure 1 (A) A typical endocytoscopy (ECS) image of duodenal normal villi stained by 0.5% toluidine blue. (B) A microphotograph shows a horizontal section view of normal duodenal mucosa with hematoxylin-eosin (H&E) staining; the 2 images are substantially identical in demonstrating villous structures covered with microvilli (transparent marginal zone in ECS and fine pinkish line in H&E section) and foveolar epithelial cells having palisading fusiform nuclei with belt-like formation. The microvilli can be seen along with broken lines and the palisading nuclei between the dotted lines in the ECS image and microphotograph

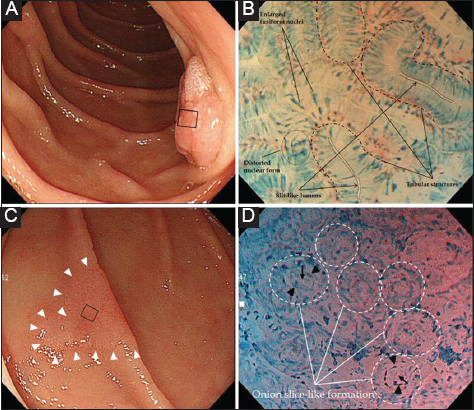

Figure 2 (A) A protruded lesion with a rough surface is seen in the second portion of the duodenum. (B) Endocytoscopy images after spraying 1% methylene blue solution for the small lesion area (black square in A). At maximum magnification, endocytoscopy visualizes irregularly-formed tubular structures with a slit-like lumen and enlarged fusiform nuclei, or distorted nuclei with a loss of polarity. Histology of an endoscopic resection specimen shows tubulovillous adenocarcinoma confined to the mucosal layer (noninvasive carcinoma, Category 4.2). (C) A slightly erythematous lesion with marginal elevation (arrowheads) is seen in the second portion. (D) An endocytoscopy image stained by 1% methylene blue solution. Maximum magnification of the small lesion area indicated by the black square in (C), a glandular structure with a small lumen (arrows) surrounded by distorted nuclei (arrowheads) appears as an onion ring-like formation. Histology of the endoscopic resection specimen showed a tubular adenocarcinoma in situ (Category 4.2)
Evaluation of ECS images
Rationale for determining evaluation categories
Quality of image is important for the precise evaluation of ECS images. Pathologists establish a histological diagnosis of noninvasive epithelial neoplasia based on nuclear and structural atypia. It is essential for ECS to visualize microstructure and nuclei. We therefore defined 3 evaluation categories as follows: general image quality, structure, and nuclei.
Rating system (Fig. 3)
Prior to the present study, 3 endoscopists (KG, NY, and AD) and one pathologist (MI) reviewed 5 ECS images of duodenal normal mucosa and 10 images of SNADETs, excluding all images from the image evaluation phase. They defined representative ECS findings of normal villi and SNADETs. Based on the representative ECS findings, they developed criteria for evaluating staining conditions.
Evaluation categories: 1. general quality, 2. structure, and 3. nuclei
Evaluation criteria and scoring method (Fig. 3)

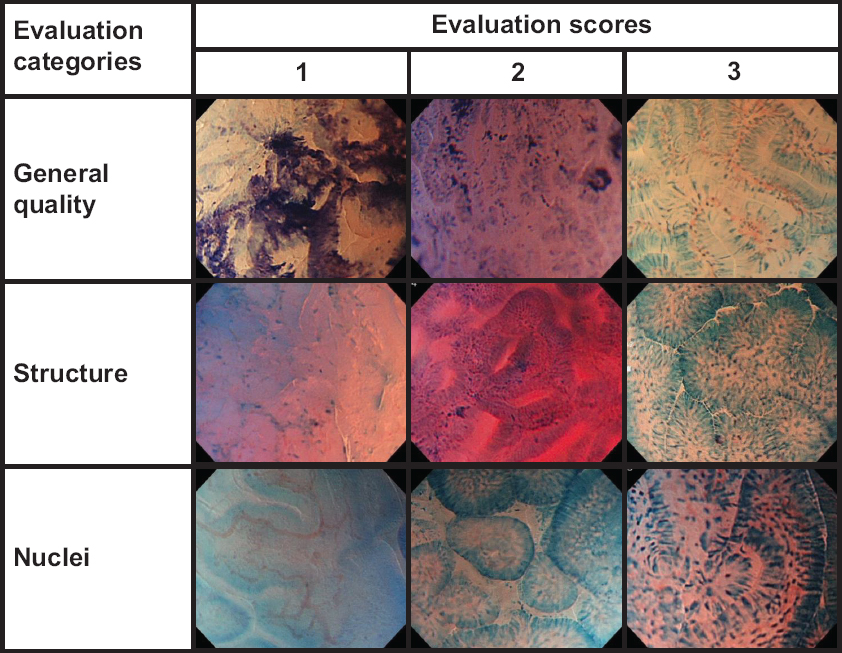

Figure 3 Representative endocytoscopy images corresponding to each score and category for reviewer’s evaluation
“General quality” was evaluated based upon focus, optical noise, degree of staining, evenness of dyeing, and inappropriate dyeing, such as foreign matter staining.
“Structure” was evaluated based upon the visibility of cytoplasm of villi and microvilli, and abnormal structure (tubular/glandular, irregular, or disrupted pattern) in SNADET lesions.
“Nuclei” were evaluated based upon the visibility of palisading fusiform nuclei or punctiform nuclei in the evaluation of normal villi and abnormal nuclear shape (enlarged and/or distorted form) in SNADET lesions.
A 3-point visual analog scale for reviewers’ evaluations and scoring was rated as follows: 1, “Poor” (not interpretable or invisible); 2, “Moderate”; 3, “Good” (interpretable or visible). These corresponded to evaluation scores of 1, 2, and 3 points, respectively.
Preparation of image files
The endoscopist (NY) who performed all the ECS inspections took several images of each normal duodenal site and SNADET lesion. The endoscopist created 2 image catalogs for evaluating normal villi and SNADETs as follows. The ECS images were all stored and divided into 2 image groups: a normal villi group and a SNADET group. Each of the 2-image groups was subdivided into image files corresponding to the respective staining procedure (e.g., an image file of normal villi stained by 0.5% TB). Thus, image groups contained 27 (each dye × 3 concentrations × 9 patients) and 20 (2 dyes × 10 lesions) image files for normal villi and SNADETs, respectively. Each file that included several images was numbered separately for blinded evaluation, using randomly assigned numbers from a randomization table created by a computer program (Excel 2010, Microsoft Corp., Redmond, USA). No information about the dye solution and its concentration was displayed on the images and files.
Evaluation of staining conditions
In the review of the image files of normal villi, 2 endoscopists (KG, and AD) and a pathologist (MI) evaluated the staining conditions. In the evaluation of the image files of SNADETs, an endoscopist (KG) and a pathologist (MI) assessed the staining conditions. One endoscopist (AD) was excluded from reviewing the image file of SNADETs because he was considered to have inadequate knowledge of the microscopic morphologic features of SNADETs.
Three reviewers (KG, AD, and MI) and 2 reviewers (KG and MI) assigned scores to the 3 evaluation categories of 27 (sites of normal villi) and 20 (SNADETs) ECS image files, respectively. In evaluating an image file of normal villi, each of the 3 reviewers gave an evaluation score to each of the 3 evaluation categories for each of the 3 sites stained by a dye solution. Each of the 9 dye solutions consequently received 27 evaluations in total (Table 2). Evaluation of SNADETs was more complicated than that for normal villi. Hence, the 2 expert reviewers (KG and MI) mutually agreed upon and gave only one evaluation score to each of 3 evaluation categories for each of 10 SNADETs. Each of the 2 dye solutions consequently received 30 evaluations in total (Table 4).

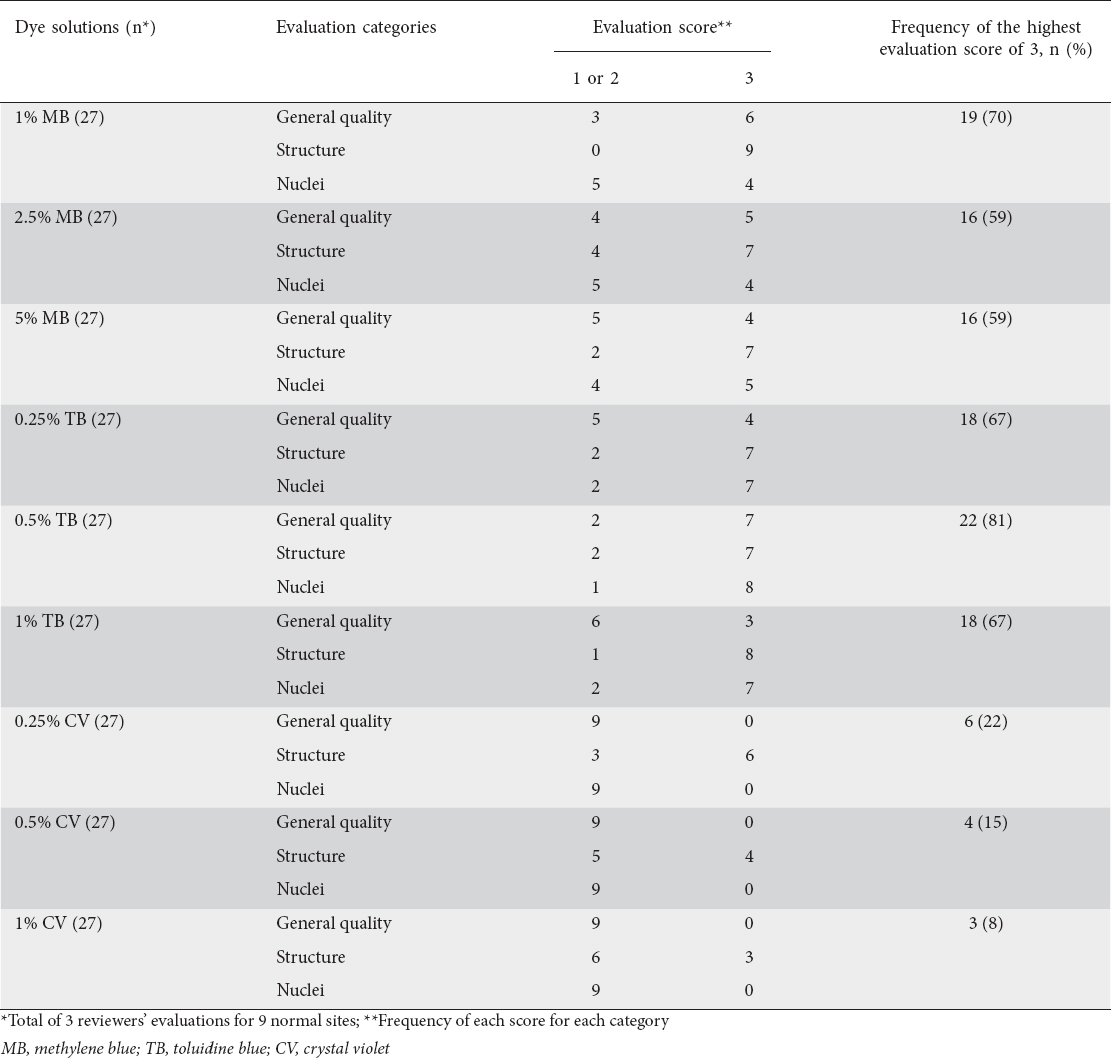

Table 2 Evaluation results for normal duodenal villi

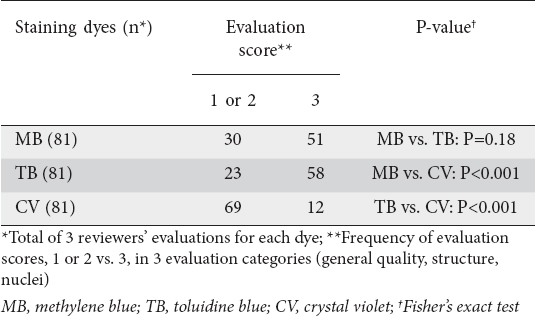

Table 3 Comparison of evaluation results for normal duodenal villi using 3 staining dyes

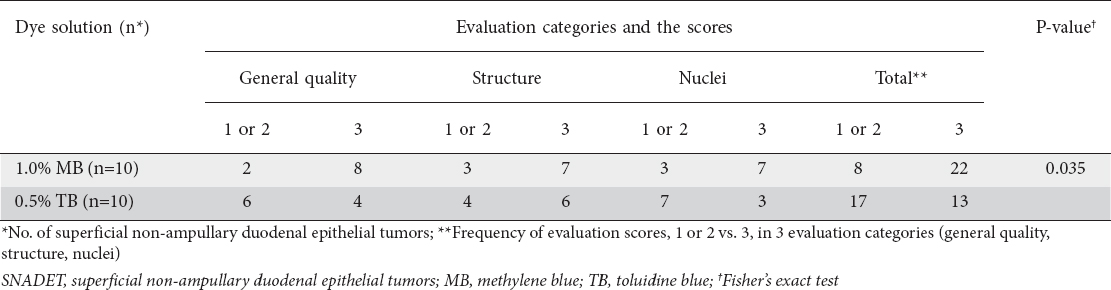

Table 4 Evaluation results of 20 superficial non-ampullary duodenal epithelial tumors
Histologic diagnosis of normal ECS sites or SNADET lesions was established by an expert GI pathologist (MI) using biopsied tissues or endoscopically resected specimens. The pathologist was blinded to the information about the ECS findings. SNADET lesions were histologically graded as follows: LGD, HGD, or adenocarcinoma, corresponding to category 3, category 4.1, and category 4.2 to 5, respectively, in the modified Vienna classification . SNADET was defined as a combination of LGD, HGD, and adenocarcinoma, in which invasion was confined to the submucosal layer .
We calculated the frequencies and proportions of the individual scores of evaluation categories for each dye solution. In the statistical analysis, we divided the evaluation scores into 2 groups, “1 or 2” and 3, to avoid small data pools for some evaluation categories. Quantitative parameters were compared using Student’s t-test, while qualitative parameters were compared using Fisher’s exact test or one-way ANOVA. Statistical significance was defined as a 2-tailed P-value of <0.05. All statistical analyses were performed using EZR (Saitama Medical Center, Jichi Medical University, Saitama, Japan), a graphical user interface for R (The R Foundation for Statistical Computing, Vienna, Austria).
Table 1 lists the characteristics of patients. There were no significant differences among the MB, TB, and CV groups as regards age or sex. Typical ECS images of normal duodenal villi stained by 9 dye solutions are shown in Fig. 4. Table 2 shows that the highest score of 3 (Good) was most frequently given to 0.5% TB for general quality of image and visibility of nuclei (n=7 and 8, respectively) and to 1% MB for structure (n=9). Of the 3 staining regimens, 0.5% TB obtained the most top scores of 3 (Good) (22/27, 81%), followed by 1% MB (19/27, 70%). In the CV group, no reviewer gave the highest score of 3 (Good) for 2 of the evaluation categories, general quality and nuclei. MB and TB showed significantly higher scores compared with CV in the overall reviewer’s evaluation (P<0.001 and P<0.001, respectively, Table 3).

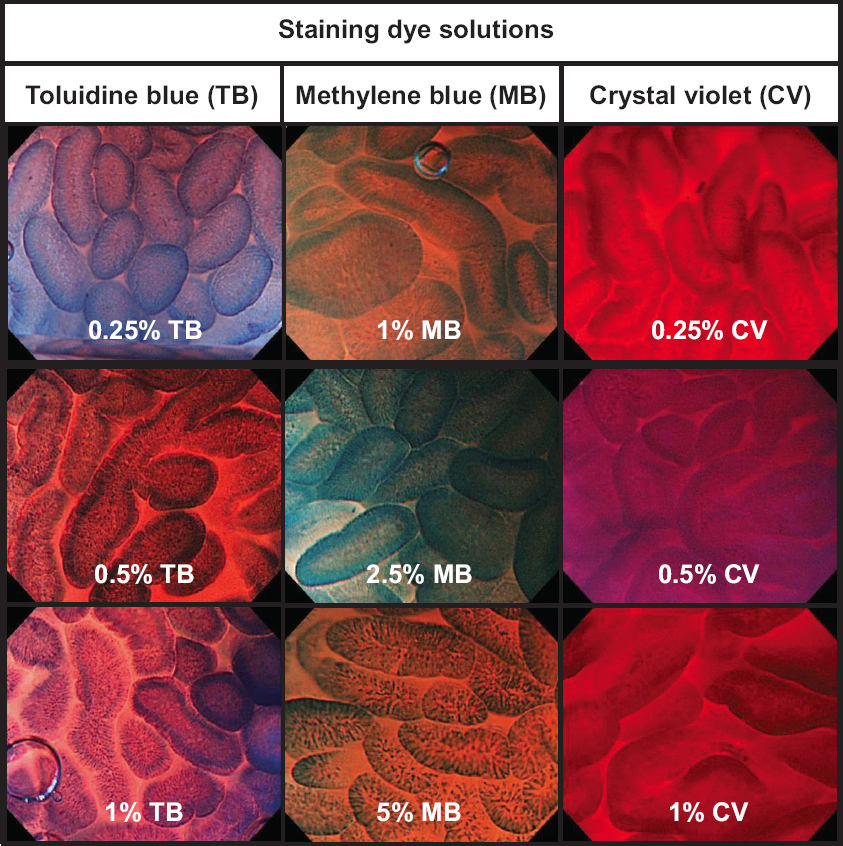

Figure 4 Typical endocytoscopy images of normal duodenal villi stained by 9 dye solutions
No significant difference in the baseline data of patients with SNADETs (age, sex, location, diameter, macroscopic type, and histology) was found between the 1% MB and 0.5% TB staining groups. Table 4 indicates that 1% MB achieved a significantly higher score compared with 0.5% TB (P=0.035) in all evaluation categories (general quality/structure/nuclei).
No patients experienced complications or adverse reactions related to the ECS examination.
This preliminary study was conducted to investigate the most appropriate dye solution regimen to optimize staining conditions for ECS in the duodenum. The results for normal villi showed that the highest score of 3 (Good) was most frequently given to 0.5% TB, followed by 1% MB. In the evaluation of SNADETs, 1% MB achieved a significantly higher evaluation score compared to 0.5% TB.
A previous study explored an appropriate staining regimen for ECS in the esophagus, stomach and colon, but not in the duodenum . Additionally, the study was mostly conducted ex vivo using porcine organs. Two studies investigated the feasibility of ECS using 1% MB to diagnose celiac disease, whereas none of the studies mentioned a reason to use 1% MB for ECS in the duodenum. This is the first study to evaluate an appropriate regimen of dye solution for ECS in vivo for normal villi and superficial epithelial tumors in the duodenum.
The previous study using porcine organs showed that the most appropriate dye was 1% MB for the esophagus, and 0.25% TB for the stomach and colon . Considering the lumen of the duodenum is covered with a columnar epithelium similar to the stomach and colon, it seems reasonable that TB received the highest evaluation score for normal villi in this study. The best concentrations of TB in this study were higher than those in the previous ex vivo study using resected porcine specimen (0.5% vs. 0.25%). We deduced that the different concentrations would be associated with different part of the digestive tracts (duodenum vs. stomach and colon) and their mucous secretions, which would have been influenced more directly under in vivo than under ex vivo staining.
As in the previous study , this study demonstrated that CV was considerably inferior to MB and TB for staining normal villi adequately, especially as regards the visibility of nuclei. Although the reason is not clear, CV cannot be used as a staining dye for optimizing ECS observation in the duodenum, in contrast to ECS studies that used a double-staining technique (CV and MB) in GI tracts other than the duodenum [14-16,21]. Further studies are needed to investigate which double-staining technique (CV and MB versus MB and TB) is more appropriate for optimizing ECS observation in the duodenum.
An experimental study showed that the damage to DNA is increased in Barrett’s mucosa after chromoendoscopy with 0.5% MB, and that the effect was dependent on the presence of both MB and the white light illumination of the endoscope . The results suggested that exposure of Barrett’s mucosa to DNA damage during endoscopy warrants caution since it could accelerate carcinogenesis. This adverse effect of MB staining seems to be speculative and has not been validated in living cells other than Barrett’s esophagus. No study has shown DNA damage related to the use of TB and CV for vital staining in GI tracts. Further studies may be needed to explore the lowest concentration of dye solution needed to stain the tissue adequately, or to develop novel techniques that do not require the use of dye.
As with ECS, confocal laser endomicroscopy (CLE) can offer real-time in vivo observation of living cells during conventional endoscopic observation [27,28]. Intravenous fluorescein is usually used for CLE to contrast cellular structures, but fluorescein does not stain nuclei. ECS may have an advantage in allowing the observation of both cellular and structural atypia in neoplastic lesions, because the histological diagnosis of neoplasia is established depending on the degree of cytological and structural atypia. A prospective randomized non-inferiority trial indicated that ECS was non-inferior to standard biopsy for the discrimination of colorectal neoplastic lesions .
The results of this study provide valuable information about an appropriate dye solution for optimizing the ECS observation of normal villi and epithelial tumors, because no previous study explored a suitable dye solution or its concentration for ECS in the duodenum. Several limitations should, however, be acknowledged. First, this is a preliminary single-center study implemented by a small number of reviewers and patients, even though SNADETs are rare. Further definitive, fully powered multicenter studies are warranted to validate these study results. Second, ECS images were evaluated in an offline manner using still images rather than real-time images. Although real-time evaluation is important, we used still images so that the reviewers’ evaluation could be made in an unbiased manner (i.e., reviewers were blinded to the kind of dye used). Third, this study did not measure the times required to adequately stain normal villi or SNADETs. A further in vivo study to determine the staining time is needed, because it would affect the estimation of the application of ECS for practical endoscopy.
In conclusion, the findings of this preliminary study suggest that 0.5% TB and 1% MB are appropriate dye solutions to optimize staining conditions for the ECS observation of normal villi and SNADETs, respectively. A further in vivo ECS study is needed to validate the suggestion.
