A 69-year-old woman with medical history of endoscopic variceal ligation (EVL) of hemorrhagic duodenal varices at another hospital was transferred to our institution with hematemesis. Gastrointestinal endoscopy revealed a flat, scarred, post-EVL lesion in the second section of the duodenum (Fig. 1A). There were no other hemorrhagic lesions. Endoscopic ultrasound (EUS) revealed duodenal varices in the submucosal layer under the post-EVL lesion (Fig. 1B). Therefore, hemorrhage from recurrent duodenal varices was suspected. We performed endoscopic injection sclerotherapy (EIS) using a mixture of 1.5 mL N-butyl-2-cyanoacrylate (CA) and 0.5 mL Lipiodol at the post-EVL lesion (Fig. 1C). X-ray and computed tomography after EIS showed that the injected CA occupied the duodenal varices (Fig. 2A,B). No rebleeding was observed after EIS.

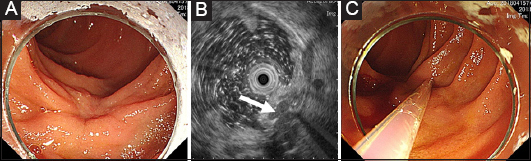

Figure 1 (A) Gastrointestinal endoscopy revealed a flat, scarred, post-endoscopic variceal ligation (EVL) lesion in the second section of the duodenum. (B) Endoscopic ultrasound revealed duodenal varices (arrow) in the submucosal layer under the post-EVL lesion. (C) Intravariceal injection of cyanoacrylate into the duodenum

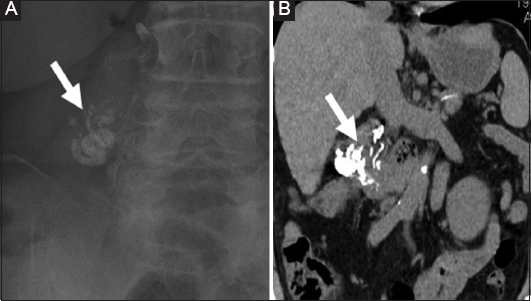

Figure 2 X-ray (A) and computed tomography (B) after endoscopic injection sclerotherapy showed that the injected N-butyl-2-cyanoacrylate occupied the duodenal varices (arrow)
Management of hemorrhage from duodenal varices can be challenging because of the difficulty of treatment. Endosco-pic procedures, such as EIS with CA, EVL and clip, are less invasive compared to surgery or interventional radiology [1,2]. EUS can improve the detection and diagnosis of duodenal varices and collateral veins, and can facilitate the intravariceal injection of duodenal varices by techniques such as EIS. EUS is useful for revealing recurrence and helps in the management of duodenal varices.
