Introduction
Esophageal varices are portosystemic collaterals developed in cirrhotic patients with portal hypertension. Every year, a percentage of patients with cirrhosis (3-12%) develop esophageal varices and in 8-12% of patients, progression from small to large varices is detected. Spontaneous regression of small esophageal varices can also be observed, mainly following alcohol abstinence in alcoholic cirrhosis [1,2].
In the setting of variceal bleeding a 6-week mortality rate of 11.1-40% has been reported [3,4]. The presence of red spots, the size of varices, and the severity of cirrhosis are considered to be the most important predictors of variceal bleeding [5]. Treatment with β-blockers can diminish the probability of bleeding by 50% in patients with medium and large varices [6,7]. At present, the method of choice for identifying the presence and estimating the size of varices is esophagogastroduodenoscopy (EGD). The disadvantages of EGD include the complications associated with endoscopy, especially the need for intravenous sedation [8] and the relatively high cost [9]. These drawbacks have driven the research for new methods of variceal detection. Several minimally or non-invasive methods have been proposed as alternatives to EGD for screening for esophageal varices. The updated Baveno VI guidelines [10] recommend that screening EGD can be avoided in patients with compensated advanced chronic liver disease (cACLD) who have liver stiffness <20 kPa and a platelet count >150,000/μL [10].
Non-invasive methods also currently have a distinct role in clinically significant portal hypertension (CSPH) in patients with cACLD [10]. In patients with viral-related cACLD non-invasive methods are sufficient to rule-in CSPH, defining the group of patients at risk of having endoscopic signs of portal hypertension. Liver stiffness measured by transient elastography (TE) (20-25 kPa) can be used alone or in combination with platelet count and spleen size [10,11]. Additionally, collateral circulation identified on imaging is sufficient to rule-in CSPH in patients with cACLD of all etiologies. Non-invasive methods do not yet have a well-established role in the follow up of patients with varices.
The purpose of this review is to summarize the accuracy, advantages and disadvantages of non-invasive methods of screening for esophageal varices, focusing on the evidence that exists in the literature as regards avoiding screening by EGD in certain groups of patients.
Materials and methods
We performed a literature search of PubMed, EMBASE, Web of Science, and CENTRAL in the Cochrane Library from 01/2000 to 01/2017. The key words used were “(fibroscan OR transient elastography OR stiffness OR computed tomography OR magnetic resonance OR platelet spleen ratio OR Doppler OR capsule endoscopy OR ultrasound) AND varices”. The search was conducted independently by three reviewers (CT, AK, and CK). All manuscripts that compared non-invasive or minimally invasive methods of screening for esophageal varices to EGD were studied. We excluded studies not written in English and studies in children, and included only studies concerning esophageal varices. The references of each full-text article were also reviewed carefully to include studies that met the inclusion criteria. A critical review of the literature was then performed. The studies judged most important, based on the number of patients, methodology, and outcomes, were included in the final review. Special attention was given to the studies validating Baveno VI guidelines. All disagreements were resolved after full discussion within the group of researchers.
The non-invasive methods of screening for esophageal varices investigated are presented in Fig. 1. The accuracy of each of these methods is analyzed in this review. Emphasis is placed on larger-scale studies and meta-analyses. The presence and the cause (if identifiable) of any false-positive or false-negative results are discussed for each method. Finally, the potential of other methods, apart from liver elastography and platelet count, to serve as a screening method that could replace elastography is elaborated.

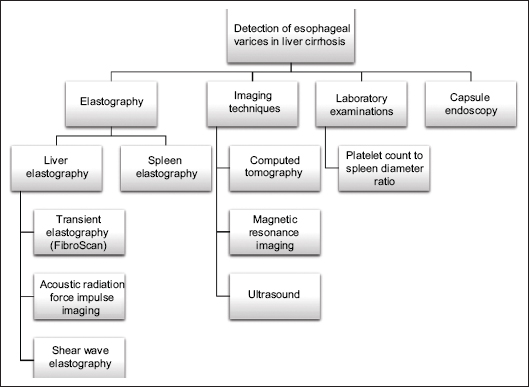

Figure 1 Diagnostic non-invasive methods for the detection of esophageal varices in patients with liver cirrhosis
Results
Elastography
At present, there are three different elastography techniques that measure liver and spleen stiffness. TE (FibroScan) uses a mechanical wave generated by a special transducer, while acoustic radiation force impulse imaging (ARFI) and shear wave elastography (SWE) use sound waves. TE has technical limitations, of which the main ones are ascites, obesity, and narrow intercostal spaces. Although there are new probes that have improved TE in obese patients [12] and patients with narrow intercostal spaces, such as children [13], TE remains unfeasible in patients with ascites [14]. ARFI and SWE have partly overcome these limitations and have shown higher success rates [15-19]. The diagnostic accuracy of all three methods is similar, but TE has been validated in more studies. The above methods have been used to correlate liver and spleen stiffness with the presence of varices.
Liver elastography
Liver stiffness has been proposed as a non-invasive surrogate marker for the presence of esophageal varices and many related studies have been conducted using TE, ARFI or SWE. The reported accuracy in most studies is satisfactory, although it is clear that both liver and spleen elastography are methods that only indirectly estimate the presence of varices, by evaluating the mechanical properties of the liver or spleen, and do not directly appreciate the hemodynamics related to the creation of varices. Nevertheless, a strong correlation between increased liver stiffness and the presence of large varices has been supported.
TE
A recent meta-analysis [20] that evaluated the accuracy of TE in the prediction of esophageal varices has shown pooled sensitivity and specificity of 84% and 68%, respectively, for the detection of large varices in patients with liver cirrhosis. The positive and negative likelihood ratios were 2.58 and 0.24 respectively. The results of another meta-analysis were similar, with a pooled sensitivity and specificity of 81% and 71%, respectively, for the detection of large varices and positive and negative likelihood ratios of 2.63 and 0.27 [21]. The use of liver elastography as a single test in clinical practice remains limited because of the great variety of the cutoff values that have been used for the prediction of the presence of varices, which range from 13.4-29.7 kPa. Additionally, the reported sensitivity and specificity of the method varies considerably among studies, ranging from 64 to 96% and from 44 to 100%, respectively [20-23]. The positive and negative likelihood ratios vary from 1.23 to 26.54 and from 0.05 to 0.75, respectively. Results are more encouraging for the detection of large varices, with sensitivity varying from 77 to 100%, specificity from 60 to 87%, positive likelihood ratio from 1.65-5.79 and negative likelihood ratio from 0-0.48. However, the cutoff values that have been used again exhibit considerable variability, ranging between 16.6 and 38.2 kPa [20,21]. Applying the cutoff value (<20 kPa) proposed by BAVENO VI to elastography (as a single test) for the detection of large varices in patients with viral hepatitis yielded a sensitivity of approximately 83% and a negative predictive value of 66.7%, not sufficient to rule out varices [24].
ARFI
ARFI has also been proven to have high sensitivity and specificity for the detection of varices and the diagnosis of portal hypertension, reaching 84% and 88%, respectively [25]. High diagnostic accuracy has been reported for the combination of ARFI and spleen diameter/platelet count ratio, with sensitivity and specificity of 90% and 94.3% and negative predictive value of 98.3% for the detection of high risk varices, using a cutoff value of 2.83 [26].
SWE
There are few studies with measurement of liver stiffness by SWE, but they have shown promising results, with sensitivity and specificity up to 83% and 66%, respectively [27-29]. Furthermore, a prospective study that directly compared the accuracy of SWE and TE in the detection of varices reported SWE to be superior [15].
The combination of liver stiffness with platelet count increases the accuracy of the method and is incorporated in the BAVENO VI guidelines [10]. BAVENO VI guidelines focus on large varices requiring treatment and report that patients with liver stiffness <20 kPa and platelet count >150,000/μL demonstrate a very low risk of having varices that need treatment; thus, they can avoid screening endoscopy. These guidelines have been validated recently by retrospective studies [30-32] and a meta-analysis [33]. Among the studies included in the meta-analysis, only one was prospective [33]. The above studies have shown negative predictive value above 95% for the combination of liver stiffness measured by elastography and platelet count. Apart from the satisfactory sensitivity, the recent studies confirmed the threshold of 20 kPa for liver stiffness and 150,000/μL for platelet count, with one exception in which a threshold of 25kPa and 100,000/μL platelets was proposed [34]. Nevertheless, the specificity and positive predictive value of the combination of liver stiffness and platelet count is low (29.6% and 13.7 respectively) [33].
In other studies, liver stiffness has been combined with spleen size and platelet count and yielded sensitivities and specificities of 70-86.3% and 86.2-89.6%, respectively [35,36], not reaching the sensitivity of the studies combining only liver stiffness with platelet count.
Spleen elastography
Spleen elastography has emerged lately as a new approach for the detection of esophageal varices, with several studies showing high accuracy [37-42]. Although it is not included in the BAVENO VI guidelines, it has been reported to be superior to liver elastography in several studies that compared both methods in the same group of patients [43-45], with the limitation that it is not an accurate predictor for the presence of varices in alcohol-related cirrhosis [43]. The superiority of spleen elastography compared to liver elastography has been validated in a recent meta-analysis by Ma et al [46], who reported a pooled sensitivity of 88% vs. 83% and a pooled specificity of 78% vs. 66%, respectively. The diagnostic odds ratio of spleen stiffness (25.73) was significantly higher than that of liver stiffness (9.54). A high negative predictive value could be achieved with a cutoff value of 18.9 kPa, even in a study that showed the method to have only moderate accuracy [47]. When combined with liver elastography it can reach a negative predictive value of 100%, important to define the group of patients that can avoid EGD [48]. Only two studies have reported moderate accuracy of spleen elastography for the detection of varices [49,50].
The technical limitations of liver elastography also apply to spleen elastography. Dedicated devices or software are required, and obesity and ascites may not allow reliable measurements to be obtained. Moreover, because of the small spleen size in some patients, it may be difficult for the operator to obtain good imaging of the splenic parenchyma [51].
In conclusion, spleen elastography appears to be a reliable method with high negative predictive value for the presence of varices. Further evaluation, especially in combination with platelet count and liver elastography, may allow the use of spleen elastography in the future as a screening test, so that EGD can be avoided in patients with negative spleen elastography results.
Imaging techniques
Computed tomography (CT)
CT is an imaging modality widely used in cirrhotic patients [52], vastly contributing to the diagnosis and management of the complications of cirrhosis, such as hepatocellular carcinoma (HCC). CT allows direct visualization of esophageal varices after intravenous contrast administration, as serpiginous vessels that protrude in the lumen of the lower esophagus. CT also depicts portosystemic shunts in the abdomen, including periesophageal and perigastric veins [53,54]. Although the detection of varices is usually straightforward, it can be challenging to discriminate submucosal from subserosal esophageal varices, and this can be the cause for false-positive and false-negative CT results [53].
CT has been compared to EGD in several studies. Two recent meta-analyses have shown a pooled sensitivity and specificity for the detection of esophageal varices of approximately 89.6% and 72.3% [55], and 87% and 80% [56], respectively. The sensitivity for the detection of large varices was high in all studies and the pooled sensitivity and specificity for large varices in a meta-analysis by Deng et al was 87% and 88%, respectively [56]. The positive and negative predictive value for the detection of large varices in the same meta-analysis was 86% and 90%, respectively.
CT can be a good alternative for the detection of varices in cirrhotic patients with HCC, already undergoing locoregional treatments. The effectiveness of the treatment and the presence of recurrence are evaluated by CT in these patients and Kim et al [43] showed high sensitivity and specificity rates for the detection of esophageal varices (91.9% and 92.2%, respectively) without alteration of the CT protocol.
In the meta-analysis by Tseng et al [55] it was suggested that CT technology (multidetector vs. <16 detector CT) may be a reason for the variability among the published results. Nevertheless, the efficacy of standard thick-slice CT, especially for the detection of large varices, was demonstrated by two studies [57,58], without thin slice reconstruction adding accuracy. In addition, like ultrasonography, CT is also an operator-dependent method, but radiologist residents and endoscopists showed similar performance to specialized abdominal radiologists in the detection of large varices. Abdominal radiologists were more efficient in the detection of small varices compared to residents and endoscopists [59].
In the only study directly comparing CT with the platelet/spleen diameter ratio, CT proved to have higher sensitivity and specificity [53]. This method is better tolerated than endoscopy and more readily accepted by patients, even in studies where air insufflation was used before performing CT [54]. Moreover, CT can be simultaneously used as a screening method for HCC and varices in cirrhotic patients. The main disadvantage of CT is the radiation dose, although, considering the high mean age of cirrhotic patients, the benefits are likely to outweigh the risk of radiation-induced carcinogenesis [60]. The cost of the method is higher compared to other non-invasive methods, but lower compared to endoscopy [61]. Additionally, intravenous contrast injection is required, which may be contraindicated in patients with impaired renal function or allergy to iodine.
Magnetic resonance imaging (MRI)
MRI has been evaluated for the detection of esophageal varices, but to a lesser extent compared to CT [62-64]. Direct visualization of esophageal varices by MRI is more challenging than with CT and movement artifacts are much more common. There are reports that detection of varices is feasible [62]. Intravenous injection of gadolinium yielded enhanced results [63,64]. The reported accuracy is not high (with a sensitivity of less than 81%) and in fact appears to be inferior to the accuracy of CT [65].
Magnetic resonance elastography (MRE) has been used to grade the severity of cirrhosis, with the advantage of full organ coverage [66] and low variability for stiffness measurement. Excellent interscan reproducibility [67-69] and inter-reader agreement [70] have been shown. Liver stiffness calculation by MRE with [71] or without [72] contrast-enhanced MRI [71] reached sensitivities of 88.9% and 96% and specificities of 56.4% and 60%, respectively. False-positive results are usually related to the presence of other portosystemic collaterals and false-negative results can occur because of iron deposition in the liver and the presence of large volume ascites [71]. In a study by Morisaka et al [73], MRE was able to discriminate the presence or absence of varices, but failed to distinguish patients with large varices from patients with small varices. Spleen stiffness measured by MRE has been shown to be more strongly correlated with the presence of large varices than with liver stiffness [74,75]. Available data have not demonstrated a clear benefit from the use of MRE compared to ultrasound elastography [71-73]. Additionally, the cost and duration of the examination are higher, and the equipment required is not available in most departments.
The apparent diffusion coefficient (ADC) of the spleen is a parameter that can be calculated simply from a single diffusion weighted sequence on MRI. Recently Razek et al investigated the correlation between the ADC value in the spleen and the presence of varices in cirrhotic patients [76]. There were statistically significant differences among normal volunteers, cirrhotic patients and cirrhotic patients with varices, and when cutoff values of 1.15 and 1.29 × 10-3 mm2/sec were used to separate these groups, the resulting areas under the curve were 0.872 and 0.889, respectively.
MRI has also been used to obtain measurements of liver size, and the ratio between the volume of the right lobe and albumin levels showed a sensitivity of 80% and a specificity of 83.5% for the detection of varices [77]. Finally, the presence of Gamna-Gandy bodies (splenic siderotic nodules) in the spleen has been positively correlated with the presence of varices, but the usefulness of this finding needs to be validated [78].
The use of MRI compared to CT has the advantage of the lack of ionizing radiation, but has more contraindications (pacemaker, metallic implants, claustrophobia). Its cost is relatively high, and the measurements of liver stiffness or liver dimensions did not produce better results compared to the studies performed by ultrasound. The correlation of the spleen ADC with the presence of varices is promising but has to be validated by more studies.
Doppler ultrasonography
Various indexes measured by Doppler ultrasonography have been proposed as non-invasive predictors of the presence of esophageal varices. In a study that compared several Doppler indexes [79], portal vascular resistance ([0.066 × splenic artery pulsatility index - 0.044] × portal blood flow), hemodynamic liver index (portal vein [PV] diameter/PV mean velocity) and splenoportal index (SPI = spleen long diameter × spleen short diameter/mean velocity in the PV) were the best predictors for the presence of esophageal varices, with sensitivities of 76%, 65% and 63% and specificities of 92%, 92% and 92%, respectively [79]. However, all these parameters failed to accurately predict the presence of large varices. Liver elastography in this study was superior to all the Doppler indexes and had a sensitivity and specificity of 95% and 100%, respectively, for the detection of varices. SPI has been proved to be a good predictor of the presence of varices in several other studies [80], with a sensitivity up to 96% [81] but relatively low specificity.
Among the other Doppler indices, the congestion index (CIx) of the PV, first described by Moriyasu [82], has been more widely investigated. This parameter represents the ratio between the cross-sectional area (cm2) and the blood flow velocity (cm/sec) of the PV: CIx = (pP2/4)/PV mean, where P is the PV diameter and PV mean represents the mean portal flow velocity [83]. Although the first results were promising for the detection of varices, large varices [84] and red spots [85], other studies failed to confirm these results [86] or demonstrated better predictive values for other indices, such as PV velocity [87].
To date, the role of Doppler ultrasonography remains to be determined and the optimal Doppler index varies among studies. Doppler ultrasonography has the disadvantage of being operator- and equipment-dependent; therefore, the potential for acquiring accurate and reproducible results in relation to the presence of varices is limited.
Contrast-enhanced ultrasound
In a recent study, contrast enhanced ultrasound was evaluated for the detection of varices [88]. Although direct visualization of esophageal varices was not feasible, the parameters measured yielded high sensitivity and specificity (96.9% and 90.0% respectively) for the detection of varices. Ultrasound has low cost and no ionizing radiation or iodinated contrast material so these promising results have to be validated by further studies [88].
Laboratory tests
A wide range of laboratory tests have been evaluated as predictors for the presence of varices. The most investigated parameter is the platelet count to spleen diameter ratio [89]. The advantage of this parameter is the fact that a constant cutoff value (909) has been used in most of the studies, which enables its use in clinical practice. A recent meta-analysis, which included 20 studies and 3063 patients [89], showed pooled sensitivities and specificities of 92% and 87%, respectively, at the threshold of 909, with a positive predictive value of 86% and a negative predictive value of 90%. These results have been validated in subgroups of patients with specific etiologies of cirrhosis, including hepatitis C [35,90] and schistosomiasis [91]. However, several studies failed to reproduce the above encouraging results [53,92-96].
The spleen volume and the right liver lobe volume, measured by MRI, have also been proposed in combination with platelet count as screening methods for the detection of esophageal varices [97], but the benefit of such a complicated measurement is doubtful, compared to the measurement of the spleen diameter by ultrasound. Additionally, the platelet count alone may predict the presence of large varices, although less accurately, which could be a cheap and readily available screening method in countries with limited resources [98].
In a comparative study of several parameters, the platelet to spleen diameter ratio and the PV diameter measured by CT were the most accurately predictive factors for the presence of large varices in cirrhotic patients with hepatitis C [99]. Various combinations of laboratory findings with demographic parameters and ultrasound parameters [100], serum liver fibrosis markers [101], or even fibrosis parameters from liver biopsy [102], have been shown to correlate with the presence of esophageal varices, but these results have not been validated. A meta-analysis of various non-invasive laboratory findings yielded only moderate accuracy, especially for large varices [99].
In conclusion, although correlations between several laboratory parameters and the presence of varices have been demonstrated, none were strong enough to allow detection of varices with a single laboratory test. As discussed in the section on liver elastography above, the combination of the platelet count with liver stiffness measurements has proven to be a valuable predictor of the presence of varices. Other laboratory measurements need further validation, especially in combination with liver stiffness, and may produce even better results in the future.
Capsule endoscopy
Wireless video capsule endoscopy was originally designed as a small-bowel imaging device. It was approved by the United States Food and Drug Administration in November 2004 as an alternative technique for the detection of esophageal varices [103]. The diagnostic pooled sensitivity and specificity in a recent meta-analysis of 17 studies [103] were 83% and 85%, respectively. The pooled sensitivity and specificity for the grading of medium to large varices were 72% and 91%, respectively. The diagnostic accuracy of this method, especially after taking into consideration its high cost [104], is moderate and not comparable to classic endoscopy.
The use of special strings attached to the capsule, which help control its movement, has yielded the highest accuracy [105]. The sensitivity and specificity in this study reached 96% and 100%, respectively. However, these results were not validated by another string capsule study, which showed sensitivity and specificity of 84% and 72%, respectively [106]. Nevertheless, it has been shown that string capsule endoscopy improves visualization of the distal esophagus, which may potentially have an impact on the detection of esophageal varices [107].
A more recent study using the PillCam capsule in 62 patients [108] showed even less satisfactory results, with a sensitivity and specificity of 92% and 50% for the detection of varices and 55% and 91% for the detection of large varices, respectively. Capsule endoscopy did not detect gastric varices in all 13 patients in the same study [108]. Capsule endoscopy was preferred to EGD by the patients [108,109], although a few patients in some studies had difficulty swallowing it [105,110,111]. Capsule endoscopy may have a role in cases of patient refusal or contraindications for EGD and may also improve compliance with endoscopic follow up, but the accuracy of the method remains moderate, despite the advances in the capsule technology. String capsule endoscopy needs to be further evaluated as it holds the potential to yield higher accuracy rates.
Discussion
The role of non-invasive parameters in the detection of esophageal varices in cirrhotic patients has drawn much attention in recent years. Many studies have been conducted: the most recent meta-analyses are presented in Table 1.

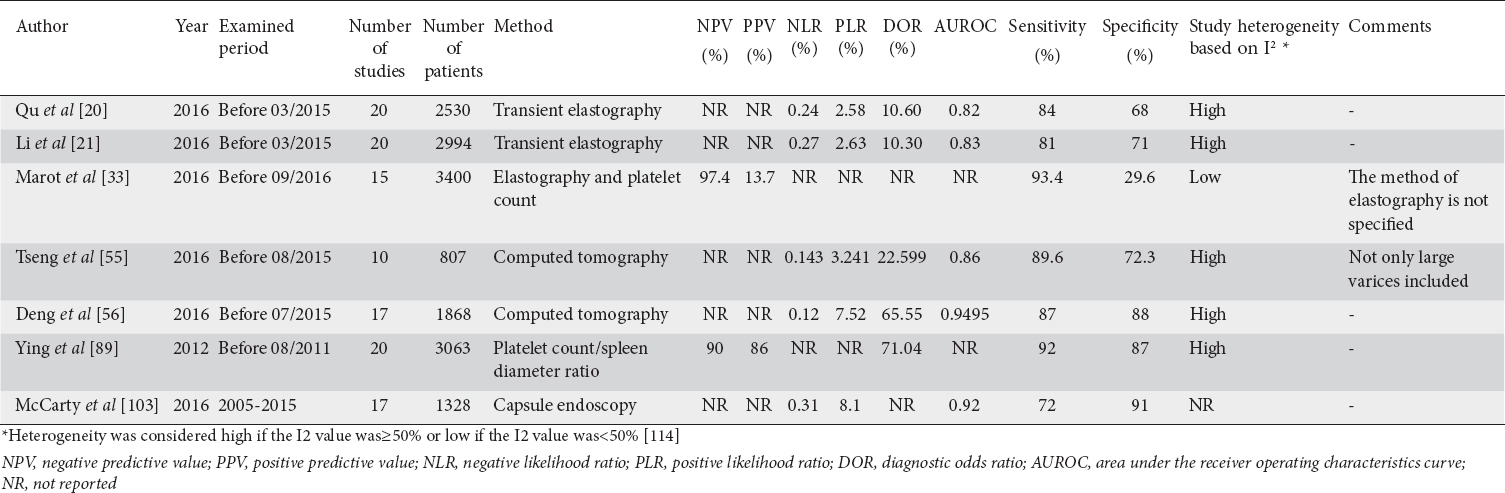

Table 1 Meta-analyses for the detection of large varices
In patients with compensated advanced chronic liver disease, the combination of liver stiffness and platelet count is used to rule out varices, as proposed by BAVENO VI guidelines. This is a great achievement that can reduce the cost and make surveillance for varices less stressful for the patients.
Although the combination of liver stiffness and platelet count, as proposed by the Baveno VI guidelines, is a highly sensitive test for the detection of esophageal varices, it has limited specificity. Further validation with large-scale prospective studies could also be useful. Furthermore, one method or a combination of methods that could reach a negative predictive value of almost 100% would further increase clinicians’ trust in these methods. Promising data were presented in a recent study by Augustin et al [112]; however, more data are needed to validate these results. A test that provided better specificity than the combination of liver stiffness and platelet count would allow EGD to be avoided in larger groups of patients.
The combination of spleen elastography with platelet count appears to be a reasonable choice, considering that spleen elastography has proven to have better accuracy compared to liver elastography in most studies that compared the two methods. If combined with liver elastography and spleen size, its accuracy could be further increased. The new elastography techniques (SWE, ARFI) may help further amplify the diagnostic value of elastography in either liver or spleen.
CT is the only imaging method that allows satisfactory direct visualization of esophageal varices. Although its accuracy in the detection of small varices is suboptimal, it is very precise in the detection of large varices and could be useful in patients not willing to undergo EGD. Stratification of patients according to FibroScan, platelet count and CT could help further increase sensitivity and specificity for the detection of varices; more studies in this direction are needed, considering that CT has not been combined with other tests until now. The ability of CT to detect early HCC could render it a valuable tool in the future for the surveillance of certain groups of cirrhotic patients. It is essential to underline the diagnostic capacity of CT for the detection of varices. Radiologists should report on the presence of varices in CT examinations of cirrhotic patients, even when performed for other reasons.
Capsule endoscopy, considering the advances in imaging technology, may serve as an alternative to patients who refuse to undergo a gastroduodenoscopy. However, it is an expensive method, relatively invasive, and its reported accuracy is not yet satisfactory.
Doppler ultrasonography has not shown encouraging results so far in the detection of varices and appears to be less accurate and more time-consuming than elastography. However, a recent study that evaluated the cost-effectiveness and the benefits of two-dimensional ultrasound for the detection of esophageal varices has shown that this technique could be a helpful, simple, and portable tool, saving time and money, and can be used routinely to screen esophageal abnormalities [113].
A recent study evaluated the development of risk prediction models for the detection of varices, based on non-invasive techniques applied in compensated cirrhotic patients [31]. The study showed that the liver stiffness to spleen/platelet score (LSPS) had high discrimination, but none of the non-invasive techniques identified patients with very low risk of all-size varices. However, both LSPS and a model that combined TE and platelet count identified patients with very low risk of varices needing treatment [31].
Emerging techniques that have not yet been adequately evaluated, but whose first results seem to be very promising, are diffusion-weighted imaging on MRI, calculating the ADC value in the spleen, and contrast-enhanced ultrasound. In particular, diffusion-weighted imaging is a single sequence on MRI, fast to perform, and without requiring intravenous contrast. Validation of the first promising results is needed and the combination of this method with other parameters, such as platelet count, needs to be considered.
Concluding remarks
Non-invasive methods, and specifically elastography, have provided alternatives for the surveillance of certain cirrhotic populations and there is evidence to support the Baveno VI guidelines and to avoid screening EGD in large groups of cirrhotic patients. However, this is an area that could still benefit from further research. Ideally, EGD in the future will be reserved mainly for therapeutic purposes; although this appeared unrealistic a few years ago, advances in technology and more prospective studies could make it feasible.
