Introduction
Vascular pathologies of the small and large bowel can be of venous or arterial etiology. Mesenteric ischemia is classified as acute (caused by thromboembolism or hypoperfusion) or chronic. The development of imaging technology has gradually increased the diagnostic rate of venous or arterial mesenteric ischemia. The standard care used to be open surgical repair, but in the last 15 years the development of endovascular procedures has introduced a minimally invasive treatment option [1]. In both chronic and acute settings, angioplasty and stenting have been successfully described for management of stenoses or occlusions [2].
Nowadays, apart from percutaneous transluminal angioplasty (PTA) and stenting, other endovascular techniques are available, including the use of intra-arterial thrombolysis, vasodilators and suction embolectomy. Endovascular therapy can potentially modify clinical outcomes in patients with acute bowel ischemia; however, given the relative infrequency of this disease, it is hard to obtain wide experience over a relatively short interval and only small case series are available in the literature.
The objective of this study was to review the management of acute mesenteric ischemia (AMI) with endovascular procedures and to determine the efficacy and recanalization rates, the incidence of complications, and the mortality, in order to provide an update on the current concepts in the management of this disease.
Materials and methods
Search and selection process
A comprehensive search of the English-language published literature was carried out through PubMed to identify all articles reporting acute arterial and venous mesenteric ischemia treated by endovascular therapy. The research was performed using the following medical subject headings (MeSH): “endovascular therapy and acute arterial mesenteric ischemia”, “endovascular therapy and mesenteric infarction”, “endovascular therapy and interventional radiology and acute mesenteric ischemia”, “endovascular recanalization and acut mesenteric ischemia”, “thrombolysis and thromboaspiration and acute mesenteric ischemia”, “stenting and angioplasty and acute mesenteric ischemia”, “endovascular therapy and acute venous mesenteric ischemia and occlusion”, “acute venous mesenteric ischemia and interventional radiology”, “acute venous mesenteric ischemia and endovascular recanalization”, “acute venous mesenteric ischemia and thrombolysis and thromboaspiration”.
At the first stage, only titles and abstracts were reviewed to select articles focusing on patients with AMI who had venous or arterial occlusion treated with endovascular therapies. Case reports, small series revisions and papers that contained data reported previously were excluded. At the second stage, all articles selected were reviewed in their full text version.
Articles were considered eligible for inclusion in the present review if at least one outcome of interest was described. In studies involving patients treated with a surgical or endovascular approach, only those treated by endovascular therapy were extracted. Additional studies were identified through manual research of the bibliographies from primary studies, review articles, and key journals.
Data extraction and analysis
Patients were assigned to acute arterial or acute venous ischemia groups, according to the nature of the mesenteric ischemia. The following variables were extracted, when available, from the included articles: number of patients, cause of occlusion, symptoms, arteries involved, number of sessions of treatment, technical success, clinical success, recurrence rate, complications, mortality rate, number of patients who underwent diagnostic laparoscopy or surgical resection of ischemic bowel. Data are reported as described in the studies: authors sometimes reported a range and/or a median value; sometimes a rate and/or a value is reported. Information not mentioned was classified as not available.
Before the extraction of data from the eligible studies, the following clear definitions of all outcomes of interest were established. Clinical success was defined as the frequency of successful treatment in each study. Technical success was defined as the restoration of flow in the treated vessels and their branches on the final angiogram, without any need for further re-intervention (endovascular or vascular surgical intervention), as clearly mentioned in each manuscript. Sometimes, particularly in acute thrombolysis, more sessions were necessary: in this latter case the final result was reported. Mortality was defined as early death before discharge due to persistent ischemia, complications related to persistent ischemia, or hemorrhagic complications related to massive anticoagulant therapy.
Results Eighteen papers met the inclusion criteria and were included in this systematic review. All the data collected by 12 studies focusing on acute arterial mesenteric ischemia are summarized in Table 1 [2-14], and the data obtained from 6 papers focusing on acute venous mesenteric ischemia are presented in Table 2 [15-20]. In Tables we analyzed all studies published during the selected period (2005-2016).

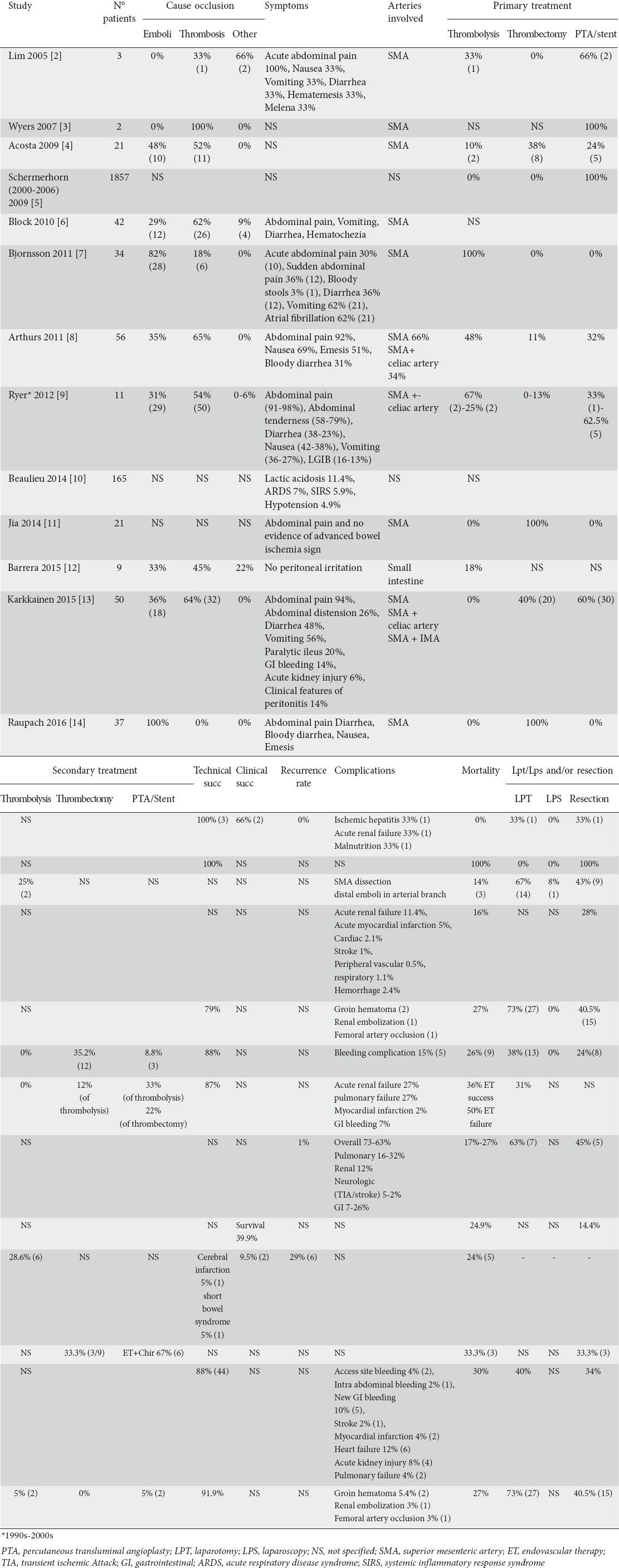

Table 1 Acute mesenteric arterial ischemia

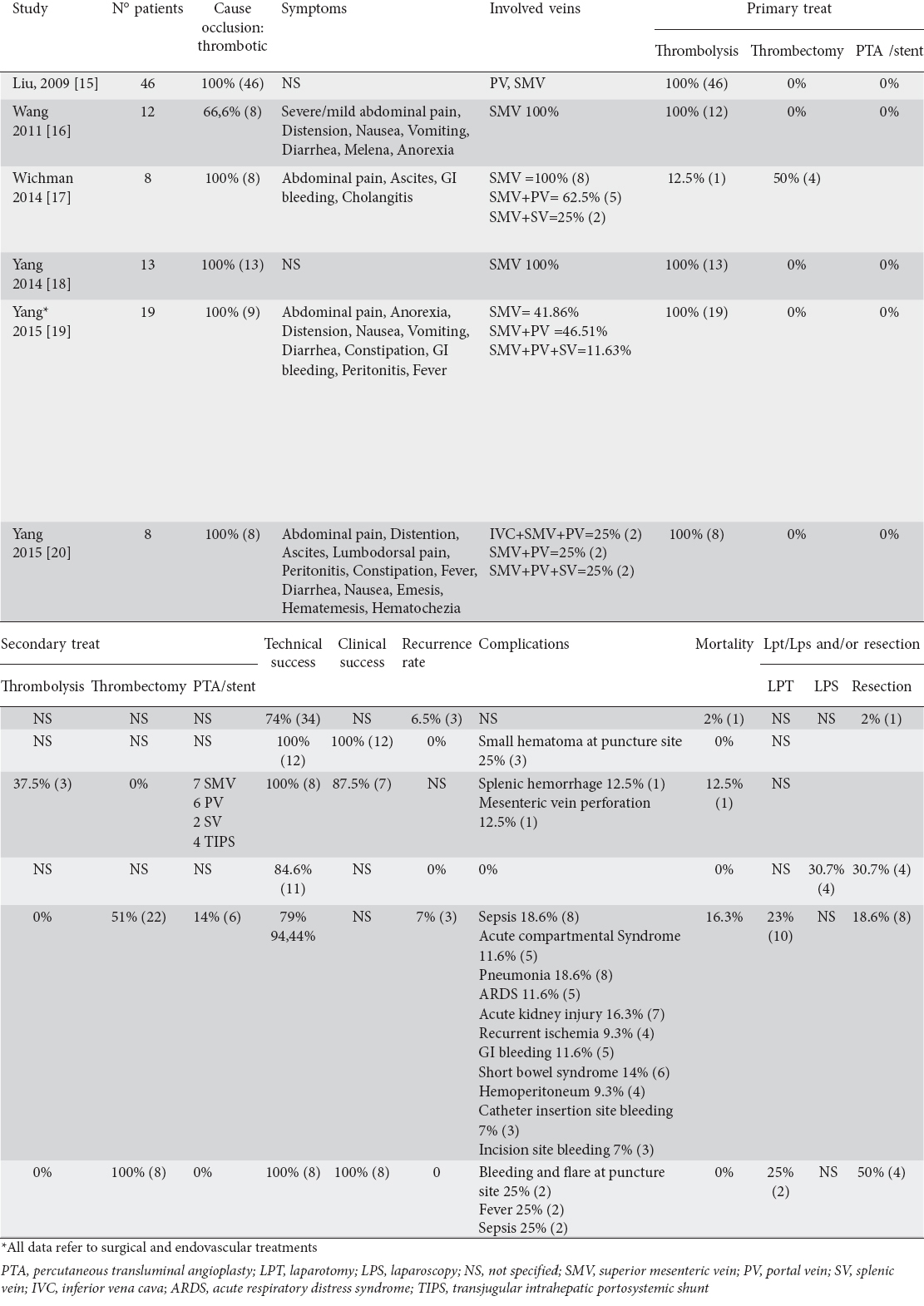

Table 2 Acute mesenteric venous thrombosis
Endovascular treatment of acute arterial mesenteric ischemia
AMI was predominantly caused by arterial emboli from cardiac arrhythmias (40-50%), thrombosis at preexisting lesions (25%) and other non-occlusive causes. The superior mesenteric artery (SMA) is the commonest site of thromboembolic occlusion, because of its oblique origin from the aorta [21]. Abdominal pain, vomiting and nausea were the most common presenting symptoms.
On the basis of the data in Table 1 [2-14], the technical success rate is high (up to 100%) and data regarding clinical success are encouraging, even though they are few and heterogeneous. The main reason for these different results is the heterogeneity of patients and their characteristics (age, clinical history, performance status, etc.) from center to center.
The study of Arthurs et al [8] represents the largest series of patients with AMI treated with endovascular therapy in one center. The investigators excluded patients with mesenteric venous thrombosis, non-occlusive mesenteric ischemia or ischemia associated with aortic dissection. They retrospectively evaluated 70 patients with AMI in whom endovascular revascularization was the preferred treatment (81%). The primary technique was thrombolysis infusion, which was used in 48% of the population. Thirty-two percent of patients were treated with primary PTA and stenting. Aspiration thrombectomy in conjunction with thrombolysis was performed in 12% of patients. Successful endovascular treatment was achieved in 87% of cases, and the mortality rate was 36%, compared with 50% (P<0.05) in patients treated with traditional therapy.
Acute renal failure, myocardial and cerebral infarctions, bowel ischemia and short bowel syndrome are the most common complications reported in literature.
Potential complications related to the endovascular procedure include access-related bleeding (e.g. hematoma, pseudoaneurysm) and vessel trauma that can lead to arterial dissection or atheroembolization. The use of distal embolic protection devices may mitigate the risk of bowel necrosis as a consequence of distal embolization, but there is a lack of data concerning their efficacy in the mesenteric circulation.
Endovascular treatment of acute venous mesenteric ischemia
Among the cases of AMI, mesenteric vein thrombosis (MVT) has an incidence of 6-9%, and the vein mainly involved is the superior mesenteric vein (SMV) [22].
In Table 2 [15-20] we present the literature from patients treated via an endovascular approach. So far, only small series are available; only a little over 100 patients have been treated. In the majority of published case series, the primary treatment was local thrombolysis; Wichman et al [18] treated 8 patients with symptomatic portomesenteric venous occlusion, using endovascular procedures such as aspiration thrombectomy, thrombolysis and stent placement.
On the basis of the few data available, the technical success rate has been reported to be between 74% and 100%. When reported, the clinical success rate is high (87.5-100%), with a low recurrence rate.
The most common complication is hemorrhage; some cases of sepsis were also described.
In most cases a surgical revision was performed and in some cases bowel resection was necessary.
Discussion
A key goal of endovascular therapy in AMI is to rapidly reestablish flow into the proximal arterial segments. The most appropriate therapy should be tailored according to the clinical symptoms, laboratory values and computed tomography (CT) findings. In some studies, primary endovascular therapy is applied with on-demand laparotomy for patients with mild or moderate clinical or laboratory signs of peritonitis [14]. Under these conditions, thrombolysis is associated with a greater risk of major bleeding from necrotic bowel. Thrombolytic therapy also increases the risk of potential early surgical revision. These represent the main reasons why adjunctive therapy was not applied in some studies. Series in which patients presented with early mesenteric ischemia recommend thrombolysis. Despite modern advances in current medicine, the early diagnosis of intestinal ischemia is still very difficult. In our daily practice, we often encounter patients with advanced mesenteric ischemia.
The most common percutaneous methods for AMI are aspiration thrombectomy, in which thrombus/embolus is removed by suction, and mechanical thrombectomy, using different automated devices for the fragmentation and removal of embolus [23]. Mechanical thrombectomy involves aspiration of embolus and massive thrombosis using a 6-Fr guiding catheter. Other thrombectomy techniques include: mechanical removal of the thrombus with the Rotarex system (Straub Medical AG, Wangs, Switzerland) or the Penumbra system [24], thrombolysis with a rheolytic system [25], or pharmacologic thrombolysis using the EKOS catheter [26,27]. Catheter-directed thrombolysis with urokinase is utilized if aspiration thrombectomy did not resolve the thrombus [28-30,13].
Balloon angioplasty is an alternative technique for clot fragmentation in cases of resistant thrombus. Published cases using percutaneous thrombectomy, with or without PTA, are rather low in number, but the results seem encouraging [31,32].
After removal of a thrombotic clot by aspiration, thrombolysis or angioplasty, treatment of the underlying stenotic or occlusive lesions can be achieved during the same session. Angioplasty and stenting, if performed early, have been shown to prevent intestinal infarction and obviate the need for laparotomy [33,34]. The hybrid approach facilitates endovascular intervention and represents a useful technique for the management of patients with AMI who require emergency laparotomy [35,36].
Wyers et al [3] drew attention to the benefits of combining laparotomy (direct bowel examination to confirm viability) with endovascular intervention (avoid the need for bypass grafting), particularly for patients who would otherwise require open surgical revascularization.
In cases of embolism, after the initial aspiration has failed, Raupach et al [14] currently tend to use direct surgical embolectomy of the SMA trunk and resection of necrotic bowel parts. This approach saves time and prevents a delayed diagnosis of bowel necrosis.
Acute embolic occlusion seems to be more suitable for thrombolytic therapy than thrombotic occlusions, because emboli typically are dislodged to the periphery of the SMA in an atherosclerosis-free segment and local pharmacologic thrombolysis has the potential to dissolve the clot completely, with minimal trauma to the occluded artery [37] (Fig. 1, A, B, C).

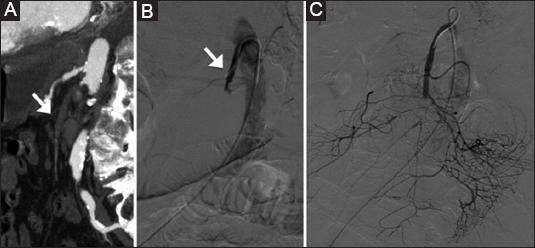

Figure 1 (A) Maximum intensity projection sagittal reconstruction of the contrast-enhanced computed tomography revealed thrombosis of the superior mesenteric artery (SMA) (arrow). (B) Angiography confirmed complete thrombosis of the SMA, with the tip of the catheter for local thrombolysis localized proximally to the thrombosis (arrow). (C) The angiogram obtained after thrombolysis showed acceptable revascularization of the artery and of its branches
Successful recanalization does not preclude laparotomy to check or resect the intestine. Dead bowel has to be resected before the patient falls into profound septic shock [36].
Endovascular treatment of acute venous mesenteric ischemia
Despite the lack of specific biomarkers or any insidious symptomatology profile, the incidence of acute superior mesenteric venous thrombosis (ASMVT) has increased in relation to the spread of contrast-enhanced CT; the portography phase facilitates early diagnosis with over 90% sensitivity [38].
As the overall mortality is still high (13-50% with traditional anticoagulation and bowel resection), the management of ASMVT remains a great clinical challenge [15]. In the literature, mortality ranged from 29-38% for surgical treatment and from 13-19% for non-operative management [39].
Systemic anticoagulation is of uncertain value, because it is associated with extrahepatic portal vein hypertension (25%), transmural bowel infarction (18%) and an elevated risk of bleeding [40]. In recent years, catheter-directed thrombolysis, combined with local anticoagulation and endovascular thrombectomy, has been introduced as a minimally invasive treatment option to dissolve thrombus and rapidly restore SMV flow. This procedure may be performed directly (percutaneous transhepatic and transjugular intrahepatic), or indirectly, via an SMA approach [15]. Nevertheless, endovascular therapy in MVT carries a significant risk of complications and, although it can be life-saving in cases of severe ischemia (intense pain, bowel swelling and edema), the management should usually be stepwise, starting with low-molecular-weight heparin or heparin infusion, and followed by endovascular procedure if the patient’s condition does not improve or deteriorates [39,40].
Aspiration thrombectomy, combined with angioplasty and/or stenting, is more frequently used as a secondary treatment. Rapid thrombus dissolution can be achieved by transjugular intrahepatic portosystemic shunt to create a low-pressure runoff in patients with acute superior mesenteric venous thrombosis, ascites or coagulation disorder [17].
Early detection is crucial for a correct endovascular or combined approach.
Emergent laparotomy is imperative with evidences of transmural bowel infarction and peritonitis [15]. In patients with no evidence of bowel infarction or perforation, transcatheter thrombolysis and aspiration thrombectomy may be proposed. Laparoscopic examination may be performed after initiation of thrombolytic therapy. This treatment option decreases the risk of short-bowel syndrome due to extensive bowel resection and unnecessary laparotomy, which is a bad prognostic factor in compromised patients.
On the basis of the heterogeneity of the studies published, the indications for the combination of systemic anticoagulation and loco-regional thrombolysis are not easily deduced; bleeding complications (encephalic, gastrointestinal tract, etc.) were observed more frequently in patients who underwent systemic anticoagulation after previously being treated with endovascular thrombolysis. Literature data and clinical practice show that the indication for systemic anticoagulation usually depends on the causes of the acute event (embolic or not) and in some cases it is not possible to avoid systemic therapy and its risks. In these patients (usually compromised and at high risk for further therapies) endovascular therapy represents a life-saving treatment [41]. Mortality is reported in almost all the articles examined, but the causes of death are not always indicated. Selection bias in the patient populations influences the mortality rate, which varies from center to center. There are no treatment protocols or international guidelines for AMI. Considering the low incidence, as well as the constant evolution of therapeutic techniques, it is hard to conduct a large-scale, randomized, controlled trial.
In conclusion, the analysis of the data presented here proves the feasibility of the endovascular procedures with encouraging results. Most of these studies show lower bowel morbidity and lower mortality after endovascular therapy compared with open surgery. In the future, more studies are necessary to assess long-term outcomes and to outline detailed indications regarding the type of treatment (thromboaspiration and/or thrombolysis) and association with systemic therapy.
What is already known:
-
Feasibility of endovascular treatment in acute bowel ischemia has been reported in the available literature
What the new findings are:
-
Endovascular therapy in acute mesenteric ischemia shows high technical and clinical success rates with few complications
-
No treatment has proven superiority over the rest in acute mesenteric ischemia
-
No superiority of a treatment compared to another is still showed
