Percutaneous endoscopic colostomy: a useful technique when surgery is not an option

Gloria Tun, Dominic Bullas, Ayman Bannaga, Elmuhtady M. Said

Barnsley Hospital NHS Foundation Trust, South Yorkshire, UK

Department of Gastroenterology and Endoscopy, Barnsley Hospital NHS Foundation Trust, South Yorkshire, UK

Correspondence to: Dr Elmuhtady M. Said, MB BS, MRCP (I), FRCP (Glasg), FEBGH, Consultant Gastroenterologist, Department of Gastroenterology, Barnsley General Hospital NHS Foundation Trust, Barnsley, S75 2EP, South Yorkshire, UK, Tel.: +44 1226 730000, Fax: +44 1226 437215, e-mail: drsaid@doctors.org.uk
Received 18 April 2016; accepted 9 May 2016; published online 10 June 2016
DOI: http://dx.doi.org/10.20524/aog.2016.0058
© 2016 Hellenic Society of Gastroenterology

Abstract

Percutaneous endoscopic colostomy (PEC) is a minimally invasive endoscopic procedure that offers an alternative treatment for high-risk patients with sigmoid volvulus or intestinal pseudo-obstruction who have tried conventional treatment options without success or those who are unfit for surgery. The procedure acts as an irrigation or decompressing channel and provides colonic ‘fixation’ to the anterior abdominal wall. The risk of complications highlights the importance of informed consent for patients and relatives.

Keywords: Colostomy, volvulus, intestinal pseudo-obstruction

Ann Gastroenterol 2016; 29 (4): 477-480


Introduction

Percutaneous endoscopic colostomy (PEC) is a minimally invasive procedure usually recommended for high-risk patients not candidate for surgical intervention as an alternative. The procedure was first described in 1986. Since then it has been more widely practiced although there is scarce literature regarding technique, efficacy and safety. National Institute of Clinical Excellence (NICE) latest guidelines were published in 2006. They state “current evidence on the safety and efficacy of PEC appears to be adequate to support it in elderly and frail patients with recurrent sigmoid volvulus and colonic motility problems provided that the normal arrangements are in place for audit and clinical governance” [2]. The procedure acts as an irrigation or decompressing channel or, via direct traction and secondary fibrosis, provides colonic ‘fixation’ to the anterior abdominal wall [3].

Herein we describe describe 2 case histories to highlight the preparation, method and technique and propose a check list for the procedure (Table 1).

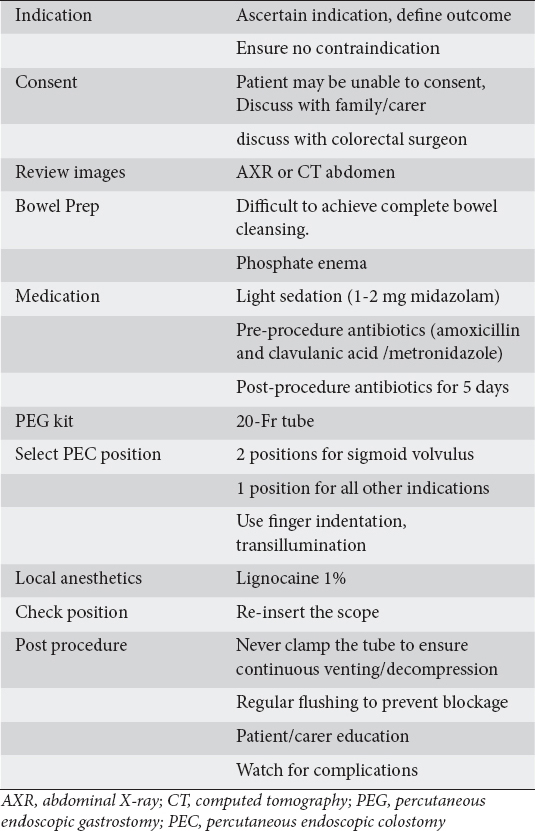

Table 1 Percutaneous endoscopic colostomy checklist

thumblarge

Case history 1

A 75-year-old female with multiple sclerosis was admitted with abdominal pain, distention and diarrhea (Fig. 1A). Following abdominal X-ray (Fig. 2) and surgical review she was diagnosed with intestinal pseudo-obstruction. PEC was recommended to decompress the abdomen and releive the pain. The procedure was performed under light sedation of 2 mg of midazolam. A single dose of intravenous antibiotics was given (amoxicillin and clavulanic acid). The abdomen was prepped with aqueous Betadine.

thumblarge

Figure 1 (A) Abdominal distension in intestinal pseudo obstruction. (B) Percutaneous endoscopic colostomy is inserted in one position to facilitate decompression

thumblarge

Figure 2 Abdominal X-ray: Distended bowel loops in intestinal pseudo obstruction

The colonoscope was introduced to the hepatic flexure and then withdrawn to the level of proximal descending colon. Trans-illumination was performed with the lighted tip of the endoscope pressing outward against the abdominal wall to identify point of insertion. Local anesthetic was infiltrated into the skin and the sheath. Using the percutaneous endoscopic gastrostomy (PEG) kit, a needle was used to enter the colon under direct vision. The wire was grasped by a snare (Fig. 3). A 20-Fr PEG tube was then pulled and trailed into the colon and out through the abdominal wall (Ponsky technique). The position was checked by reinsertion of the colonoscope (Fig. 4).

thumblarge

Figure 3 The wire was grasped by a snare

thumblarge

Figure 4 The position was checked with the colonoscope

Case history 2

A 91-year-old male was admitted with abdominal pain and distention (Fig. 5A). Computed tomography scan of the abdomen (CT) confirmed sigmoid volvulus (Fig. 6). The patient was deemed not fit for surgery (sigmiodoplexy) and PEC recommended to fix and decompress the colon. Initial preparations were similar to case 1.

thumblarge

Figure 5 (A) Abdominal distension in sigmoid volvulus. (B) Percutaneous endoscopic colostomy inserted in 2 positions to fix the colon and prevent further twisting

thumblarge

Figure 6 Computed tomography scan abdomen of sigmoid volvulus

The colonoscope was introduced to the ascending colon then withdrawn to proximal limb of the volvulus (Fig. 7). Transillumination was performed to identify the first point of insertion. Local anesthetic was infiltrated into the skin and the sheath. A 20-Fr PEG tube was then pulled and trailed into the colon, through the abdominal wall (Ponsky technique).

thumblarge

Figure 7 The two limbs of sigmoid volvulus

The colonoscope was further withdrawn to the distal limb of the volvulus. Transillumination was performed to identify the second point of insertion. Another 20-Fr PEG tube was inserted through the abdominal wall.

Discussion

PEC offers an alternative treatment for high-risk patients who have tried conventional treatment options without success or those who are unfit for surgery. Indications for the procedure include: fixation of the colon in recurrent sigmoid volvulus [4]; intermittent or continuous decompression of colonic pseudo-obstruction/megacolon [5]; and antegrade distal colonic and rectal irrigation/enema in some cases of evacuatory disorder or constipation not responding to other treatment options [6].

There is no clear guideline about the number of PECs to be inserted per individual. For patients with sigmoid volvulus, we recommend that the PEC is inserted in two locations, preferably on both limbs of the volvulus to fix the colon and prevent further “twisting” of the bowel (Fig. 5B). For patients with all other indications, a PEC is inserted in one position, proximal left colon, to provide irrigation or decompressing channel (Fig. 1B).

Contraindications include: failure of transillumination; anterior abdominal infection and sepsis; colonic ischemia; and mechanical intestinal obstruction. Patients and/or their parents should be fully informed about the potential risk of peritonitis, the most serious complication associated with PEC [7-9]. This carries significant mortality as the patients for whom the procedure is used for are often elderly and frail and, in most, deemed unfit for surgery. The risk of complications can be as high as 42% [7] and range from local infection, pain at PEC site, PEC leakage, granuloma formation, buried internal bolster, and tube erosion [2,7-9]. Local infections, if not responsive to conservative treatment with antibiotics may need removal of the PEC tube. Delayed complications can occur with one case report described peritonitis 2 months after PEC insertion due to traction injury to the bowel wall leaving a hole in the colon, which allowed fecal spillage [7].

The risk of complications highlights the importance of informed consent for patients and relatives. However, despite the risk of complications, PEC offers an effective treatment option for patients who otherwise would require repeat hospital admissions, multiple endoscopic decompressions (in the case of sigmoid volvulus) and in whom the conditions themselves and surgery carry significant mortality.

References

1. Ponsky J, Aszodi A, Perse D. Percutaneous endoscopic cecostomy: a new approach to nonobstructive colonic dilation. Gastrointest Endosc 1986; 32:108-111.

2. National Institute of Clinical Excellence; Interventional procedure guidance (IPG). Percutaneous endoscopic colostomy [Internet]. 2006. Available from: www.nice.org.uk/IPG161

3. Baraza W1, Brown S, McAlindon M, Hurlstone P. Prospective analysis of percutaneous endoscopic colostomy at a tertiary referral centre. Br J Surg 2007; 94:1415-1420.

4. Daniels IR, Lamperelli MJ, Chave H, Simson JNL. Recrrent sigmoid volvulus treated by percutaneous endoscopic colostomy. Br J Surg 2000; 87:1419.

5. Heriot AG, Tilney HS, Simson JNL. Percutaneous endoscopic colostomy for obstructed defaecation. Dis Colon Rectum 2002; 45:700-702.

6. Gauderer MW, Decou JM, Boyle JT. Sigmoid irrigation tube for the management of chronic evacuation disorders. J Pediatr Surg 2002; 37:348-351.

7. Bertolini D, De Saussure P, Chilcott M, Girardin M, Dumonceau JM.Severe delayed complication after percutaneous endoscopic colostomy for chronic intestinal pseudo-obstruction: A case report and review of the literature. World JGastroenterol 2007; 13:2255-2257.

8. Khan A, Ullah S, Beckly D, Oppong C. Percutaneous endoscopic colostomy (PEC): an effective alternative in high risk patients with recurrent sigmoid volvulus. J Coll Physicians Surg Pak 2013; 23:806-808.

9. Cowlam S, Watson C, Elltringham M, et al. Percutaneous endoscopic colostomy of the left side of the colon. World J Gastroenterol 2007; 13:2255-2257.

Conflict of Interest: None
