Optimizing bowel preparation for colonoscopy: a guide to enhance quality of visualization

Optimizing bowel preparation agents

Many bowel preparations agents are available today. These agents are shown in detail in Table 1. Bowel preparation agents may be classified by multiple ways, including volume administered (low-volume versus high-volume), osmolarity (isotonic versus hypoosmotic versus hyperosmotic), or main active ingredient (PEG, sodium picosulfate, sodium phosphate [NaP]).

Table 1 Types of colon cleansing agents available

Over the past decade, the volume of preparation seems to be the focus as patients complain about drinking an entire 4 L or 1 gallon of PEG with electrolytes (PEG-ELS). This volume issue has been challenging and has led to the use of low-volume (2 L) of PEG-ELS with an adjunct, such as senna, magnesium citrate, magnesium sulfate, magnesium oxide, mannitol, enema, olive oil, castor oil, bisacodyl, cisapride, domperidone, ascorbic acid, alverine citrate, lubiprostone, simethicone, probiotic, metoclopramide, mosapride, simethicone, or sodium ascorbate [1,13-16]. Large-scale randomized controlled trials have compared low-volume preparations to 4 L PEG-ELS with little to no head-to-head comparisons. A meta-analysis of six randomized controlled trials comparing low-volume PEG-ELS and bisacodyl to 4 L PEG-ELS showed no difference in efficacy but did reveal improvement in side effects [15]. Another meta-analysis of nine randomized controlled trials comparing low-volume PEG-ELS and ascorbic acid to traditional 4 L PEG-ELS demonstrated similar bowel preparation efficacy but no difference in side effects [16]. Furthermore, most of these adjunctive agents have not gained widespread use due to side effects. Bisacodyl can cause abdominal cramping [17] and ischemic colitis, especially dose of ≥ 10 mg [18,19]. Magnesium citrate is contraindicated in patients with renal failure with isolated case reports of inducing ischemic colitis [20]. Low-volume PEG-ELS with ascorbic acid cannot be administered to patients with glucose-6-phosphate deficiency as the accompanying ascorbic acid can induce hemolysis [21]. Besides volume, osmolarity also plays a major role.

PEG-based preparations are isosmotic, being osmotically balanced with non-fermentable electrolytes. PEG-based solutions have an excellent safety profile with the minimal electrolyte shifts, making it favorable to be used most commonly. PEG-ELS is the favored colonic preparation for inflammatory bowel disease patients as it does not induce histologic changes in the colonic mucosa [22]. However, approximately 15% of the patient population being administered PEG-ELS are unable to tolerate it due to unpleasant taste, large volume, or nausea [23]. PEG-ELS solutions have a large volume that can predispose the patient to abdominal fullness and cramping, aspiration pneumonia in rare instances, colitis, pancreatitis [24], and Mallory-Weiss tears from forceful vomiting [25]. Therefore, other preparations have been conceived to limit the negative qualities of PEG-ELS. Miralax (PEG 3350 without electrolytes) (Merck, New Jersey, USA) mixed with Gatorade (a sports drink) (PepsiCo, Illinois, USA) is one of these preparations that is commonly used.

Miralax-Gatorade is a bowel preparation with a lesser volume. However, when PEG 3350 powder without electrolytes (Miralax) is mixed with 64 ounces of a sports drink (Gatorade), the result is a hypoosmotic solution [26]. At this time, despite its common use around the United States, this solution is not Food and Drug Administration (FDA)-approved for colonoscopy preparation. Furthermore, a meta-analysis of five randomized controlled trials in 2014 revealed the Miralax-Gatorade preparation was inferior to PEG-ELS in satisfactory bowel preparations (OR 0.65; 95% CI: 0.43-0.98; P=0.04) [27]. In addition, isolated cases of hyponatremia have been reported, likely due to electrolyte shifts with the hypoosmotic solution [28-32]. Given these electrolyte shifts, the Miralax-Gatorade preparation is not recommended for patients with congestive heart failure or advanced liver disease with ascites [33]. Due to these issues with electrolyte shifts and hyponatremia, hyperosmotic agents have been studied as well.

Hyperosmotic agents include NaP, magnesium citrate, sodium sulfate, and sodium picosulfate. These preparations act by osmotically increasing intraluminal fluid content resulting in fecal material evacuation. The NaP comes in tablet form with many tablets ingested with ample amount of water or as a solution. It is extremely important that patients maintain adequate hydration while undergoing NaP bowel preparation. The NaP bowel regimen has been shown to be an effective bowel preparation when compared to 4 L PEG-ELS regimen, except for more nausea and vomiting [34]. The safety profile of NaP limits its widespread use. Most notable but rare side effect associated with its use is acute phosphate nephropathy, which is deposition of calcium phosphate crystals in the renal tubules resulting in irreversible kidney damage [35-39]. Acute phosphate nephropathy can occur even in patients with normal renal function and also in patients with preexisting renal disease, especially those who are using diuretics or angiotensin converting enzyme inhibitors. Therefore, this preparation should be avoided in these patients [36,40]. The FDA in the United States has issued a black box warning pertaining to the risk of acute phosphate nephropathy associated with NaP in elderly and patients with preexisting renal disease. Other adverse effects include hyperphosphatemia, electrolyte imbalances, colonic mucosal damage, and grand-mal seizures [41]. Although NaP solution is limited in the United States and Europe [1,5,6], it is still used in Japan and other countries [42-44]. Due to the potential adverse effects of NaP, other sodium derivatives have been evaluated, such as sodium sulfate and sodium picosulfate.

Sodium sulfate is taken as a split-dose with 16 fluid ounces being taken the night before and 16 fluid ounces taken in the morning of the procedure. The total volume of sodium sulfate preparation is 96 fluid ounces, which is mildly less than 4 L PEG-ELS. Unlike Miralax-Gatorade solution, sodium sulfate has not been shown to cause major electrolyte abnormalities or intravascular fluid shifts. However, sodium sulfate has not been fully evaluated in patients with significant co-morbidities including congestive heart failure, renal disease, or cirrhosis. Therefore, it is best to avoid this preparation in these patients [45]. On the other hand, the newest agent in the hyperosmotic category is a combination of sodium picosulfate and magnesium oxide, a lower volume preparation of a total of 74 fluid ounces. Sodium picosulfate acts as a stimulant laxative while magnesium oxide acts as an osmotic agent with resulting cathartic effect on the bowels. Efficacy in terms of bowel cleansing is comparable to NaP and PEG-ELS [46,47]. Electrolyte abnormalities (severe hyponatremia) have been reported in the elderly with use of sodium picosulfate and should be used very cautiously in this patient population [48,49].

Finally, magnesium citrate is a relatively inexpensive osmotic laxative but data on its efficacy as a standalone colonoscopy preparation is lacking. Although not a routine first-line bowel preparation in Europe and the United States, it is commonly used in Japan, South Korea, and other countries as a single bowel preparation agent or combined with sodium picosulfate [50-52]. It should be avoided in patients with renal insufficiency as magnesium is excreted through the kidney. Resulting magnesium toxicity may induce bradycardia, hypotension, nausea, and death [53].

Many options are available for bowel preparations. As mentioned, each option has its positives and negatives and must be customized for the specific patient population to optimize the quality of bowel preparation. For the most part, PEG-ELS seems to be the most utilized based upon fewest population restrictions due to its isosmotic properties and overall efficacy. However, the large volume is difficult for patients to drink, leading to increased use of low-volume bowel preparations. The days of one size fits all bowel preparation, although easy, are likely over. In Japan, it is not uncommon to add a prokinetic agent to the bowel preparation in an effort to minimize abdominal discomfort [54,55]. However, due to side effects of most prokinetic agents and lack of convincing evidence on its benefit to the patient and preparation, this practice is not recommended in the United States and Europe at this time [5,6]. Bowel preparation agent choice must be adjusted to the patient to ensure optimization of the preparation. Whichever preparation the patient and physician decide to use, it is extremely important to effectively evaluate or grade the bowel preparation to improve the quality of preparation over time. By implementing a grading system, bowel preparations may be altered by continuous quality improvement to optimize the efficacy.

Optimizing bowel preparation quality by grading

Bowel cleanliness is an important determinant of a quality of colonoscopy and surveillance interval. This may be the deciding factor in scheduling an interval colonoscopy after an average risk screening colonoscopy for colorectal cancer. Appropriate documentation of the bowel preparation quality for the colonoscopy benefits patients, other endoscopists, and insurance providers when follow-up interval needs to be earlier than expected. Although many scales are evident in the literature (Table 2) [56-63], three validated bowel preparation scoring or grading systems are most commonly used: Aronchick, Ottawa, and the Boston Bowel Preparation scales.

Table 2 Bowel preparation scales in the literature

The Aronchick scale is likely the most used but most subjective bowel preparation grading scale [56]. This scale grades the adequacy of colonic cleansing by describing mucosal visualization of the colon on a five parameter scale: excellent, good, fair, poor, or inadequate. Based on this scale, excellent bowel preparation is defined as a small volume of clear liquid or greater than 95% of mucosal surface seen. A good preparation is having a large volume of clear liquid covering up to 25% of the surface but greater than 90% of mucosal surface is visualized, while fair being the presence of some semi-solid stool that could not be suctioned or washed away but greater than 90% of mucosa seen. A poor is having semisolid stool that could not be suctioned or washed away and less than 90% of surface seen and lastly patient’s with frank solid stool are labelled as having inadequate bowel preparation. A major limitation of the Aronchick scale has high interobserver variability in estimating percentage of mucosal visualization. Also, the scale is based upon visualizing the entire colon, not allowing for individually segments to be judged separately although most endoscopist using this scale grade the preparation according to the poorest preparation area visualized in the colon. Therefore, for more specificity, the Ottawa bowel preparation scale was introduced.

The Ottawa bowel preparation scale which was developed in 2004 [57]. In this scale, the colon is divided into three segments (right, mid and recto-sigmoid). Each section is graded on a scale of 0 to 4 (0 being excellent) with all sections totaling a score of 0-14 (0 being excellent). For each segment, 0 corresponds to an excellent preparation, 1 is suction very little fluid with good visualization, 2 is suctioning liquid to see colon wall, 3 corresponds to the need for washing and suctioning, and 4 represents non-visualization of colon wall. Once the sections are graded, another score is applied to the quantity of fluid which is scored from 0-2, 0 being small amount of fluid, 1 being moderate amount of fluid, and 2 being large amount of fluid. Both the values are then summed and scored out of a total of 14. The Ottawa scale also has a similar limitation as the Aronchick score, with higher interobserver between endoscopists. Also, the Ottawa scale is more complex with no defined agreement on score necessary for overall satisfactory versus unsatisfactory preparation. Lastly, this is the only scoring system that defines the lowest number as a better preparation with all other scales using the higher number as a better preparation, which may lead to confusion among endoscopist. Due to its complexity, other scales have been introduced.

The Boston bowel preparation scale (BBPS) is a validated scale that has demonstrated excellent intra- and interobserver reliability [58,59]. In BBPS, the colon is divided in three segments: Right side, transverse colon, and the left side of the colon. The score is applied after washing the colonic wall and during the withdrawal phase of the colonoscopy. The grading after cleaning, not before, is extremely important and has led to confusion amongst endoscopists with this scale. Each of the three segments is given a score after cleaning of 0 to 3, with 0 being unprepared colon with solid stool, 1 representing portion of the mucosa visualized but other areas not well seen, 2 corresponding to good visualization with minor amount of residual staining with small fragments of stool or opaque liquid, and 3 being entire mucosa visualized with no residual staining, stool, or opaque liquid. The overall score is calculated after adding scores of all three segments for a total of 0 to 9, with 9 representing excellent preparation score. A score of ≥5 seems to be the consensus for adequacy of bowel preparation; however, many endoscopists prefer ≥6 [60,61,64]. A recent study has demonstrated that a BBPS score of 2 or greater in each segment (BBPS of ≥6) is sufficient to detect adenomatous polyps >5 mm and should not affect standard surveillance interval [61]. The BBPS is a widely used score because of its straightforward terminology, easy calculation during colonoscopy, and less inter and intraobserver variability. Furthermore, if training is needed, a training program for the BBPS online may be utilized (http://www.cori.org/bbps/).

Regardless of bowel preparation score used, the scales may significantly help in optimizing bowel preparations for the specified patient population. By using a validated scale and continuous quality improvement, endoscopists may adjust bowel preparations to maximize the efficacy and freely compare to other institutions in area or nationally. Therefore, bowel preparation scores appear to be extremely important in optimizing bowel preparations.

Optimizing bowel preparation for special factors

Many factors may affect the quality of bowel preparation resulting in suboptimal exams, from patient understanding of instructions to co-morbidities affecting bowel transit times. Given these factors, specialization or modification of the bowel preparation may be required.

A common factor is inability of the patient to correctly follow the bowel preparation instructions [65]. Given the research on health literacy, bowel preparation instructions should be written at a level that even children may understand. In the United States, this generally refers to a 5th-grade reading level. By ensuring this, nearly all patients will be able to read and understand the bowel preparation instructions leading to improved bowel preparation scores. To further enhance patient understanding of preparation instructions, many videos are available [66-68]. These educational videos have been shown to significantly improve bowel preparation as well as increase cecal intubation rate and adenoma detection rate [68]. Videos may be available online or made locally at low cost for a specific preparation or patient population. In addition to videos, other patient factors influence bowel preparation.

Many factors have an impact on the optimization of bowel preparation, from co-morbidities to environment [69]. Patient co-morbidities may result in suboptimal bowel preparation such as history of chronic constipation, diabetes mellitus, neurological conditions such as Parkinson’s disease, colonic resection or history of prior abdominal surgeries, and overweight/obesity (defined as body mass index >25 kg/m2) [70-72]. Other factors have also been found to affect quality of preparation, such as later colonoscopy starting time, patient taking bowel preparation as inpatient [70,73], and use of sedatives and hypnotics, especially tricyclic antidepressants [74]. Additional factors have been implicated, including low literacy, single or widowed marital status, Medicaid insurance, hospitalized, and male gender, resulting in a significant number of unsatisfactory bowel preparation for colonoscopy [74-78]. With any of these factors, special attention may be required to optimize the bowel preparation and decrease need for repeat colonoscopy at earlier interval.

The use of videos and recognition of factors influencing bowel preparations will likely improve bowel preparations prior to colonoscopy, reduce unnecessary earlier repeat colonoscopies, and may improve adenoma detection rate with improved visualization. Furthermore, a recent study by Kim et al demonstrated predictive factors for optimizing bowel preparation including <5 h from PEG-ELS consumption to colonoscopy, frequency of defecation >5 times, and completely liquid stool at time of procedure [79]. With predictive factors, optimization of the bowel preparation may be significantly improved. Endoscopists must be mindful of these factors and adjust preparations as needed to optimize the bowel preparation.

Optimizing bowel preparation in special populations

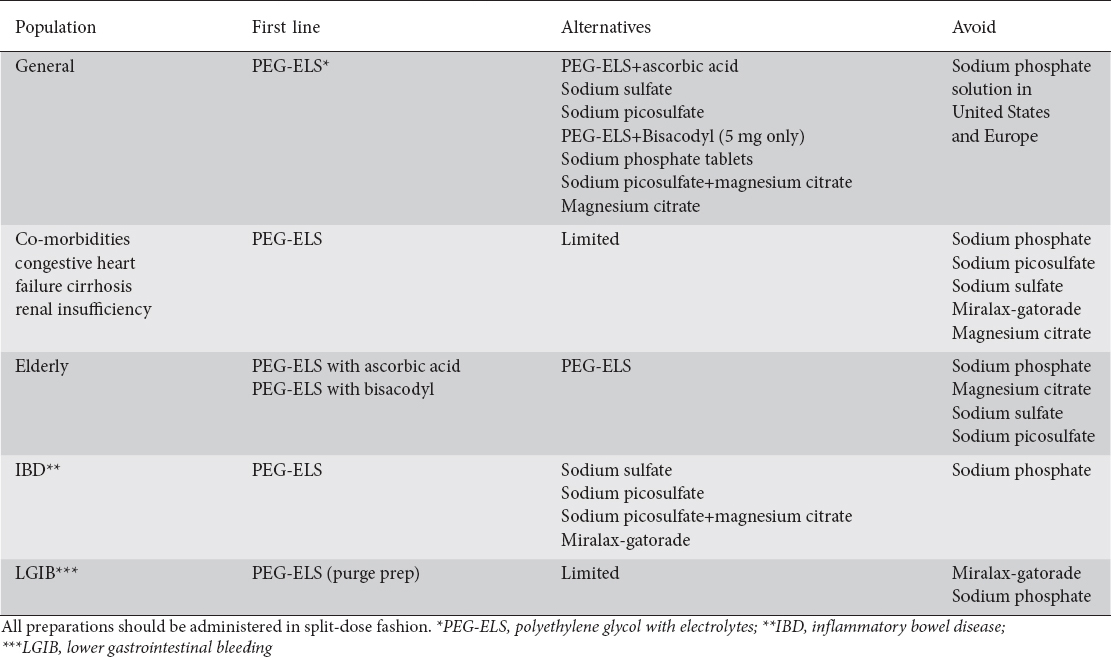

The choice and efficacy of bowel preparation may be heavily influenced by patient factors and co-morbidities. Many special populations may require adjustments in timing and type of bowel preparations. Patients with the following co-morbidities or circumstances usually require modification of the bowel preparation: congestive heart failure, chronic renal disease, inflammatory bowel disease, elderly, and lower gastrointestinal bleeding.

In patients with congestive heart failure or chronic renal disease, the bowel preparation utilized should not result in massive fluid shifts or electrolyte absorption. For these reasons, PEG-ELS seems to the bowel preparation of choice. NaP should not be used due to possibility of phosphate nephropathy [35-39,80]. Furthermore, sodium sulfate preparations have not been studied well in these populations and are generally avoided [41]. Likewise, sodium picosulfate is also avoided in patients with chronic renal disease.

Patients with inflammatory bowel disease are also limited, but not to the extent of those with congestive heart failure or chronic renal disease. In this patient population, the clinician should avoid NaP as it has been shown to potentially cause mucosal damage that may mimic colitis [81]. Other bowel preparations seem to be better.

Elderly patients, 65 years of age or older, have been shown to have poor bowel preparation in up to 19% of colonoscopies [82]. This is due to a variety of reasons but it seems mostly due to the intolerance to drinking a large volume of preparation. In patients 80 years of age or older, approximately 40% report poor tolerance to large-volume bowel preparations [83]. Furthermore, given the prevalence of renal insufficiency in the elderly population, NaP bowel preparations are generally avoided [82]. Therefore, in this population, a low-volume bowel preparation may be ideal.

In patients with lower gastrointestinal bleeding, the bowel preparation also requires some adjustments. Although blood acts as a cathartic laxative, blood coated on the mucosal has been shown to increase incomplete colonoscopies and limit visualization significantly [84,85]. A common practice is what is known as a purge preparations. In this preparation, 4-6 L of PEG-ELS is administered orally or via nasogastric tube (if cannot tolerate oral or unable to drink preparation) over 2-3 h [86,87]. This rapid administration of preparation has been shown to improve the ability to find source and treat bleeding endoscopically [86].

Endoscopists should chose the bowel preparation wisely in these special populations to optimize the efficacy and treatment of these patients. In general, PEG-ELS in split-dose fashion seems to be the safest preparation for most of these populations except in the elderly where low-volume PEG-ELS preparation should predominate.

Optimizing bowel preparation by diet

Practices pertaining to dietary instructions prior to bowel preparation vary globally. In the United States, a clear liquid diet is usually recommended the day prior to the colonoscopy evaluation. This type of restrictive diet is not well liked among patients. Furthermore, the clear liquid diet is difficult to maintain for patients, leading to ingestion of solids foods during the day prior to colonoscopy which, in turn, may decrease quality of bowel preparation. In an effort to improve patient compliance with the dietary restriction prior to colonoscopy, a low-residue diet, rather than clear liquid diet, was introduced and studied.

Multiple studies has evaluated the use a low-residue diet on the day prior to colonoscopy [88-96]. These studies utilized a low-residue diet at various stages of the day, with some having the diet only for breakfast [93], some with breakfast and lunch [92,94,95], one with lunch only [91], and others for the entire day [88-90,96]. Many of these studies showed improved or equivalent bowel preparation quality compared to having a clear liquid diet on the day before colonoscopy. Recently, a meta-analysis was performed on randomized trials comparing clear liquid diet to low-residue diet on the day prior to colonoscopy [97]. This meta-analysis demonstrated that with a low-residue diet prior to outpatient colonoscopy, patients were more willing to have a repeat colonoscopy performed (OR 1.86; 95% CI, 1.34-2.59; P<0.01) and improved tolerability of preparation (OR 1.92; 95% CI, 1.36-2.70; P<0.01) with no differences in quality of bowel preparations or adverse effects [97]. With this new information, liberalizing the diet to a low-residue diet on the day before colonoscopy should be strongly considered to enhance tolerability of preparation while not decreasing overall bowel preparation quality. However, for hospitalized patients, this diet may not be as effective given multiple other factors. In hospitalized patients, a clear liquid diet was noted to be the only dietary modification that improved quality of colonic preparation [73].

The diet on the day prior to colonoscopy does influence the bowel preparation and varies widely throughout the world. In the past, a clear liquid diet has been used in an effort to lower residue in the colon during exam. Based upon new information, a low-residue diet on the day prior to colonoscopy seems to be better for patients and should be utilized more often for outpatient procedures. However, inpatient procedures continue to use a clear liquid diet prior to colonoscopy to optimize the bowel preparation.

Optimizing bowel preparation by timing

The timing of bowel preparation prior to colonoscopy impacts the quality greatly. A shorter interval from completion of bowel preparation to colonoscopy is recommended. It has been reported that the ideal time to colonoscopy after completion of bowel preparation is 3-4 h [98] and should be less than 8 h after completion of bowel preparation [99]. This has led to the concept of split-dosing the bowel preparation.

Split-dose bowel preparation refers to taking a portion of the bowel preparation the night prior to colonoscopy (usually 50%) and the other portion on the day prior to colonoscopy (usually the other 50%). This may be done with nearly all bowel preparations. A meta-analysis of five randomized controlled trials in 2011 compared split-dose PEG-ELS to full-dose PEG-ELS the night before colonoscopy and discovered that by using split-dose PEG-ELS, the number of satisfactory bowel preparations (OR 3.70; 95% CI: 2.79-4.91; P<0.01) and willingness to repeat preparation (OR 1.76; 95% CI: 1.06-2.91; P=0.03) were significantly increased [10]. Furthermore, less nausea and need for discontinuation of preparation were decreased [10]. Since 2011, multiple studies and guidelines have advocated the use of split-dose bowel preparation for any preparation used [1,9-12,100-104]. Given the overwhelming amount of evidence supporting the practice of split-dosing the preparation, split-dosing the preparation should be performed for patients undergoing colonoscopy. However, the timing of the last drink of preparation to beginning of colonoscopy has not been fully addressed. Given the use of sedation medications, the risk of aspiration of bowel preparation contents when consuming the preparation on the same day (as in split-dosing) has induced anxiety among endoscopists and anesthesiologists. New studies have shown that split-dose bowel preparation with last drink of bowel preparation 2-3 h prior to colonoscopy results in similar gastric residual volumes as those with full-dose night before preparations [103,104]. Therefore, split-dosing appears safe with most preferring the last drink of preparation to be 3 h prior to colonoscopy.

Bowel preparation on the same day of colonoscopy is vital in improving the quality of examination. Split-dose bowel preparation has been shown to be superior to full-dose preparation in numerous studies and meta-analyses, which has led to the adoption of this practice in many guidelines. Regardless of the preparation used, splitting the dose will optimize the quality of the bowel preparation.
