Treatment of achalasia in the era of high-resolution manometry

Treatment of achalasia

Because of the unknown pathogenesis of achalasia, a healing treatment is not available nowadays. Palliative treatment options are aimed to reduce the gradient across the LES, relieving the primary symptoms of dysphagia and regurgitation, improving esophageal emptying, and preventing the development of megaesophagus [16]. Treatment modalities include: pharmacological therapy, endoscopic injection of botulinum toxin (Botox), pneumatic dilatation (PD), laparoscopic Heller myotomy (LHM), and peroral endoscopic esophageal myotomy (POEM) [3,4]. No intervention significantly affects esophageal peristalsis and despite therapeutic interventions LES hypertonicity returns overtime, requiring repeated procedures [2].

Pharmacological therapy

Pharmacological management usually has a minor role in the treatment of esophageal achalasia because is the least effective option [17]. The two most commonly used pharmacological agents are nitrates and calcium channel blockers. Nitrates inhibit normal LES contraction by increasing nitric oxide concentration in smooth muscle cells, which, in turn, increases cyclic adenosine monophosphate levels promoting muscle relaxation. Wen et al in a recent review identified only two randomized studies assessing the success of nitrates in the treatment of achalasia. They concluded that no solid recommendations could be given [18]. Calcium antagonists block calcium entry and hence esophageal muscle contraction. Nifedipine, in sublingual doses of 10-20 mg, 15-30 min before meals is the most used oral drug for achalasia. It inhibits LES contraction and decreases his resting pressure up to 60% [17]. The clinical response is of short duration because drug tolerance develops rapidly; symptoms improvement is incomplete and side effects such as headache, hypotension and leg edema are common limiting factors in their use. Thus, these drugs are commonly reserved for patients who cannot or refuse to undergo other more invasive therapies and for those in whom Botox has failed [2].

Endoscopic injection of Botox

Botox is a biological neurotoxin derived from Clostridium botulinum that causes paralysis of both voluntary and involuntary muscles by blocking the release of acetylcholine from the nerve terminal endings. Its action persists for 3 to 4 months on average [19]. There are five commercial formulations of Botox with varying potencies. The majority of the studies report the use of Botox (Allergan Inc., Irvine, California, USA) and studies comparing Botox and Dysport (Ipsen Pharma, Boulogne-Billancourt, France) described similar clinical outcomes as far as the dose is adjusted according to the variable potency of the different formulations [20]. Botox A is injected at a dose of 80-100 U in four quadrants just above the Z line into the LES through a sclerotherapy needle during an upper gastrointestinal endoscopy. Botox injection is safe with only minor complications such as transient pain (25% of the patients) and reflux symptoms (less than 5%). Serious side effects such as mediastinitis and allergic reactions related to egg protein are rare. Doses higher than 100 U have not been proven to be more effective [21,22]. More than 75% of cases have an initial clinical response but the success rate fades rapidly to less than 60% at one year. About 50% of patients relapse and require repeat treatments at 6-24 months after the first treatment [21-23]. Prolonged responses have been reported in older patients with a vigorous manometric pattern [22], however, this may be more akin to the type II pattern associated with panesophageal pressurization by HRM [24]. Five randomized trials comparing Botox injection to PD and one to LHM have shown that there is initially a comparable relief from dysphagia but a rapid deterioration in the group of the patients treated with Botox injection after 6-12 months [23,25-29]. Additionally, serial Botox injections are more expensive than PD [16]. There is some evidence that multiple Botox injections into the LES could affect the results of a subsequent surgical myotomy [25]. Considering these limitations, the use of Botox injections should be restricted to elderly patients and those with comorbidities who are not candidates for PD and LHM.

PD

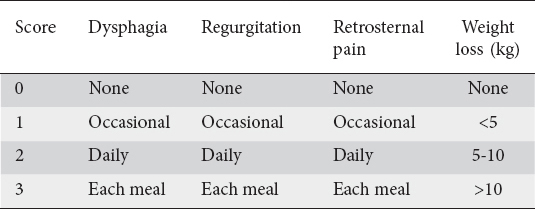

PD of the LES is considered the most effective nonsurgical treatment for achalasia [30]. PD uses air pressure to dilate intraluminally and disrupt the circular muscle fibers of the LES. The most commonly used dilator is the Micro-invasive Rigiflex Balloon system (Boston Scientific Corp, Boston, Massachusetts, USA). These balloons are available in three diameters (30, 35 and 40 mm) mounted on a flexible catheter placed over an endoscopic guidewire. Under sedation and under fluoroscopic guidance the balloon is positioned across the LES and gradually inflated until the waist is planed, using 7-15 psi of air, held for 15-60 sec [16]. The actual protocol varies across centers [13]. The most used protocol is a graded dilatation starting with a 30 mm balloon and subsequent dilations spaced over variable time intervals (2-4 weeks) on the basis of clinical symptom relief (Eckardt symptom score) or repeat LES pressure measurements or esophageal emptying improvement [31-35]. After the procedure the patients should undergo a gastrografin radiograph followed by barium esophagogram to exclude esophageal perforation [36]. However, it is our opinion that radiographic testing with gastrografin or barium should not be performed if the patient has pain and a perforation is suspected. In fact, in this case, gastrografin may increase the diameter of a small esophageal perforation and the resulting mediastinal contamination may make non-surgical management impossible. In such cases, a computed tomography to identify free air might represent a better choice. PD may be performed as an outpatient procedure. Patients without suspicion of esophageal perforation may undergo radiographic testing after an observation of 4-6 h and could be discharged if negative. Patients can return to normal activities the next day. However, patients should be instructed to pursue immediate care if they reveal severe chest pain with or without fever as delayed perforation has been reported possibly related to postprocedure vomiting [2]. Many studies suggest that by using graded dilator approach, good to excellent relief of symptoms is possible in 50-93% of the treated patients [2,37-39]. Richter et al, in a review of nearly 1200 patients from 24 studies with an average follow up of 37 months, reported that PD with Rigiflex balloon resulted in good to excellent relief of the symptoms in 74%, 86% and 90% of patients treated with 30, 35 and 40 mm balloon, respectively. One third of the patients will have a relapse of their symptoms over a 5-year period, however a long-term remission can be achieved in most of the patients by “on demand” repeat PD based on symptom recurrence [40,41]. Predictors of the best clinical outcomes after PD include: age older than 40 years, women, LES pressure after dilatation <10 mmHg and type II pattern by HRM [5,6,12,31,34,42,43]. Thirty three percent of patients experience procedure-related complications, but most of them are minor such as chest pain, bleeding, aspiration pneumonia, fever, esophageal hematoma, and mucosal tear without perforation [44]. The most serious complication associated with PD is esophageal perforation with an overall median rate in experienced hands of 1.9% (range 0-16) [31,34]. Conservative therapy with antibiotic and parenteral nutrition may be effective in small perforations and painful deep tears, but surgical repair through thoracotomy is the best approach for large perforations with extensive mediastinal contamination [45]. Most of the perforations occur during the first dilatation. The difficulty of keeping the balloon in an appropriate position seems to be a potential risk factor [46]. Boeckxstaens et al in their achalasia trial reported more perforations, primarily in older patients, when the first PD was performed with a 35 mm versus a 30 mm balloon [6]. GERD may occur after PD in a range of 15-35% of the patients and PPI therapy can improve their reflux-related symptoms [40]. PD is the most cost-effective treatment for achalasia over a 5-10-year follow-up period [47,48].

LHM

The surgical procedure most widely used to treat achalasia is Heller myotomy, first described in 1913 by Ernst Heller and used ever since with a few technical modifications [49]. The two changes that modified the initial Heller procedure are cutting of the anterior side of the cardia muscle fibers only and the association of a fundoplication to reduce the development of GERD [50,51], the most frequent complication after myotomy without fundoplication. The technique evolved initially with a laparotomy approach followed by a successful thoracoscopic approach. However, in 1991 Shimi et al described a minimally invasive technique for LHM that has become the preferred method because of lower morbidity and faster recovery [52,53]. A recent meta-analysis by Campos et al demonstrated that a LHM (3086 patients) improved the symptoms significantly more than the thoracoscopic approach (211 patients) (89.3% vs. 77.6, P=0.048) and reduced the incidence of postoperative GERD (14.9% vs. 28.3%, P=0.03). Campos et al also showed that the addition of an antireflux procedure such as fundoplication on LHM, reduced significantly further the gastroesophageal reflux symptoms (31.5% vs. 8.8%) with a similar therapeutic success [38]. Richards et al demonstrated the benefit of adding a fundoplication on LHM in a double-blind randomized trial comparing myotomy with or without fundoplication [54]. There is less certainty on the type of fundoplication applied to obtain a better outcome. Postoperative dysphagia is significantly higher after a Nissen fundoplication than after partial anterior approach [55]. A recent multicenter randomized controlled trial comparing anterior Dor and posterior Toupet approach suggested that both provide similar control of reflux after LHM [56,57]. Overall, LHM with partial fundoplication is a very safe operation with a mortality rate of 0.1% [4]. Clinical success rates are very high, with a mean success rate of 89% (range 76-100%) at a follow up of 35 months [38]. However, the success rates after 5 years drop to 65-85%, probably as a result of disease progression [58,59]. Younger men (<40 years), a LES pressure greater than 30 mmHg and a straight esophagus (without distal tortuosities) are positive prognostic factors for a successful LHM [60,61]. As for PD, the manometric subtype also affects the success rates of LHM. Patients with type II HRM achalasia pattern have the best outcome [62]. There is no difference in clinical success rates between PD and LHM for patients with types I and type II achalasia, but the type III pattern responds better to surgery than to PD, probably because of the more extensive proximal disruption of the esophageal muscle [42,62]. It is important to be very cautious in patients treated previously with intrasphincteric injection of Botox, as fibrosis can be present at the level of gastroesophageal juction. In these cases, myotomy has an increased risk of mucosal perforation. Portale et al reported that patients who previously underwent Botox injection and PD had less successful outcome in LHM than the patients who had not had such treatments [54,63,64].

The most common complication of LHM is perforation of the esophageal or gastric mucosa (average 6.3%) during the myotomy, usually repaired without clinical consequences [65]. Recurrence of dysphagia usually develops after LHM within 12-18 months. Most often the cause is an incomplete myotomy on the gastric side where the dissection is more complicated, late scarring of the myotomy and an obstructive antireflux wrap [13, 66]. Recurrences after LHM can be treated with success with PD and in case of failure of this with a new LHM [66].

PD versus LHM

At present, PD and LHM are the most effective treatment options for achalasia. The decision of which approach to undertake is difficult because of the lack of a large randomized controlled trial. Campos et al in their review of case series reported an improvement rate of 68% in 1065 patients treated with PD versus an 89% improvement rate of LHM in 3086 patients [38]. In 2006, a cross-sectional study by Vela et al showed similar success rates for PD and LHM. 106 patients underwent PD and 73 patients were treated with LHM. Success rates, defined as regurgitation or dysphagia less than three times per week or no alternative treatments, were 96% for PD group vs. 98% for LHM group at 6 months of follow up. The success rates were decreased to 44% vs. 57% at 6 years [31]. In 2007 Kostic et al performed a randomized controlled trial that compared PD with Rigiflex balloon to LHM with Toupet fundoplication [67]. The results showed a superiority of the surgery procedure, but the limitations were that only 51 patients were studied with a limited follow up of only 1 year [67]. Finally, in 2011 Boeckstaens et al reported the results of the European Achalasia Trial, a prospective randomized clinical trial comparing PD and LHM with Dor fundoplication. 201 patients were randomized to receive either PD with Rigiflex balloon (30 and 35 mm with up to three repeat dilatations) or LHM. Therapeutic success was defined as a reduction in the Eckardt symptom score below 4. After two years of follow up, comparable therapeutic success rates of 86% and 90% were observed for PD and LHM respectively. Both barium emptying and LES pressure improved to similar extents in both groups. Redilatation was performed in 23 of 95 patients (25%). Based on these data, the authors concluded that LHM does not achieve superior rates of therapeutic success compared with PD as primary treatment for achalasia, at least after a mean follow up of 43 months, and, therefore, either one can be recommended as an initial therapy.

POEM

Although the current treatments for achalasia are effective, PD is associated with the necessity of retreatment (25%) and surgical myotomy still requires laparoscopy and dissection of the gastroesophageal junction. Thus, there has been interest in developing a new technique that incorporates an endoscopic approach with principles of natural orifice transluminal endoscopic surgery to perform a myotomy. This technique is termed POEM [68]. A 2 cm longitudinal mucosal incision is made on the mucosal surface to create a mucosal entry to the submucosal space. Then a submucosal tunnel is made to reach the LES and to dissect the circular muscle fibers over a 7 cm esophageal and 2 cm gastric length. Inoue et al studied 17 patients and reported a success rate of 100% and a significant reduction of LES pressure [2,6]. A series of other studies confirmed the high success rate (85-100%) even after several previous PD, even though the follow up was only 6 months [39,69-72]. Moreover, because no antireflux procedure is included in this technique, the risk to develop GERD is up to 46% [39]. Longer follow up and randomized prospective controlled trials with standard LHM and/or PD are needed before accepting POEM as a new treatment option for achalasia.

Self-expanding metallic stents

A few studies have reported the utility of self-expanding metallic stents for the treatment of achalasia. The stents gradually expand at body temperature over 24 h, resulting in more predictable tearing of the cardia muscle, less tissue scarring, and a lower rate of stenosis after the removal of the stent [73,74]. Recently, a prospective randomized study evaluating the long-term efficacy of a partially covered removable metallic stent versus PD was reported from a group in China. Li et al reported a clinical success rate of 83% for the 30 mm stent at 10 years, whereas the success rate for 20 mm stent and PD was 0%. However, the dilatation protocol was less aggressive than the standard technique used in Europe with a maximal diameter of 32 mm [74]. In another, single-center long-term prospective study, Zhao et al reported, using a 30 mm metallic stent, a clinical success rate of >80%. No perforation or mortality was reported, but stent migration occurred in 5% of patients, GERD in 20%, and chest pain in 38.7% [73]. Although these results appear promising, this technique needs to be evaluated more and tested in comparison with the therapeutic protocols of PD and LHM used in Europe and the US.

Endoscopic sclerotherapy

Recently, different studies of Spanish and Iranian investigators reported the use of ethanolamine oleate to treat achalasia [75,76]. Moreto et al performed injections ever 2-4 weeks until dysphagia resolved in 103 patients over the last 20 years. The primary outcome was dysphagia relief. Secondary outcomes were LES pressure, esophagogram, gastroesophageal reflux, and endoscopic ultrasonography. They reported a 90% of cumulative expectancy of being free of recurrence at 50 months [76]. There is skepticism about this procedure because the fibrotic stricture might make more traditional therapies difficult to perform [16].

Future therapies

All the present approaches for the treatment of achalasia are targeting the disruption of the esophagus rather than trying to correct the underlying abnormality and restore the motility function. In view of the fact that the enteric neurons innervating the esophagus and the LES could disappear due to an autoimmune mechanism, theoretically immunosuppressive therapy could be considered to prevent disease progression [77]. However, at the time of diagnosis, the number of neurons is already decreased, leading to significant dysfunction and symptoms. Another experimental study in mice suggested that transplantation of neuronal stem cells might be a future therapeutic option [78]. The neurospheres, as they called the neural stem cells, can be isolated and cultured from mucosal biopsies as proven by Metzger et al. They generated neurosphere-like bodies capable of proliferating and generating multiple neuronal subtypes; when transplanted, they colonized cultured aganglionic human hindgut to generate ganglia-like structures and enteric neurons and glia [79]. Unfortunately, after in vivo transplantation into the mice pylorus these neurosphere-like bodies failed to adopt a neuronal phenotype. Similar findings were reported from other groups. Clearly, more research is required to develop optimized therapies and techniques of stem cell therapy to restore the functional anatomy of the LES.
