Cardiac dysfunction in cirrhotic portal hypertension with or without ascites

Introduction

Cardiomyopathy is derived from the Greek roots: cardia (heart), mys (muscle) pátheia/páthesis (disease), that is, it is a condition affecting the heart muscles. Historically, liver cirrhosis has not been associated with any cardiac abnormalities, despite the fact that a hyperdynamic circulation has been described in patients with cirrhosis more than 50 years ago. Kowalski and Abelmann noted a higher resting cardiac output and decreased systemic vascular resistance in patients with cirrhosis [1]. However these abnormalities were initially thought to be a manifestation of latent alcoholic cardiomyopathy. But later in the mid-1980s, studies in non-alcoholic patients and in experimental animal models showed a similar pattern of blunted cardiac contractile responsiveness [2-4]. Thus these cardiovascular changes are now termed ‘cirrhotic cardiomyopathy’ [5-8]. The main clinical features of cirrhotic cardiomyopathy include baseline increased cardiac output, attenuated systolic contraction or diastolic relaxation in response to physiologic, pharmacologic and surgical stress, and electrical conductance abnormalities (prolonged QT interval). In the majority of cases, diastolic dysfunction precedes systolic dysfunction, which tends to manifest only under conditions of stress. Cardiac response to physical exercise in cirrhotic patients is blunted, with subnormal responses in echocardiographic ejection fraction and contraction time. Moreover, both ventricular systolic and diastolic function are impaired in cirrhosis [6,7,9,10]. Cazzaniga and colleagues demonstrated that the echocardiography measurement of early diastolic and late diastolic annual velocity ratio (E/A), an indicator of diastolic dysfunction measured at 4 weeks after tranjugular intrahepatic portosystemic shunt (TIPS) insertion, was the single independent predictor of survival following this procedure [11]. However conventional Doppler echocardiography (E/A ratio) has limitations and it rarely differentiates normal from pseudo normal patterns. Tissue Doppler Imaging (TDI) is the most sensitive equipment for assessing left ventricular filling dynamics [12]. So, the current study was conducted to evaluate cardiac systolic and diastolic functions in liver cirrhosis patients with portal hypertension by conventional Doppler echocardiography and TDI.

Patients and methods

A total of sixty subjects were enrolled in this cross sectional case control study, conducted at the Department of Gastroenterology Dr Sampurnanand Medical College, Jodhpur over a period of 6 months (February-July, 2013). The study was approved by the ethics committee of the Medical College. After written consent, subjects were counseled and explained about the objectives of the study by a qualified medical doctor. Detailed personal history was taken using a standard questionnaire.

Evaluation of cardiac systolic and diastolic functions in liver cirrhosis patients with portal hypertension conventional was done by conventional Doppler echocardiography and TDI. Inclusion criteria comprised: 1) cirrhotic patients with or without ascites, diagnosis of cirrhosis was based on histopathological evidence (liver biopsy) or unequivocal clinical grounds (chronic liver disease stigmata, jaundice, ascites, esophageal varices), impaired liver function tests and ultrasonographic features consistent with cirrhosis (diffuse alteration and nodular transformation of liver parenchyma, and signs of portal hypertension); and 2) healthy controls. Exclusion criteria comprised: 1) history or clinical evidence of cardiovascular disease; 2) major lung disease; 3) diabetes mellitus; 4) terminal liver failure; 5) tense ascites; 6) major arrhythmias; 7) severe anemia (Hb <7 gm/dL); 8) hepatic encephalopathy; 9) renal failure (serum creatinine >1.5 mg/dL); 10) recent alcohol consumption (<6 months); 11) drugs which may affect the parameters under study as sympathomimetics, nitrates or other anti-hypertensive in past 4 weeks; 12) history or sphygmomanometer evidence of hypertension according to JNC 7 criteria [13].

Results

The present study was conducted in sixty subjects and consisted of three groups of 20 patients each of healthy controls, cirrhosis without ascites and cirrhosis with ascites respectively. All the cases were carefully selected after ruling out exclusion criteria while the presence or absence of ascites was determined with abdominal ultrasonography. The twenty healthy controls were the resident physician and doctors. The pre-ascitic cirrhosis group and the ascitic cirrhotic groups were comparable, except for decreased serum albumin and advanced Child Pugh Turcotte score in the later group (Table 1). The patients selected in the present study had liver cirrhosis of varied etiology, while alcoholic liver disease primary comprised 25% of cases and all of them had abstained from alcohol for more than 6 months. Twenty three patients were already receiving non selective β-blocker (propranalol) for management of portal hypertension and most of the patients had ascites (P=0.03).

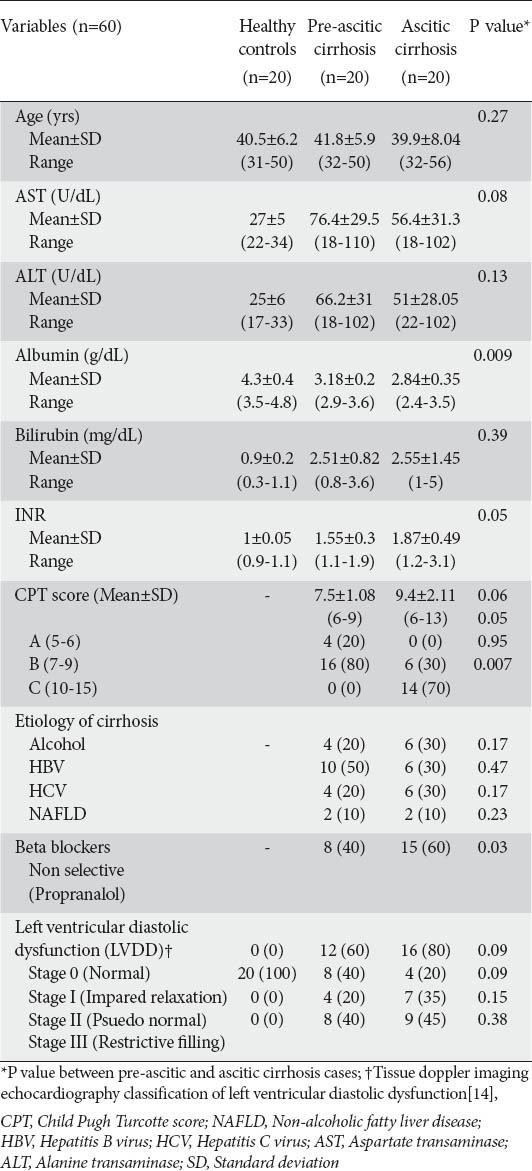

Table 1

Baseline characteristics

Morphological parameters

The cardinal cardiac parameters such as heart rate, mean arterial pressure, ejection fraction and the individual cardiac chamber size were compared between the three groups. There was a significant rise in heart rate and ejection fraction (P value 0.05 and 0.005 respectively) in patients with ascitic cirrhosis as compared to other groups; although no significant fall in mean atrial pressure was seen in cirrhotic patients with ascites (P value 0.14).

Cardiac chamber size was assessed in all the four chambers with the conventional 2-D echocardiography (Fig. 1). Echocardiography was preformed and interpreted in accordance with guidelines set by ASE [16]. All cardiac chambers were seen to be significantly enlarged in cirrhotic patients with ascites (Table 2). Left atrial enlargement was most eminent among the cardiac chamber dimensions (P<0.0001).

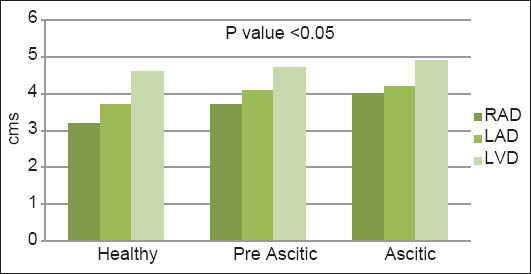

Figure 1

Cardiac chamber dimensions in controls, pre-ascitic and ascitic cirrhosis

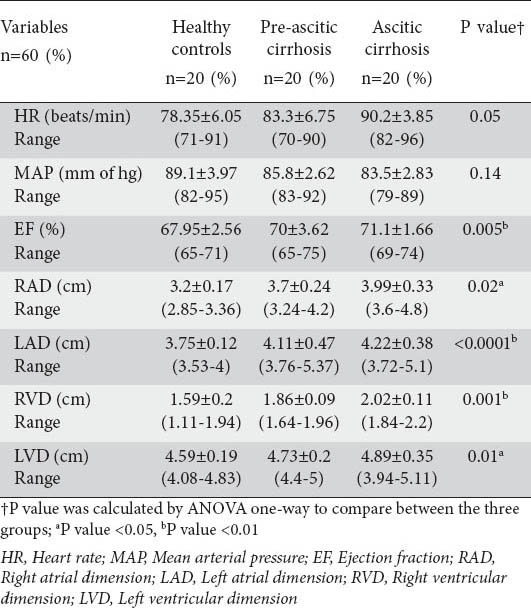

Table 2

Morphological parameters and cardiac chamber volume measurements in control, pre-ascitic and ascitic cirrhotic cases

Conventional 2-D echocardiography

The diastolic parameters evaluated were the early diastolic velocity (E velocity) and the late diastolic velocity (A velocity) in both the mitral and tricuspid annulus. Although an increase in peak systolic velocity (Sm) at both mitral and tricuspid annulus was noted among cirrhotic patients with or without ascites as compared to healthy controls, it was not significant statistically (p value 0.70 and 0.97 respectively). Similarly no significant fall in E/A ratio at both mitral and tricuspid annulus were noted in all the three groups (P value 0.57 and 0.31 respectively) (Table 3).

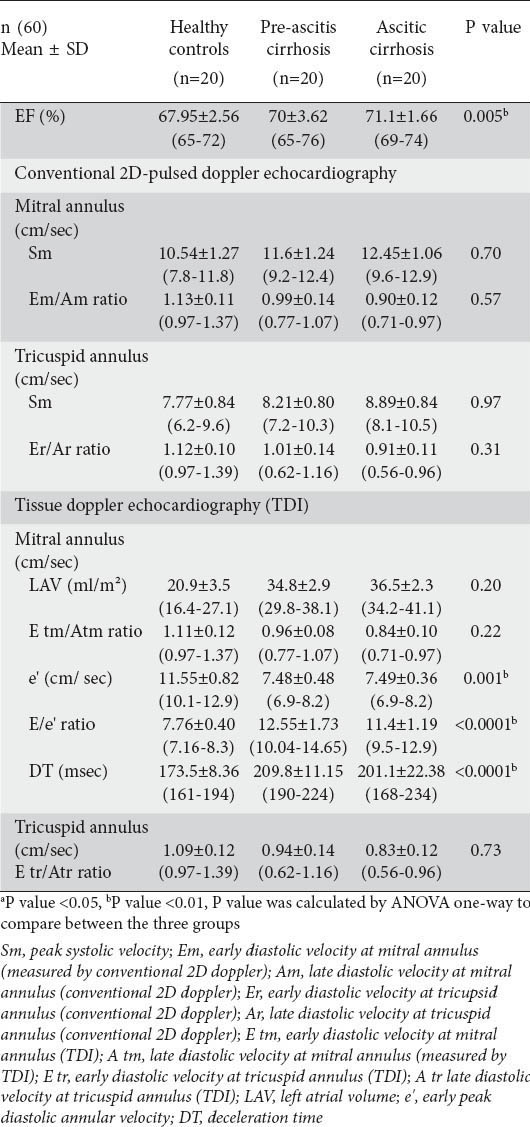

Table 3

Cardiac dimensions in controls and patients with cirrhosis (measured by conventional 2 dimensional (2D)-pulsed and tissue Doppler echocardiography at mitral and tricuspid annulus)

TDI

The left ventricular diastolic dysfunction was assessed using the LAV, E/A ratio, eʹ value, E/eʹ ratio and DT [14].

Overall LVDD was diagnosed in 28/40 (70%) of cirrhotic patients. LVDD was seen as follows healthy controls (0%), pre-ascitis cirrhosis (60%) and ascitic cirrhosis (80%). Eleven patients had Stage I (impaired relaxation) LVDD, while 17 had Stage II (pseudo normal) LVDD (Fig. 2). None of the patents in the study group had Stage III or severe restrictive type LVDD. Most of the cirrhotic patients with ascites had LVDD as compared to cirrhotic patients without ascites but was statistically insignificant (P=0.09). E/eʹ ratio was the most significantly elevated in the cirrhotic patients with ascites as compared to other groups (P<0.0001), whereas there was no significant fall in E/A ratio (P=0.22).

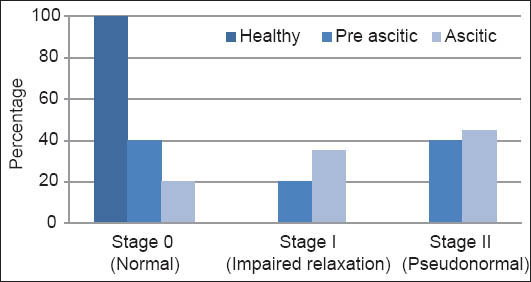

Figure 2

Left ventricular diastolic dysfunction in controls, pre-ascitic and ascitic cirrhosis

Discussion

Our study shows cirrhotic patients with or without ascites has both morphological and functional cardiac dysfunction. Cardiac dimension is enlarged in all the four chambers with increase in ejection fraction in cirrhotic patients with ascites. Type I and II Left ventricular diastolic dysfunction was present in seventy percent of cirrhotic patient with or without ascites. TDI with assessment of LAV, eʹ, E/eʹ and DT can classify the LVDD. While the left ventricular systolic function was preserved in all the studied patients.

Diastolic dysfunction appears to be more prevalent in cirrhotic patients, indeed some authorities contend that some degree of diastolic dysfunction is present in virtually every patients with cirrhosis [17,18]. In most of the studies performed in the recent past, diagnosis of LVDD was based on E/A ratio <1 using 2-D Doppler echocardiography. Valeriano et al also found a similar lower mean E/A ratio in both left and right ventricle in ascitic subgroup than in non-ascitic subgroup [19]. Pozzi et al showed that removal of ascitic fluid by rapid total paracentesis reduced the A wave velocity and increased the E/A ratio to the values similar to those of cirrhotic patients without ascites, but still abnormal as compared to healthy controls [20].

However, E/A ratio have several limitations as it is strongly dependent on preload and often requires age correction [14,21]. Unlike transmitral valve Doppler flow, TDI directly measures the velocity of myocardial displacement as the LV expands in the diastole and therefore is independent of volume status and left atrial pressure. The ASE has included TDI parameters in the definition of LVDD. A recent study by Ruiz del Arbol et al showed LVDD in 37/80 (46.2%) with TDI in cirrhotic patients. They also found LVDD occurs simultaneously with other changes in cardiac structure and function and is associated with an impairment of effective arterial blood volume. LVDD was a sensitive marker of advanced cirrhosis, type 1 hepatorenal syndrome development, and mortality [22].

Our study shows left ventricular diastolic dysfunction is present in most of the cirrhotic patients which was detected by TDI in 70% of cases. This rate is somewhat more than the 50-60% found in recent study conducted by both TDI and Doppler echocardiography [22,23]. Twenty three patients in the current study were already on β-blockers which could have added or aggravated the diastolic dysfunction. Another limitation of the current study was that Valsalva maneuver was not performed during mitral valve flow analysis by TDI, this might have over staged the diastolic dysfunctions in a few of the cases.

The mean peak systolic velocities in both the mitral and tricuspid annulus were comparable in all the three groups, whereas the ejection fraction which was significantly elevated in patients with decompensated cirrhosis as compared to health controls and compensated cirrhosis (P value 0.005). Various studies have shown stroke volume and contractile indices are typically normal or even increased at rest. However, under stressful stimuli such as exercise, renal failure, haemorrhage or drug infusions, cirrhotic patients may show an attenuated systolic function compared to healthy controls [24-26]. In our study systolic dysfunction was not seen, which probably reflects the exclusion criteria used in the current study; as patients with renal failure, tense or refractory ascites and terminal liver failure patient were excluded.

Lengeyl et al studied ninety six patients of various etiologies, and diastolic dysfunction was assessed by TDI and conventional echocardiography. They found that about 1/3rd of the patients could be classified into a diastolic dysfunction pattern only by using TDI [27]. In our study LVDD (Type I and II) was seen in eighty percent of cirrhotic patients with ascites as compared to sixty percent of cirrhotic patients without ascites (p value 0.09). Parameters regarding left ventricular systolic performance were within normal range. Further studies are required to assess the prognostic impact of left ventricular diastolic dysfunction in patients with cirrhosis and the cut off parameter to taper or abandon beta blocker. In conclusion, left ventricular diastolic dysfunction is commonly associated with advancement of hepatic dysfunction while systolic function is maintained till advanced hepatic failure. Peak early diastolic wave velocity, deceleration time and E/eʹ ratio for diastolic dysfunction are accurately assessed by pulsed TDI.
